LED flexible screen (LED soft film group):

◆ H&S-YMZ1.875;  ◆ H&S-YMZ2;
◆ H&S-YMZ2.5;      ◆ H&S-YMZ3;    ◆ H&S-YMZ4,

  • Summary
  • Product Atlas
  • Specification table

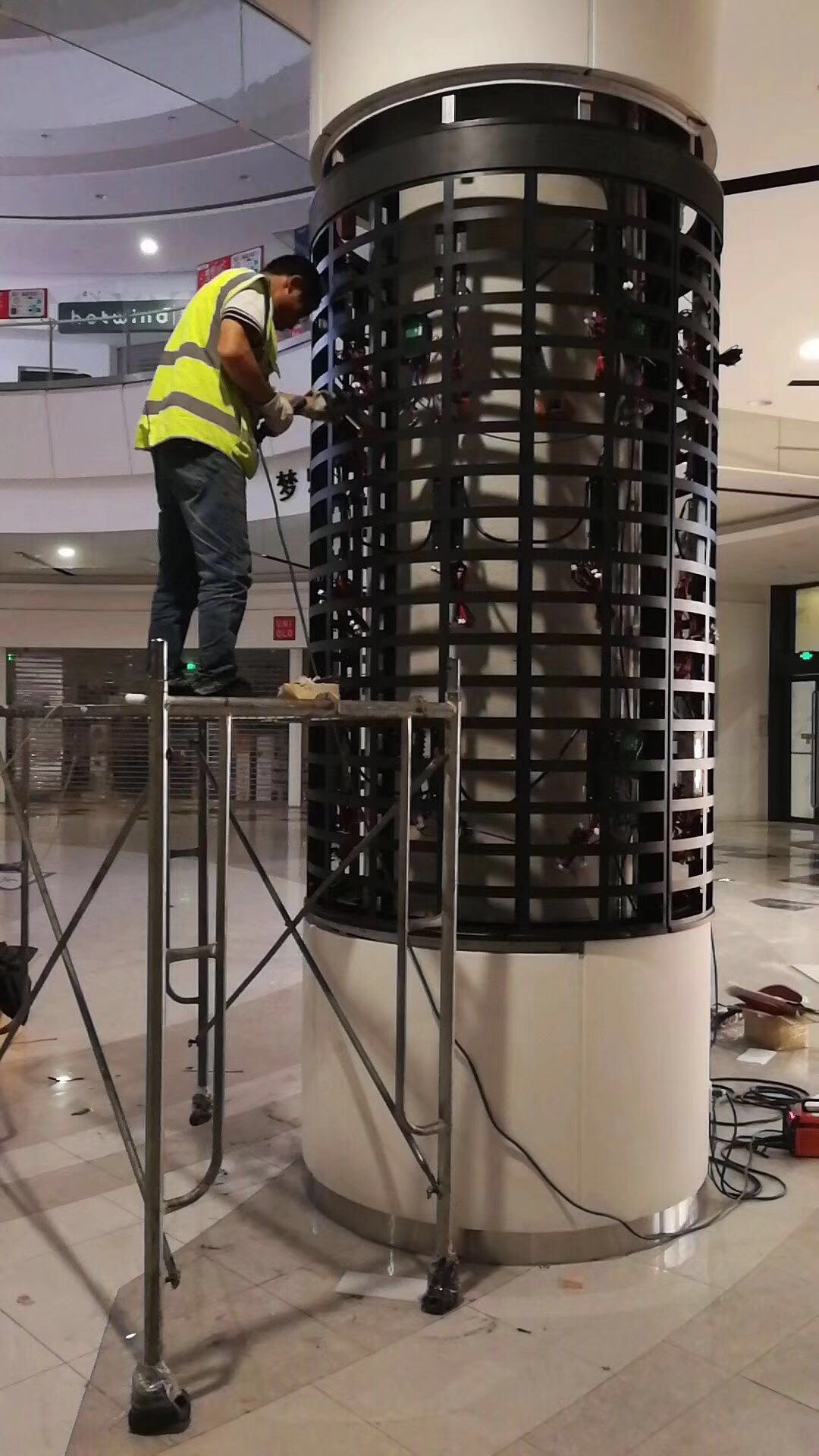

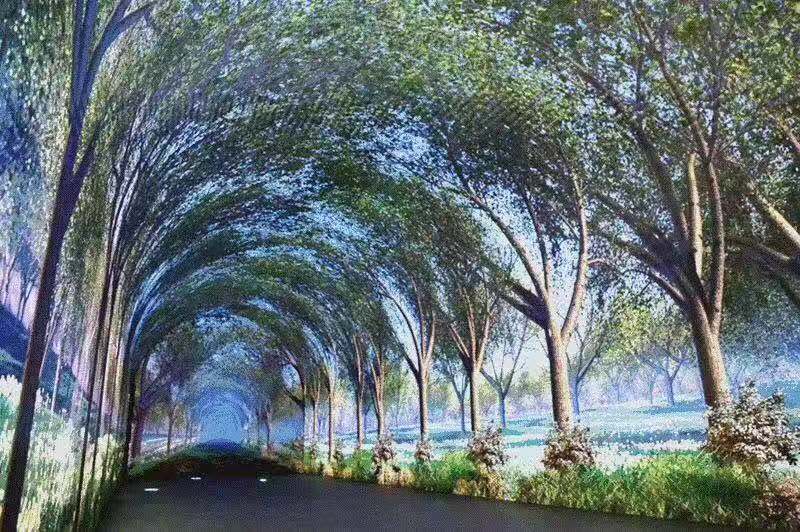

  • Case
  • Summary

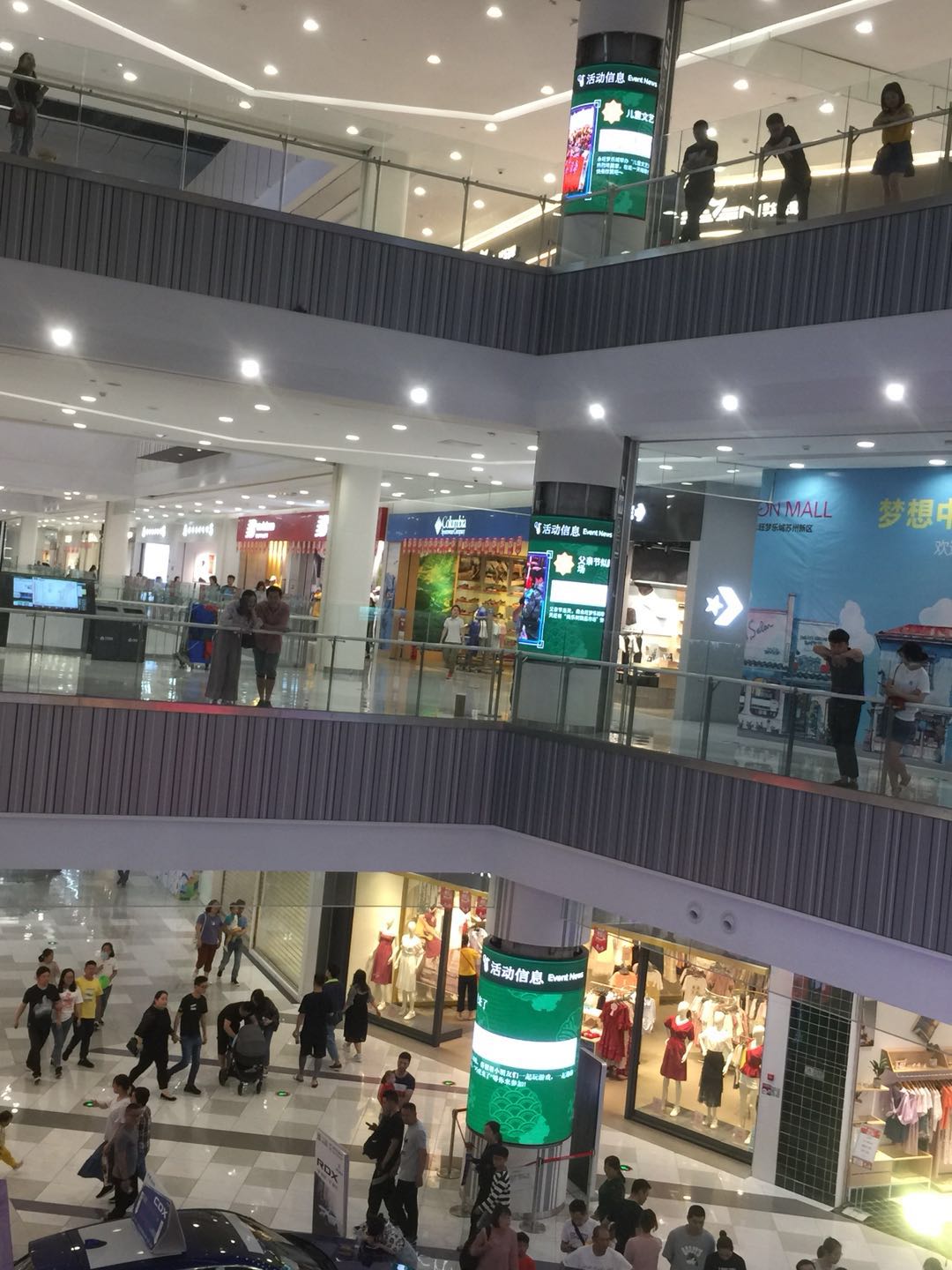

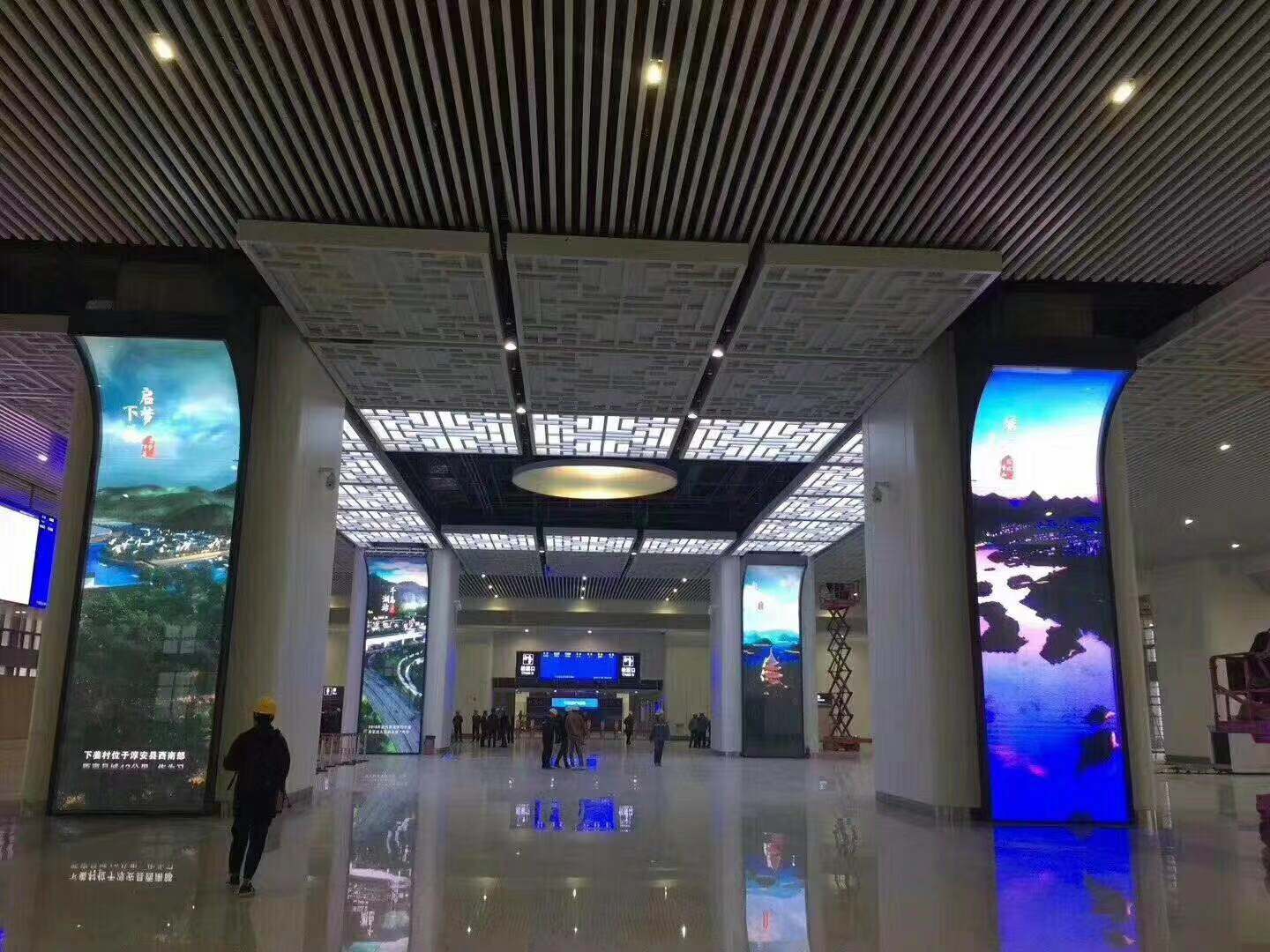

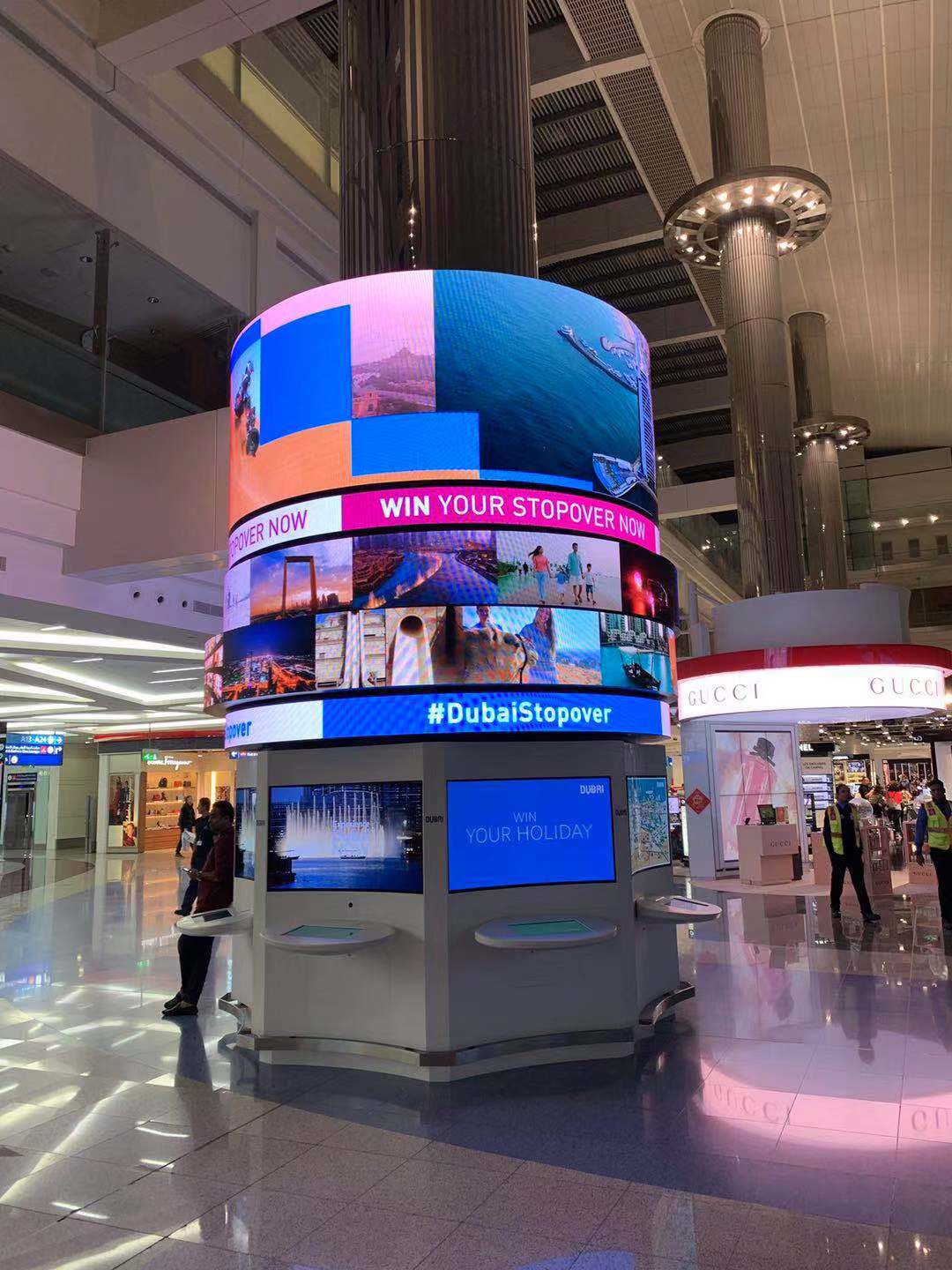

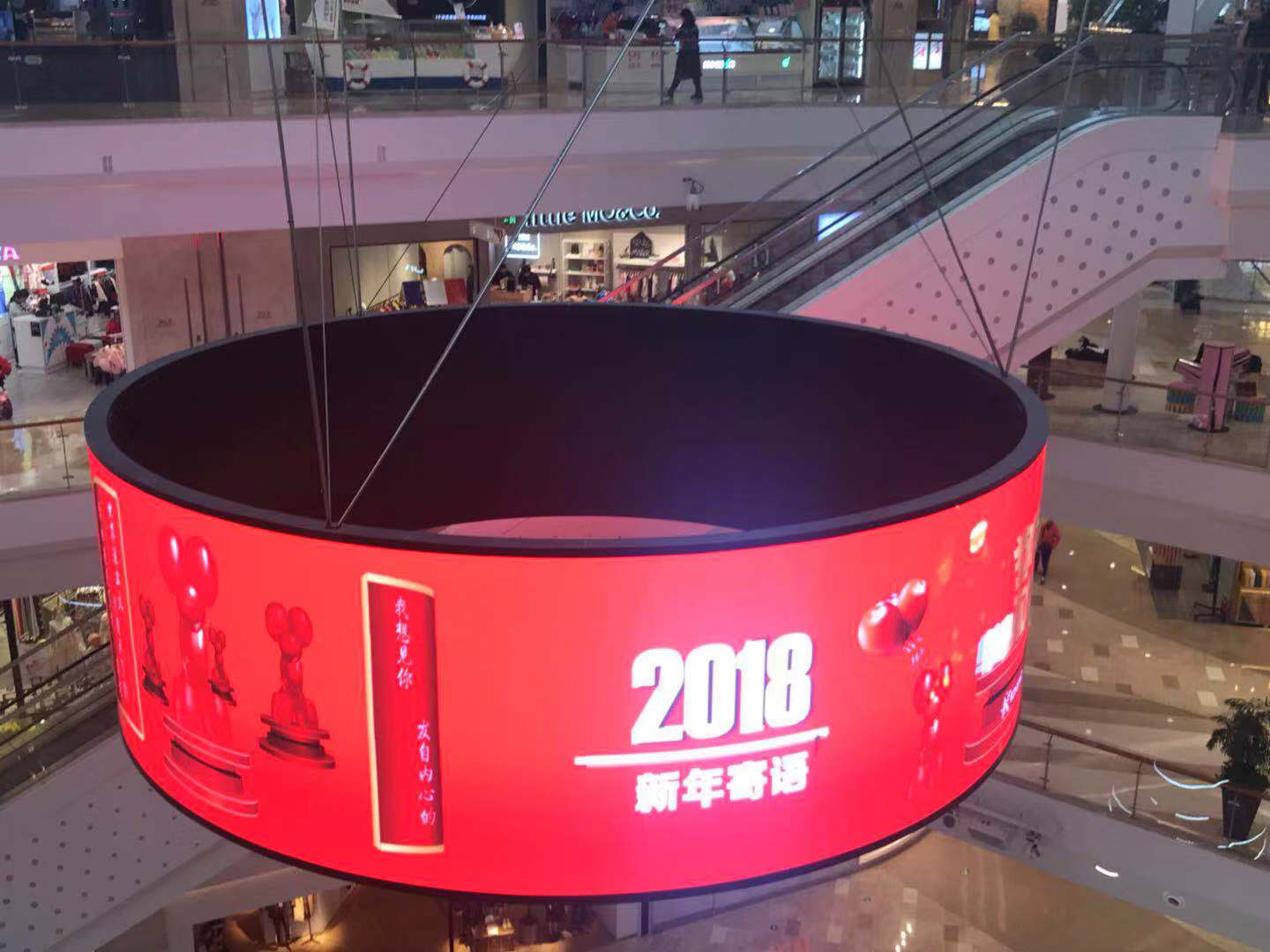

    ● Suitable for shopping malls, bars, stage backgrounds, exhibition halls, planning exhibition halls, etc.

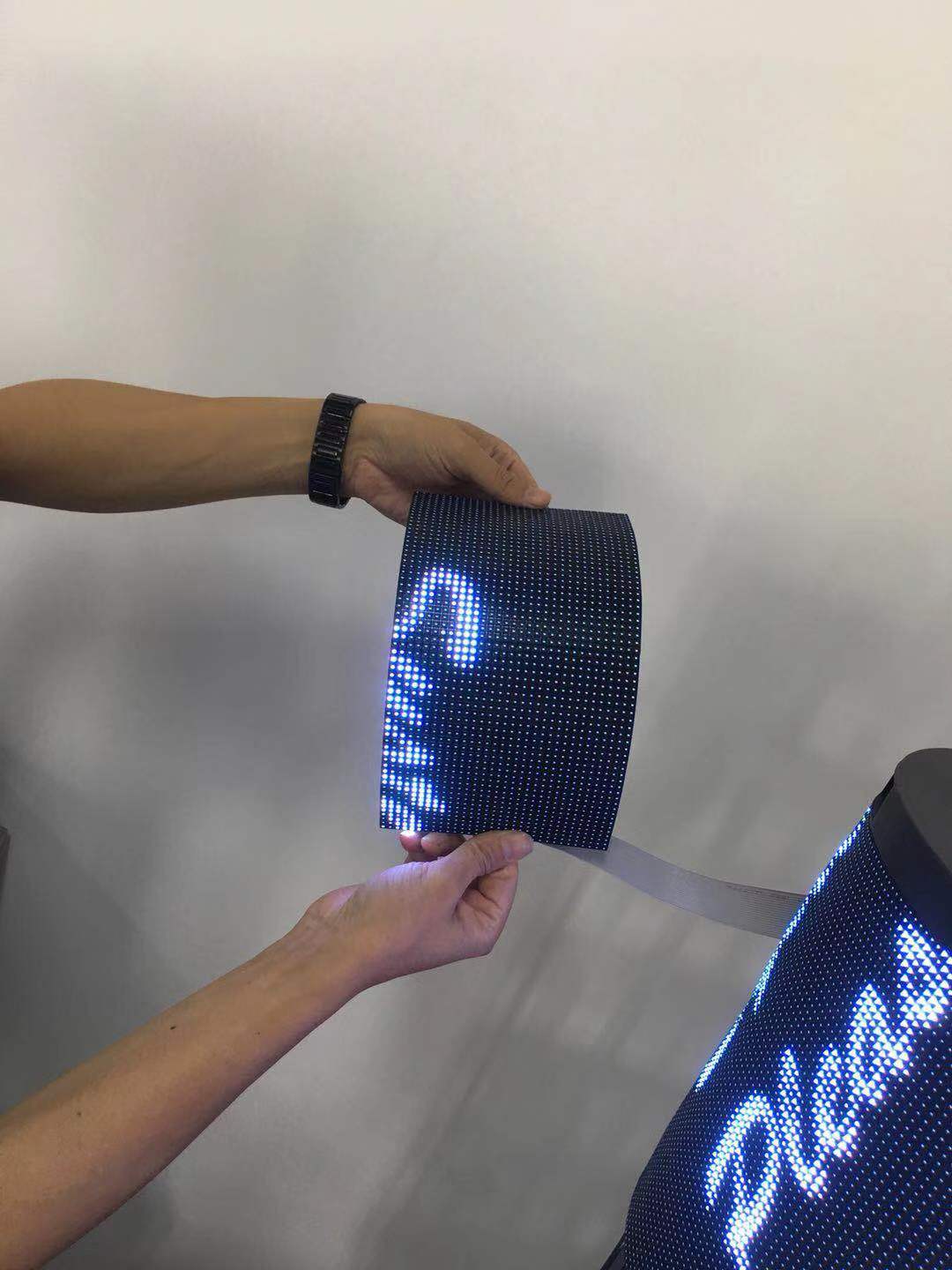

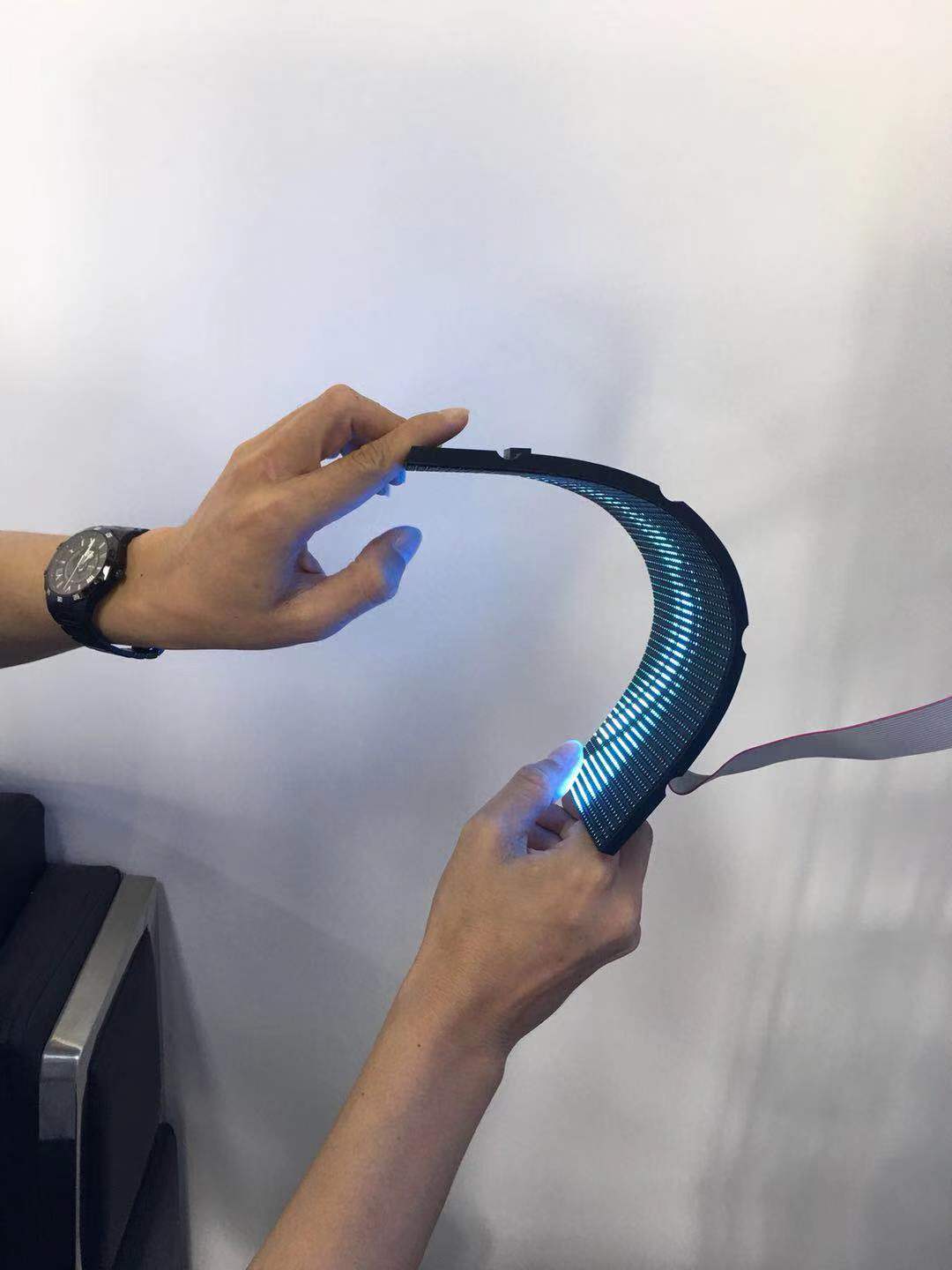

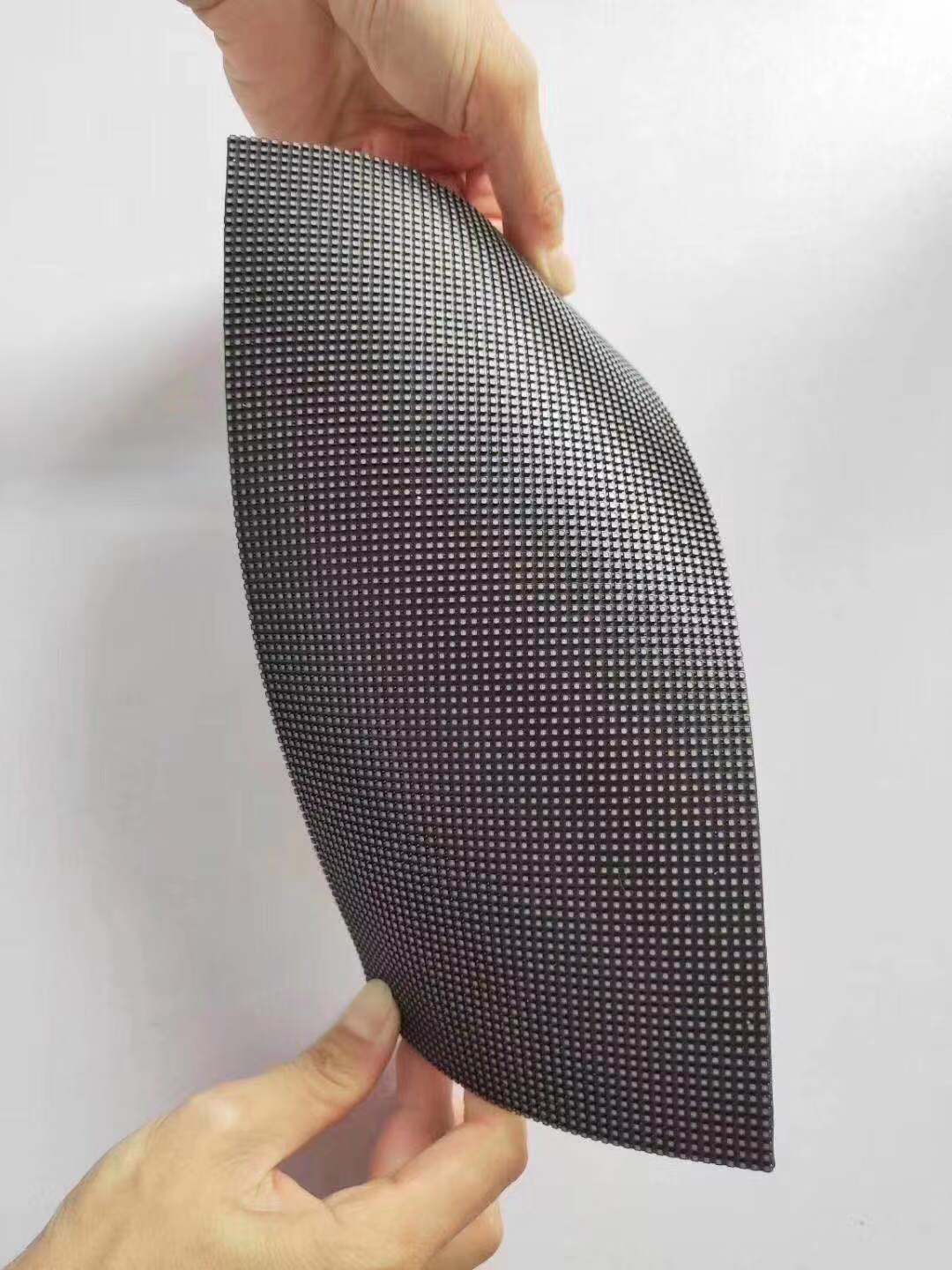

    ● Soft, thin and light, suitable for any bending effect

    ● Flexible, lightweight, easy to install and maintain

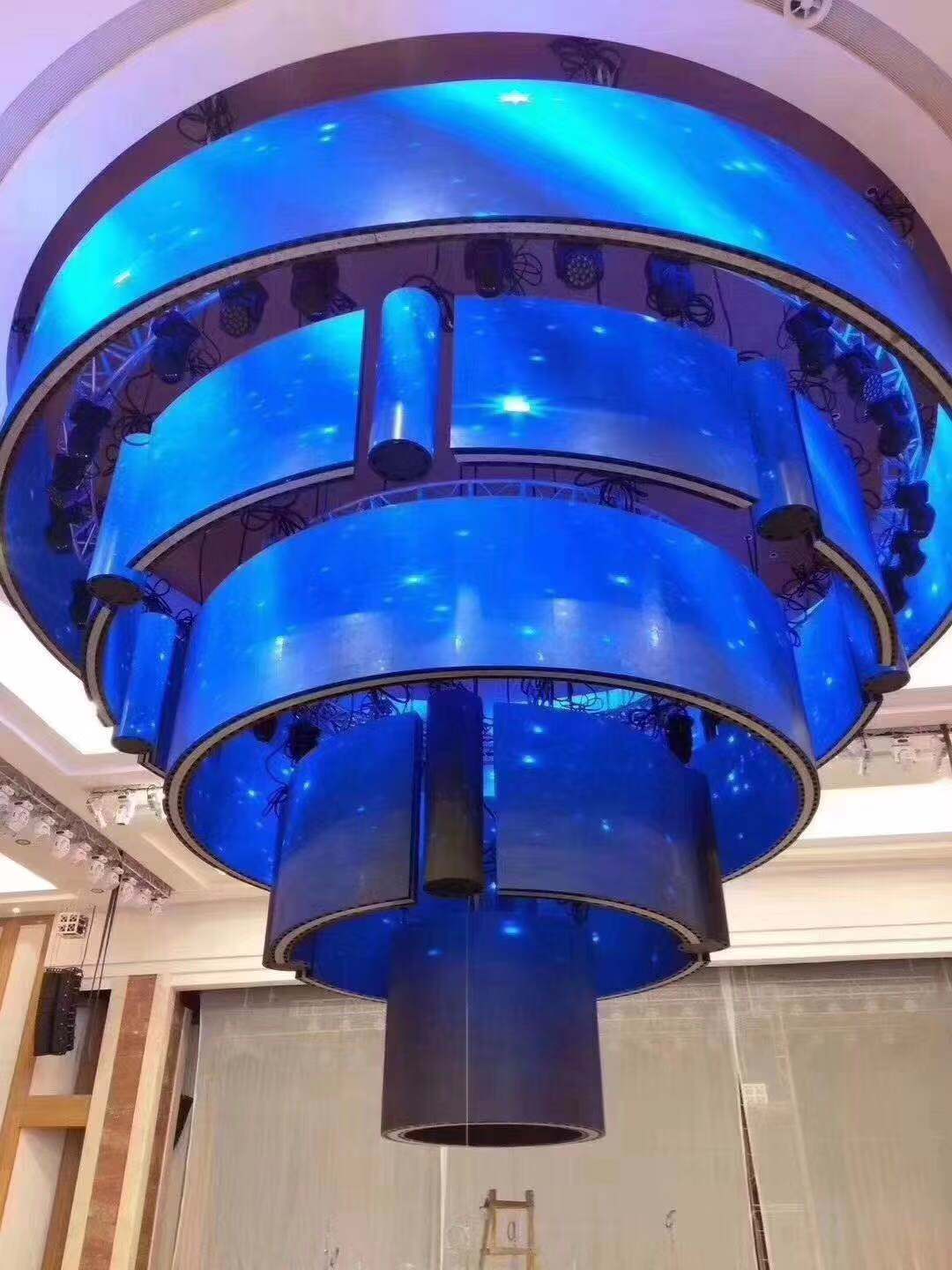

    ● Can be bent, folded, wound, suspended, etc., freely combined into various shapes, artistic and creative.

    ● The scene application is not limited, and the creative effect is good.

    ● A wide range of products, a variety of models to choose from

    ● PCB is made of flexible soft board, rubber is used for mask and bottom case

    ● 360-degree viewing angle, full-scale display of streamlined appearance, seamless stitching

    ● High gray level, high refresh, more high-definition picture


  • Product Atlas
  • Specification table
    H&S-RM Panel Specification
    Environmental  INDOOR
    Part Number   H&S-RM1.875 H&S-RM2 H&S-RM2.5 H&S-RM3 H&S-RM4
    Pixel Pitch 1.875mm 2mm 2.5mm 3mm 4mm
    LED Configuration  SMD1010 SMD1515 SMD1515 SMD2020 SMD2020
    Pixel Density  284444dot/m2 250000dot/m2 160000dot/m2 111111dot/m2 62500dot/m2
    Module size 240X120mm 256X128mm 240X120mm 240X120mm 256X128mm
    Module Resolution  128X64dot 128X64dot 96X48dot 80X40dot 64X32dot
    Cabinet Weight  30kg / ㎡ 30kg / ㎡ 30kg / ㎡ 30kg / ㎡ 30kg / ㎡
    IP Rating ( front/back) IP40 IP40 IP40 IP40 IP40
    Scanning Mode 64S 64S 48S 20S 16S
    Brightness Intensity  ≥900CD/m2  ≥900CD/m2  ≥900CD/m2  ≥900CD/m2  ≥900CD/m2
    Viewing Angle  120° 120° 120° 120° 120°
    View Distance 2m-15m 2.5m-15m 3m-15m 4m-31m 5m-38m
    Gray Scale 14bit 14bit 14bit 14bit 14bit
    Display Scale 16.7M 16.7M 16.7M 16.7M 16.7M
    Max.Power Consumption  640 W/m² 640  W/m² 700 W/m² 700 W/m² 700 W/m²
    Ave.Power Consumption 220W/m² 220W/m² 230 W/m² 230 W/m² 230 W/m²
    Refresh Frequency ≥3840HZ ≥3840HZ ≥3840HZ ≥3840HZ ≥3840HZ
    Brightness Adjustment 0 - 100  levels adjustable
    Control Mode Synchronous display with control PC by DVI
    Support Input Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
    Operation Power AC100/240 50/60HZ
    Operating Temperature  - 20℃~+50℃
    Operating Humidity 10~90% RH
    Operating Life 100,000hours
