Product Details
Place of Origin: shenzhen,China
Brand Name: HSCXLED
Certification: KC CE CE-LVD CE-EMC ROHS FCC CCC ISO9001
Model Number: P1.5/P1.9/P2.6/P2.9/P3.125
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Packaging Details: Fight case/Wooden case/Honeycomb Box
Delivery Time: 7-15work days
Supply Ability: 1000SET
Highlight: Double-Sided LED Display, Dual-sided led poster display, Ultra Thin Dual Sided Hanging led display
Product Name: | Led Poster Display Screen | Chip Color: | Full Color |
Application: | Indoor/outdoor Advertising | Size Of Panel: | 500mmW*500mmH |
Input Power: | AC110V-AC240V | View Angle: | 170° / 170°(H/V) |
Power Consumption: | 150W/㎡ | Display Function: | Video/ Text/ Picture/Animation/ Graphics |
Operating Temperature: | -30℃~60℃ | Supplier Type: | ODM, OEM |
Life Span: | 100000 Hours | Control System: | Nova/Linsn/Colorlight |
Hanging LED Display Digital Signage Advertising Screen for Shop Store
Dual Sided Ultra Slim Indoor LED Poster Display
Double Sided LED Billboard for Shopping Mall Entrance
High Brightness Large Digital Advertising Screen Display
Double-Sided LED Display Parameter:
| Ultra Slim Led Display High Brightness Led Display | |||||
| Model | P1.56 | P1.953 | P2.604 | P2.976 | P3.125 |
| Pixel Pitch | 1.5625(mm) | 1.953(mm) | 2.604(mm) | 2.976(mm) | 3.125(mm) |
| LED Type | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD1415 |
| Pixel Density | 410881(dot/m²) | 262144(dot/m²) | 147456(dot/m²) | 112896(dot/m²) | 102400(dot/m²) |
| Module Size | 250*250(mm) | ||||
| Panel Size | 500*500 *40(mm) | ||||
| Material | aluminum profile | ||||
| Panel Weight | 4.8(kg) | ||||
| Grey Scale | 14-16bit | ||||
| Refresh Rate | 7680(hz) | ||||
| Brightness | 600-3000(nits) | ||||
| View Angle | 170°/170° | ||||
| Input Power | 100-240(V) | ||||
| IP Rating | IP45/IP45 | ||||
| Installation Type | Fixed Installation, Rounded Corner Installation, Suspended Installation, Canopy Installation | ||||
| Maintenance Type | Full Front | ||||
| Life Time | ≥ 100000(Hours) | ||||
Indoor Ultra-Thin Double-Sided LED Display highlight:
High brightness:
Achieve clear visibility of ≥ 600 nits in various environments. Our ultra-thin double-sided LED screen supports double-sided customization with different brightness levels, ranging from 600-3500CD brightness.
Wide viewing angle:
The ultra-thin LED display provides visibility of 170 ° and 160 °, achieving comprehensive coverage.
Customizable size:
The LED display module is 250mmx250mm, and the box size is 500mmx500mm. The screen size can be customized according to the box size.
Aluminum frame:
HSCXLED led ultra-thin display screen,The box adopts a durable and lightweight aluminum profile cabinet frame, which has stability and aesthetics.
High resolution:
The double-sided LED display supports a resolution of up to 7680x4320 (8K) for displaying detailed content. Both sides can display the same content or different content.
Why choose HSCXLED - Ultra Thin Double sided LED Display Screen:
Dual-sided led poster display shows identical or independent content on both sides—perfect for airports, malls, and elevator lobbies to double audience engagement.
Ultra-thin 30mm cabinet and lightweight 4.8kg per panel enable one-person installation (hanging or stacking)—50% slimmer than conventional led screen poster solutions.
Choose from P1.5 / P1.9 / P2.6 / P2.9 pixel pitches with 7680Hz refresh rate, 8000:1 contrast, and 14-16bit grayscale for stunning close-view clarity in retail stores and showrooms.
Poster led screen supports Wi-Fi / 4G / LAN / USB / cloud control—update content remotely via phone, schedule multi-site campaigns, or integrate via API for system integrators.
Full front maintenance, die-cast aluminum heat dissipation, optional redundant power, and 5-year warranty ensure maximum uptime for event companies, architects, and digital signage providers.
♦ Our product:
Outdoor 3D LED display screen, indoor LED display screen, LED circular screen, LED poster screen/LED mirror screen, LED pole screen, creative LED display screen, LED soft screen, LED ball screen
♦ Product Description
1. Lightweight. Convenient transportation and installation, saving labor costs, suitable for streaming media playback.
2. Beautiful appearance and simple structure.
3. The connection is correct, and one person can install and remove it without the need for tools.
4. Humanized operation interface, convenient maintenance.
5. High brightness debugging without damaging grayscale, achieving beautiful image debugging technology.

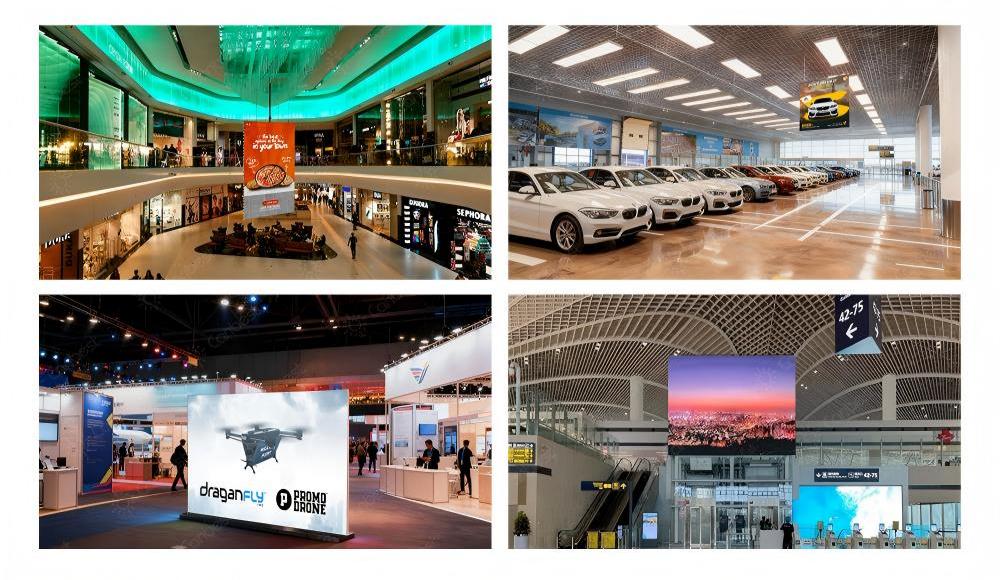

♦ application
---Outdoor and indoor advertising, digital billboards, advertising companies
---Gymnasium, venue, playground, school church
---Airports, bus stations, and railway passenger stations.
---The storefronts of shopping malls, department stores, banks, and car dealerships.
---Architecture and social projects, urban information systems.
---Performing arts, concerts, festivals, car shows, and other public activities.
Company profiles:
Shenzhen H&S Innovation Technology Co., Ltd was established in 2018, is a professional LED display manufacturers in production, R& D and sales. Company is located in Shenzhen, China.
We have a series of full-color LED display products, such as LED indoor full color display screen module (P1.2, P1.5, P1.6, P1.8, P1.9, P2, p2.5, P3, p3.91, P4, P4.8, P5 P6, P7.62, P10) and outdoor full color LED display screen module (P3.91, P4, P4.8, P5, P6, P6.25, P8, P10), and other products, such as taxi roof LED display; LED advertising screen display; LED DJ sets.
Our products are widely used in civil airports, command centers, traffic control rooms, squares, stations, railways, hospitals,
banks, securities offices, sports venues, radio and television, hotels, KTV, enterprises, shopping malls
and other indoor and outdoor applications.
Outdoor advertising led display
These screens are designed to provide an immersive and engaging visual experience outdoors. With their advanced 3D technology, they can display stunning graphics, videos, and animations that capture the attention of passersby. They are perfect for advertising, events, and entertainment venues.
LED Poster Display /LED Mirror Screen
These screens combine the functionality of a traditional poster with the dynamic capabilities of an LED display. The LED poster screens can display digital posters, animations, and videos, while the LED mirror screens offer a reflective surface when turned off and can display content when turned on. They are ideal for retail stores, restaurants, and other commercial spaces.
LED Pole Screen
The LED pole screens are designed to be mounted on poles or columns, making them perfect for displaying information or advertising in high-traffic areas. They can be used in streets, malls, and other public spaces to provide real-time updates, promotions, and announcements.
LED Circular Screens
The LED circular screens are unique and eye-catching, making them perfect for creating a focal point in any space. They can be used for branding, advertising, and displaying information in a circular format.
double sided led display
Our creative LED display screens offer endless possibilities for customization and creativity. They can be designed to fit any shape, size, and specification, making them perfect for unique and eye-catching displays. Whether you need a custom-shaped screen for a specific event or a unique design for your brand, we can help you bring your vision to life.
