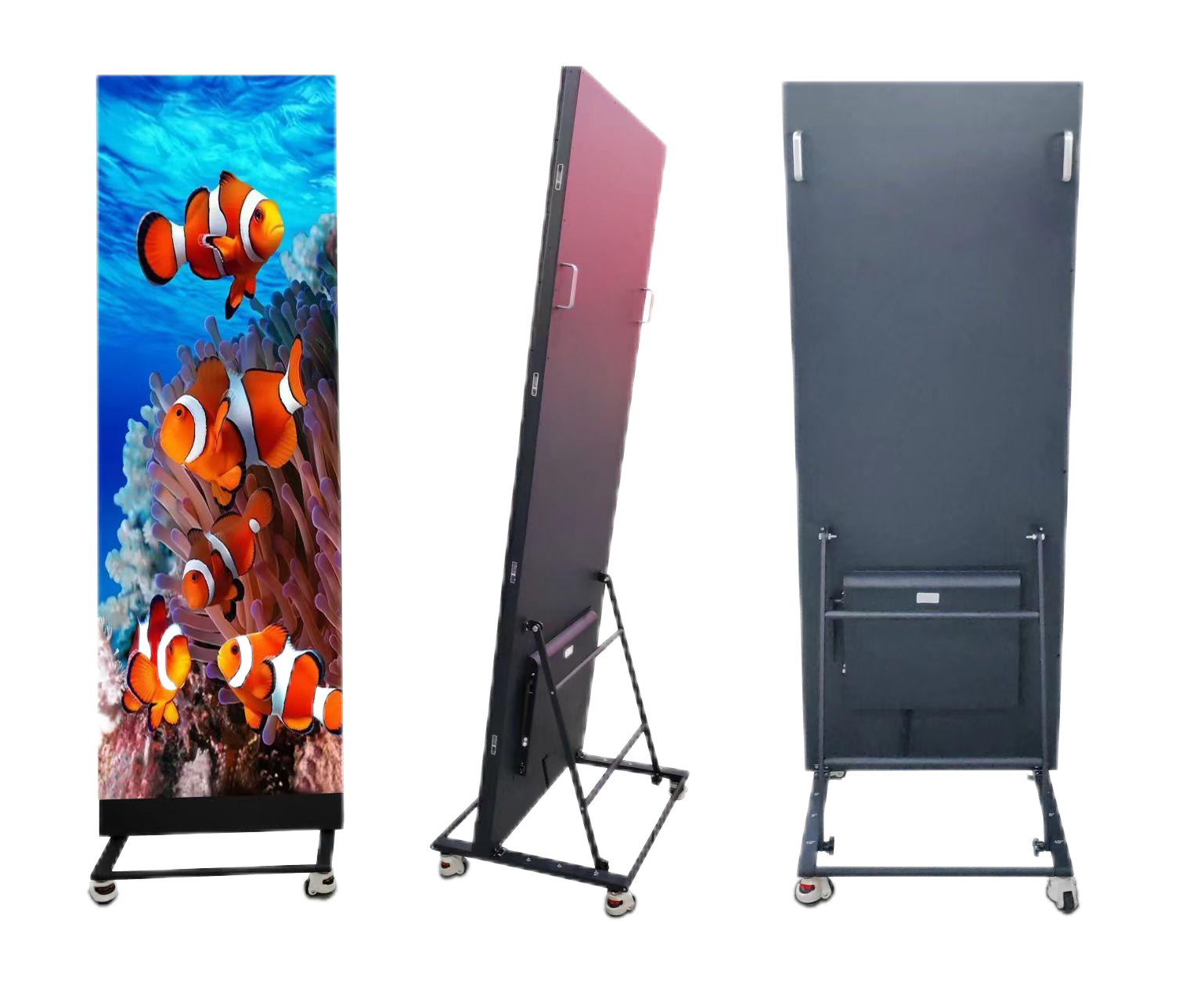

The H&S LED poster display screen is designed with a die cast aluminum casing
Screen size: PH1.25/P1.5/P1.8/P2/ph2.5/3.076
Screen material: Designed with die cast aluminum casing

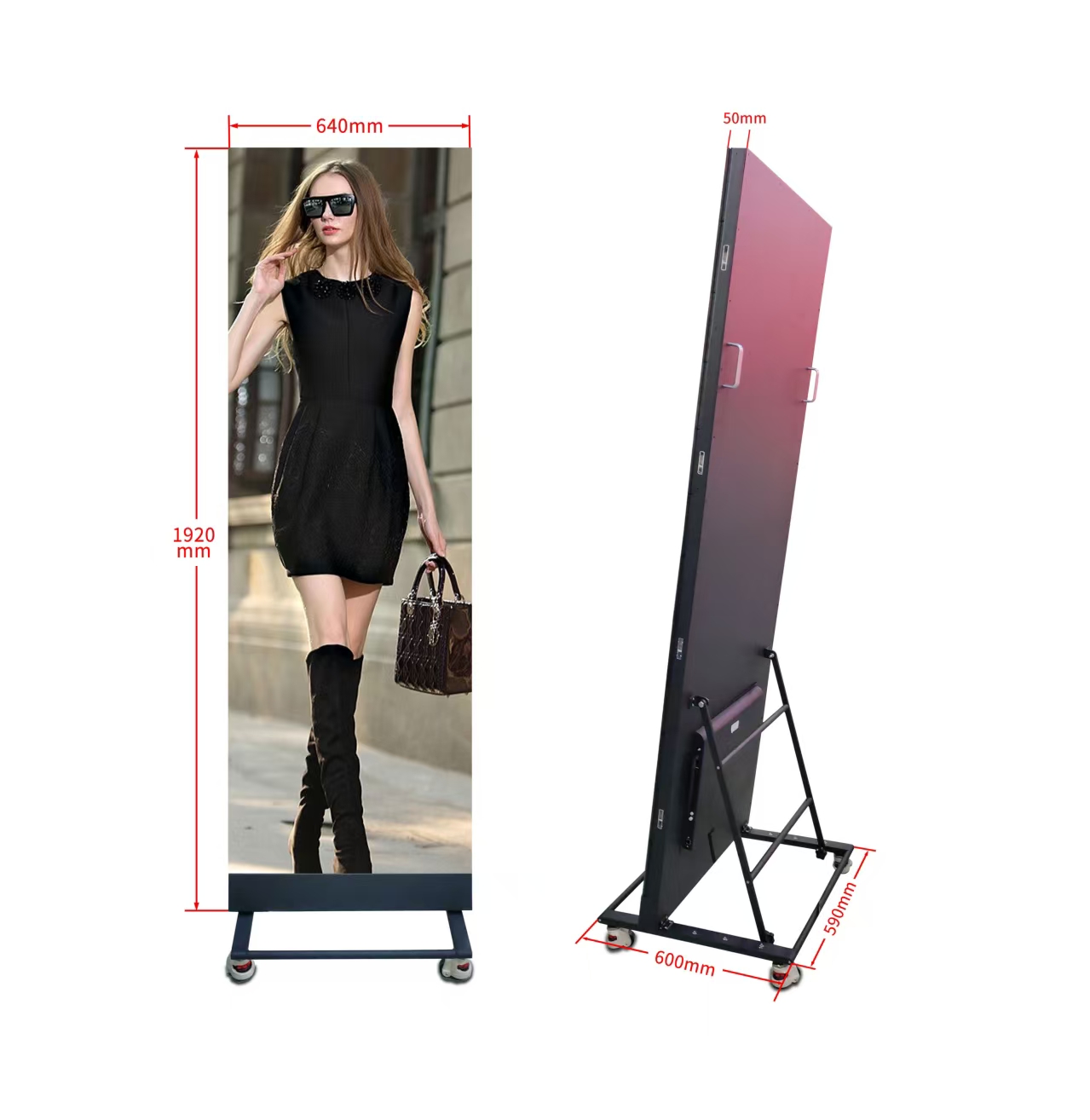

Screen size: Net size 640 * 1920mm
Control mode: WIFI+USB, optional 4G control
Splicing: Several units can be spliced together or used separately, which is very convenient
Product Paramenters:
| INDOOR POSTER LED DISPLAY | |||||
| Product Paramenters | |||||
| Model No. | P1.25 | P1.53 | P1.86 | P2 | p2.5 |
| Pixel Pitch (mm) | 1.25mm | 1.53mm | 1.86 | 2 | 2.5 |
| LED Type | SMD1010 | SMD1212 | SMD1515 | SMD 1515 | SMD2121 |
| Module Dimension (W*H) (mm) | 320 x 160 | ||||
| Display Resolution(W×H) | 512*1536 | 418*1248 | 344*1032 | 320*960 | 256*728 |
| Piexl Density(pixel/m2) | 640000 | 427186 | 288906 | 250000 | 160000 |
| LED driving method | 1/64scan | 1/52scan | 1/43scan | 1/40scan | 1/32scan |
| Display Size | 640*1920mm | ||||
| Net. weight | 43KG | ||||
| Ingress Protection | IP31/IP45 | ||||
| Avg.Power consumption | 200W | ||||
| Viewing Angle(H/V) | 160°/160° | ||||
| Processing | 14-16bit | ||||
| Rate refresh | 3840-7680Hz | ||||
| Input voltage | 110-240V AC±10% | ||||
| White balance brightness | ＞650cd | ||||
| Life Time | >100,000 Hours | ||||
poster LED Display screen Features:
1 GOB Tech. protect the SMD LED
Glue on Board technology, the LED surface is covered by glue that can protect from dust, water (IP65 Waterproof), and attack. Solved the problem of drop and damage of LED when the LED poster in impact.

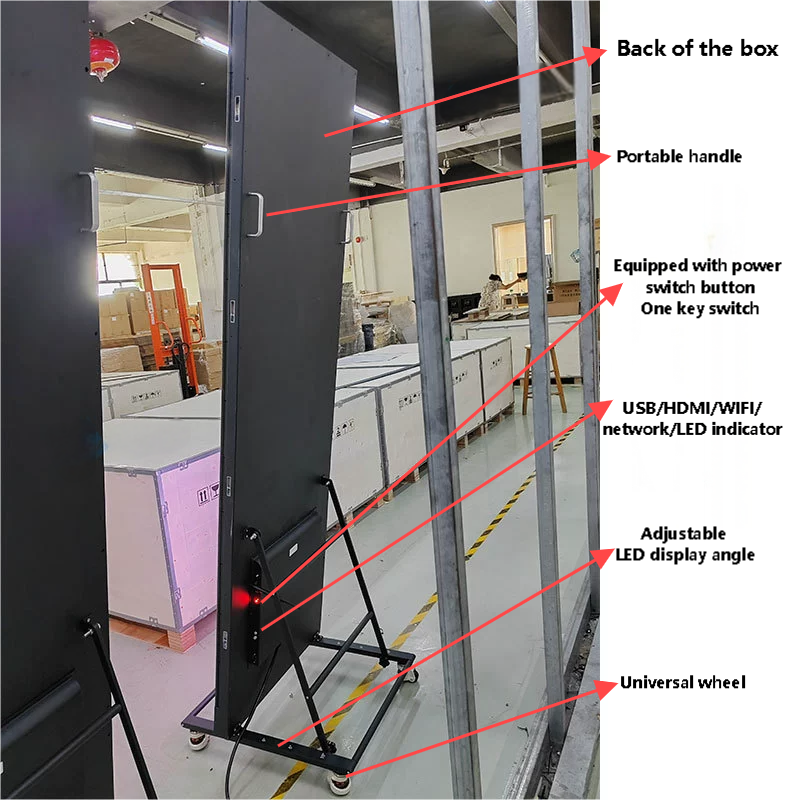

2,Light Weight & Ultra-thin Frame
LED poster Not only lightweight but also has a thin frame,With the wheels on the stand, even one person can move it easily. it’s easier and more cost-effective for transferring.
3,Smart Control & Multiple-unit Cascade
The LED poster supports WIFI, USB, HDMI, and Network cable connection.
In addition to using singly, the posters LED Display can be Multiple-unit to play enlarged videos, images, and text.
4,User Friendly, Plug and Play
LED poster is an LED display product that is very suitable for end-users to use. Simply put, after you send the program, the LED poster can automatically play video, pictures, text, and other programs once you connect the plug. No need to repeat software settings and other work when you use it later on.
5,Diversified Installation Methods
The LED poster display comes in different installation ways. It can be wall-mounted, ceiling-mounted, hanging or floor-standing.
6,External Device Compatible to Achieve Intelligence
our LED display can be connected to an external light sensor. And the brightness of the screen can be automatically adjusted according to the environment.LED poster is able to connect with the speaker. Not only this, the LED poster display support interactive function(customizable).
