Double-sided Pole Screen

2019-04-15 14:29:08


1. Feature:

Double-sided LED display


Built to withstand severe weather conditions

Excellent brightness contrast levels

Wide viewing angles


2. Double Sides Led Display


Easy to install and maintain which can save a lot of time and cost. Specialized for street, side road, station, gym and airport.


3. Easy to Maintain


Front open cabinet, easy to install and maintain, just change the bad modules at front screen, magnets easy to pick down.

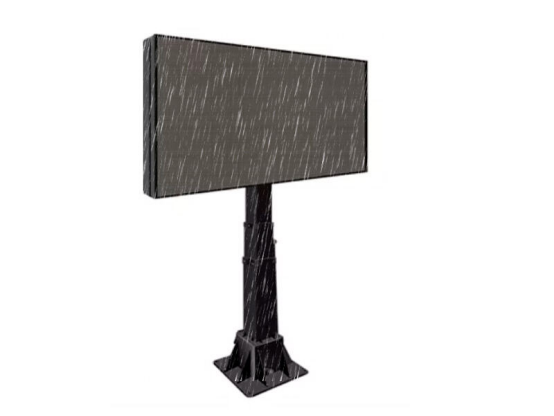

4. Excellent Protection Technology

Make use of the excellent protection technology, can work normally in any weather condition!


5. High Protection Level


Customized Size, IP65 outdoor waterproof cabinet, Independent cabinet design, to ensure strict IP65 waterproof rating, all weather resistant IP65 which can be put inside water.


6. How to control LED display?


By computer, wifi, 4G, usb, remote, internet, mobile, pad,etc. Yes, you can control in your convenient management. Many screens together? No problem, your laptop can manage all of them whenever and wherever.


7. Easy Maintenance led display

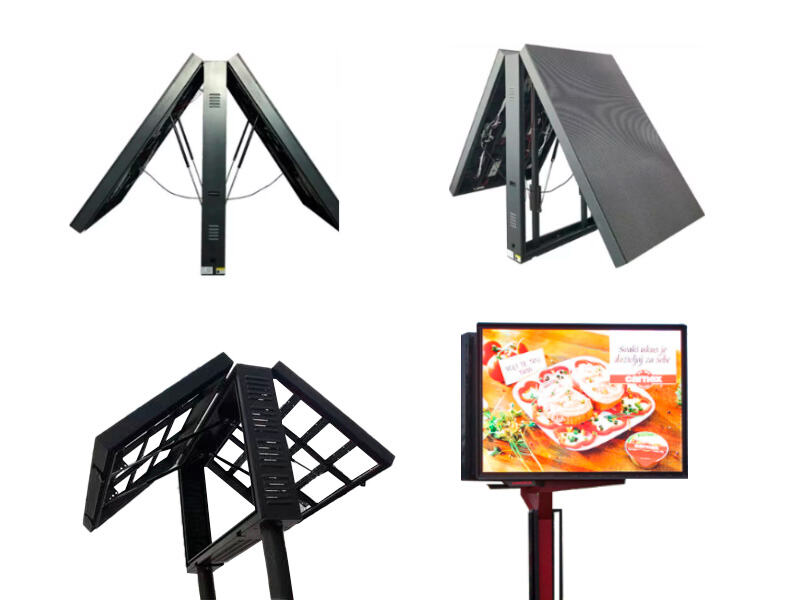

Front access available with two poles, easy for maintenance. High uniformity masks can fit modules perfectly, without shadows. Installation is simple for our customers in accordance with the needs of design.


8. Wooden Case Packing


For outdoor fixed led display, wooden case will be recommended, with 6 pieces in one wooden case, but can be customized as requested.




 Outdoor Double-sided LED display Paramenters:


ITEMHD OUTDOOR LED SCREENS
Product modelP2.5P3.076P3.33P4P5P6.67P8P10
Pixel pitch2.5mm3.076mm3.33mm4mm5mm6.67mm8mm10mm
Physical density160000/m²105625/m²90000/m²62500/m²40000/m²22500/m²15625/m²10000/m²
LED PackageSMD 1415 (3in1)SMD1921 (3in1)SMD2727 (3in1)SMD3535 (3in1)
Module size320mm*160mm
Modules resolution128*64104*5296*4880*4064*3248*2440*2032*16
Modules weight0.4±0.01kg
Driving method1/16S1/13S1/12S1/10S1/8S1/6S1/5S1/2S,1/4S
Viewing distance3-80m4-100m7-150m
Cabinet sizeLED display screen size can be customized
Any size can be customized
Equilibrium brightness5000cd/m²-7000cd/m²
Refresh rate3840Hz -7680Hz
Viewing angle LevelH: ≥160°Optional, V: ≥160°Optional
TemperatureWorking : -25℃~60℃, Storage: -35℃~80℃
Humidity10%~95%
Working voltageInput: AC 100V~240V, 50Hz/60Hz, Output: DC 5V
Maintenance methodFront/Back service
Protection gradeFront: IP65, Back: IP65
Lifetime100,000 hours
