Company News About Triple-Fold LED Display-Unfold Big Impact Anywhere

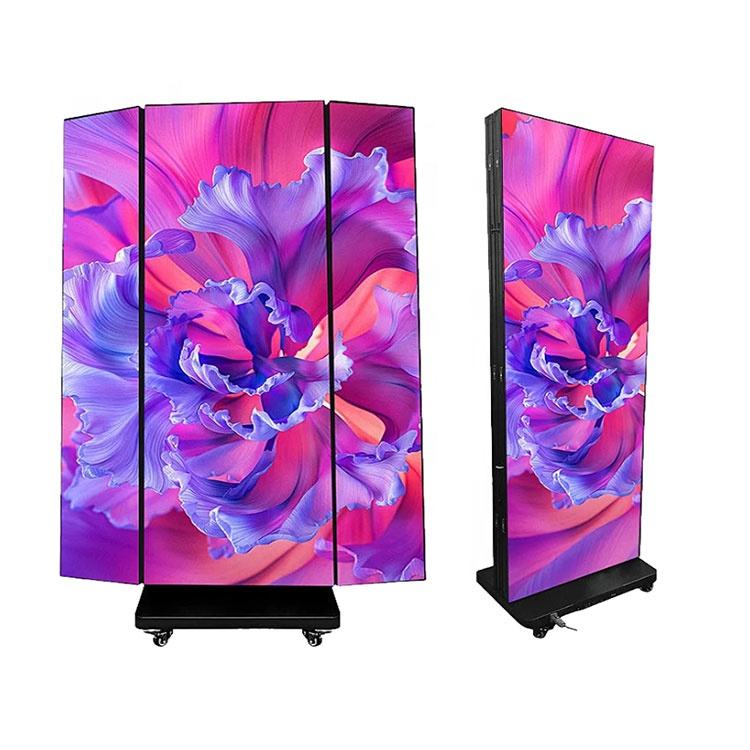

Triple-Fold LED Display-Unfold Big Impact Anywhere

2023-11-30 17:15:59

Portable, foldable, and bright — set up in seconds to showcase your brand anywhere.


The Triple-Fold LED Display is built for businesses that value flexibility and visual impact.Its innovative three-fold design allows one person to set it up in seconds — no tools, no complex wiring, just plug and play.With high-brightness LEDs and precise color calibration, your videos and ads remain vivid even under strong ambient light.Supporting Wi-Fi, USB, and app-based control, the display makes content updates fast and convenient.The slim, lightweight frame is easy to transport, making it perfect for retail promotions, exhibitions, product launches, and live events.


Key Features & Benefits:


Triple-fold portable design: Easy to carry and quick to install

Ultra-bright display: Delivers crystal-clear visuals indoors or outdoors

Smart control options: Update content via Wi-Fi, USB, or mobile app

Energy-efficient & silent operation: Ideal for commercial use

Versatile application: Perfect for retail, events, and brand activations

With HSCXLED’s Triple-Fold LED Display, you can transform any location into a dynamic, professional visual stage — anytime, anywhere.

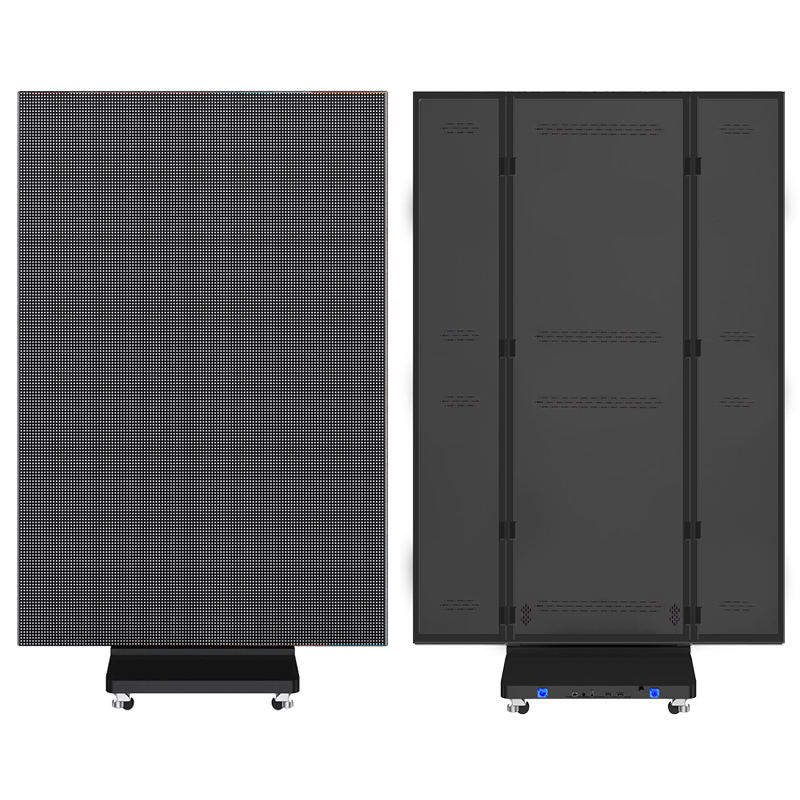

Three fold(double -sided led display)LED poster screen


Cabinet: Iron cabinet

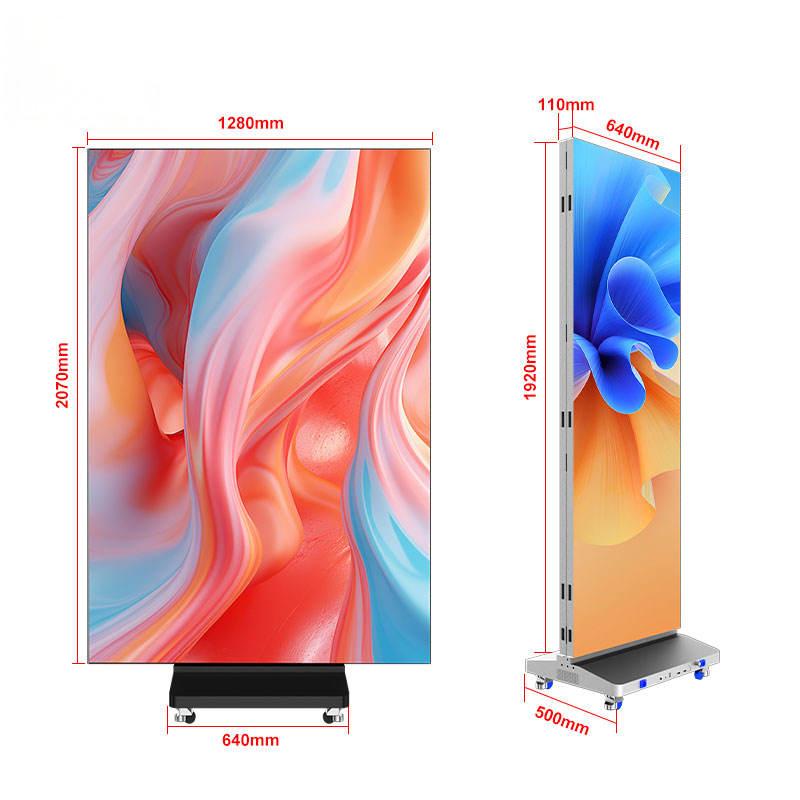

Cabinet size: W1280 × H2070 × T50mm

Service method: Rear Service

Brightness: 600-700CD

Operation: Can be used separately or combined,WiFi,4G(Optional)

Usage place: Store,Exhibition,Rental store,Museums, exhibition halls, cinemas, shopping malls...

Advantage: Movable, it is easy to operation Wifi control, short delivery time, wide range of use. Complete set no need structure.



Poster led display parameters:


Project


P2.5

P1.86P1.53P1.25
Pixel pacing


2.5mm

1.86mm1.538mm1.25mm
Resolution ratio


128*64

172*86204*104256“128
Module size


320*160mm

320*160mm320*160mm320*160mm
Protective technology


GOB

GOBGOBGOB
Module weight


0.55kg

0.55kg0.55kg0.55kg
Whole machine module composition


(w)4(H)12

(w)4(H)12(w)4(H)12(w)4(H)12
Single sided display resolution


(w)512 (H)768px

(w)688(H)1032 px(w)832 (H)1248px(w)1024(H)1536PX
Dual sided display resolution


(w)256(H)768px

(w)344(H)1032px(W)416 (H)1248pX(w)512 (H)1536px
Single sided display size


1280*1920mm

1280*1920mm1280*1920mm1280*1920mm
Double sided display size


640*1920mm

640*1920mm640*1920mm640*1920mm
Single sided appearance dimensions


1280*2070mm

1280*2070mm1280*2070mm1280*2070mm
Double sided appearance dimensions


640*2070mm

640*2070mm640*2070mm640*2070mm
Gross weight of the machine


78kg

78kg78kg78kg
Flatness tolerance


0.5mm

0.5mm0.5mm0.5mm
White balanced brightness


600CD

650CD700CD750CD
Gray scale


14-16BT

14-16BT14-16BT14-16BT
Calor temperature


3200-9000

3200-90003200-90003200-9000
Best visual distance


2.5-20M

1.8-20M1.5-20M1.2-20M
Perspeclive (horizontal)


160°

160°160°160°
Perspective (vertical)


160°

160°160°160°
Tolerance of cenler to center distance of luminous point


3%

≤3%≤3%≤3%
luminance uniformity


≥95

≥95≥95≥95
Chromaticity uniformity


+0.003Cx,Cy

+0.003Cx,Cy+0.003Cx,Cy+0.003Cx,Cy
Contrast ratio


8000:1

8000:18000:18000:1
Power supply requirements


100-240V

100-240V100-240V100-240V
Peak power consumption


850W

850W850W850W
Average power


200W

200W200W200W
Synchronous/Asynchronous


Support

Communication method

App / USB Drive / Ethernet Port / 4G Remote APP / USBdrive / Ethernet port / 4G

 remote


Interface


JJS485*1 WIFI*1 USB Drive*1 HDMI*2

ls there a built-in speaker


50*12mm*2PCS

Audio


3.5 Audio Interface/Supports External Amplifier

Drive mode


Constant current drive

Frame frequency


60HZ

Refresh rate


3840-7680HZ

Typical lifespan values


50000H

Working temperature range


-40-50℃

Operating humidity range


10-80%

Storage temperature range


-50-50RH

Storage humidity range


10-85%RH
