P1.25 Indoor GOB LED Wall: Technical Features That Address Common Installation & Reliability Issues
Traditional indoor displays often present recurring challenges for integrators and facility managers: visible panel gaps, high maintenance costs (especially rear‑access requirements), instability from cable failures, and performance degradation over time.
So a LED display that can achieve high-definition display, seamless splicing, and high stability perfectly solves the pain point for customers when choosing indoor small pitch LED displays - COB LED display.
The following technical parameters and engineering choices explain why fine‑pitch LED walls are replacing older display technologies in churches, retail floors, showrooms, and conference venues.

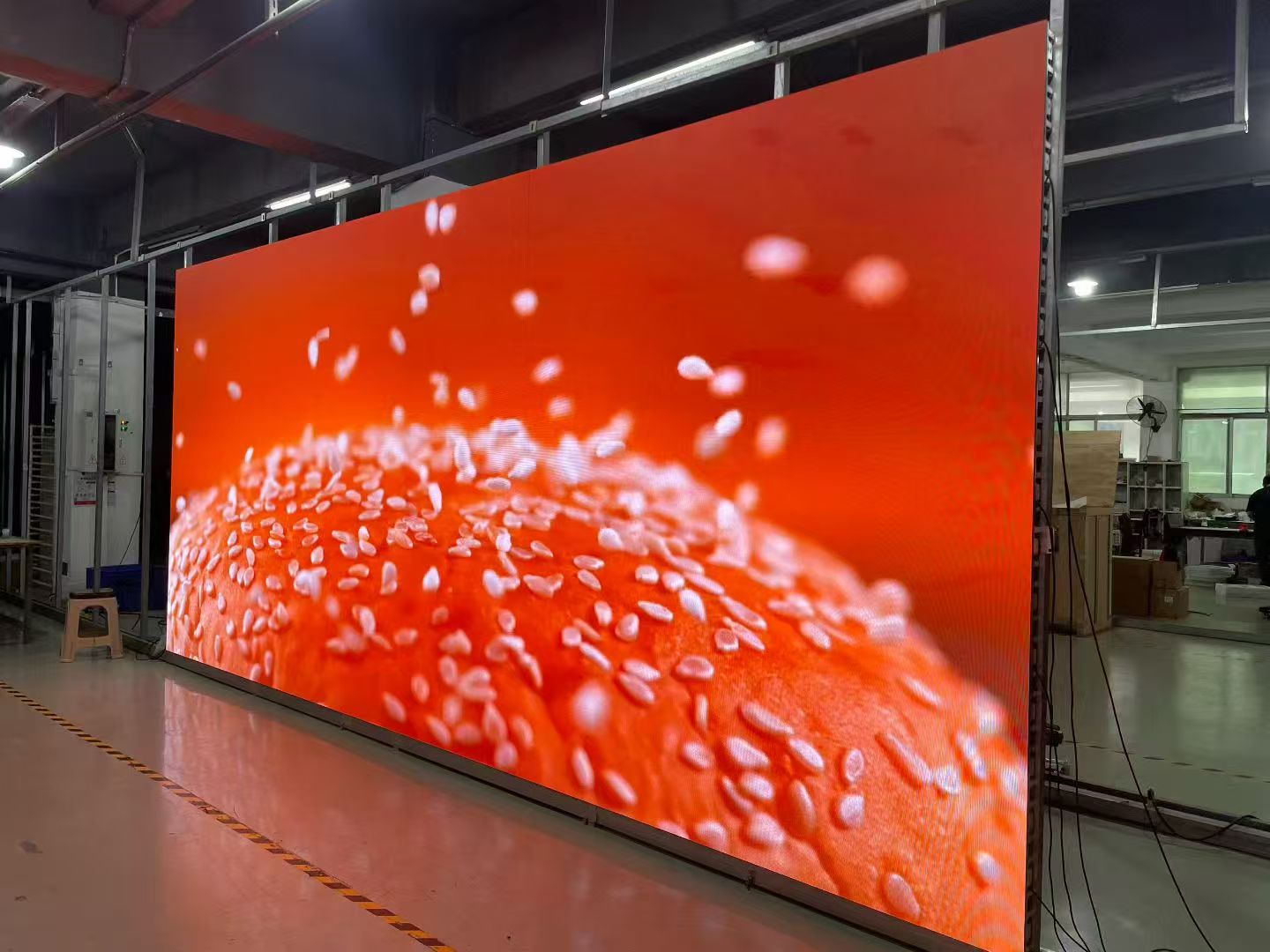

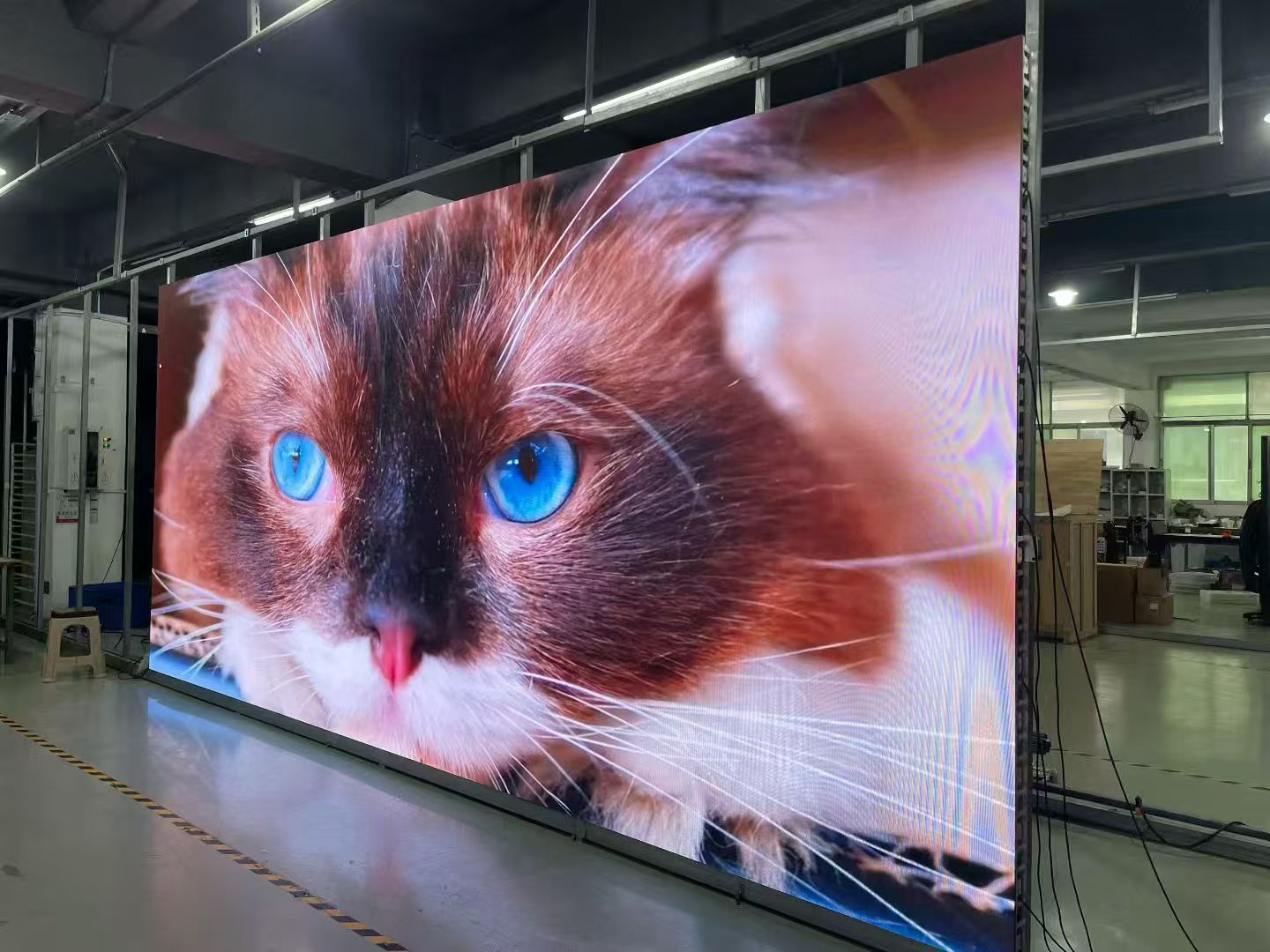

P1.25 indoor GOB LED display
From worship halls to retail floors, one LED solution built for clarity and reliability
| Parameter | Value | Technical Implication |
| Pixel pitch | P1.25 mm | Enables sharp image quality at close viewing distances (as near as 1.5–2 m). Suitable for indoor environments where audiences directly engage with the screen. |
| LED panel size | 600*337.5*29mm The LED display size can be spliced to any size according to the size of a single panel | Provides an immersive surface without excessive height – fits retail counters, worship platforms, and showroom walls. |
| Pixel density | ~640,000 pixels/m² (P1.25 typical) | Capable of displaying full HD and 4K content when the controller supports it; no visible pixelation under 2 m. |
| GOB (Glue on Board) process | GOB led display Waterproof, anti-collision, dust-proof | Protects SMD lamps against dust, moisture, and minor impacts. Reduces dead pixels from accidental contact – critical for public spaces like shopping malls and restaurants. |
| Operating conditions | Indoor, 0–40 °C, 10–80% RH non‑condensing (assumed from indoor fixed standard) | Dust resistance is enhanced by the covered aluminum back structure. |
2、Four Technical Features That Reduce Long‑Term Ownership Costs:
1, Front Maintenance Design
Traditional pain point: Rear access requires 0.8–1 m clearance, increasing building space and labor cost.
This solution: Full front‑maintenance structure.
Benefit: Quick servicing without dismantling the wall
Result for buyers: Reduced downtime and lower operational cost (no need to move adjacent fixtures).
2 ,Wireless Internal Connection
Industry observation: Cable‑related failures (loose connectors, broken wires, corrosion) account for a significant portion of LED display field issues.
This solution: Eliminates internal wiring between modules/cabinets.
Technical advantage: Fewer connection points → lower failure rate.
Best for: Traffic monitoring rooms that require high-definition display, home theater LED displays, auditorium LED displays, school LED displays, museums, church displays, etc
3 Covered Aluminum Back Structure
P1.25 COB LED display screen, using high-quality die cast aluminum LED display screen, the box body is integrally die cast, ultra-thin, ultra light, and durable.
| Function | Engineering Value |
| Heat dissipation | Aluminum’s thermal conductivity (≈205 W/m·K) helps maintain stable LED junction temperature – prevents color shift and premature lumen decay. |
| Dust resistance | Cover prevents accumulation of dust on driver boards and power supplies. |
| Safety & durability | Reduces risk of accidental contact with live components; structural rigidity for wall mounting. |
The high expressive power of COB LED display is particularly valuable in restaurants (grease + airborne particles), shopping malls (high foot traffic dust), and churches (carpet fibers + low airflow).
4 、Seamless Modular Splicing
Standardized modular design → each unit fits together with minimal gaps.
Visible result: No visible lines or visual interruptions → one continuous image.
Practical benefit: Allows flexible sizing without redesigning the whole system – can adapt to different spatial requirements by adding or removing columns/rows.
3. Typical Use Cases
The same P1.25 GOB LED wall is suitable for:
Churches / worship spaces – close‑up clarity for lyrics and sermon slides
Conference rooms – sharp text without eye strain
Showrooms / museums – seamless image for immersive videos
Hotel lobbies / high‑end venues – aesthetic integration with front maintenance
Restaurants, bars, retail chains – dust/moisture resistance from GOB and covered back
From a technical procurement perspective, the decision criteria are evolving:
| Traditional priority | New priority (this installation) |
| Lower upfront cost | Lower total cost of ownership (less downtime, front maintenance) |
| Basic display functionality | Seamless immersive experience (no gaps, fine pitch) |
| Complex rear maintenance | Simplified front‑access operation |
| Exposed wiring / open back | Wireless internal connection + covered aluminum back |
P1.25 indoor fixed LED display
GOB LED wall
front maintenance LED screen
wireless internal connection LED
fine pitch LED for churches and retail
By combining fine pitch clarity, GOB protection, and practical engineering design,HSCXLED delivers a display system built for real environments, not just specifications.
Manufacturer: Shenzhen H&S Innovation Technology Co., Ltd (founded 2018, 10+ years in R&D, sales, and service)
For businesses looking to upgrade their visual experience while minimizing operational complexity, this type of solution represents a smarter, future-ready investment.
