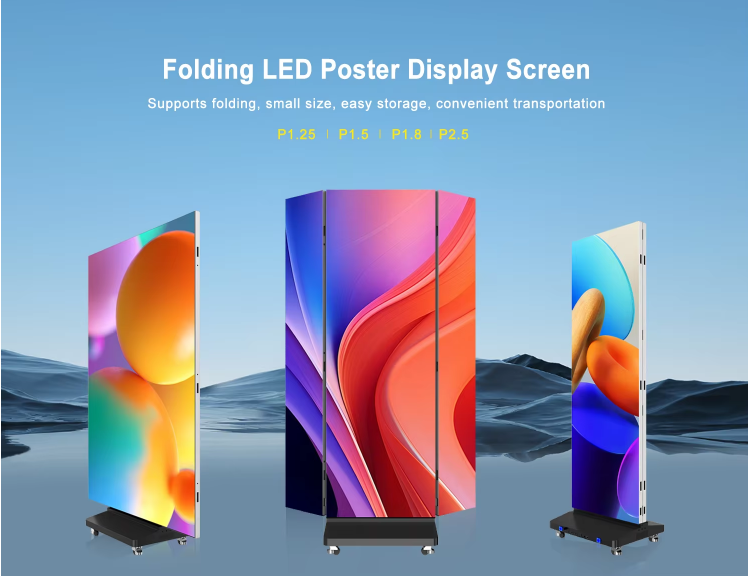

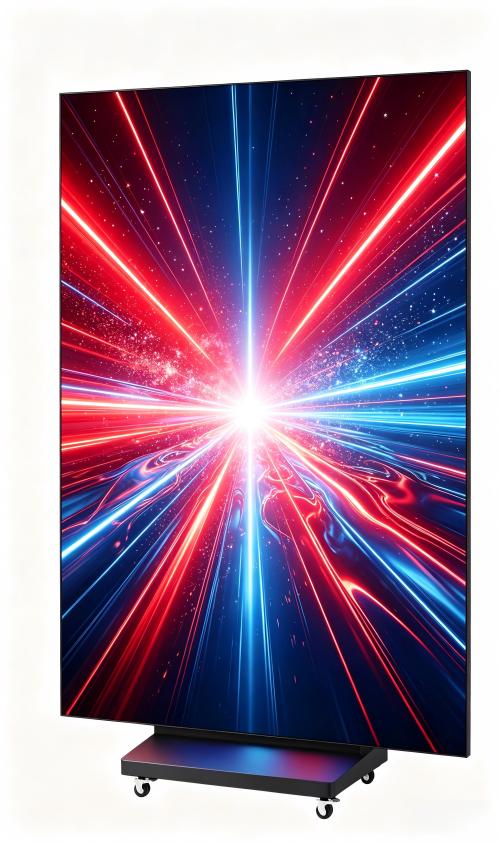

Folding LED Poster Display Screen:
Place of Origin: SHENZHEN
Brand Name: HSCXLED
Certification: CE ROHS FCC KC
Indoor LED Poster Screen
Model Number: P1.53/P1.86/P2/P2.5
Payment & Shipping Terms
Minimum Order Quantity: 1set

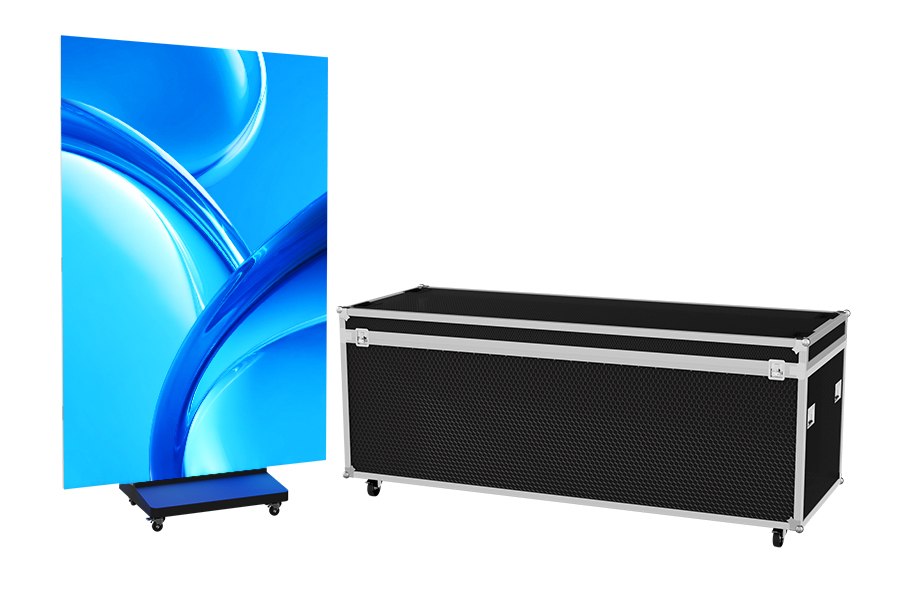

Packaging Details: Fight case/Wooden case/Honeycomb Box
Delivery Time: 8-25work days
Payment Terms: D/A, L/C, , D/P, T/T, Western Union
Supply Ability: 1000set
Poster led display Specifications:

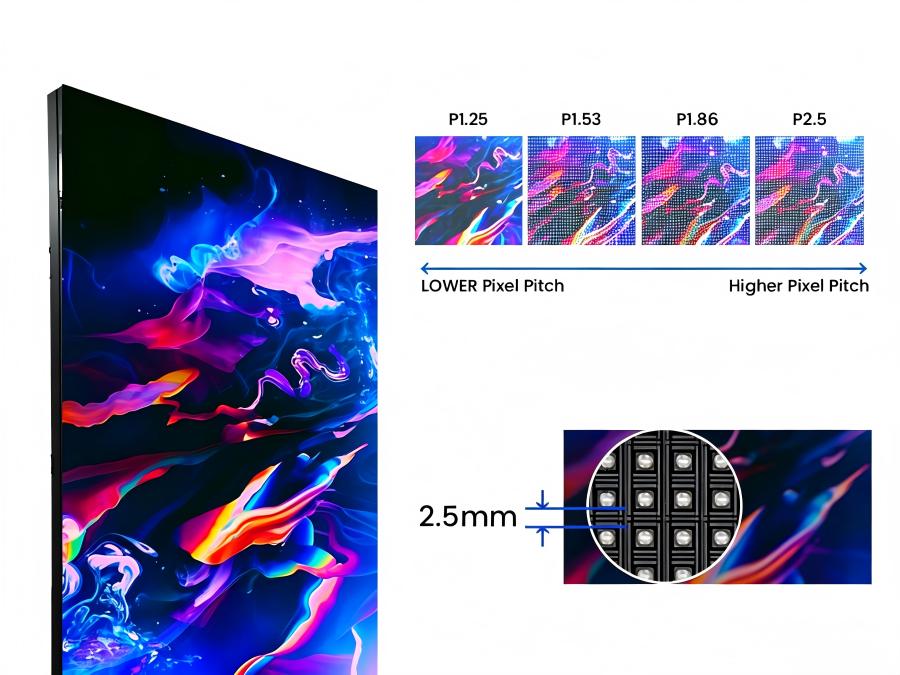

| Pixel Pitch | P1.25 | P1.53 | P1.86 | P2 | P2.5 |
| LED type | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515/2020 |
| Physical Density(Dots/㎡) | 640000 | 409600 | 288888 | 250000 | 160000 |
| Screen resolution(dots) | 2*512X1536 | 2*416X1248 | 2*344X1032 | 2*320X960 | 2*256X768 |
| Module size(mm) | 320X160 | ||||
| Display dimension(mm) | 2*640X1920 | ||||

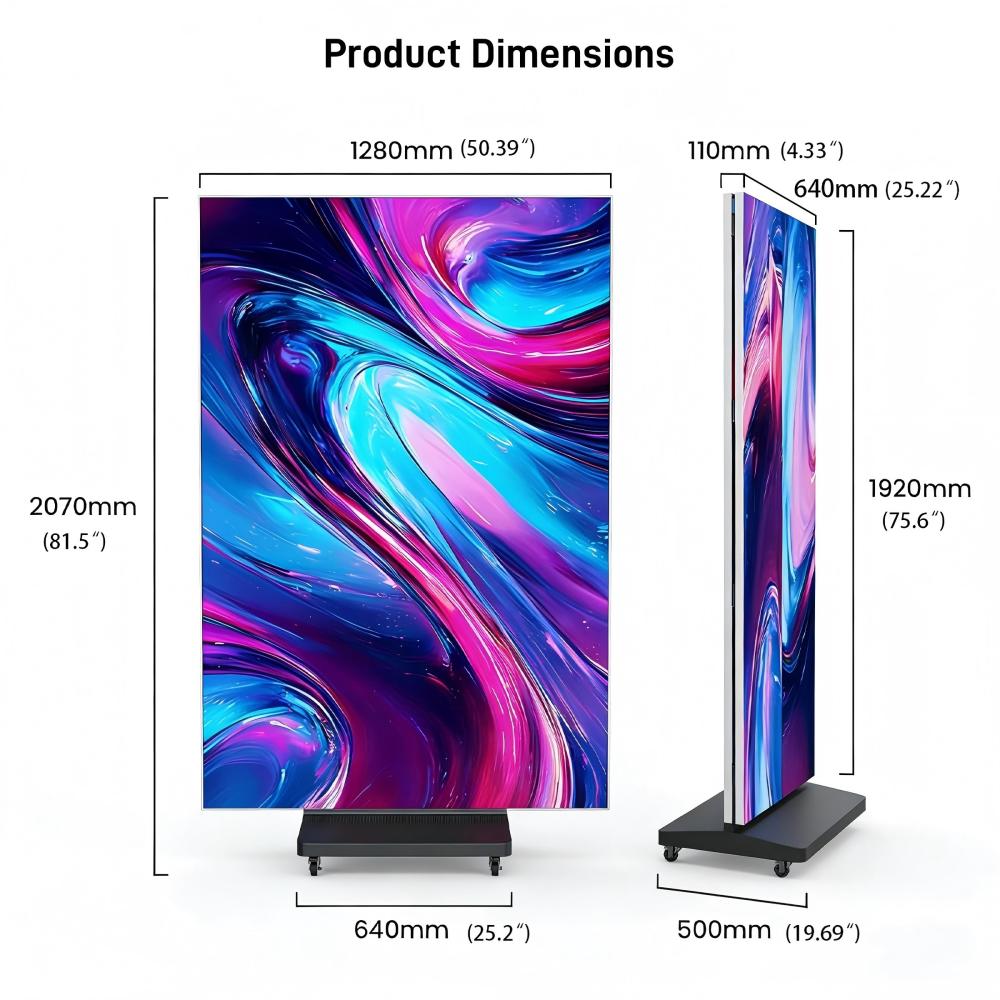

| Overall Dimensions (mm) | 646X2090X110(mm) | ||||
| Maintenance mode | Front | ||||
| Materials | Galvanized sheet | ||||
| Brightness(CD/㎡) | ≥600 | ≥600 | ≥800 | ≥800 | ≥800 |
| Color temperature(K) | 5000-12000 Optional | ||||

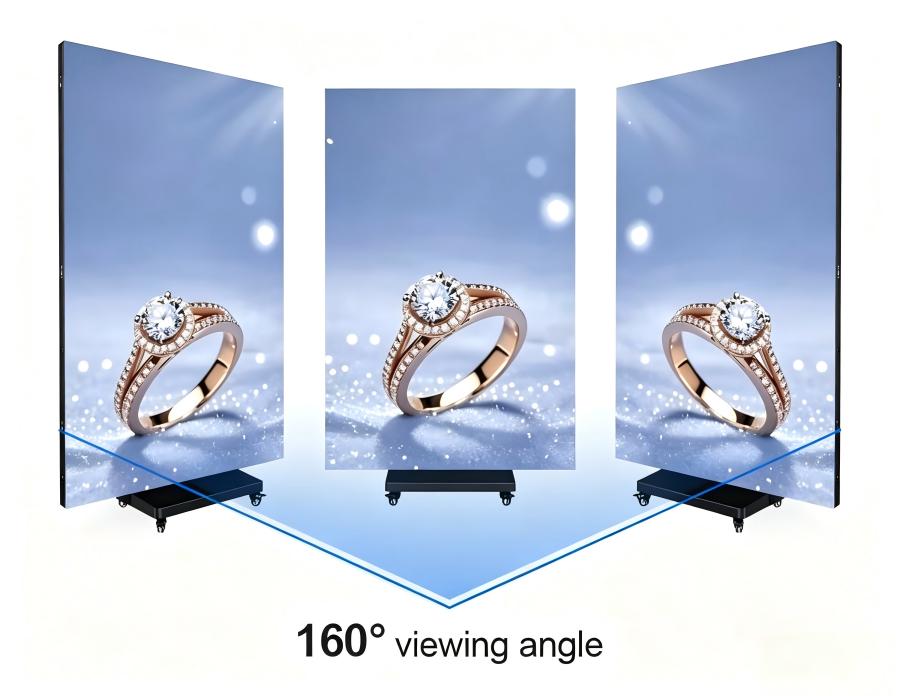

| Viewing angle(H/V) | 160°/160° | ||||
| Luminance/Color Uniformity | ≥97% | ||||
| Constrast ratio | 10000 : 1 | ||||
| Frame Frequency | 50/60 | ||||
| Gray scale | 14-16bit | ||||
| Refresh rate(Hz) | 3840-7680 | ||||
| Max consumption(W/㎡) | 1400 | 1000 | 900 | 850 | 850 |
| Avg. consumption(W/㎡) | 400-600 | 300-500 | 300-500 | 200-300 | 200-300 |
| Working Voltage | AC100-240V,50/60Hz | ||||
| Working temp/Humidity(℃/RH) | ,-20~60℃/10%~85% | ||||
| Stock temp/Humidity(℃/RH) | -20~60℃/10%~85% | ||||
| Standard | KC/CCC/CE/RoHS/FCC | ||||
Indoor LED Poster Screen
Highlight: Commercial Indoor LED Display, IP31 P2.5 Indoor LED Display, Commercial p2. 5 led panel
1. COB design adapts to P1.86, P2.0, P2.5.SMD design adapts to P1.25, P1.53, P1.86, P2.0, P2.5, P3.076 pixle.
2. High definition and high refresh rate
3. Super slim just 1.5inch thickness.
4. Popular base with wheels for easy move.

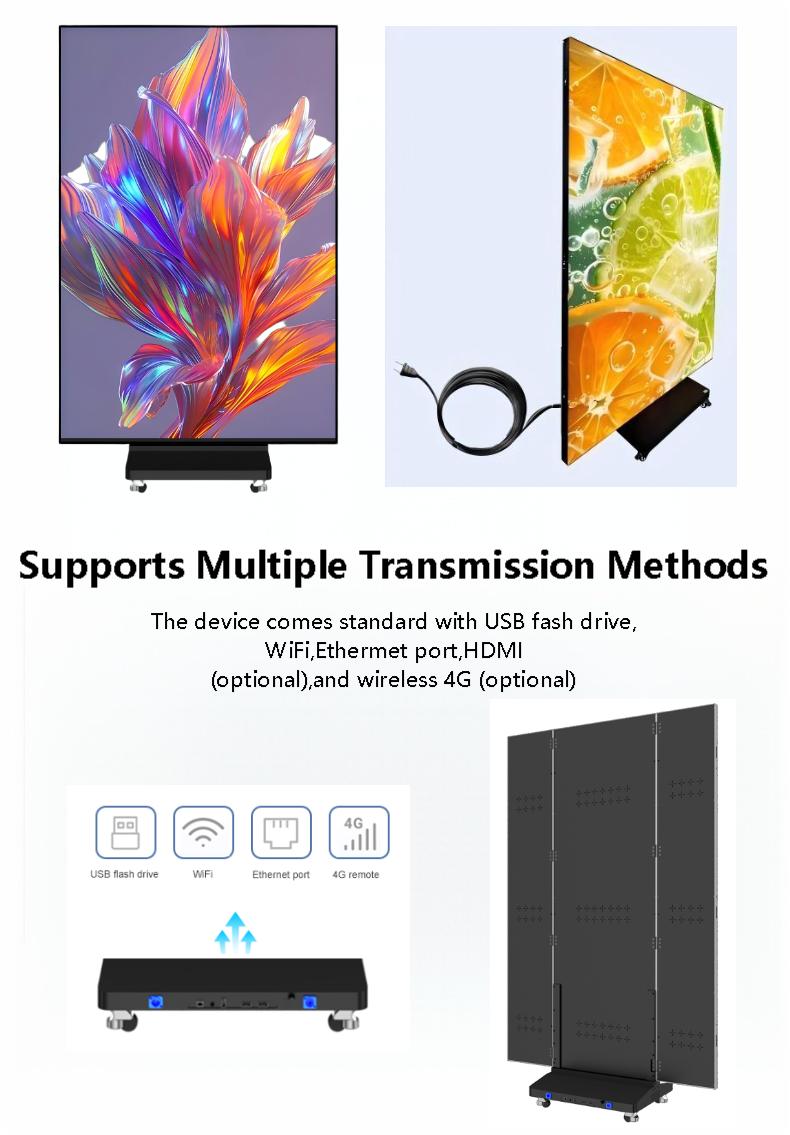

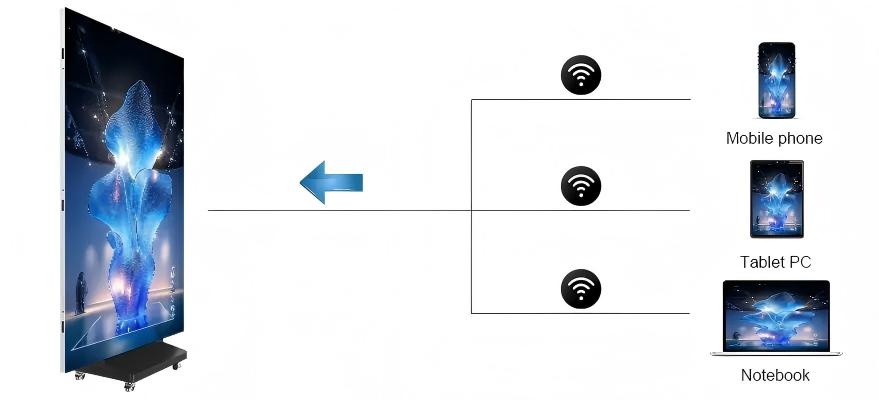

5. Support WIFI,4G,USB,Network cable.

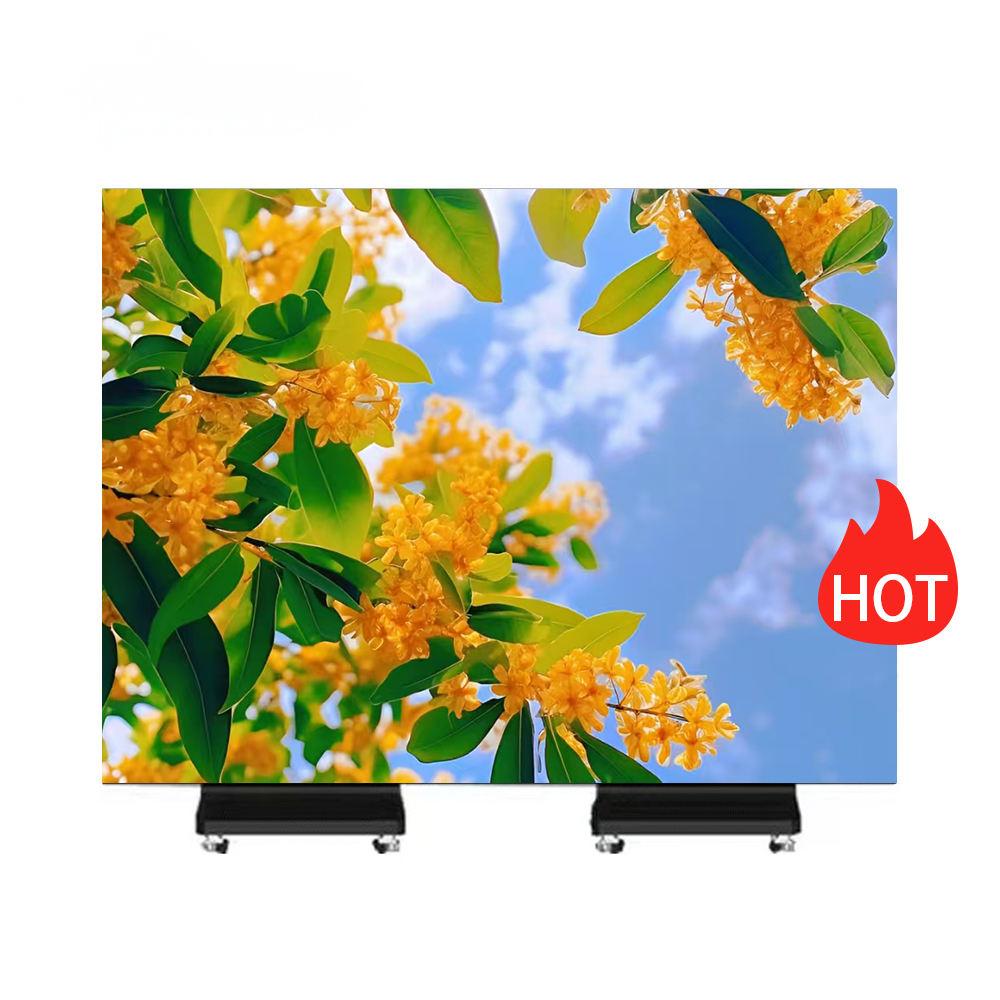

6. Separate working or multiple screens seamless splicing working.

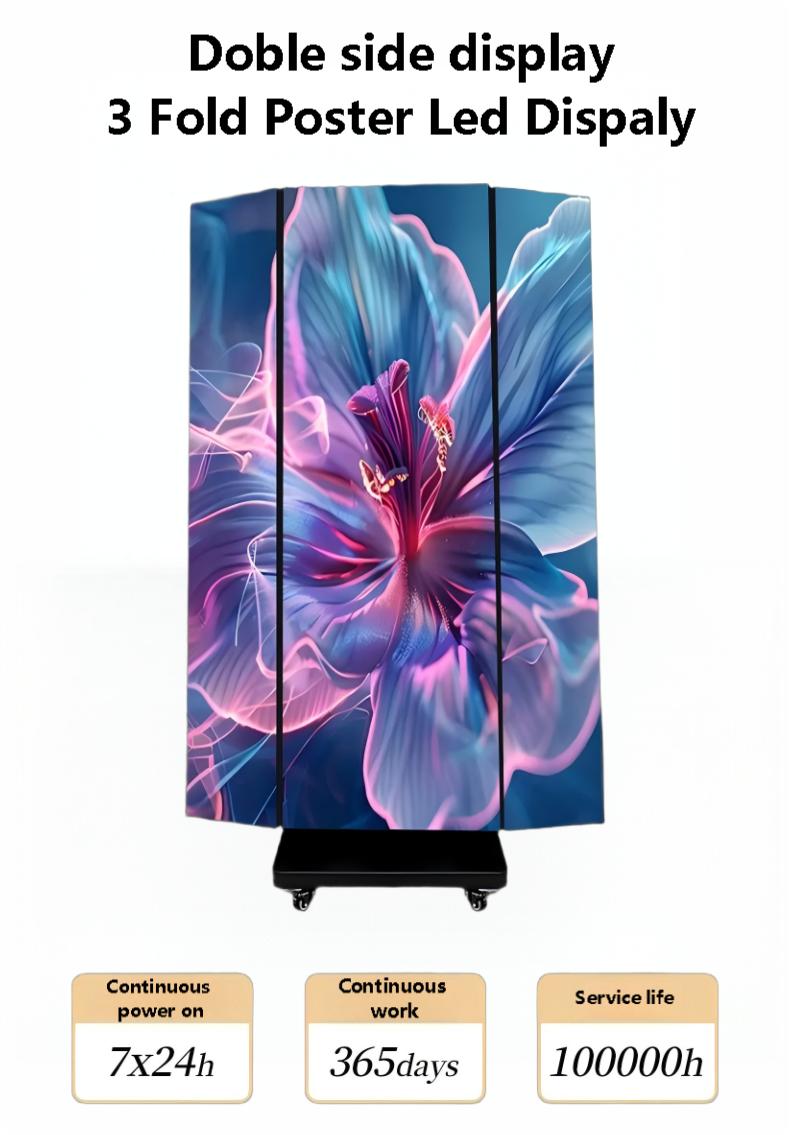

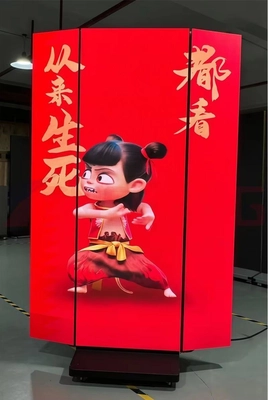

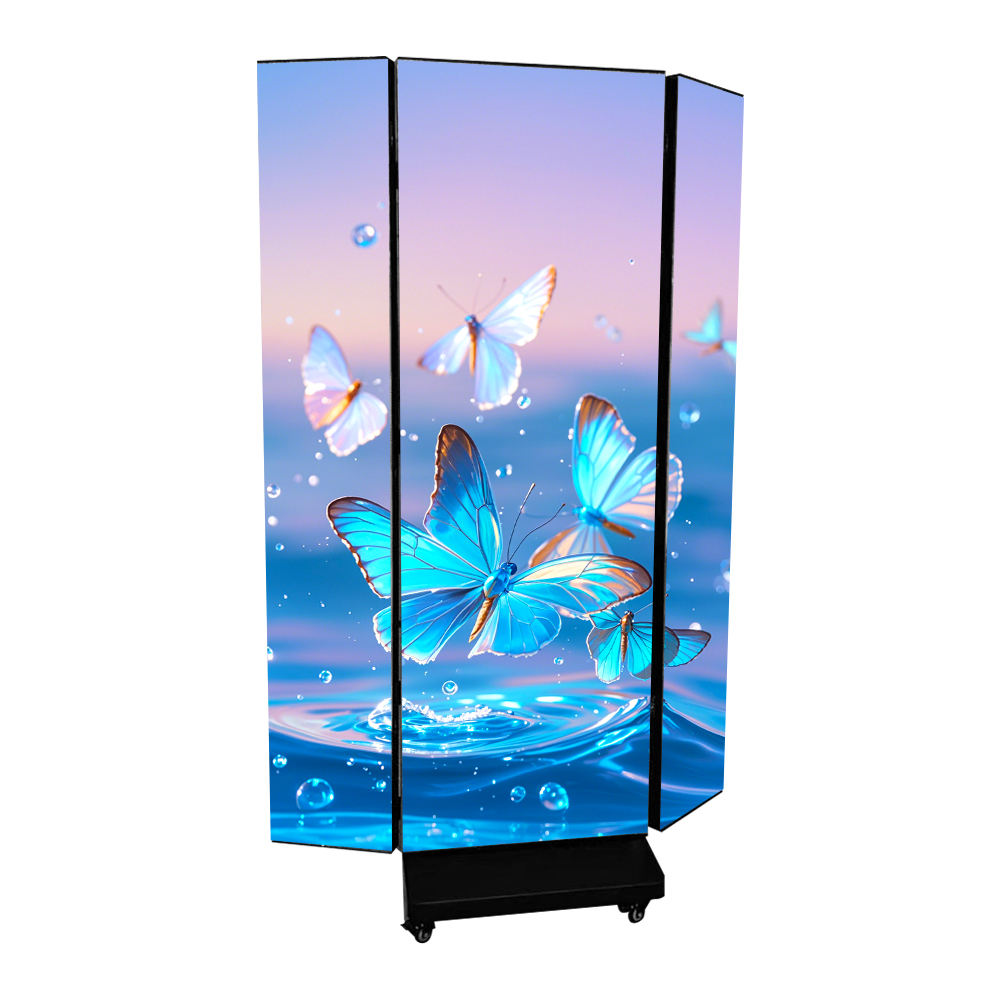

Indoor Tri-Fold LED Poster Screen 1280x1920mm Key Features:

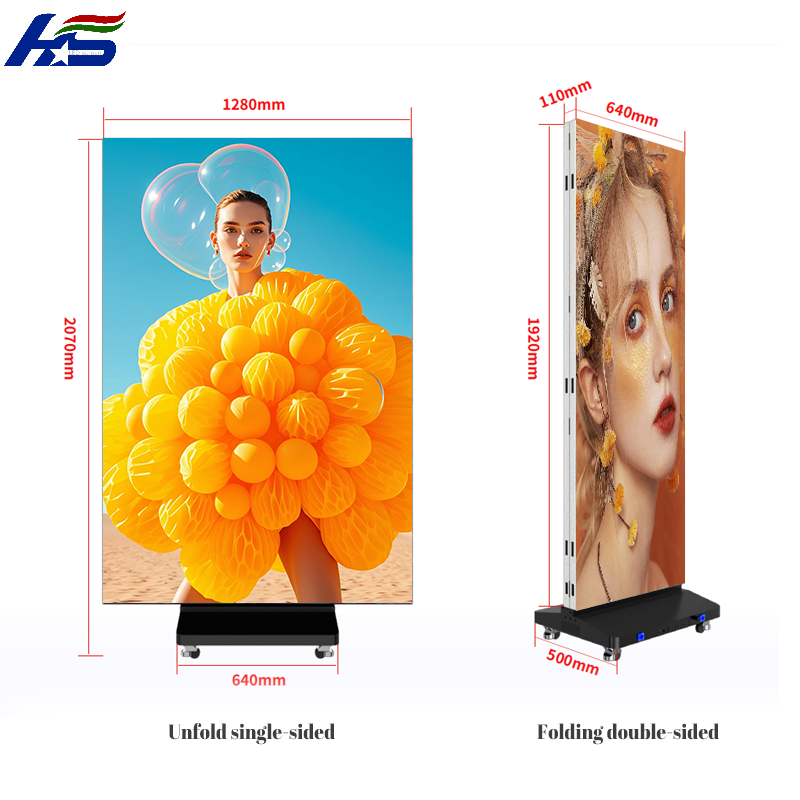

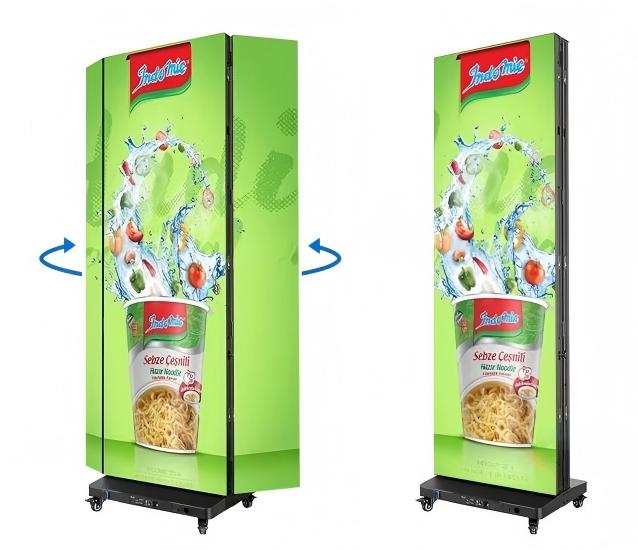

Space-saving design: Sideward foldable frame (fold from both sides) provides a large 1280x1920mm display area while reducing transportation space and costs.

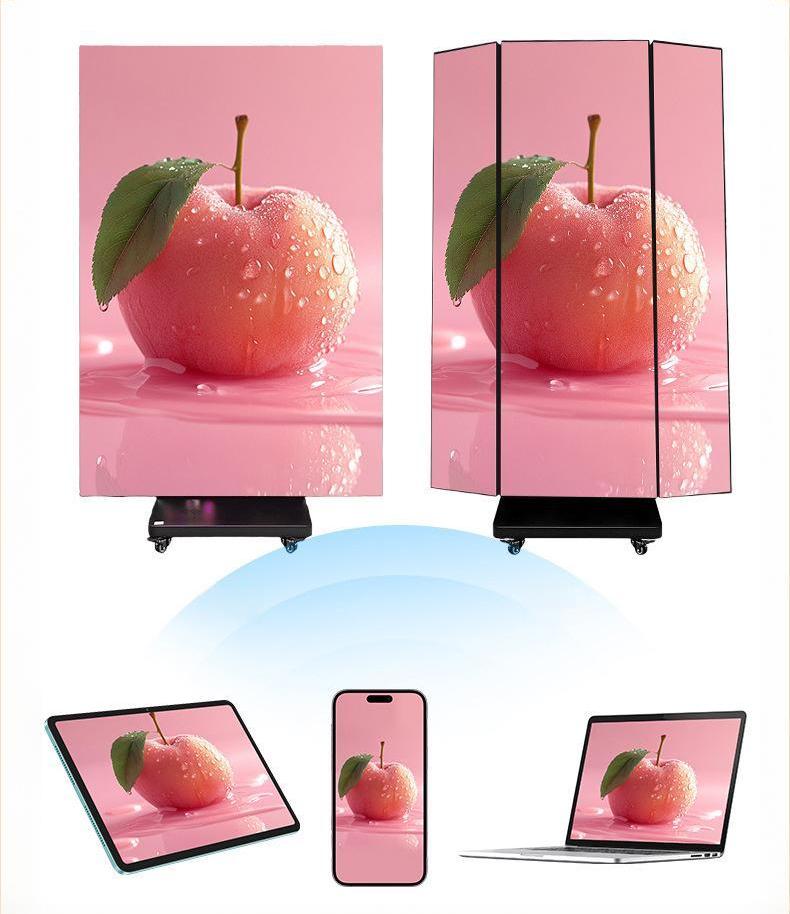

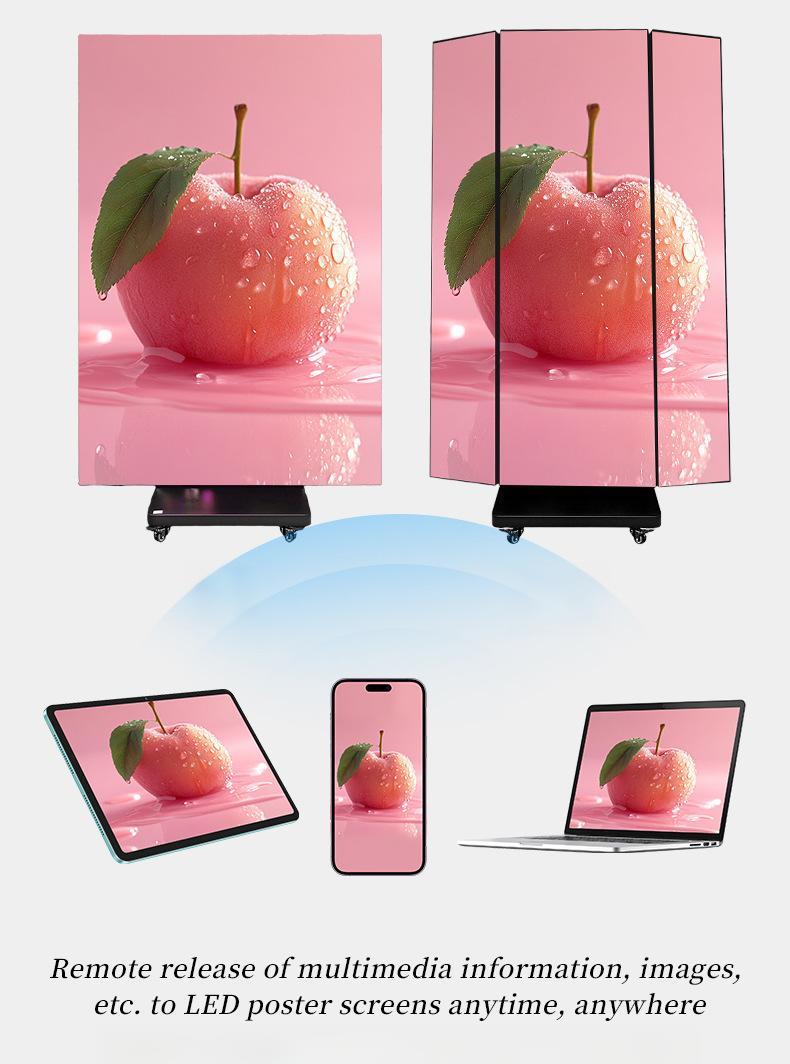

Dual-face display: Side-forward folding creates a double-sided LED display poster.

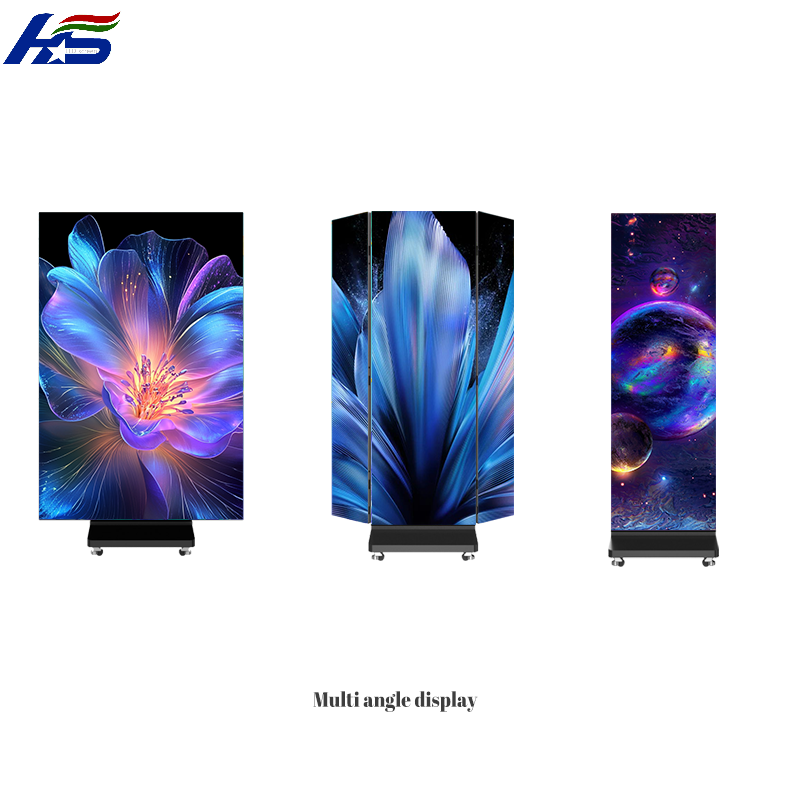

Multi-angle versatility: Adjustable folding allows for various display angles to meet complex application scenarios.
Simplified operation: Upgrade control solution requires no complicated software - simply open for large screen or fold for double-sided display.

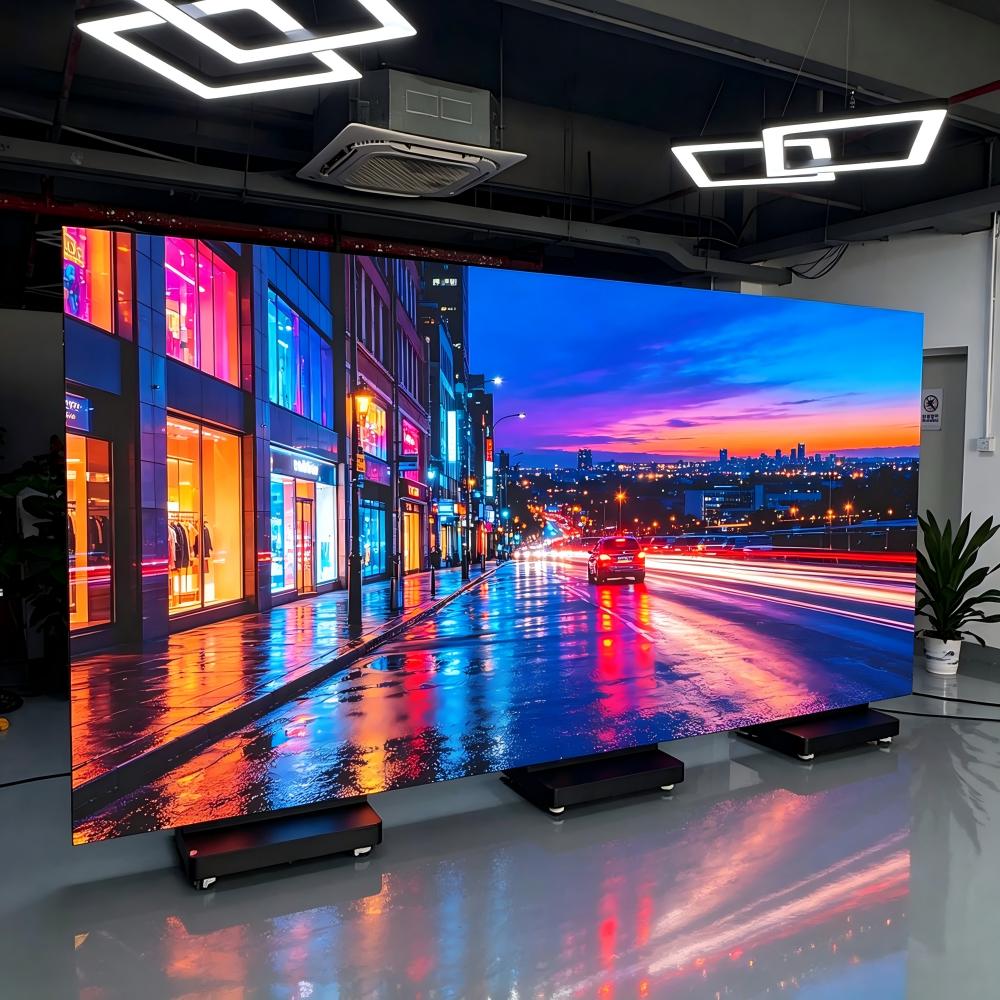

Expandable system: Multiple units can be linked together for even larger displays (P1.53: 2pcs linkable, P1.86: 3pcs linkable, P2.5: 4pcs linkable).

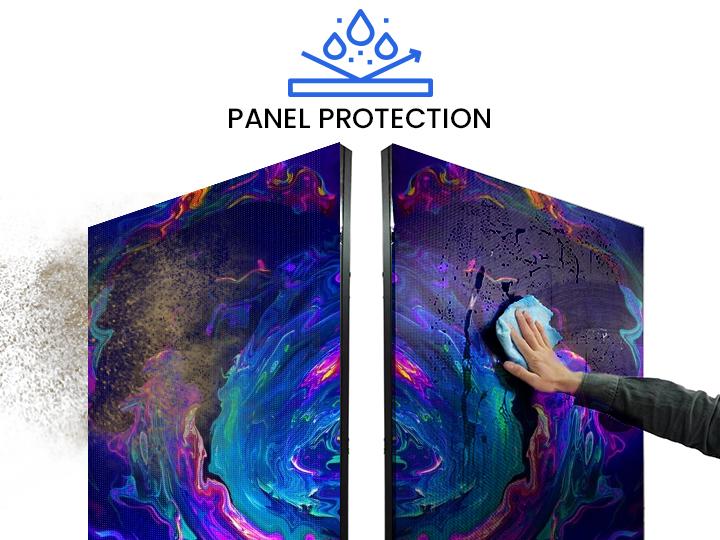

Durable construction: GOB technology protects LED panels from impacts, dust, and water.

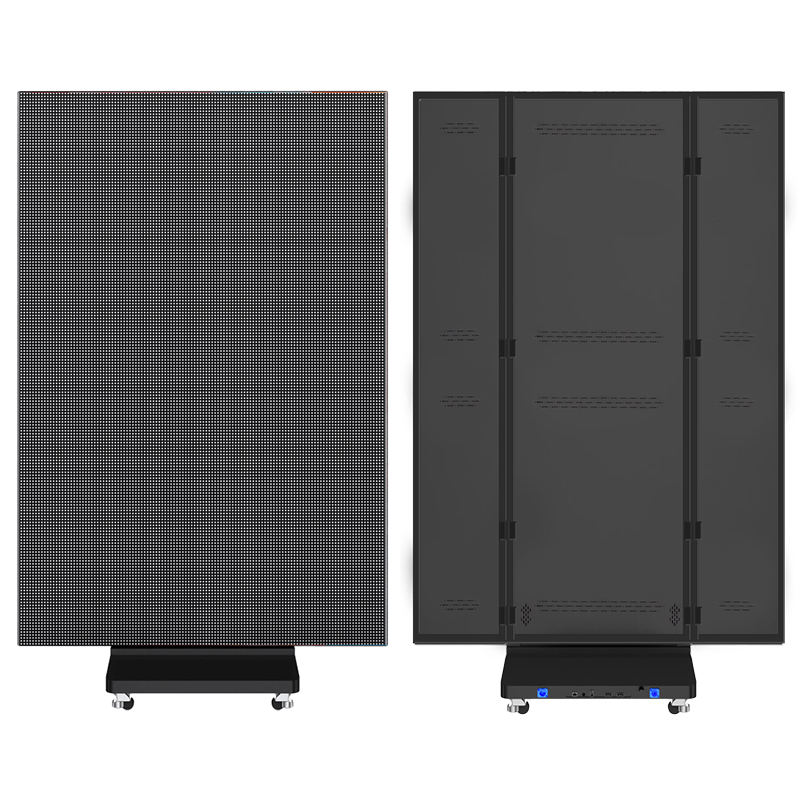

Easy maintenance: Rear access panel for convenient servicing.

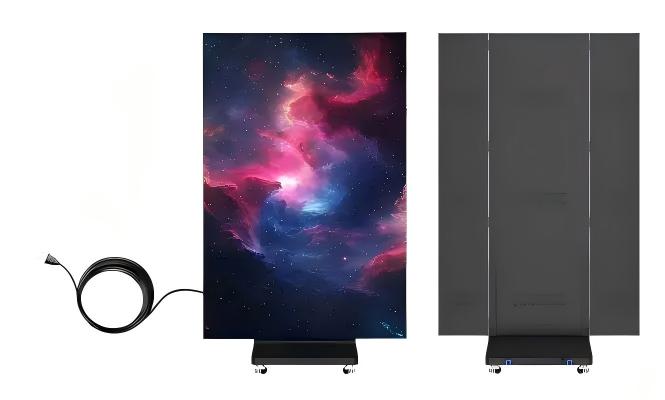

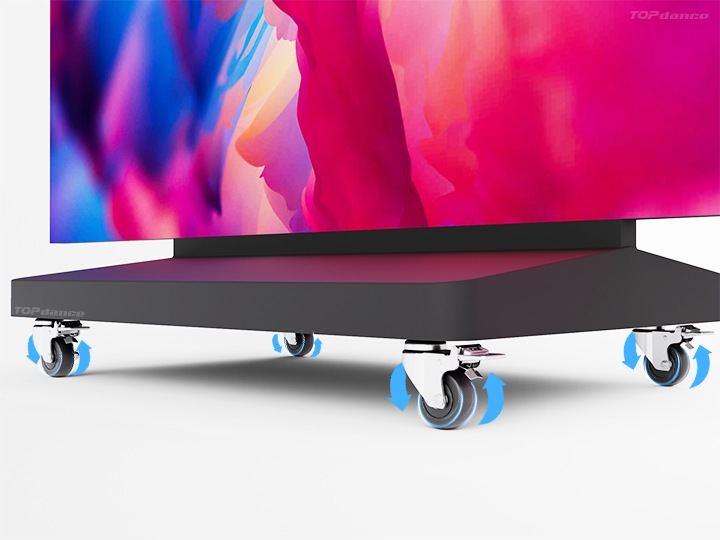

Mobility: Floor-standing design with wheels for effortless relocation.
Quick setup: Plug-and-play operation with no installation required.
