Commercial Advertising Bill Boarding SMD Outdoor LED Display

Quick Details

Application:

Outdoor

Color:

Full Color

Place of Origin:

Guangdong, China

Brand Name:

H&S

Working Voltage:

AC220V±15% 47~64HZ

Maximum Power:

880W/ M2

Average Power:

400W/ M2

Continuous Working Time:

>48 Hours

MTBF:

>10000 Hours

Operating Temperature:

-10℃~+60℃

Operating Humidity:

10%-95%RH

System Operating Platform:

WINDOWS XP

Control Mode:

Synchronous/ Asynchronous System

Warranty:

2 Years

Summary
Product Atlas
Specification table

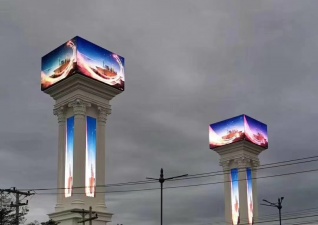

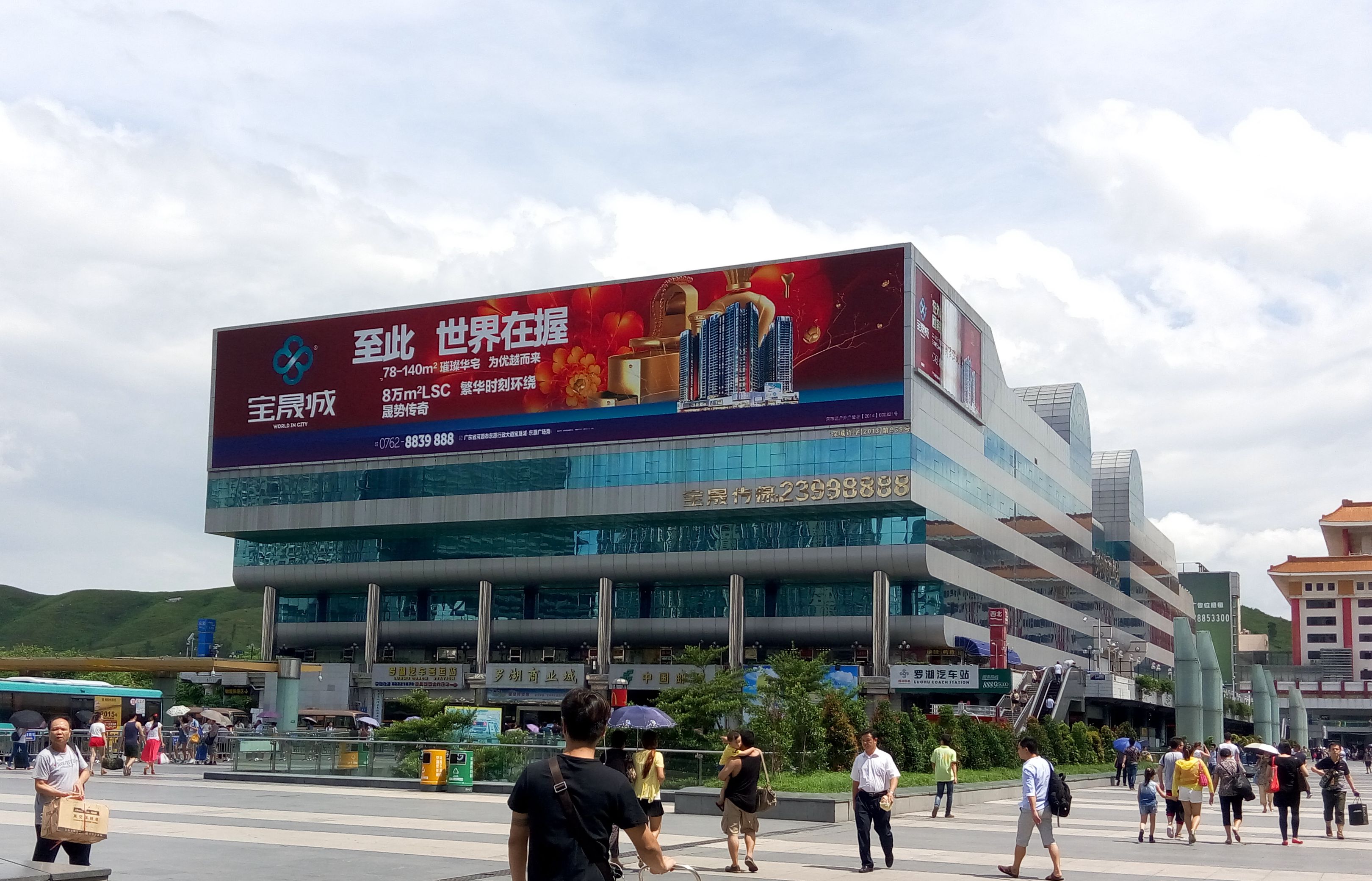

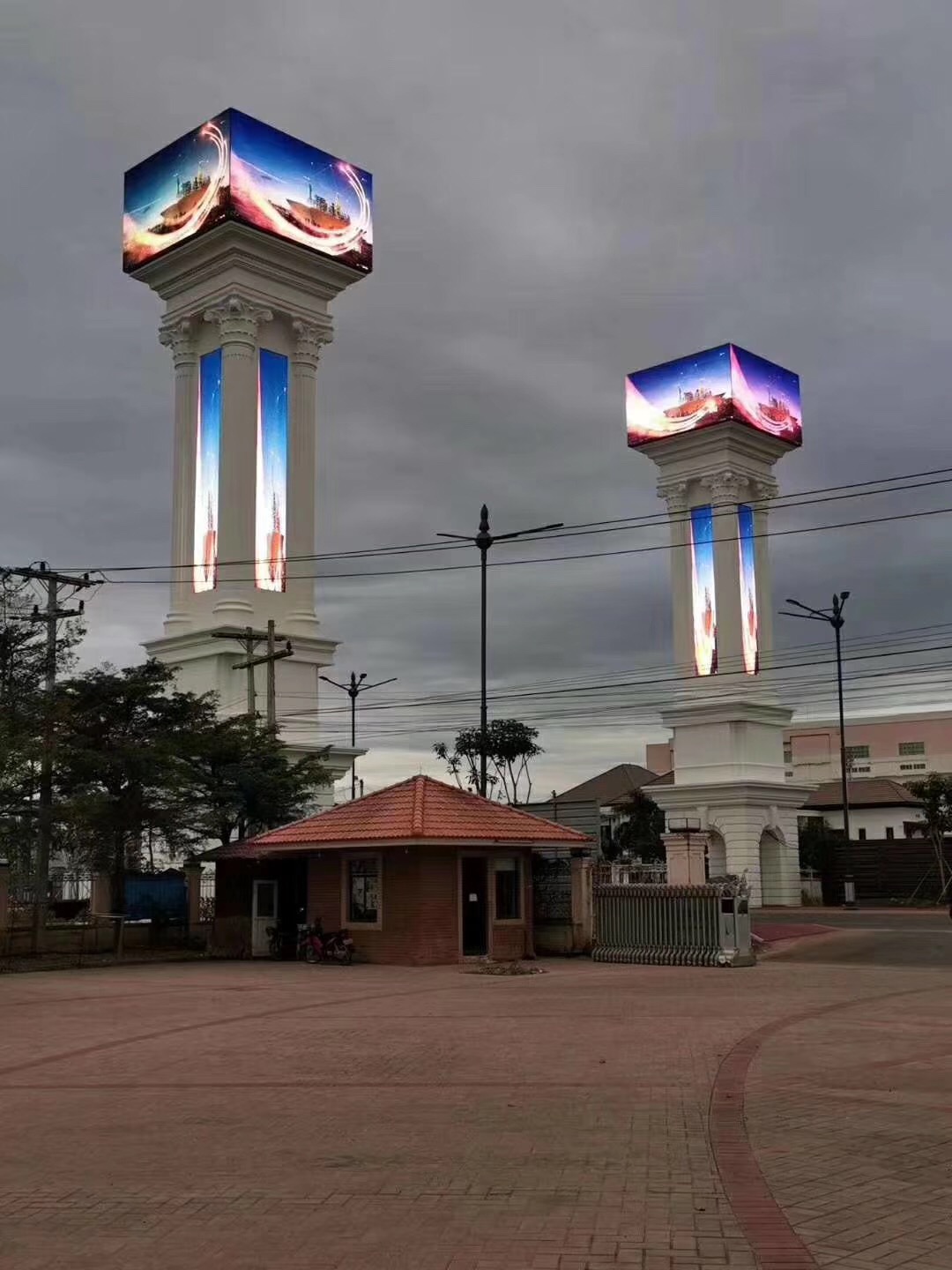

Case

Summary

Commercial Advertising Bill Boarding SMD Outdoor LED Display

1.Product Type：we have indoor fixed installation /rental/small pixel pitch/outdoor advertising/front service /soft/transparent led display,etc.

2.Type:we can customize the product according to customers' needs, you just need to provide the requirements details and also specify the lamp bead brand, ic brand.

3.Installation：diversified installation and high protection level .in addition ,we have processional technicalengineer provide remote assistance

4.Quality Assurance:

▲using Nationstar, Nichia, Cree,Kinglight gold and Copper Wire,big size rgb chips, long service life, low failure rate;

▲original pvc plastic and even aluminum material, good toughness, high and low temperature resistance, V0 grade flame retardant,

UVresistant

5.Application:shopping mall, large building glass wall, stage background led display, casino, carnival, concert, exhibition, chain shops and clothes shop, even in bnak window, etc.

* We Can Make The OEM And ODM,Customize The Shape,Size And Lamp Bead Brand, IC Brand,Please Contact With Us.

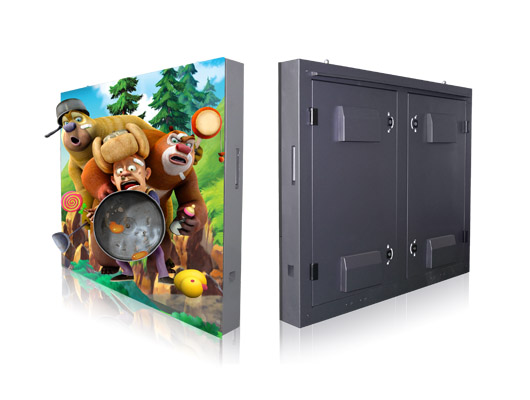

Product Atlas

Specification table

JY-O系列参数 Panel Specification
使用环境Environmental	OUTDOOR
产品型号Model	JY-25	JY-3	JY-O4	JY-O5	JY-O6	JY-O8	JY-O10
像素间距Pixel Pitch	2.5mm	3mm	4mm	5mm	6mm	8mm	10mm
像素构成LED Configuration	SMD1921	SMD1921	SMD1921	SMD2727	SMD3535	SMD3535	SMD3535
像素密度Pixel Density	160000dot/m2	111111dot/m2	62500dot/m2	40000dot/m2	27777dot/m 2	15625dot/m2	10000dot/m2
模组尺寸 Module Size	320X60mm	192X192mm	256X128mm	160X160mm	192X192mm	256X128mm	320X160mm
模组分辨率Module Resolution	128X64dot	64X64dot	64X32dot	32X32dot	32X32dot	32X16dot	32X16dot
箱体尺寸Cabinet Size	960X960mm	960X8960mm	1024X768mm	960X960mm	960X960mm	1024X768mm	960X960mm
箱体分辨率Cabinet Resolution	384X384dot	320X320dot	256X192dot	192X192dot	160X160dot	128X96dot	96X96dot
重量 Cabinet Weight	38kg/pcs	38kg/pcs	45kg/pcs	55kg/pcs	55kg/pcs	45kg/pcs	55kg/pcs
防水等级 IP Rating ( front/back)	IP65/43	IP65/43	IP65/43	IP65/43	IP65/43	IP65/43	IP65/43
扫描方式 Scanning Mode	16S	12S	8S	8S	8S	4S	4S
亮度水平Brightness Intensity	>5500CD/m2	>5500CD/m2	>5500CD/m2	>5500CD/m2	>5500CD/m2	>5500CD/m2	>4500CD/m2
可视角度Viewing Angle (H/V)	120°	120°	120°	120°	120°	120°	120°
观看距离 View Distance	>3m	>3m	>4m	>5m	>6m	>8m	>10m
灰度等级Gray Scale	14bit	Mbit	14bit	14bit	14bit	14bit	14bit
色彩种类Display Scale	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M
最大功率Max.Power Consumption	1200 W/m2	1200 W/m2	1200 W/m2	1200 W/m2	850 W/m2	800 W/m2	675 W/m2
平均功率Ave.Power Consumption	400 W/m2	400 W/m2	400 W/m2	400 W/m2	280 W/m2	240 W/m2	225W/m2
刷新率 Refresh Frequency	>2880HZ	>2880HZ	>2880HZ	>2880HZ	>2880HZ	>2880HZ	>2880HZ
亮度调节Brightness Adjustment	0-100 levels adjustable
控制方式Control Mode	Synchronous display with control PC by DVI
支持信号输入类型Support Input	Composite,S-
输入电源 Input Power	AC100-240 50/60HZ
工作温度Operating Temperature	-20°C~+50°C
工作湿度Operating Humidity	1090% RH
工作寿命Operating Life	100,000hours
