Product Details
Place of Origin: SHENZHEN
Brand Name: H&S LED
Certification: CE ROHS FCC
Model Number: P4.28
Payment & Shipping Terms
Minimum Order Quantity: 1set
Packaging Details: Fight case/Wooden case/Honeycomb Box
Delivery Time: 8-25work days
Supply Ability: 1000set
Highlight: Outdoor circular round shape sign, P4 circular round shape sign
Produce Name: | Outdoor Round LED Diaplay | Pixels:: | ≥3840Hz |
Customization: | Single Sided/Double Sided | Pixel Composition: | 1R1G1BLED (SMD1921) |
Module Size: | 300mm*300mm | Brightness: | 5500cd/m² |
Shape: | Round | Ip Rating: | IP65 |
Operating Environment: | Ooudoor：-20℃-50℃； | Lifetime: | ≥100,000 Hours |
Roud Led display

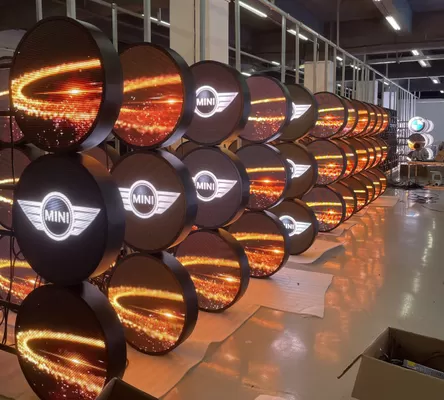

Outdoor Full Color Dia 600mm P4 LED Round Screen LOGO Sign for Store Advertising
Model Number : round led display
USE : outdoor
Specification :LOGO LED screen
Color : Full color
Supplier Type:Original manufacturer, ODM, OEM
Media Available:datasheet, Photo, EDA/CAD Models
Application site :advertising publish, retail store, shopping mall, welcome display, exhibition hall, airport, subway, Restaurant & Hotel Supplies.
LED circular advertising display supports images, videos, text, real-time data, dynamic rotation display, dustproof + waterproof spray,real-time connection to mobile phones for playback, automatic brightness adjustment according to ambient light, synchronized playback on multiple circular screens, suitable for shopping malls, subways, airports, exhibition halls, flagship stores, and other locations to dynamically attract customer traffic.
Designed specifically for outdoor applications, the Round Led Display is engineered to withstand the elements while delivering vibrant and eye-catching visuals. Its round shape and full-color capabilities make it an ideal choice for creating impactful and memorable displays in a variety of settings.
LED Circle Display Features:
Creative LED Circle/Round Screen, Custom size.
Single Side/Double Side LED Round Screen for optional.
Outdoor and Indoor LED Round Screen for optional

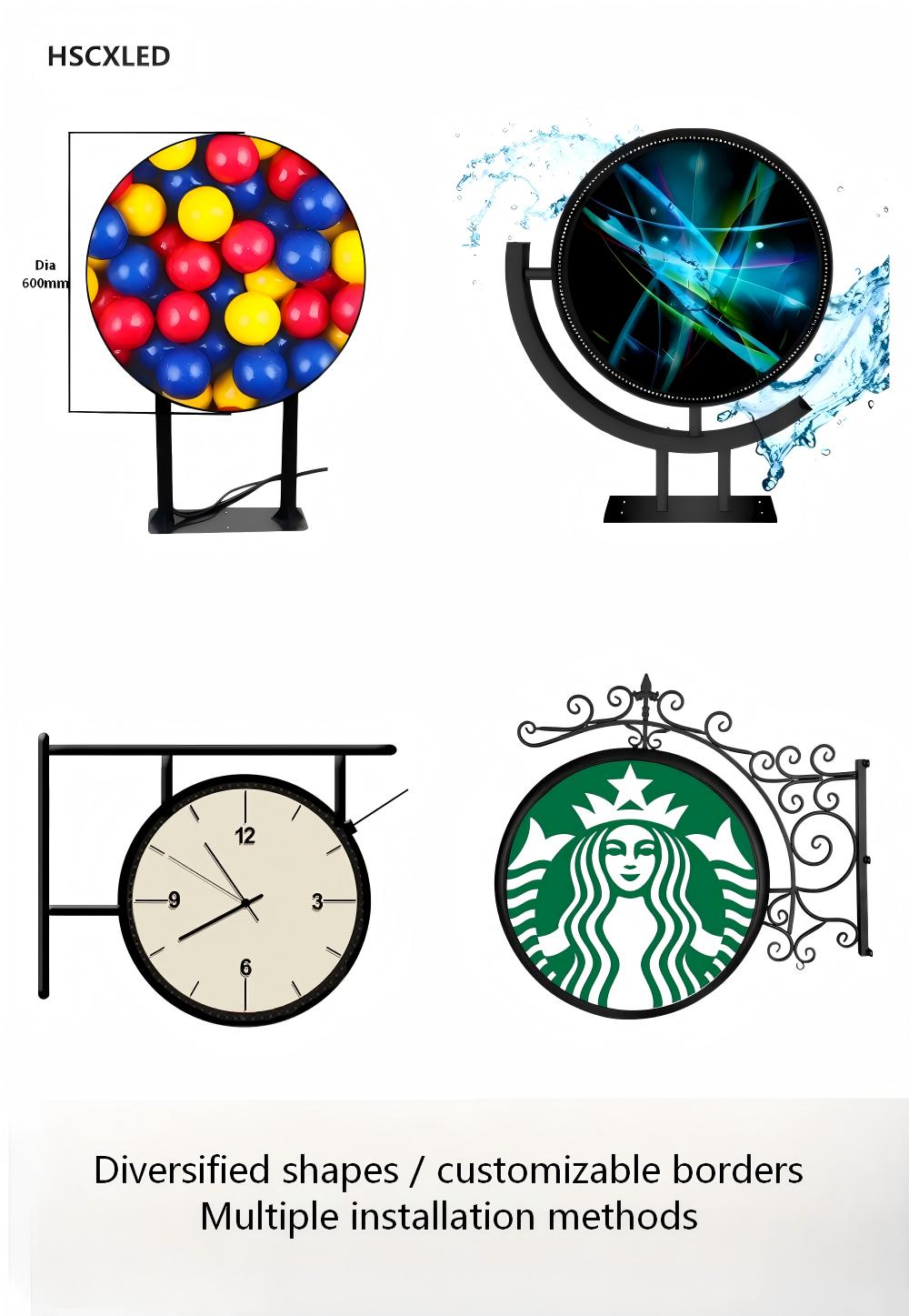

Support wall mounted, ceiling mounted, etc
Can perfectly display Videos, Pictures, Animation, LOGO, Texts, Messages,etc
Support Front Maintenance and Back Maintenance (optional)
Support LAN/Wifi/3G/4G/USB Control (optional)
Round LED Display Specification:
| PH4.28 -Dia 600mm Roud Led display | |||||||
| Pixel point parameter: | |||||||
| 1 | LED | SMD1921 | |||||
| 2 | Pixel Pitch | 4.28mm | |||||
| 3 | Pixel composition | 1R1G1B | |||||
| 4 | Features | Waterproof and UV-resistant | |||||
| Module technical parameters: | |||||||
| 1 | Module resolution (W * H) | 70*70dot | |||||
| 2 | Module size (W * H) | 300mm*300mm | |||||
| Screen body technical parameters: | |||||||
| 1 | Full screen size | 640mm*640mm*120mm | |||||
| 2 | dot density | 54289dot/m² | |||||
| 3 | screen resolution | One side 140*140 points , Double-sided 280*140 points | |||||
| 4 | Brightness | 5500cd/m² (white field color temperature 6500K) | |||||
| 5 | Horizontal view/vertical view | 140°/140° | |||||
| 6 | Best visual distance (m) | 4-100m | |||||
| 7 | flatness | ≥99% | |||||
| 8 | Chroma uniformity | ±0.003 Cx,Cy | |||||
| 9 | service life | >100,000 Hours Theoretical value | |||||
| 10 | way to install | Side hanging, Mosaic, wall hanging, lifting | |||||
| 11 | Protection Class | IP65 | |||||
| 12 | weight | Single side ≈10KG double side ≈13KG | |||||
| System control parameter: | |||||||
| 1 | Signal color processing bits | Red, green, and blue ≥14bit | |||||
| 2 | type of drive | Constant current drive 1/14 scan | |||||
| 3 | repetition frequency | 60 frames per second | |||||
| 4 | refresh rate | ≥3840HZ/S | |||||
| 5 | maximum power | Single side 200W/ set, double side 400W/ set | |||||
| 6 | average power | Single side 67W/ set, double side 134W/ set | |||||
| 7 | Operating Temperature Range | -40°C~+60°C | |||||
| 8 | Screen color temperature | 2000K-9500K is adjustable | |||||
| 9 | brilliance control | Manual/automatic/program control | |||||
| 10 | control mode | Asynchronous control/mobile APP, WIFI, U disk, cloud platform | |||||
Outdoor LED Circular Display advantage:
Unique Design Creates Magical & Fantastical Effect
Excellent decoration provides outstanding visual performance for retail advertising.Round led video display has special and creative shapes.It's magic decoration and effect with such round led video screen.Round led video display has special and creative shapes. It's magic decoration and effect with such round led video screen.Circular led display has excellent visual performance for retail advertising and customer's logo.
Outdoor Waterproof
IP 65, outdoor waterproof technology.IP65 provides ful protection against dust ingress and water jets from any angle,enabling devices to operate reliably in harsh, wet,or dusty environments while maintaining durability.

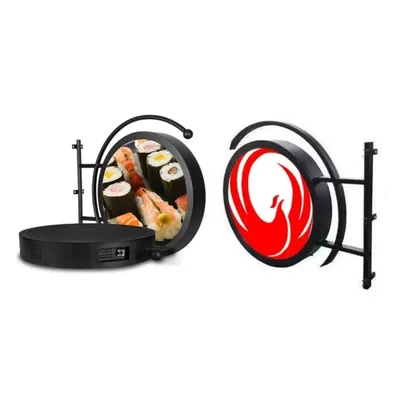

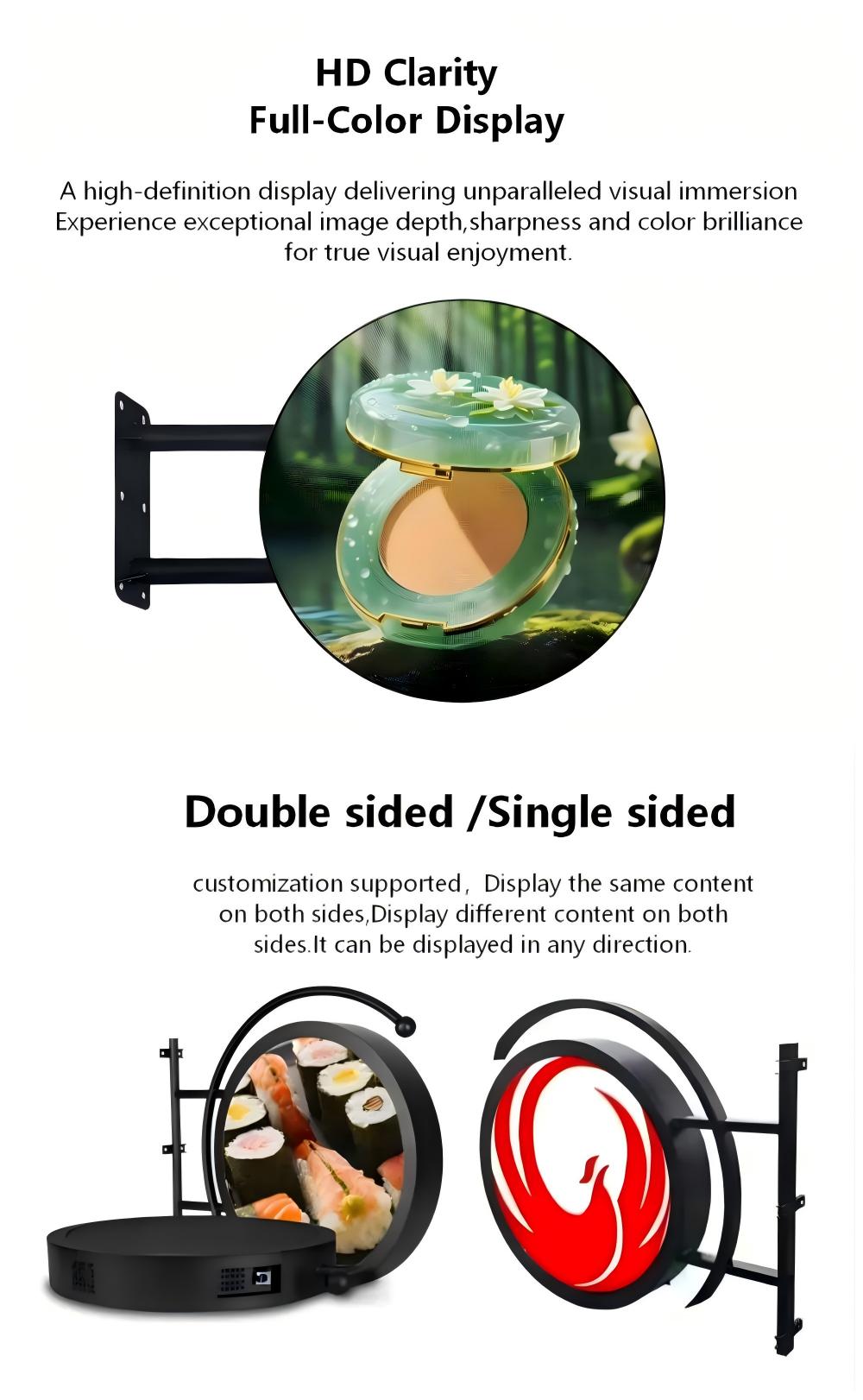

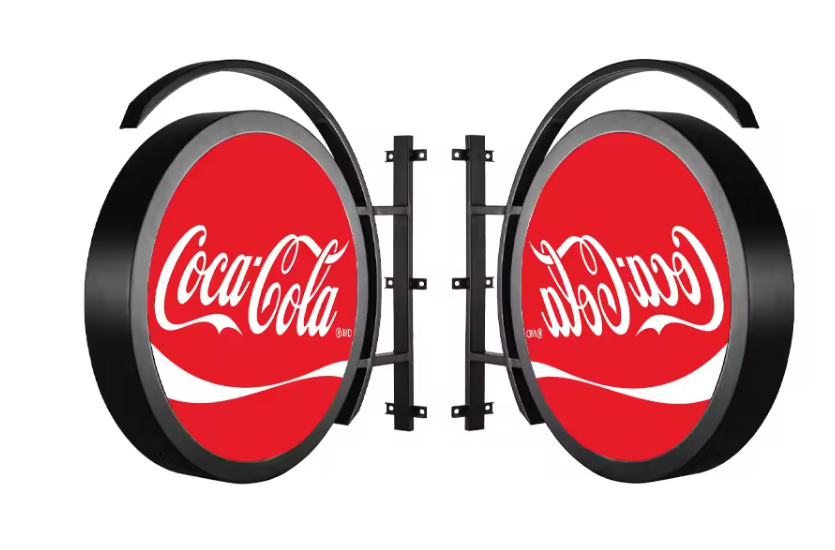

Single sided LED screen/Double sided LED display
Circular LED display screen, HSCXLED supports ODM/OEM, the screen can display the same playback content on both sides, as well as different content on both sides, allowing customers to see from any direction. Meet different LED display needs.
HSCXLED is a hot selling outdoor LED circular screen and outdoor double-sided LED display screen-circular LED sign showcases a sleek diameter of 60cm and a compact thickness of just 7cm, offering a stylish dual-sided design that maximizes visibility and space efficiency for your LED logo sign.
Plug & Play Solution
It's plug & play solution for HSCXLED circle led displays. Especially for small sizes. No need for additional configuration. It can display preset videos, photos, animations and texts.
Easy Control & User-friendly Software
Synchronous & asynchronous mode Live broadcasting & autoplay without PC Round led display screen can work 24/7 hours.
Easily Operation

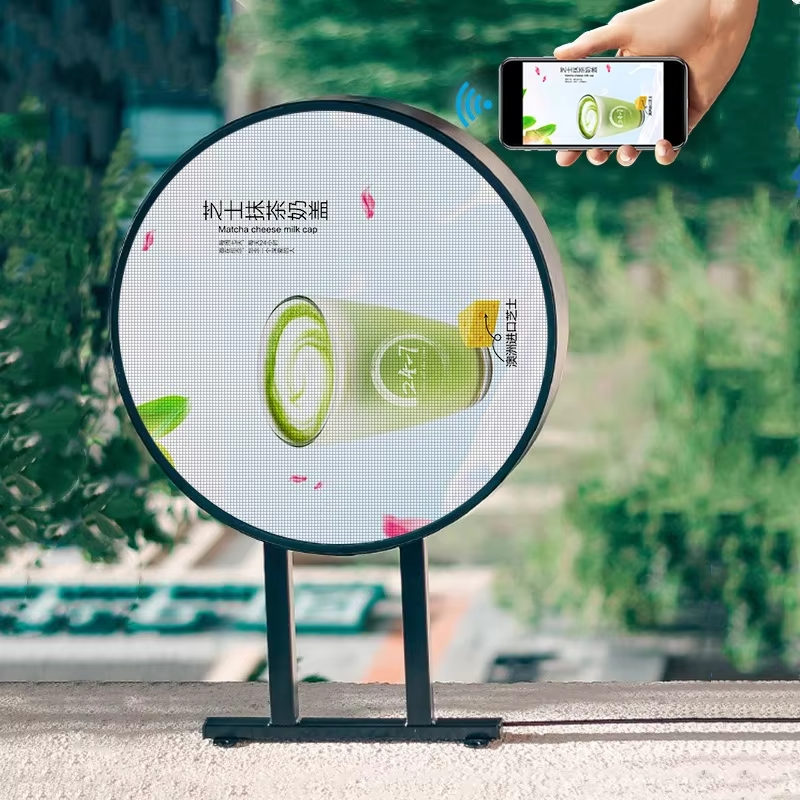

Controllable through both an Android app and computer software.Uploading media files with Wi-Fi connectivity. Designed to operate 24/7 with ease.The simple structure and easy operation enable clients to save money,labor and worries.
High brightness & high contrast
SMD1921 LED beads, outdoor high contrast, high brightness LED display screen,ratio makes sharp pictures.Max 55,000nits brightness make it still visible even under the sunshine.While the contrast ratio is around 4,000:1, so dynamic pictures always available.
High Resolution & High Refresh
Round LED display with high resolution and high refresh for advertising display. Which provides image clarity for detailed display quality.62500 pixels per sqm.4 to 100 meters from the screen visual distance can obtain excellent viewing effect.
Full color LED
Outdoor full-color LED display screen, high-definition LED display screen, supporting playback of text, images, videos, etc,P4.28 pixel pitch,full color display,high softhess and no dazzl large LED density,good display effect,no splicing gap.
Wide viewing angle
Visual angle is more than 140;with the characteristic of ultra wide angle,better surface smoothness and stability when using.
Fast Installation
HSCXLED circle led sign is fast installation with mounting bracket.HSCXLED also provides installation manual for Outdoor advertising led display .
Various Applications
Round led video display is perfect for all kinds of events, shopping mall, front desk, company decoration and etc.It's also perfect for club and stage's lighting effect with round led screen.Round led video display is perfect for all kinds of events, shopping mall, front desk, company decoration and etc. It's also perfect for club and stage's lighting effect with round led screen. With small sizes circular led display, it's perfect for showing company's logos.
Creative Design & Custom Size
Fully customizable to fit your specific needs, including unique shapes and sizes to different sizes and pixel pitches based on your requirements.Round shape led display is working for custom solution, such as special shape and sizes.HSCXLED makes your ideas into reality with our creative round led screen panel.
Small round led display
it is consists of four customized sector. These modules are crafted to fit together seamlessly, forming a complete circle when assembled.

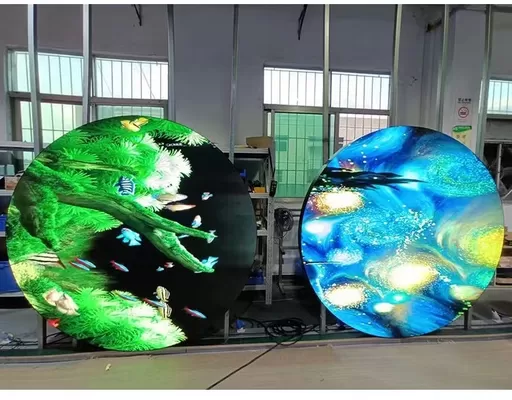

Big round led display
It is consists of multiple modules, and then the circle is planned by wrapping edges
