 Outdoor Full Color Led Display Advertising Screen P5 Led display
 Outdoor Full Color Led Display Advertising Screen P5 Led display
 Outdoor Full Color Led Display Advertising Screen P5 Led display

Outdoor Full Color Led Display Advertising Screen P5 Led display

Product Details

Place of Origin: SHENZHEN

Brand Name: HSCXLED

Certification: CE ROHS FCC KC

Model Number: P5

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Wooden case/Honeycomb Box/Fight case

Delivery Time: 10-15workdays

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram


Product Details


Highlight: Outdoor Led DisplayAluminium Outdoor Corner Led Display ScreenAdvertising Led Wall


Model Number:

Outdoor PH5

Usage:

Outdoor Advertising

Product Name:

P5 Outdoor LED Display

Brightness:

5500cd/sqm

Refresh Rate:

3840HZ

Working Temperature:

-40℃~+60℃

Max Power:

700W/pcs

Receiving Card:

Novastar / Linsn / Colorlight / Huidu


Waterproof Outdoor LED Display Screen LED Billboards Digital Advertising LED Screen


Outdoor Fixed Led Display


Waterpoof Outdoor Advertising Display Led Screen

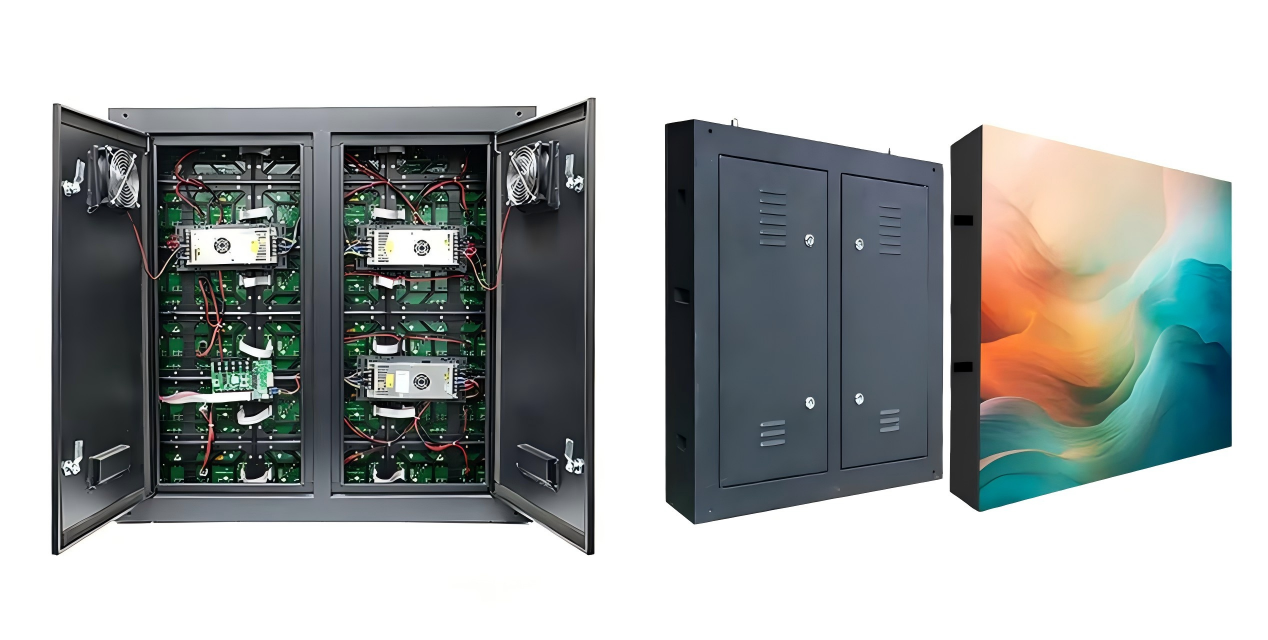

 Outdoor Digital Advertising Panel LEDdisplay 1

About Outdoor LED display:



Durable and Water-Resistant Design:


The P6 IP65 Waterproof Outdoor LED Display Screen is designed to withstand harsh outdoor environments, featuring an IP68 rating and a water-resistant design, making it suitable for use in areas such as airports, subway stations, and outdoor advertising.


High-Quality Display:


This LED display boasts a high refresh rate of 1920hz/3840hz, a brightness of 4500-7500 cd, and a pixel density of 27777 dots, ensuring vibrant and clear visuals for an engaging user experience.


Long-Lasting Performance:


With a lifespan of up to 100,000 hours, this display screen is designed to provide reliable and long-lasting performance, minimizing maintenance and replacement costs.


Versatile Applications:


Suitable for various applications such as advertising, retail stores, shopping malls, exhibition halls, airports, subway stations, elevators, restaurants, and hotels, this display screen can be adapted to meet different business needs.


Outdoor LED Display Paramenters:


HD Outdoor LED Display Advertising LED Screen
NOP2.5P3P3.076P4P5P6P8
Pixel Pitch:2.5mm3mm3.076mm4mm5mm6mm8mm
LEDSMD1415SMD1415SMD1415SMD1921SMD1921SMD3535SMD3535
Module Size:320x160192x192320x160320x160320x160192x192320x160
Cans:1/16S1/16S1/16S1/10S1/8S1/8S1/5S
Cabinet Size:960mmx960mm / 1280mmx960mm/customized
Material:waterproof iron box/die cast aluminum
Brightness:5500~6500cd
viewing angleH:140° V:140°
Gray Level14-16bit
Refresh rate3840Hz-7680Hz
IP GradeIP65
control modeCloud platform/3G/4G/5G/WIFI/U disk/computer...
Working Temperature-20°~60°
Input VoltageAC110-240V±10%,50/60Hz
Life Time≥100000(Hours)


Outdoor LED display  screen features:



IP65 waterproof


An advanced heat dissipation mechanism helps to prevert overheating, The cabinets are also lP65 ratedboth front and back, which means they are dustproof and safe from powerful water jets, while the cabinet andcomponents inside are waterproof for added reliability in virtually any weather conditions.


High-Definition Display


outdoor LED displays deliver clear, brilliant images and prevent distortion andinterruptions, no matter Where they are installed. Eye-catching high brightness combined with a fast refresh rate means visuals are clearly visible in virtuallyany weather or lighting conditions.


Outdoor LED Screen HD DISPLAY


lowpower consumption,energy-saving and waterproof.


Support 356*24-hour work mode


Use the sixth-generation surface-sticked lamp beads,make the service,life of unit module over 100000 hours,low power consumiption design,supports 365-day 7x24-hour work with out downtime


Seamless splicing Flexible installation


Seamless and frameless splicing,adjustable gap,flexible installation.Video extension technology can be used for any size to ensure that  the image is not deformed and the picture is clear and bright.


Shaped LED screenis customized


Support customized cylindrical,special-shaped,spherical,S-shape and others pecial screens,can make avariety of creative screens standard display ratio,and remain the picture unchanged.




Product Description
