Product Details
Place of Origin: SHENZHEN
Brand Name: HSCXLED
Certification: CE ROHS FCC KC
Model Number: P1.5/P1.9/P2.6/P2.9
Payment & Shipping Terms
Minimum Order Quantity: 1set
Packaging Details: Wooden case/Honeycomb Box/Fight case
Delivery Time: 25-35workdays
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000set
Highlight: Double sided ultra-thin LED screen, Indoor Fixed Led Screen, Double Sided Led Display
Indoor Fixed Led Screen/Double Sided Led Display

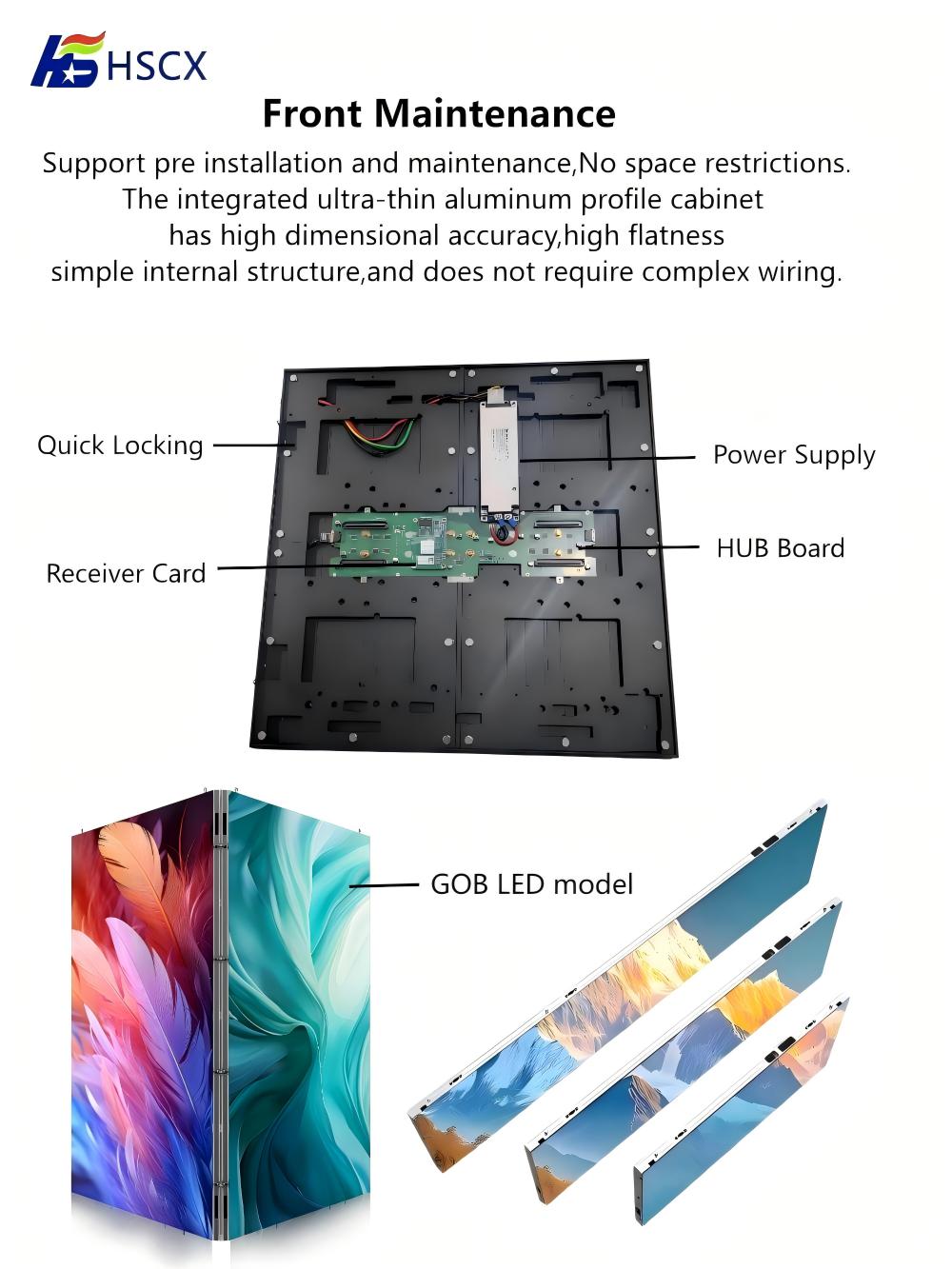

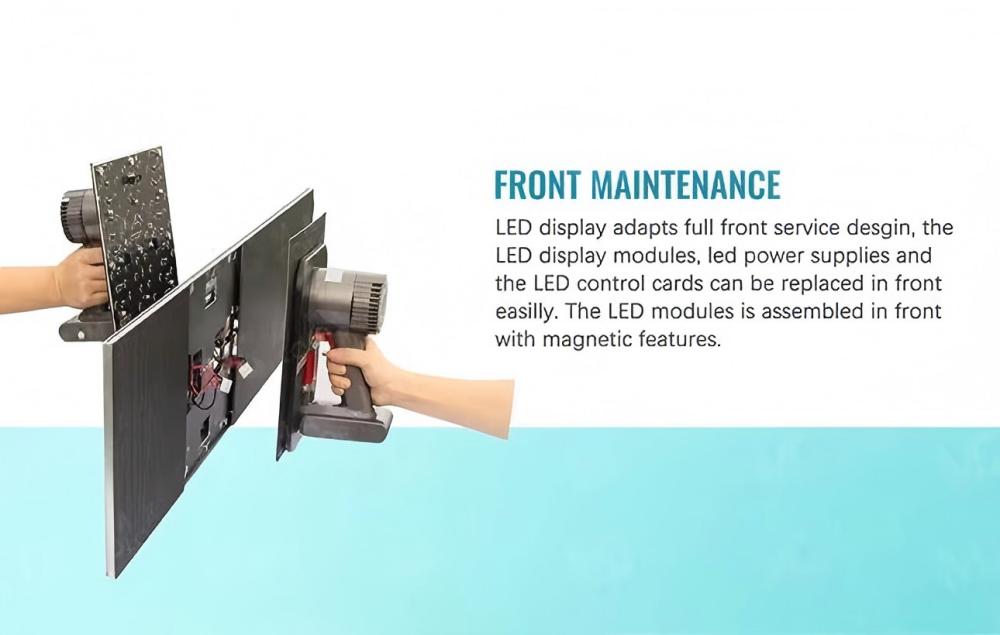

Front Maintenance Indoor Led Screen
Ultra Slim LED Display Screen/Ultra-Thin Double Sided LED Display

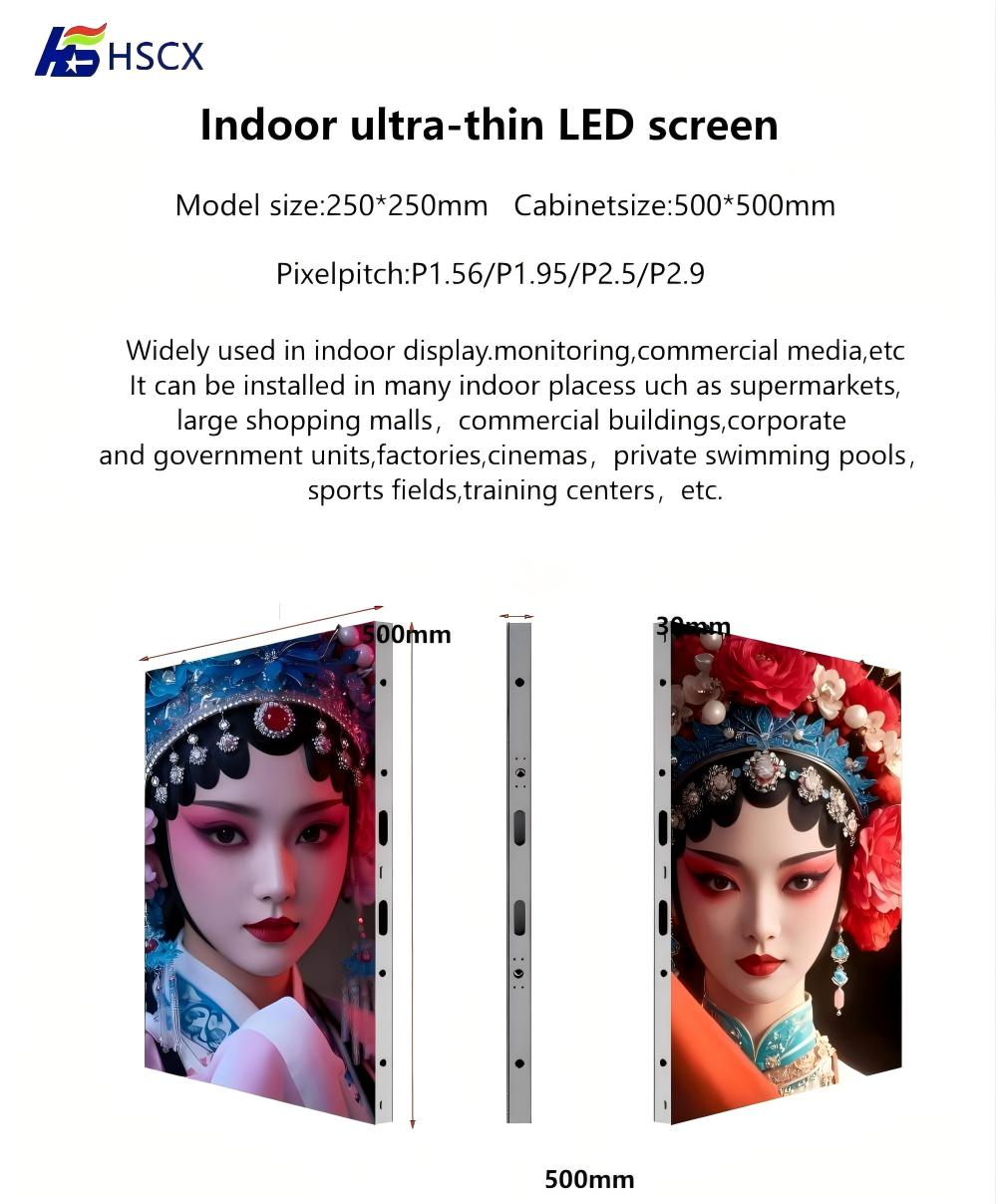

Ultra-thin LED display Features:

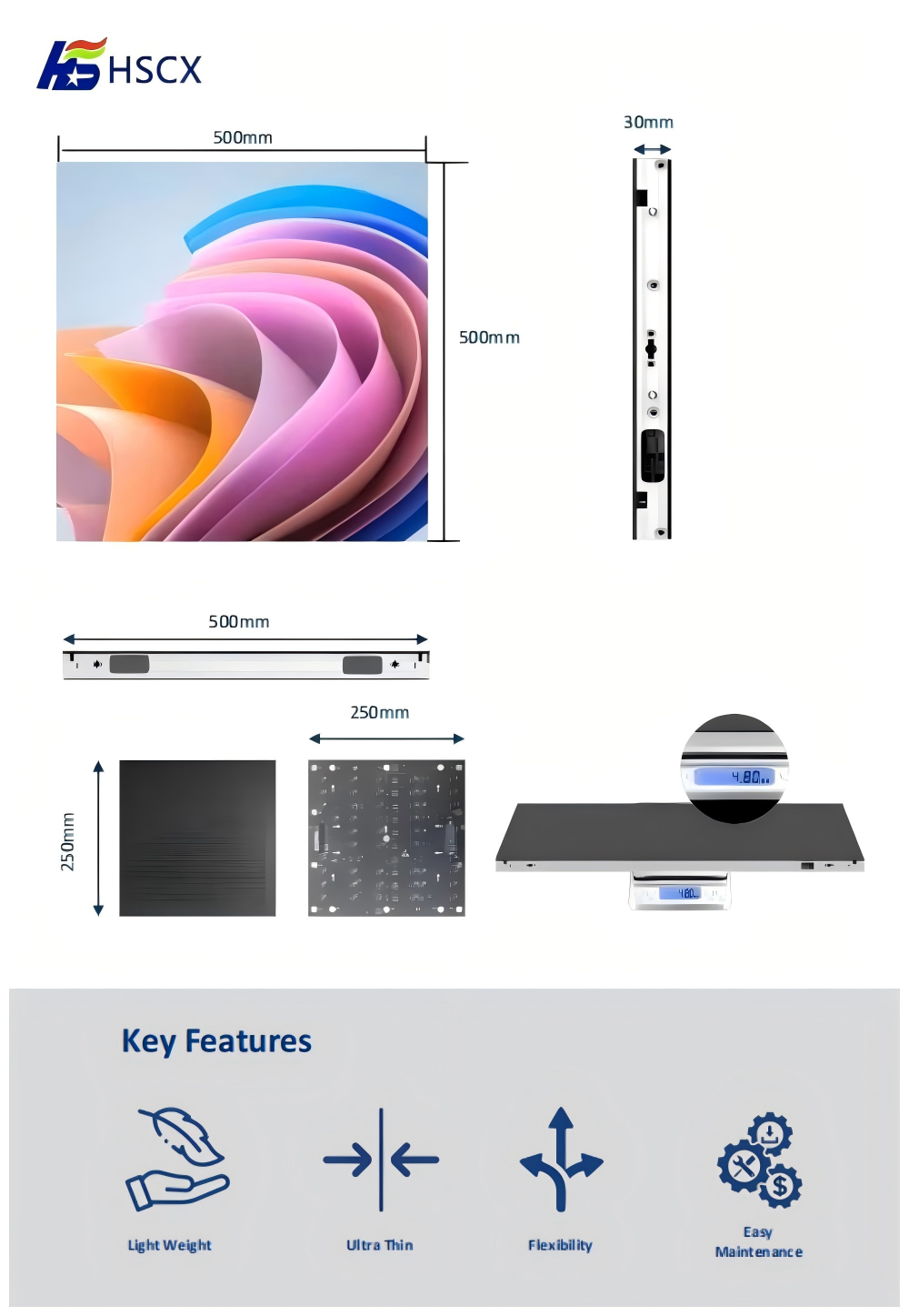

Box size: 500*500mm/500*1000mm
Module size: 250*250mm；Profile box
Single-sided thickness :24mm
Double-sided thickness :30mm
High brightness / High gray
Refresh:3840HZ—7680HZ

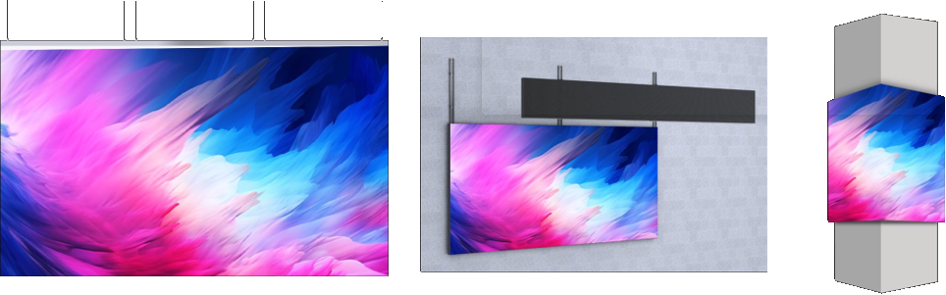

Installation method
Hanging/Wall mounting/Variety of shapes
About ultra slim led screen:

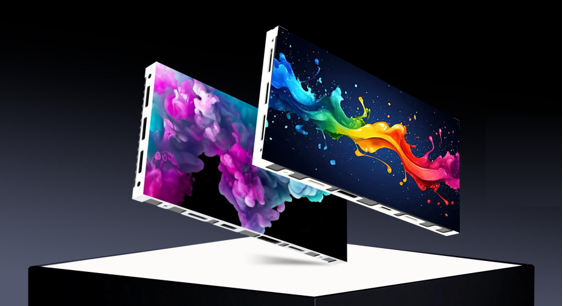

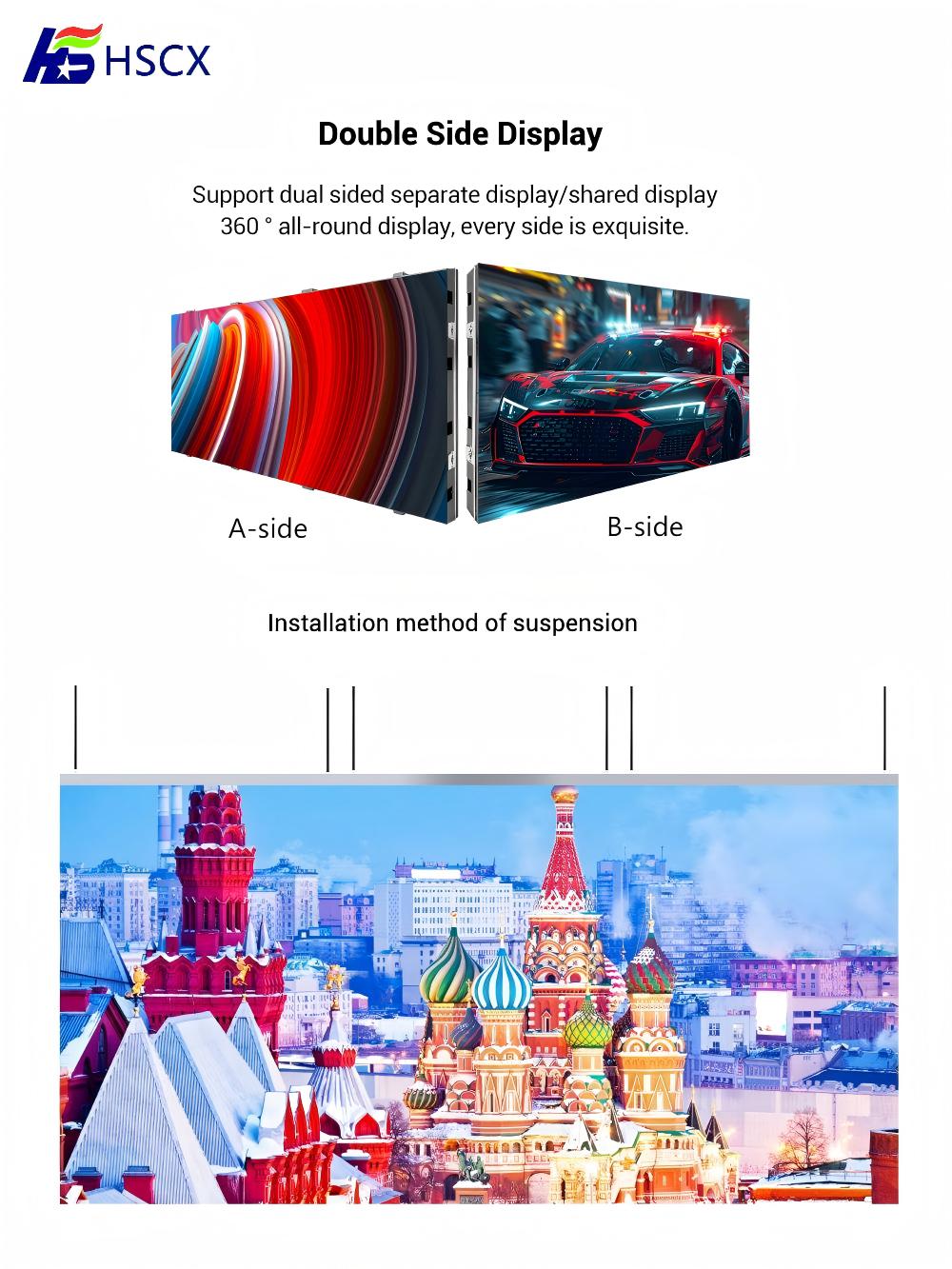

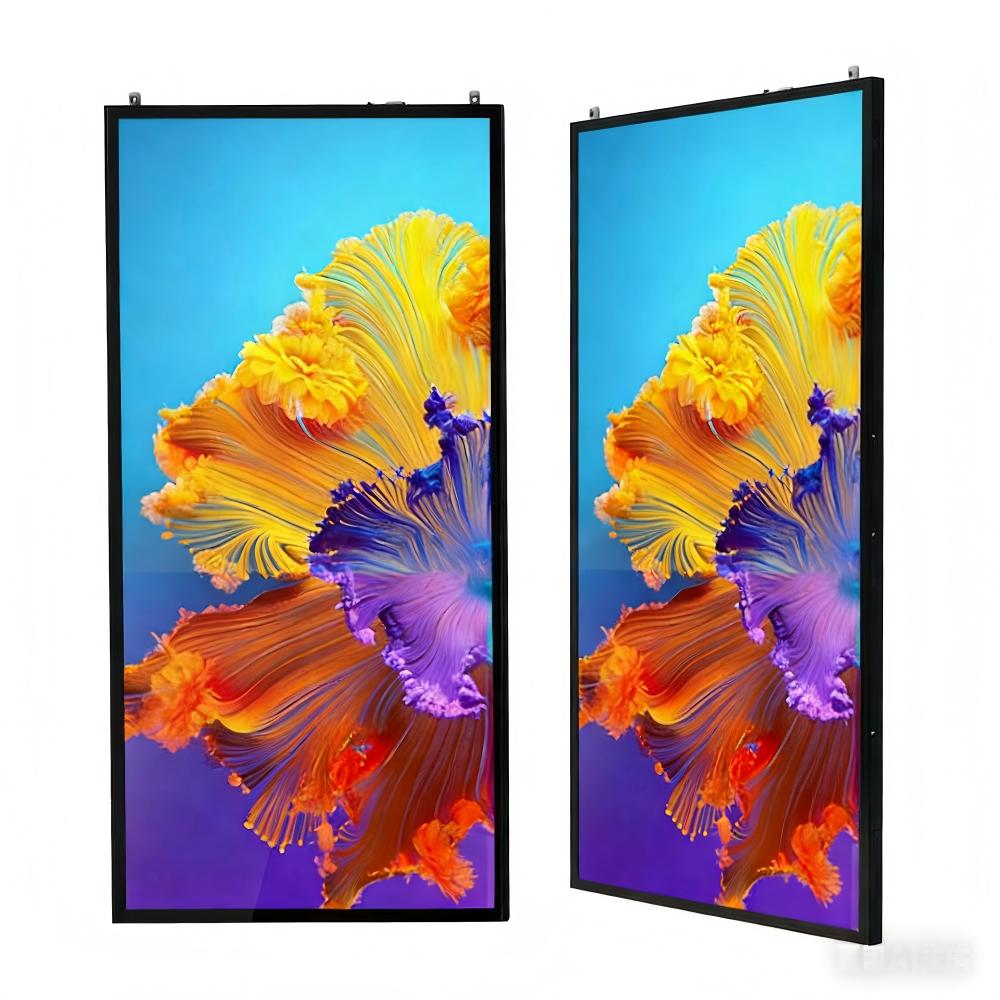

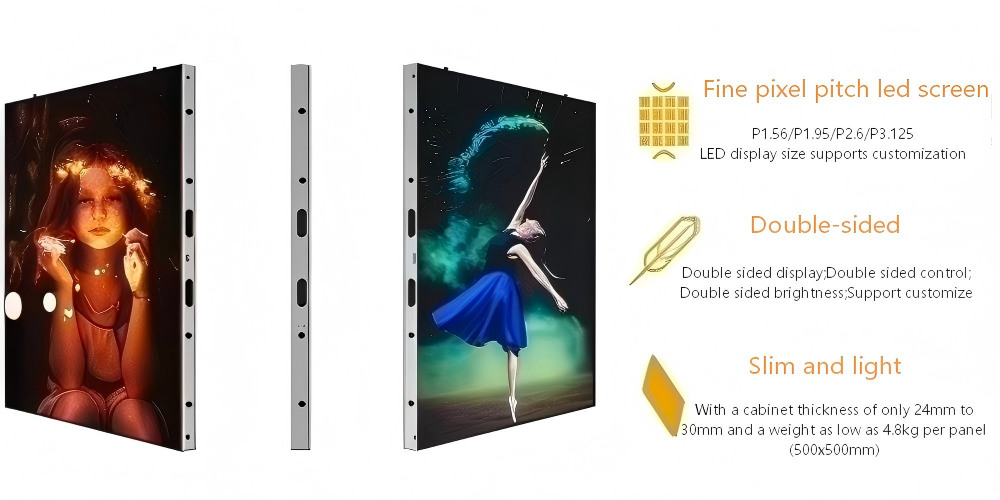

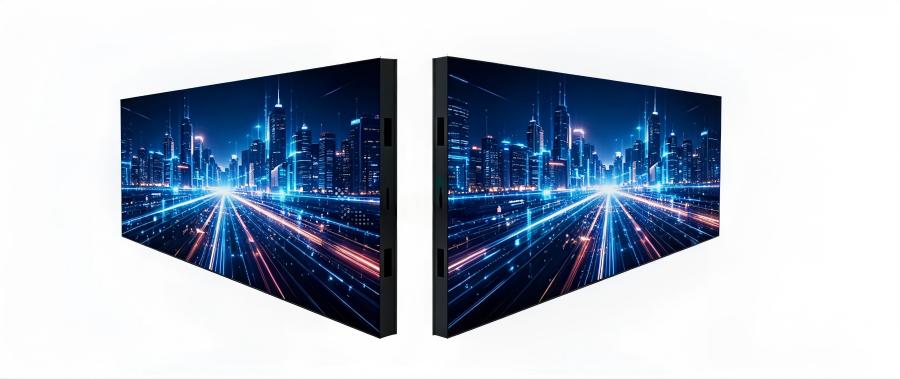

Double-sided LED Display Screen
Screen thickness: 24mm (single-sided), 30mm (double-sided)
Refresh rate: 7680Hz
Weight: 20kg/square meter

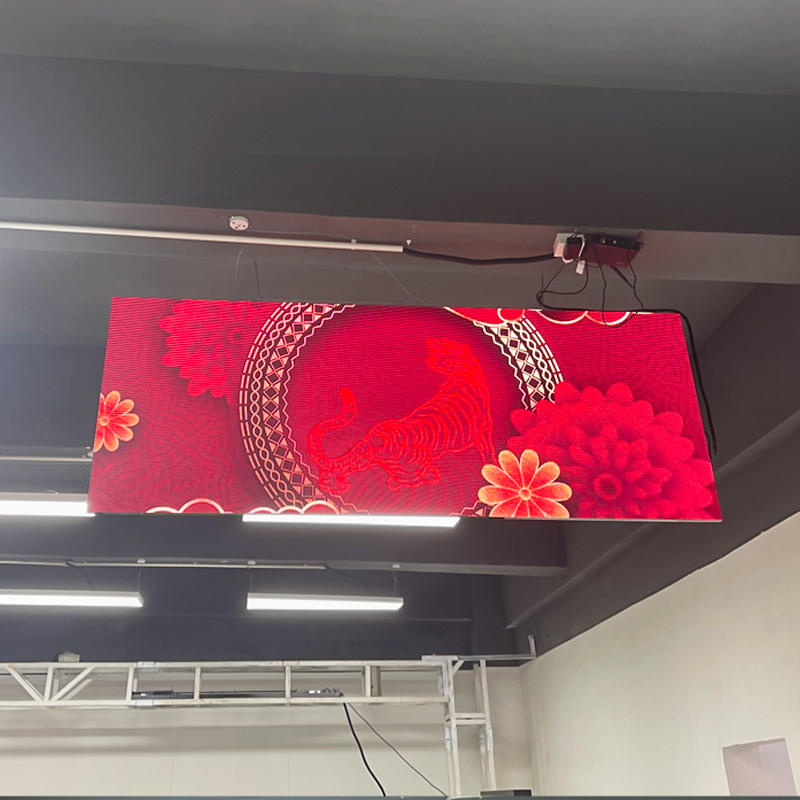

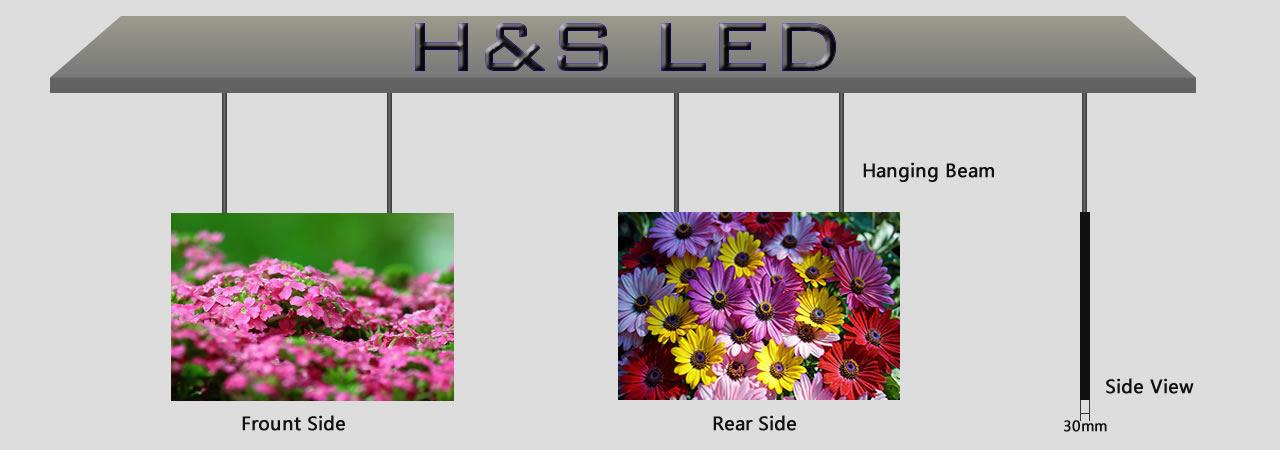

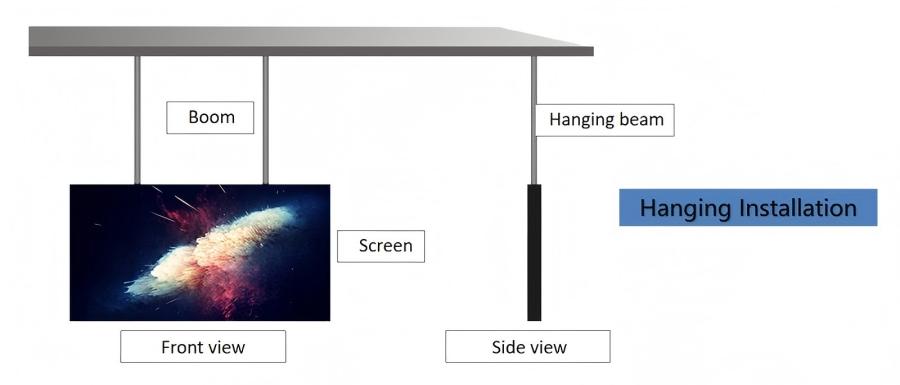

Installation methods: Ceiling mounting, side mounting, wall mounting

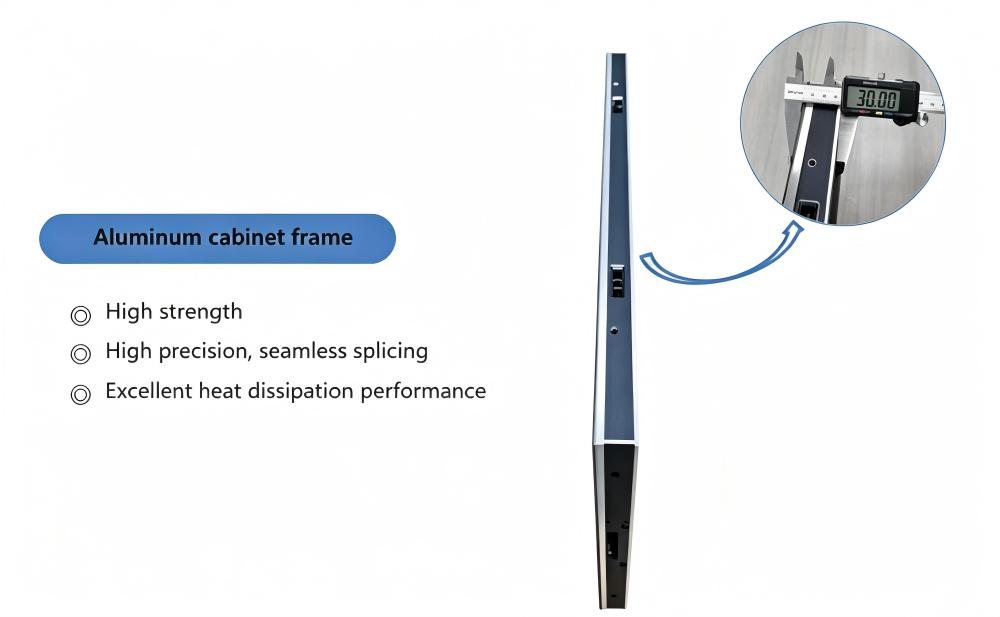

Material: Aluminum profile cabinet, lightweight and thin
The screen uses a rigid connection design, eliminating the need for wiring during module installation, making it convenient and quick!
Cabinet sizes available: 500*500mm and 500*1000mm
Shenzhen H&S Innovation Technology Co., Ltd - The core advantage of indoor ultra-thin led screen double-sided LED display lies in their double-sided visibility and extreme thinness, which can maximize space utilization and improve information transmission efficiency. Its high-definition display effect makes indoor LED display more exciting.
Double-sided LED Display Specifications:
| Indoor LED Display Double sided led display / Ultra-thin LED display | ||||
| Model | P1.56 | P1.95 | P2.6 | P2.9 |
|---|---|---|---|---|
| Pixel pitch | 1.56mm | 1.95mm | 2.6mm | 2.976mm |
| LED configuration | SMD 1212 | SMD 1515 | SMD 2020 | SMD 2020 |
| Module size | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
| Scan mode | 1/40 scan | 1/32 scan | 1/32 scan | 1/21 scan |
| Pixel matrix per Module | 160*160 dots | 128*128 dots | 96*96 dots | 84*84 dots |
| Pixel density | 409600(dots/sqm) | 262144(dots/sqm) | 147456(dots/sqm) | 112896(dots/sqm) |
| Screen size | 500mm*500mm | 500mm*500mm | 500mm*500mm | 500mm*500mm |
| Cabinet Resolution | 320*320dots | 256*256 dots | 192*192 dots | 168*168dots |
| Thickness(Single-sided/Double-sided) | (24mm/30mm) | (24mm/30mm) | (24mm/30mm) | (24mm/30mm) |
| Refresh rate | ≥7680HZ | |||
| Brightness | 500-650nit | |||
| Ingress Protection | IP40 | |||
| Optimal Horizontal Viewing Angle | ≥160° | |||
| Optimal Vertical Viewing Angle | ≥140° | |||
| AC Input Voltage | AC 110V/220V±10%,50Hz/60Hz | |||
| Gray Level | 14-16bit | |||
| Working Temperature | -40 -50(℃) | |||
| Operating Humidity | 10%~95% non-condensing | |||
| Video Format | Support RM,FLV,AVI,MP4 and other mainstream video formats | |||
| Picture Format | Support JPG,PNG,and other image formats | |||
| Life Time | ≥100000(Hours) | |||
Ultra-thin LED display Advantages:
Exceptional Image Quality:
With a pixel pitch: 1.25mm, 1.56mm,1.95mm,2.6mm theShenzhen H&S Innovation Technology Co., Ltd Ultra-Slim delivers crystal-clear images and vibrant colors, ensuring every detail stands out with stunning clarity.
Ultra-Slim Design:
The sleek, lightweight design makes installation a breeze, allowing for seamless integration into any environment without compromising on visual impact.
Enhanced Durability:
Built with GOB LED Display/SMD LED display technology, the display is resistant to moisture, dust, and impact, making it ideal for long-term use in various conditions.
Energy Efficiency:
The Shenzhen H&S Innovation Technology Co., Ltd Ultra-Slim consumes significantly less power compared to traditional LED displays, reducing operational costs and environmental impact.
Wide Viewing Angles:
Enjoy consistent image quality from any angle, that ensures uniform brightness and color accuracy across the entire display.
Seamless Integration:
The modular design allows for easy customization and scalability, making it perfect for creating large-scale video walls or smaller, intricate displays.

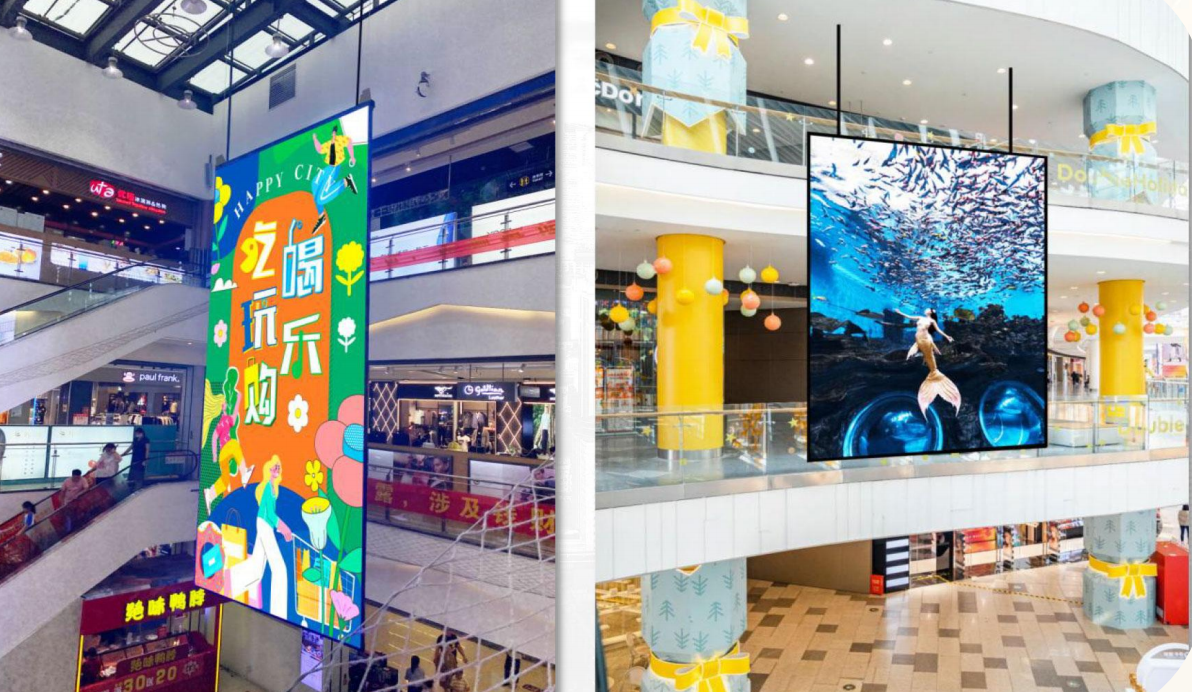

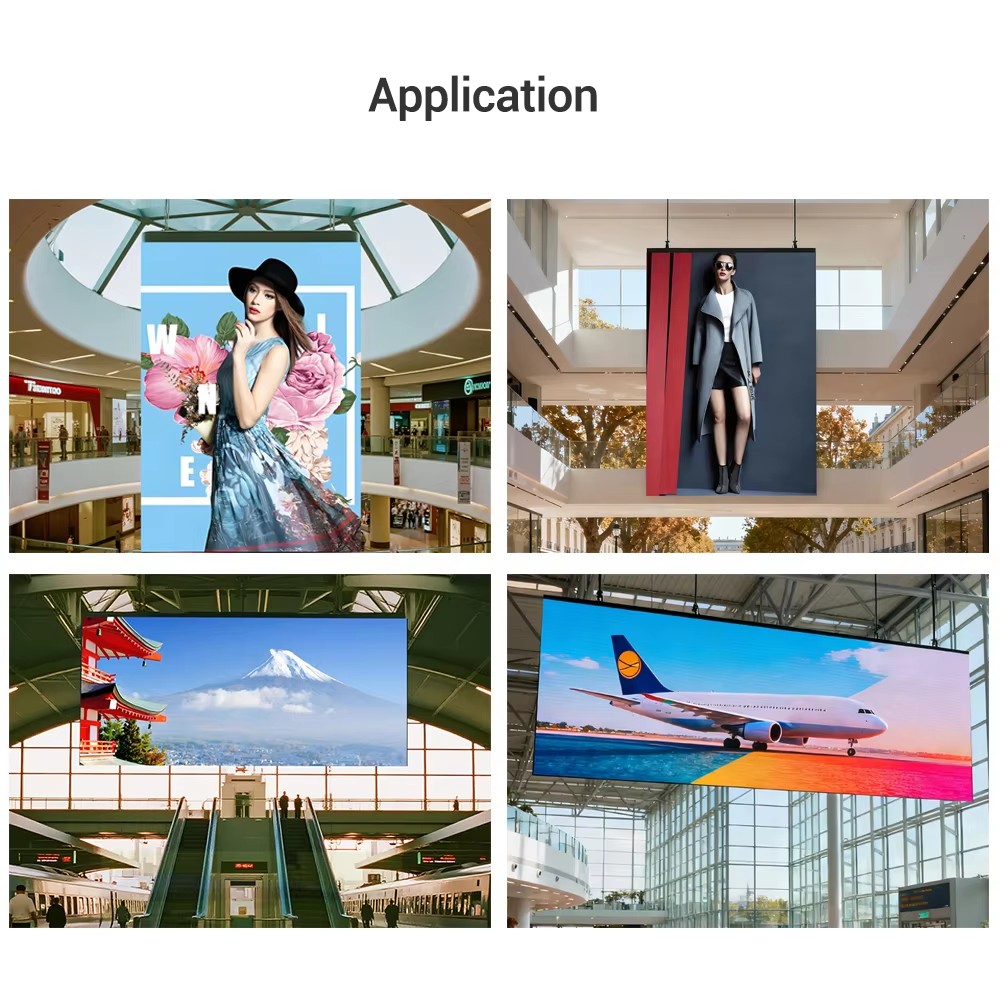

Indoor LED display Application:
Corporate offices and boardrooms

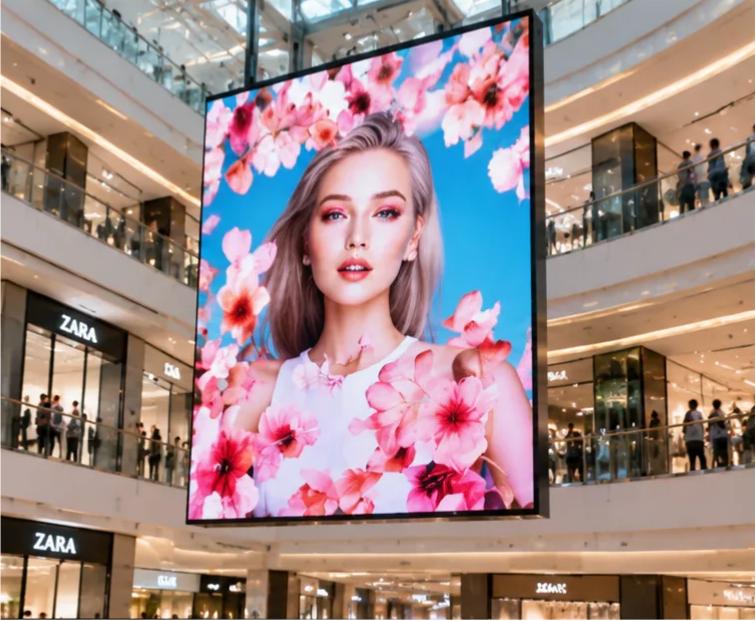

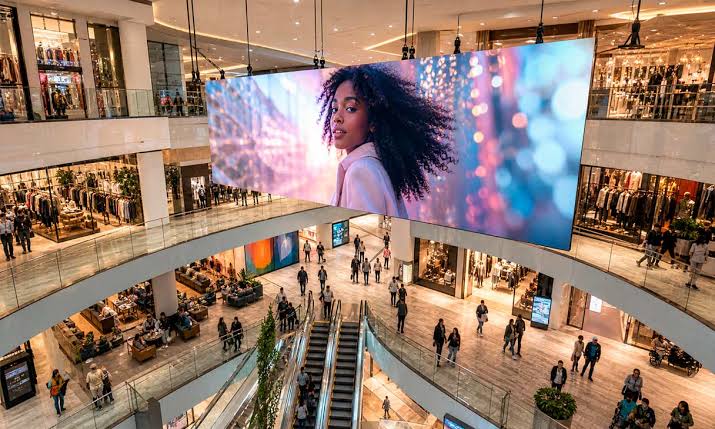

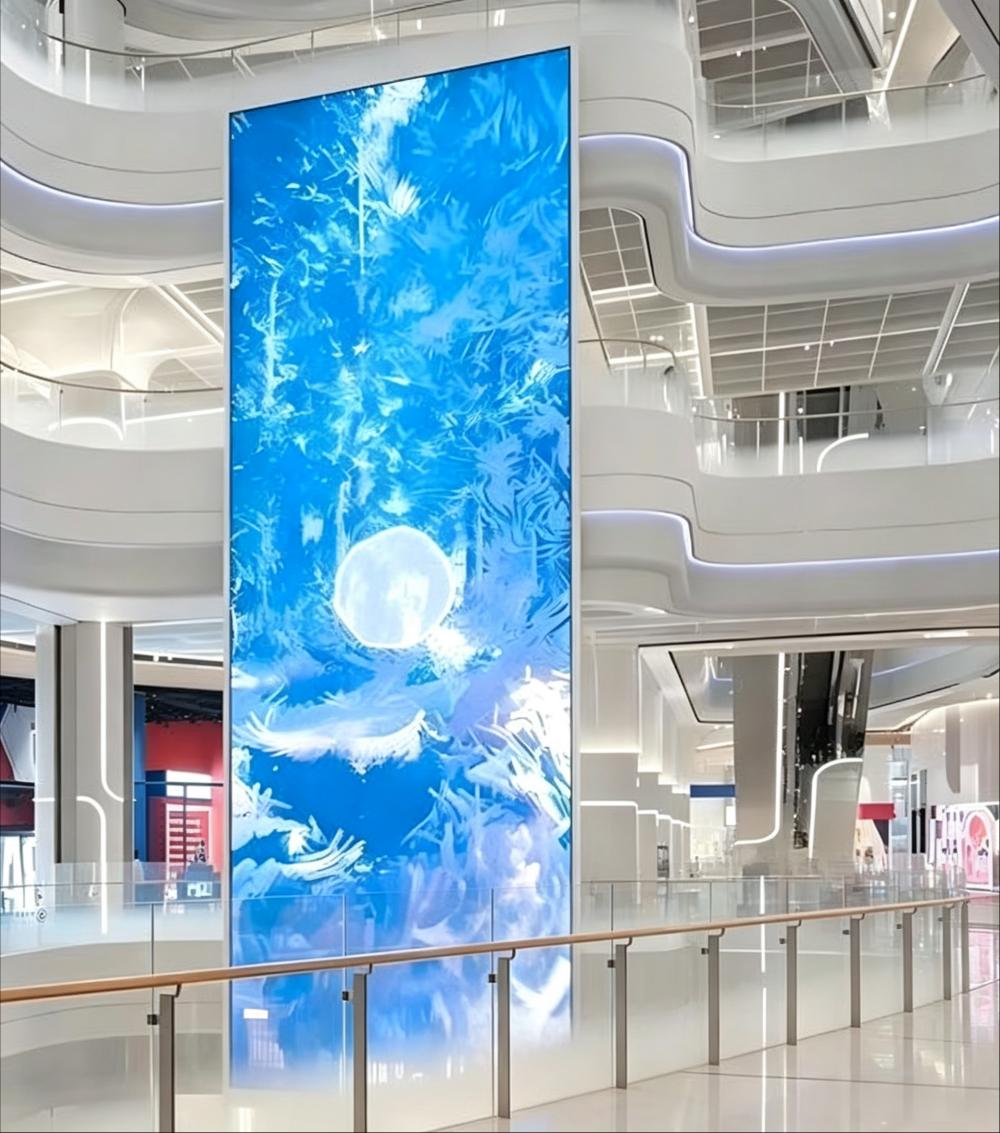

Retail stores and shopping malls
Sports arenas and stadiums

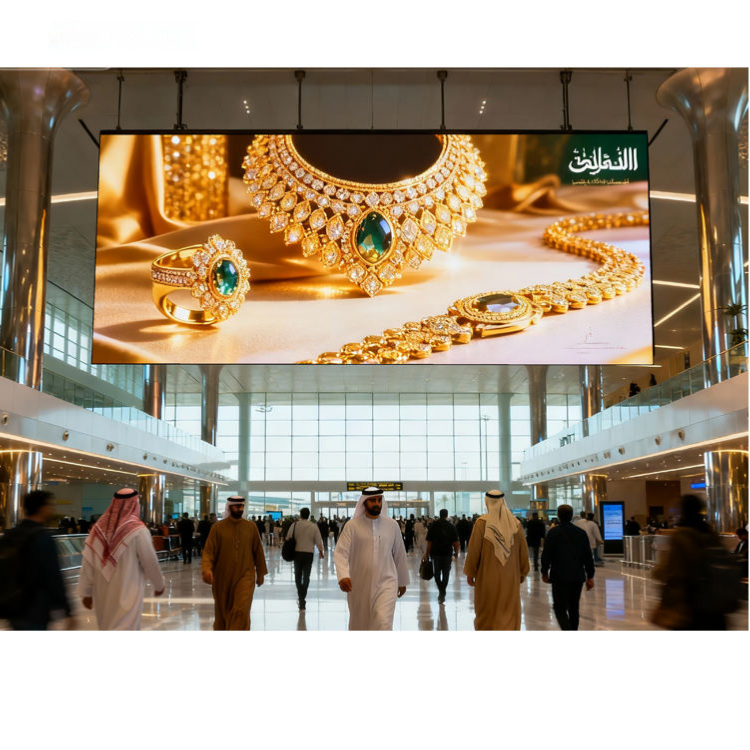

Airports and transportation hubs
Museums and art galleries
Hospitality venues such as hotels and restaurants
♦Company Products and Advantages Introduction
Shenzhen H&S Innovation Technology Co., Ltd specializes in the manufacturing and supply of a diverse range of LED display screens that cater to various indoor and outdoor needs. Our products including Ultra-Slim LED screen,Double sided led display / Ultra-thin LED display ,LED PosterDisplay /LED Mirror Screens ,Pole LED Screen,Outdoor advertising led display, Indoor LED Display , LED Circular Screen, Creative LED Display Screens, LED Soft Screens, and LED Ball Screens.
Outdoor advertising led display:
Outdoor 3D LED Display Screen are designed to provide an immersive and engaging visual experience outdoors. With their advanced 3D technology, they can display stunning graphics, videos, and animations that capture the attention of passersby. They are perfect for advertising, events, and entertainment venues.
LED Poster Display /LED Mirror Screen:
These screens combine the functionality of a traditional poster with the dynamic capabilities of an LED display. The LED poster screens can display digital posters, animations, and videos, while the LED mirror screens offer a reflective surface when turned off and can display content when turned on. They are ideal for retail stores, restaurants, and other commercial spaces.
LED Pole Screen:
The LED pole screens are designed to be mounted on poles or columns, making them perfect for displaying information or advertising in high-traffic areas. They can be used in streets, malls, and other public spaces to provide real-time updates, promotions, and announcements.
LED Circular Screens:
The LED circular screens are unique and eye-catching, making them perfect for creating a focal point in any space. They can be used for branding, advertising, and displaying information in a circular format.
Round Led Diaplay:
Our creative LED display screens offer endless possibilities for customization and creativity. They can be designed to fit any shape, size, and specification, making them perfect for unique and eye-catching displays. Whether you need a custom-shaped screen for a specific event or a unique design for your brand, we can help you bring your vision to life.
