Product Details
Place of Origin: SHENZHEN
Brand Name: HSCXLED
Certification: CE ROHS FCC KC
Model Number: p1.53
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Packaging Details: Fight case/Wooden case/Honeycomb Box
Delivery Time: 15-35 workdays
Payment Terms: L/C, T/T, D/A, T/T, Western Union, MoneyGram
Supply Ability: 100-500Set
Highlight: Poster LED Display, mirro LED Display, light box poster
Produce Name: | P1.5poster LED Display | Pixels: | 1.53mm |
Tube Chip Color: | FULL COLOR | LED Type: | SMD1212 |
Module Dimension: | 320*160mm(W*H)(mm) | Pixel Density: | 422500 Pixel/m2 |

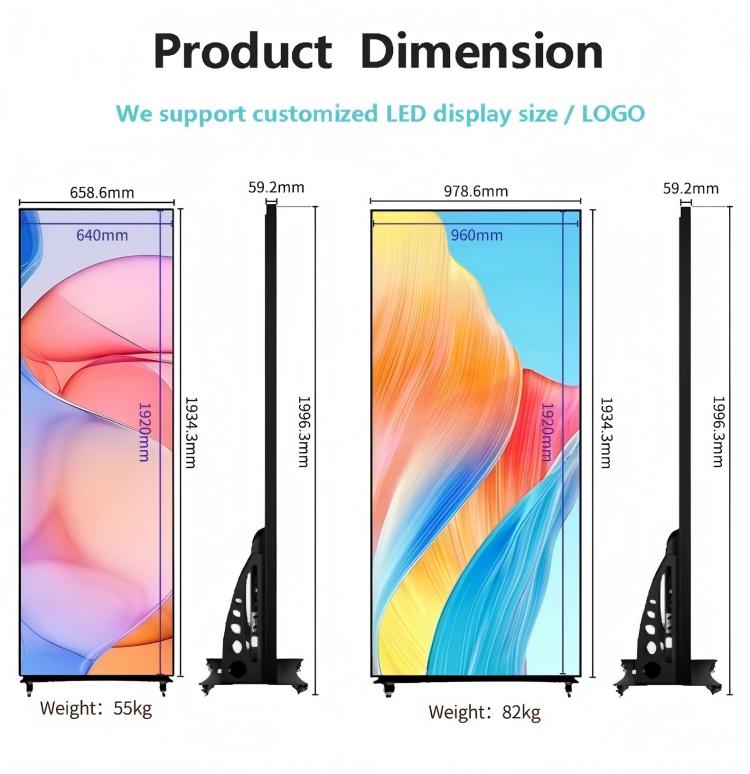

Cabinet Dimension: | 640*1920(W*H)(mm) | Best Viewing Distance: | 1.5M |
Refresh Rate: | 3840HZ | Cabinet Weight: | 45kg |

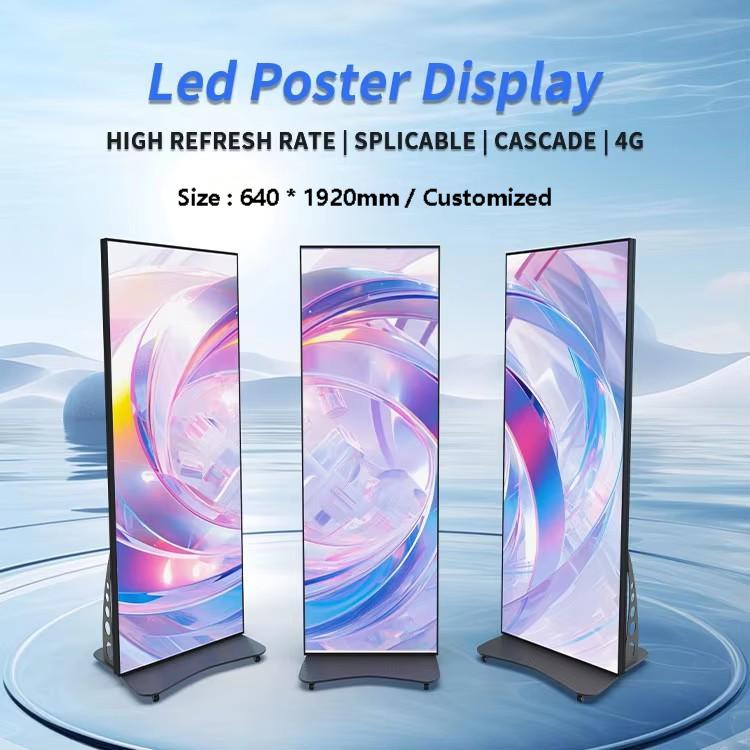

P1.5 Indoor Led display LED Poster Display Poster screen
Banner LED display Screen led display panel GOB LED display
Recently LED poster display is becoming increasingly popular in the LED display market.
To meet various needs, H&S LED launches Iposter Series LED Poster Screen after years of development.
Unit new generation LED poster display screen with Wireless Cloud Management through Wifi or 4G control system.
Slim Cabinet Lightweight, Slim Appearance, Attractive Visual Display.
Mirro LED Screen Features:
1 GOB Tech. protect the SMD LEDs
Glue on Board technology, the LED surface is covered by glue that can protect from dust, water (IP65 Waterproof), and attack. Solved the problem of drop and damage of LED when the LED poster in impact.
2,Light Weight & Ultra-thin Frame
LED poster Not only lightweight but also has a thin frame,With the wheels on the stand, even one person can move it easily. it’s easier and more cost-effective for transferring.
3,Smart Control & Multiple-unit Cascade
The LED poster supports WIFI, USB, HDMI, and Network cable connection.

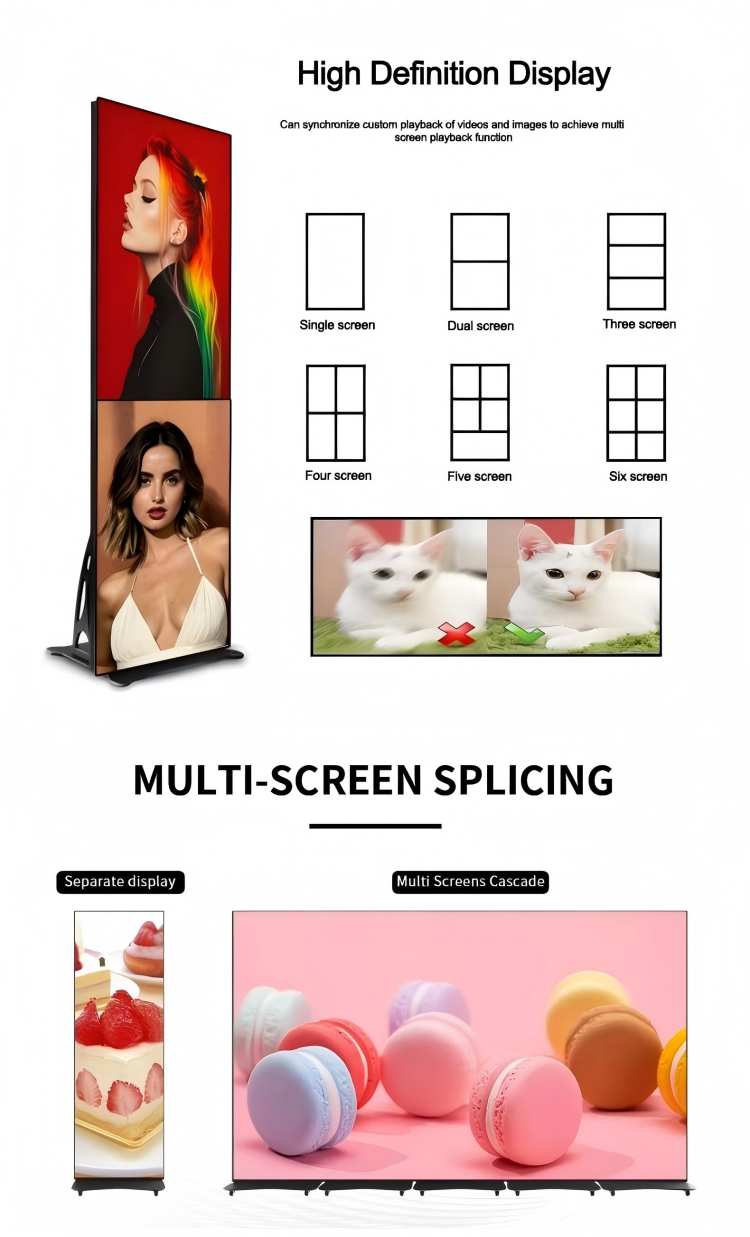

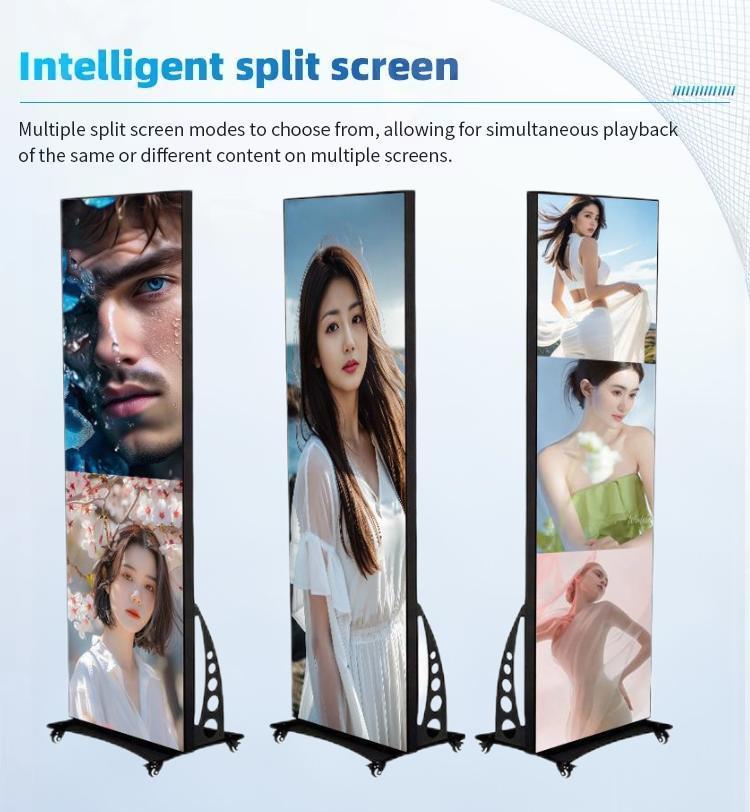

In addition to using singly, the posters LED Display can be Multiple-unit to play enlarged videos, images, and text.
4,User Friendly, Plug and Play
LED poster is an LED display product that is very suitable for end-users to use. Simply put, after you send the program, the LED poster can automatically play video, pictures, text, and other programs once you connect the plug. No need to repeat software settings and other work when you use it later on.
5,Diversified Installation Methods

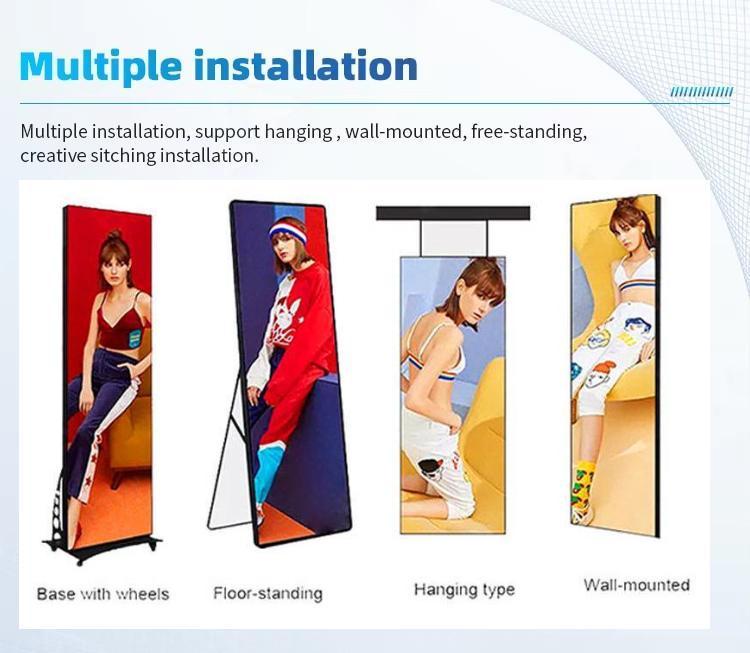

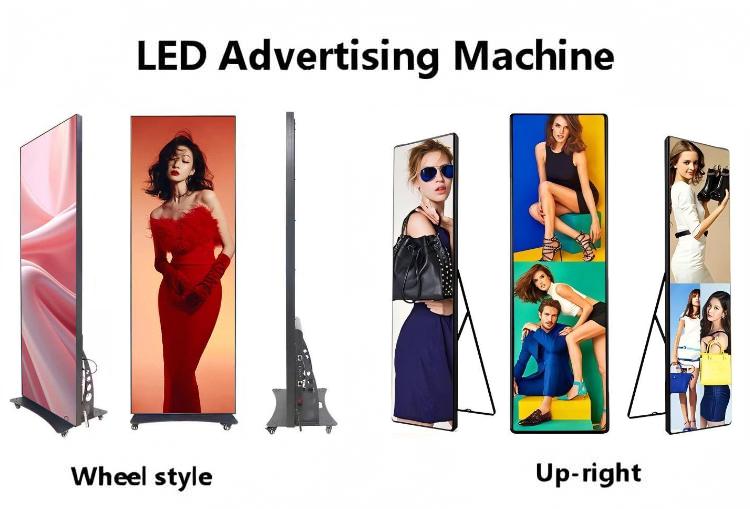

The LED poster display comes in different installation ways. It can be wall-mounted, ceiling-mounted, hanging or floor-standing.
6,External Device Compatible to Achieve Intelligence
our LED display can be connected to an external light sensor. And the brightness of the screen can be automatically adjusted according to the environment.LED poster is able to connect with the speaker. Not only this, the LED poster display support interactive function(customizable).
H&SWifi Control Floor Standing Aluminum Portable Digital Poster Led Sreen Display For Indoor Shop Commercial Advertising
Poster LED Display Parameters:
| INDOOR POSTER LED DISPLAY | |||||
| Product Paramenters | |||||
| Model No. | P1.53 | P1.86 | P2 | P2.5 | P3 |
| Pixel Pitch (mm) | 1.53 | 1.86 | 2 | 2.5 | 3.076 |
| LED Type | SMD1212 | SMD 1515 | SMD 1515 | SMD 2121 | SMD 2121 |
| Module Dimension | 320 x 160 | 320 x 160 | 320 x 160 | 320 x 160 | 320 x 160 |
| Module Resolution | 208 x 104 | 172 x 86 | 160 x 80 | 128 x 64 | 104 x 52 |
| Pixel Density | 422500 | 288906 | 250000 | 160000 | 105625 |
| Scan Mode (S) | 52 | 43 | 32 | 32 | 32 |
| Cabinet Dimension | 640 x 1920 | 640 x 1920 | 640 x 1920 | 640 x 1920 | 640 x 1920 |
| Cabinet Material | Iron | ||||
| Cabinet Weight | 45(Kg) | ||||
| Best Viewing Distance | 1.5 | 1.8 | 2 | 2.5 | 3 |
| Brightness | 900-1000 cd | ||||
| Ingress Protection | IP31 | ||||
| Viewing Angle | H:140° V:140° | ||||
| Color Temperature | 3200-9500K | ||||
| Gray Level | 14bit | ||||
| Maximum power | 600W/m2 | ||||
| Average power | 200W/m2 | ||||
| Refresh frequency | >3840Hz | ||||
| Humidity | 10-95%RH(working) | ||||
| Input Voltage | AC110-220V±15% 50-60Hz | ||||
| MTBF | 50000(Hours) | ||||
| Life Time | 100000(Hours) | ||||
