Product Details
Place of Origin: china shenzhen
Brand Name: HSCXLED
Certification: KC CE ROHS FCC CCC ISO9001
Model Number: P1.8
Payment & Shipping Terms
Minimum Order Quantity: 1set

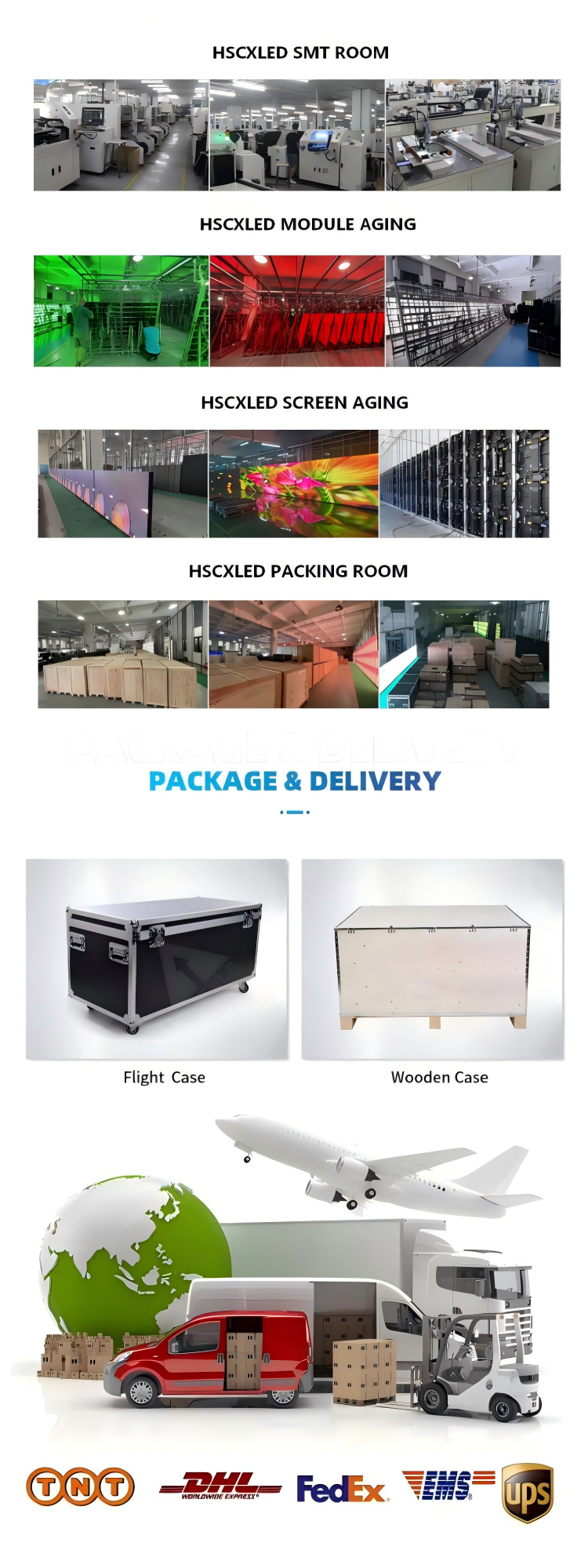

Packaging Details: Wooden case/Honeycomb Box/Fight case
Delivery Time: 10-15workdays
Payment Terms: L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability: 1000set
Highlight: Cabinet table display ,Front desk led display
Name: | Cabinet Table Display | Model: | P1.8 |
Pixels: | 1.8mm | Module Size: | 320*160mm |
Cabinet Size: | Customize | Refresh Rate: | 3840-7680HZ |
Brightness: | 800-1200cd | Gray Scale: | 14-16bit |
Working Voltage: | 100-240V~50/60Hz | Life Time: | 100000(Hours) |
Standard: | CCC/CE/RoHS/FCC/KC | ||

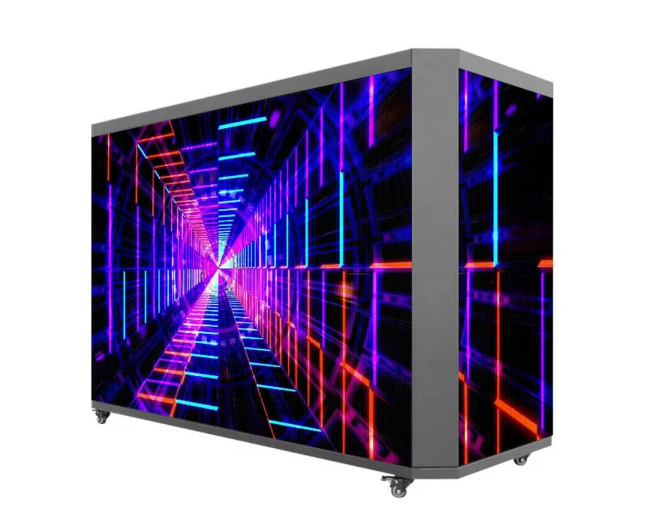

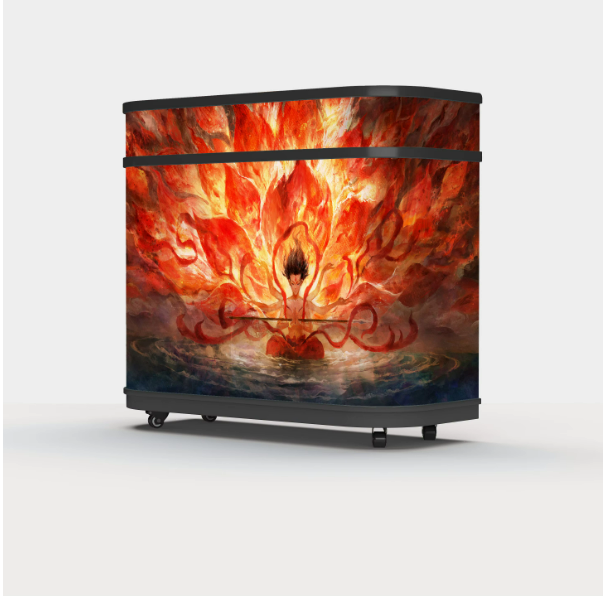

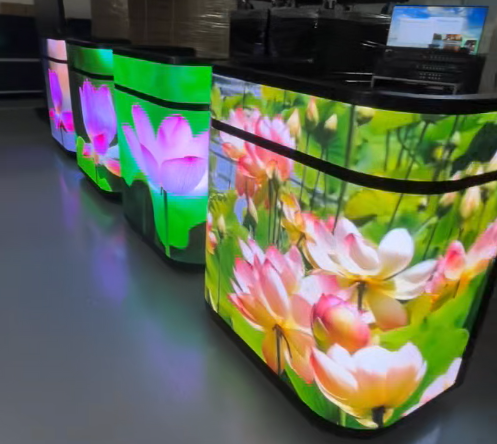

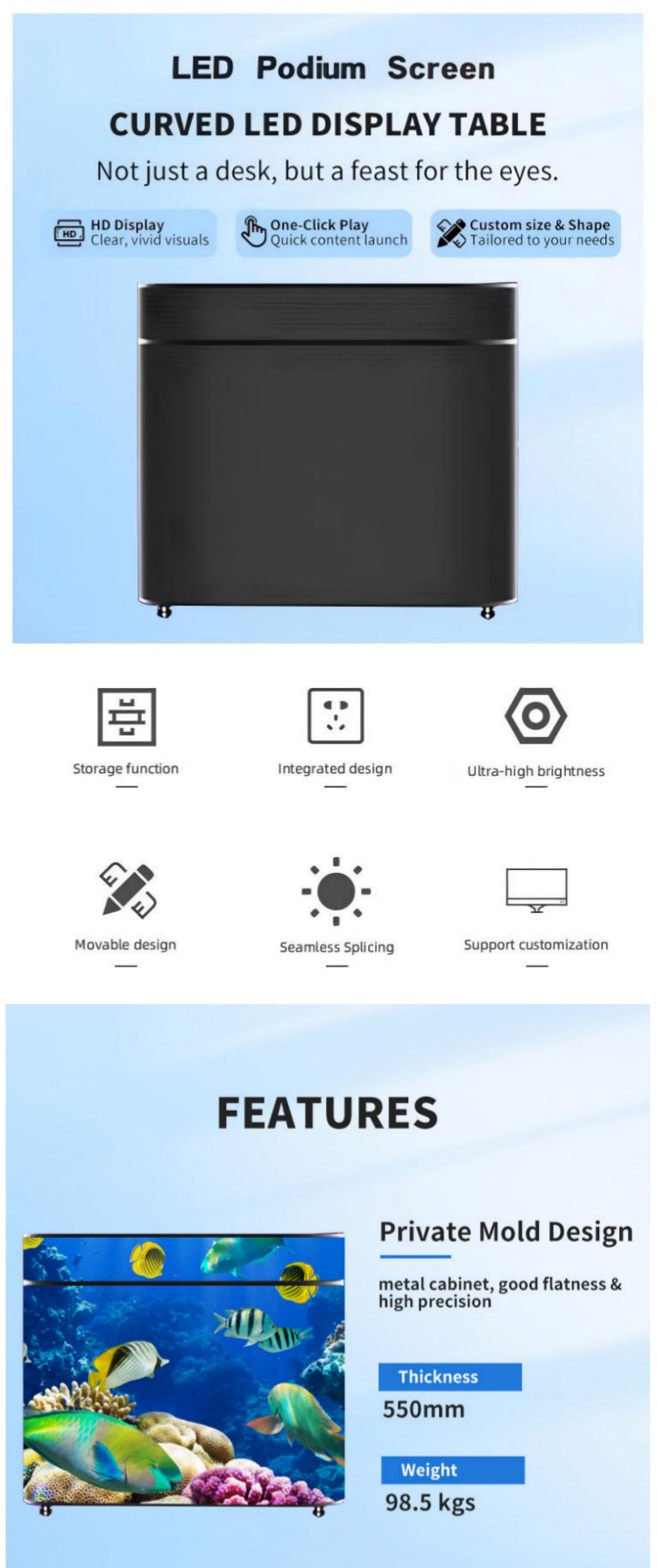

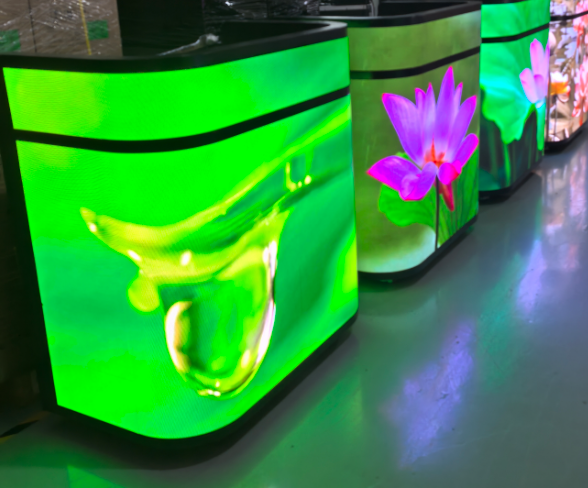

Elliptical edge Curved led display table:Not just a desk,but a feast for the eyes!
LED podium screen is a specially designed LED display screen for installation on the podium, which combines the advantages of LED display screens and is optimized for the special needs of podium use.
Cabinet table display Application:
LED podium screen for Educational institutions:
In classrooms of schools and universities, LED podium screens can be used to display teaching materials, videos, and presentations, helping teachers to teach more effectively.
Led display table for Meetings and seminars:
LED podium screens can serve as the primary presentation tool for speakers, displaying speech content, charts, and statistical data.
Table led display for Training Center:
In various professional training centers, LED podium screens can be used to display the content of training courses and enhance training effectiveness.
Cabinet table display for Religious venues:
In churches or other religious venues, LED lectern screens can be used to display Bible verses and play multimedia materials on LED displays.
Cabinet table display Paramenters:
| Specification can be customized | ||
| M o d e l | P2.5 (GOB) | P1.8 (GOB) |
|---|---|---|
| Pixel Pitc(mm) | 2.5 | 1.86 |
| P i x e l D e n s i t y | 1 6 0 0 0 0 | 2 8 8 9 0 6 |
| M o d u l e S i z e ( W x H x D ) | 3 2 0 x 1 6 0 x 5 . 2 m m | |
| L E D T y p e | S M D 1 5 1 5 | S M D 1 2 1 2 |
| M o d u l e R e s o l u t i o n ( d o t s ) | 1 2 8 x 6 4 | 1 7 2 x 8 6 |
| m o d u l e a r r a n g e m e n t ( p e r c a b i n e t ) | 6 x 6 | |
| S c r e e n S i z e ( W x H ) | 1 9 2 0 x 9 6 0 m m | |
| C a b i n e t S i z e ( W x H x D ) | 1 0 6 5 x 1 1 0 0 x 5 8 5 m m | |
| C a b i n e t w e i g h t | 1 6 0 k g / p c | |
| C a b i n e t R e s o l u t i o n ( d o t s ) | 7 6 8 x 3 8 4 | 1 0 3 2 x 5 1 6 |
| S c a n n i n g M o d e | 3 2 / S | 4 3 / S |
| B e s t V i e w i n g D i s t a n c e ( m ) | ≥2.5 | ≥1.86 |
| B r i g h t n e s s | 6 0 0-10 0 0 N i t s | |
| R e f r e s h R a t e | 3 8 4 0 H z | |
| G r e y S c a l e | 1 2 - 1 6 B i t | |
| Specification can be customized | ||
| M o d e l | P 2 . 5 ( G O B ) | 1 . 8 ( G O B ) |
|---|---|---|
| Pixel Pitc(mm) | 2.5 | 1.86 |
| P i x e l D e n s i t y | 1 6 0 0 0 0 | 2 8 8 9 0 6 |
| M o d u l e S i z e ( W x H x D ) | 3 2 0 x 1 6 0 x 5 . 2 m m | |
| L E D T y p e | S M D 1 5 1 5 | S M D 1 2 1 2 |
| M o d u l e R e s o l u t i o n ( d o t s ) | 1 2 8 x 6 4 | 1 7 2 x 8 6 |
| m o d u l e a r r a n g e m e n t ( p e r c a b i n e t ) | 8x 6 | |
| S c r e e n S i z e ( W x H ) | 2 5 6 0 x 9 6 0 | |
| C a b i n e t S i z e ( W x H x D ) | 1 6 7 5 x 1 1 0 0 x 5 8 5 m m | |
| C a b i n e t w e i g h t | 2 1 5 k g | 2 1 5 k g |
| C a b i n e t R e s o l u t i o n ( d o t s ) | 1 0 2 4 x 3 8 4 | 1 3 7 6 x 5 1 6 |
| S c a n n i n g M o d e | 3 2 / s | 4 3 / s |
| B e s t V i e w i n g D i s t a n c e ( m ) | ≥2.5 | ≥1.86 |
| B r i g h t n e s s | 6 0 0 -10 0 0 N i t s | |
| R e f r e s h R a t e | 3 8 4 0 H z | |
| G r e y S c a l e | 1 2 - 1 6 B i t | |
| M a x . / A v g . P o w e r C o n s u m p t i o n | M a x . 6 0 0 W / p c s , A v g . 2 0 0 W / p c s | |
| w o r k i n g V o i t a g e ( i n p u t ) | A C 1 1 0 - 2 4 0 V @ 5 0 / 6 0 H z | |
| O p e r a t i n g T e m p e r a t u r e | - 2 0 ~ 5 0 , 1 0 % - 9 0 R H | |
| O p e r a t e S y s t e m | N o v a s t a r | |
| I P R a t i n g | I P 4 3 | |
Cabinet table display Features:
High definition:
LED podium screens typically have a high resolution, which can display text and images clearly, ensuring that viewers can see the content on the screen clearly.
High brightness:
In order to adapt to different lighting conditions, LED podium screens usually have high brightness, ensuring clear visibility in various environments.
Long lifespan:
LED technology ensures a longer lifespan for podium screens, reducing the frequency and cost of screen replacement.
Large viewing angle:
LED podium screens usually have a large viewing angle, which means that no matter where they sit in the classroom, the audience can see the content on the screen.

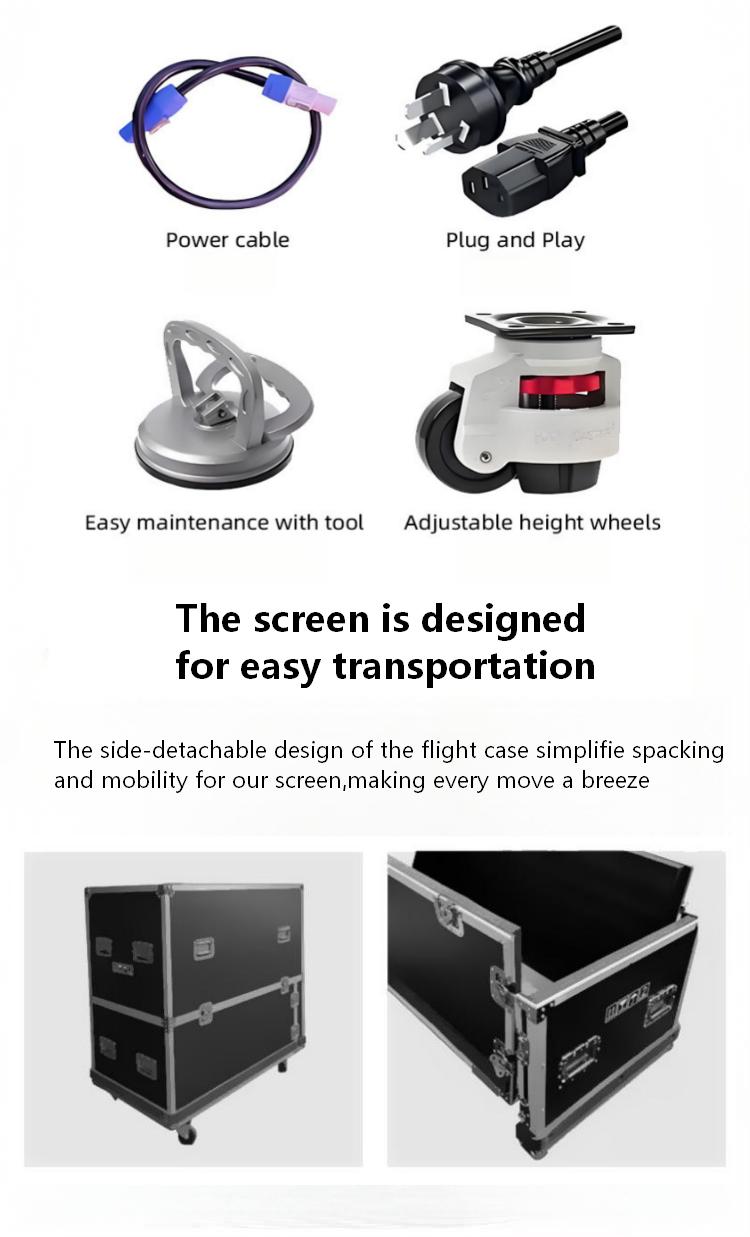

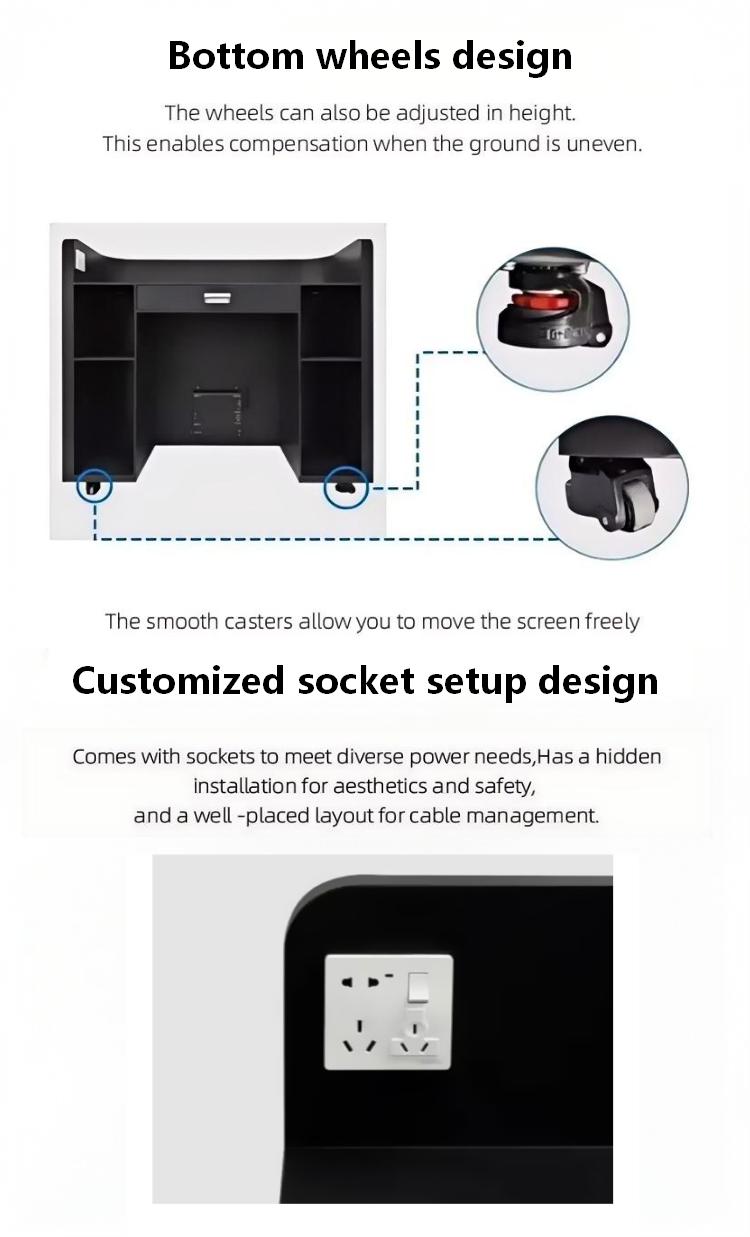

Easy to install and maintain:
The design of the LED podium screen takes into account the convenience of installation and maintenance. It can usually be easily installed on the podium and is easy to maintain and repair in the future.

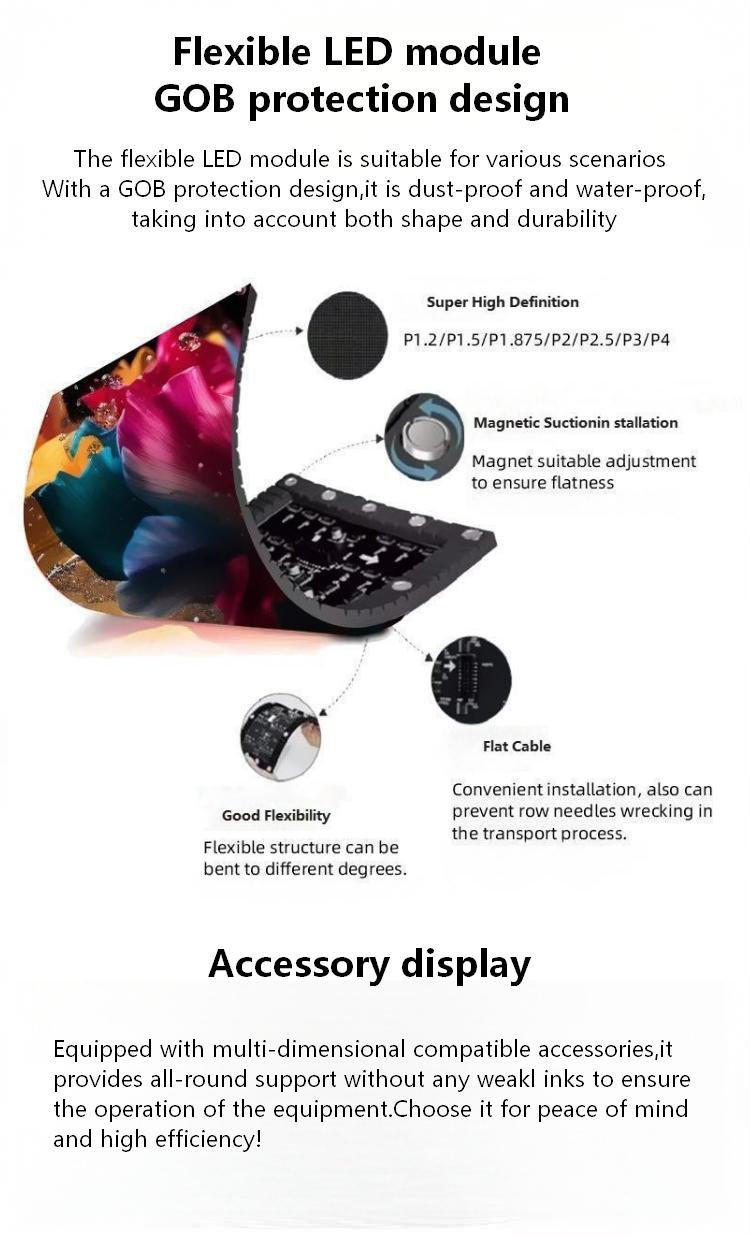

LED soft module, GOB LED display screen:
The surface of the module is made of GOB technology, which is waterproof, impact resistant, and anti-collision, providing protection for the daily use of LED displays.
Easy to operate, APP control:
LED podium screen, can be used for WiFi control, supports playing pictures, text, videos, etc. HSCXLED podium LED display screen, ready for shipment and display upon power on. The app can play any content you want to display.
