Product Details
Place of Origin: china shenzhen
Brand Name: HSCXLED
Certification: KC CE ROHS FCC CCC ISO9001
Model Number: P2.5
Payment & Shipping Terms
Minimum Order Quantity: 1set
Packaging Details: Wooden case/Honeycomb Box/Fight case
Delivery Time: 10-15workdays
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1000set
Highlight: LED Advertising Display, Naked Eye 3D LED Screen, Outdoor Full Color Led Display
Name: | P2.5 Outdoor LED Display | Application: | Outdoor Advertising Display |
Model Size: | 320*160mm | Display Size: | Customized |
Pixel Density: | 160000 Dots/sqm | Led Type: | SMD1415 |
Brightness: | 5000-8000cd | Refresh Rate: | 3840-7680HZ |
Ip Rating: | IP65-IP68 | Gray Level: | 12-16bit |
Input Voltage: | 100-240V~50/60Hz | View Angle: | H:160°W:160° |
Working Temperature: | -40℃~+60℃ | Life: | 100000 Hrs |
System: | Nnovastar/Colorlight/HuiDu/Linsn Control System | ||

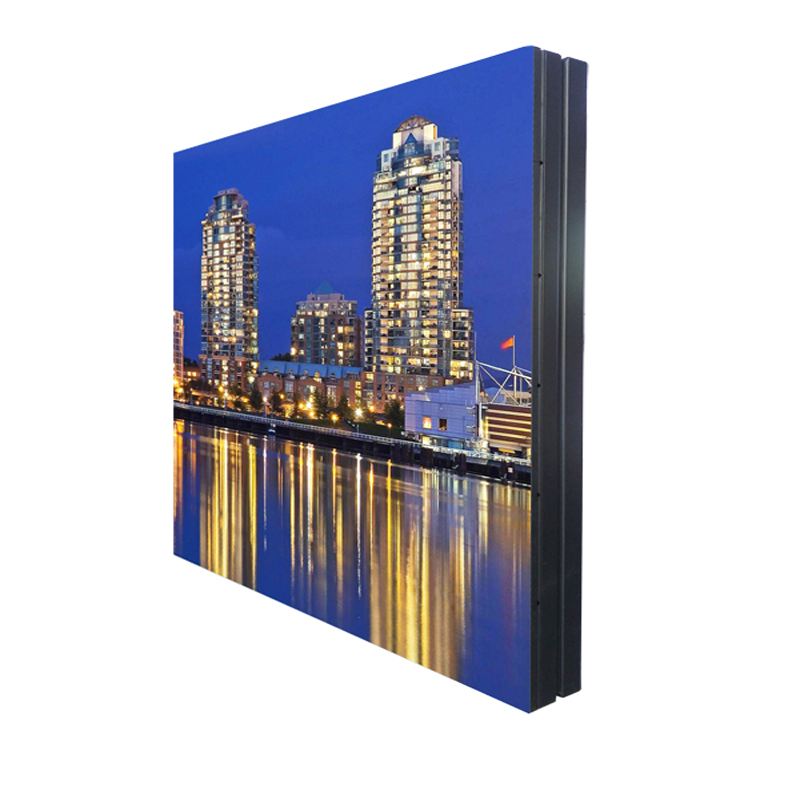

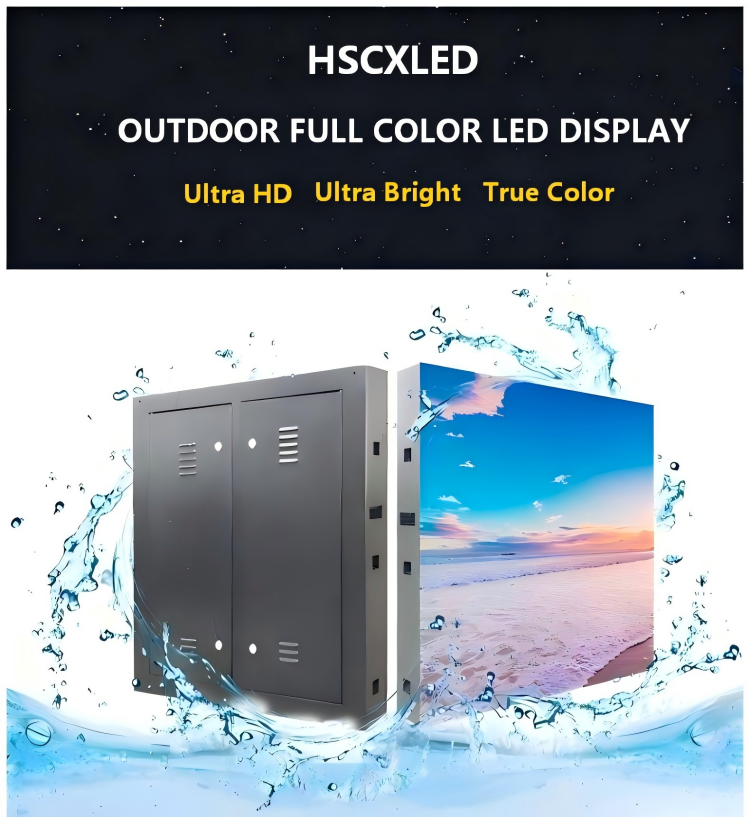

IP65 waterproof outdoor P2.5 LED full-color display screen, presenting every detail in high definition
Outdoor P2.5 LED display screen, 160 ° ultra wide angle field of view, borderless visual experience

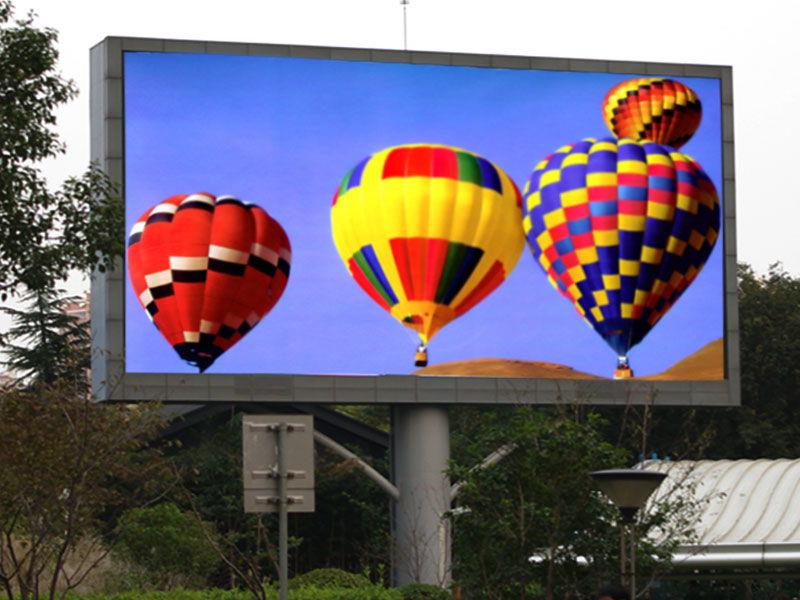

High brightness outdoor P2.5 LED display screen, still clearly visible in sunlight
P2.5 Outdoor full-color LED display screen, intelligent multi terminal control, easy and efficient operation

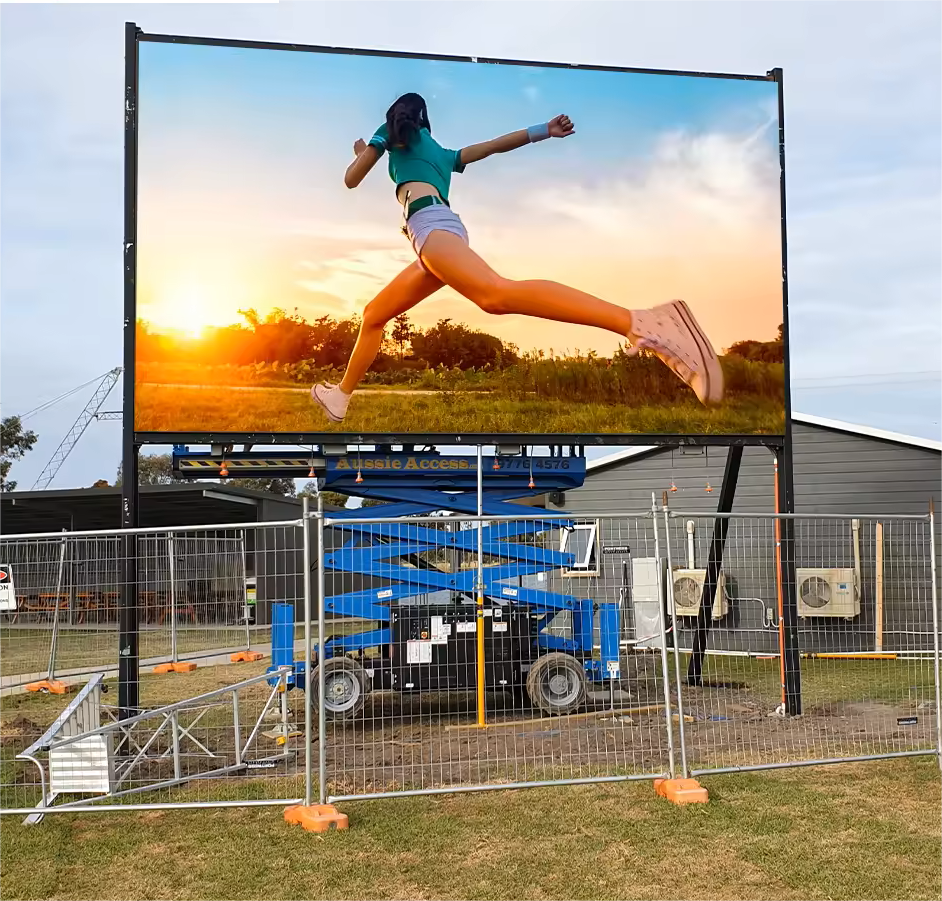

Outdoor P2.5 LED display screen, modular design, easy installation and maintenance
Outdoor P2.5 LED display screen, guaranteed high quality and long service life
Environmentally friendly and energy-saving outdoor P2.5 LED display screen, low power consumption and high cost-effectiveness
P2.5 outdoor fixed LED Display Specification:
| Specification | ||||||
| 1. Cabinet Parameter | ||||||
| Module Size | Pixel Pitch | LED type | Configuration | |||
| 320*160mm | 2.5(mm) | SMD 1415 | 128*64 | pixels | ||
| 2. Complete solution | ||||||
| Physical Parameter | LED Type | SMD 1415 | ||||
| Pixel Pitch | 2.5(mm) | |||||
| Pixel matrix per Module | 128*64 dots | |||||
| Pixel density | 160000(pixels/sq.m.) | |||||
| Cabinet Dimension | 960*960(mm)/customized | |||||
| Module Dimensions | 320*160(mm) | |||||
| Cabinet Material | Waterproof sealed iron box | |||||
| Electronic Parameter | Gray Level | 16bit | ||||
| Refresh Rate | >3840(Hz) | |||||
| Scan Mode | 1/16 scan | |||||
| Optical Parameter | Brightness | ≥5000(nit) | ||||
| Optimal Horizontal Viewing Angle | 140(°) | |||||
| Optimal Vertical Viewing Angle | 140(°) | |||||
| Electrical Parameter | AC Input Voltage | AC110-240V±15% | ||||
| AC Input Frequency | 50-60(Hz) | |||||
| AC Input Power Maximum Value | 800 (W/sq.m.) | |||||
| AC Input Power Typical Value | 260 (W/sq.m.) | |||||
| Circumstance Parameter | Working Temperature | -40 -60 (℃) | ||||
| Operating Humidity | 10%~95% non-condensing | |||||
| Life Time | 100000(Hours) | |||||

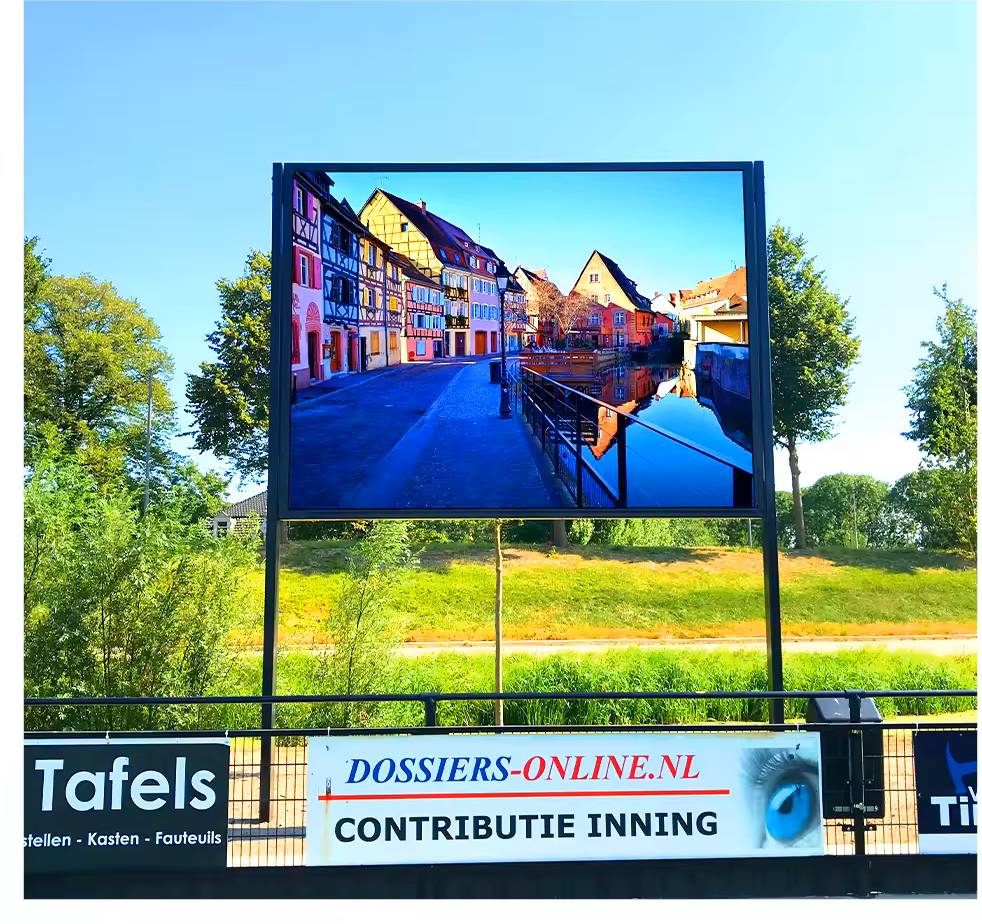

Outdoor P2.5 LED display screen is the mainstream choice for outdoor small pitch display, with the core advantage of balancing high definition and outdoor environmental adaptability. It is mainly used for outdoor scenes that require close range and high image quality.

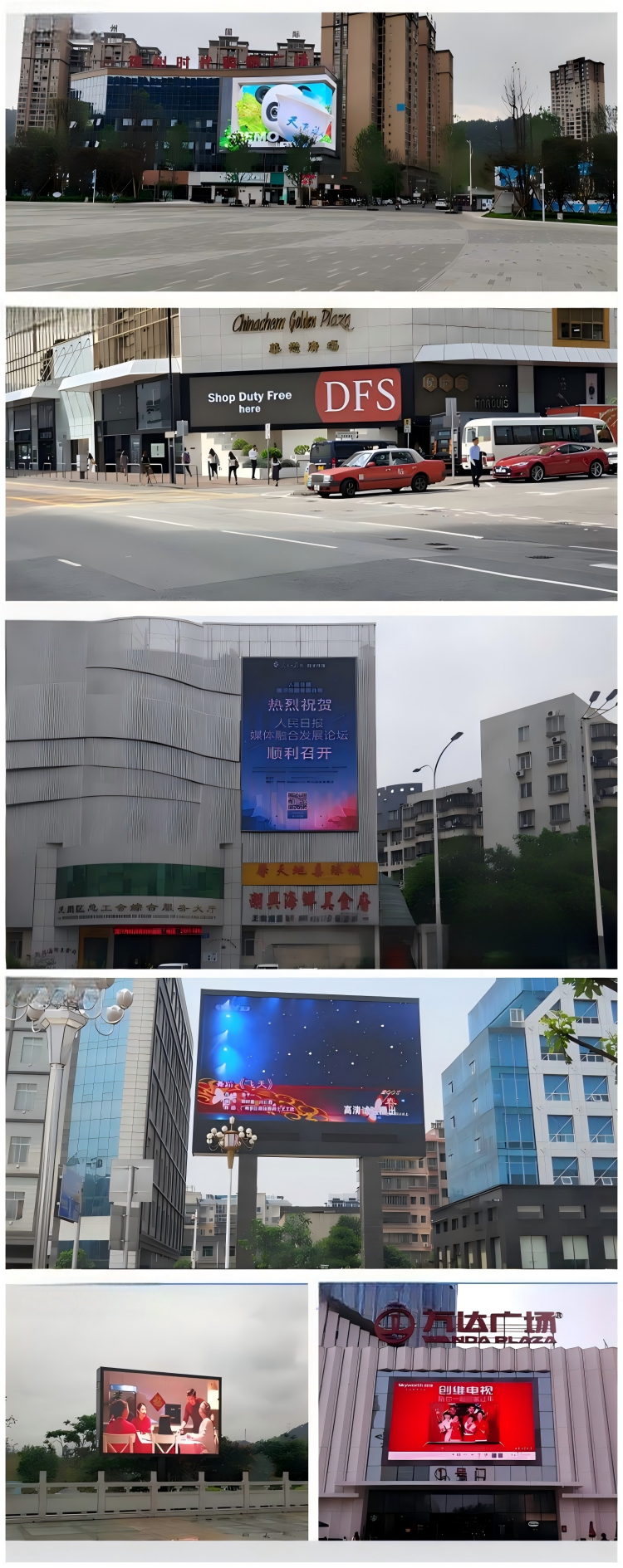

P2.5 outdoor fixed LED Display Usage scenarios
The "P2.5" of outdoor P2.5 represents a pixel spacing of 2.5mm and a higher pixel density, which determines that it is more suitable for outdoor scenes viewed at medium to close distances. It mainly includes the following categories:

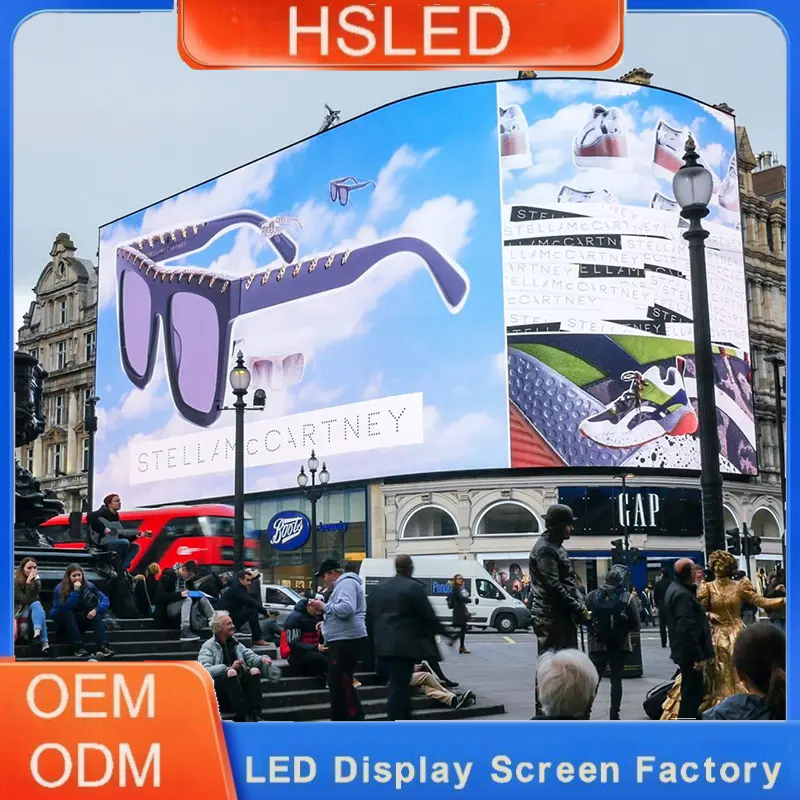

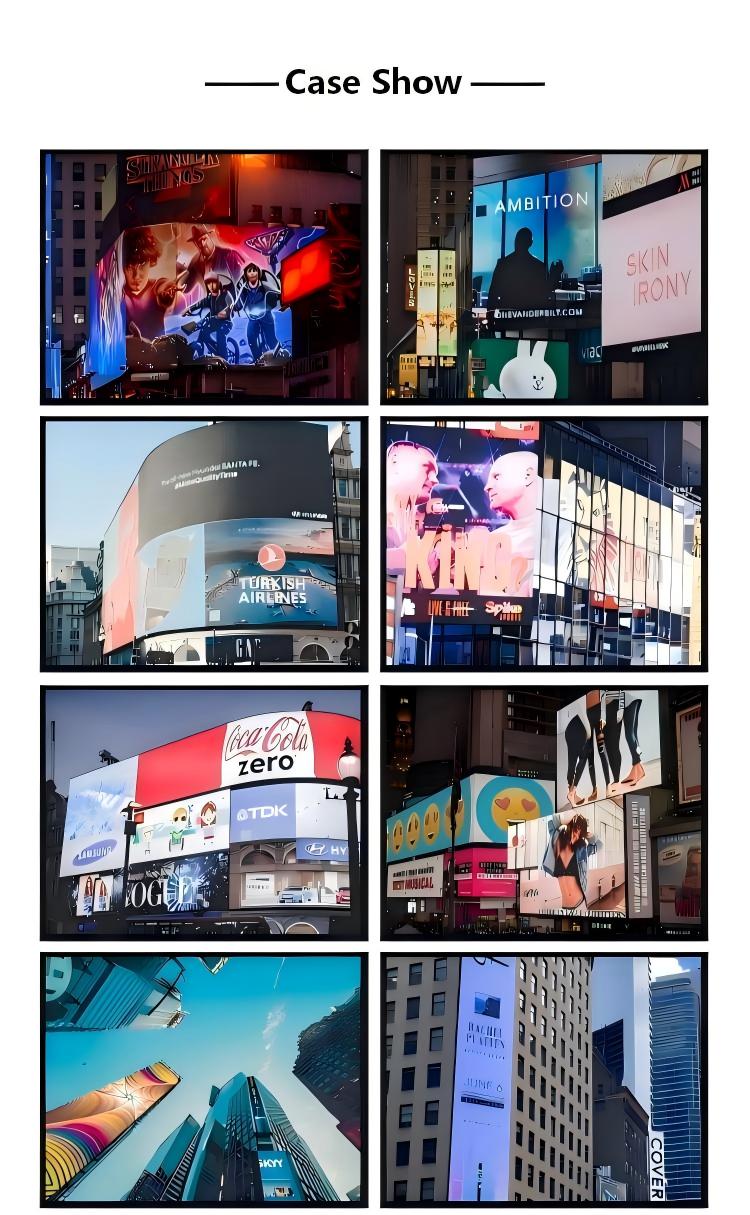

In the field of commercial advertising: shopping mall exterior walls, pedestrian street advertising screens, and storefront window screens of street facing shops are used to display high-definition product advertisements and promotional information, attracting the attention of passersby.
Public service areas: bus stops, subway station entrances and exits, outdoor windows in government halls, used to play public welfare propaganda, traffic guidance, notices and announcements, and other content.
In the field of cultural tourism and entertainment, there are entrance guide screens for scenic spots, interactive screens for theme parks, and outdoor performance background screens to meet the needs of tourists for information acquisition and immersive visual experiences.
Enterprise display field: External walls of enterprise parks and outdoor announcement screens of factories, used to showcase corporate image, cultural concepts, or production notices.
P2.5 outdoor fixed LED Display Features
1,High pixel density:
The pixel spacing is only 2.5mm, with approximately 160000 pixels per square meter. The image details are richer, and it can display text, images, and dynamic videos clearly.
2,Outdoor specific protection:
with a protection level of IP65 or above, it can resist the intrusion of rainwater and dust; Equipped with anti glare panels to reduce strong light reflection and ensure daytime viewing experience.
3,Wide viewing angle design:
The horizontal and vertical viewing angles can usually reach over 160 °, allowing viewers from different positions to see clear and unbiased images.
4,High brightness adaptation:
The brightness is generally above 5000cd/㎡, which can resist strong outdoor light. Even under noon sunlight, the image is still clear and visible.
P2.5 outdoor fixed LED Display advantages
1,Image quality advantage:
Compared to traditional outdoor P3 and P4 displays, P2.5 pixels are denser and the graininess of the image is significantly reduced, especially at a viewing distance of 2-10 meters, where the clarity advantage is obvious.
2,Scenario adaptation advantages:
Suitable for multiple scenarios to meet different customer needs.
3,Durability advantage:
using outdoor dedicated LED beads and driver chips, resistant to high and low temperatures (usually supporting working environments of -30 ℃ to 60 ℃), with a service life of over 50000 hours and low maintenance costs.
4,Flexibility advantage:
Supports modular splicing, can customize screens of different sizes and shapes according to needs, and adapt to different outdoor installation scenarios (such as curved and right angle splicing).
