 Smart Pole Light LED Signs LED Traffic Screen
 Smart Pole Light LED Signs LED Traffic Screen
 Smart Pole Light LED Signs LED Traffic Screen
 Smart Pole Light LED Signs LED Traffic Screen

Smart Pole Light LED Signs LED Traffic Screen

Product Details

Place of Origin: SHENZHEN

Brand Name: HSLED

Certification: CE ROHS FCC

Model Number: P3

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Wooden case/Honeycomb Box/Fight case

Delivery Time: 10-15workdays

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1000set


Product Details

Highlight: led pole screen, led light sign, Road Led Display

Product Name:

Pole Led Display

Application:

Outdoor

Pixel Pitch:

3mm

LED Type:

SMD1921

Show Size:

576*1152mm

Refresh Rate:

1920Hz/3840Hz

Brightness:

6500cd/sqm

Power Consumption:

MAX: 700 / AVE: 230

Input Voltage:

AC 110V~220V+/-10%

Packaging:

Flight Case,Wooden Case


Product Description

The Advantage of Light Pole LED Display Screen

1. Intelligent Control:

Embedded LAN, WIFI and 3G intelligent management core modules, allowing ads to be controlled as they wish.



2. Easy To Install:

Once installed successfully, the AD picture and text information changed casually, saves the trouble of dismantling and installing billboards, but also saves resources.



3. High Protection Grade High protection level

Before and After IP65/IP54, safe for outdoor use in all kinds of weather.



4. Easy To Maintain

Can be side open, back open, front maintenance (will be launched) and other maintenance methods, so that installation has more

options.



5. Applicable Occasions

Applicable to pedestrian streets, light boxes, highways, communities and other places.

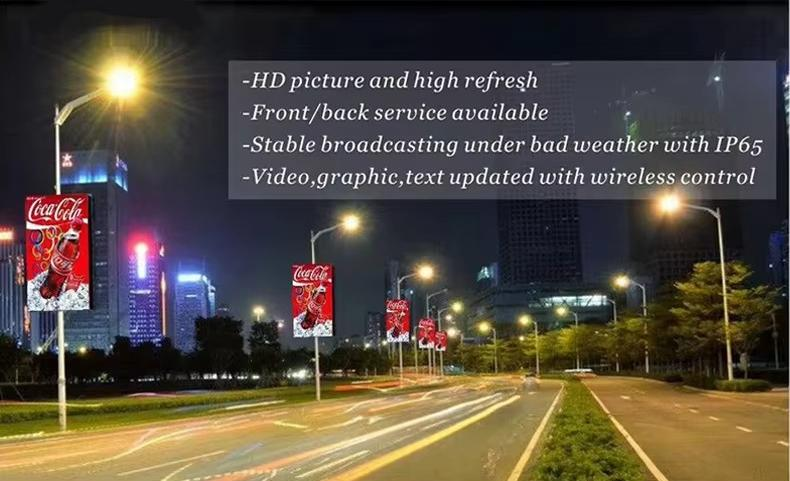

Smart Pole Light LED Signs LED Traffic Screen 0



Lamp pole screen-Model/Size:



screen on street pole
ModelCabinet sizeDisplay resolutionBrightnessRefresh Ratepower
P2.5320*960mm128*3845000-5500cd1920/3840hzMW Power Supply
P2.5480*960mm192*3845000-5500cd1920/3840hzMW Power Supply
P2.5640*1280mm256*5125000-5500cd1920/3840hzMW Power Supply
P3384*768mm128*2565500-6000cd1920/3840hzMW Power Supply
P3576*1152mm192*3845500-6000cd1920/3840hzMW Power Supply
P3768*1344mm256*4485500-6000cd1920/3840hzMW Power Supply
P3768*1536mm256*5125500-6000cd1920/3840hzMW Power Supply
P3.076320*960mm104*3125000-5500cd1920/3840hzMW Power Supply
P3.076480*960mm156*3125000-5500cd1920/3840hzMW Power Supply
P3.076640*1280mm208*4165000-5500cd1920/3840hzMW Power Supply
P3.33400*800mm120*2405500-6000cd1920/3840hzMW Power Supply
P3.33400*1000mm120*3005500-6000cd1920/3840hzMW Power Supply
P3.33600*1200mm180*3605500-6000cd1920/3840hzMW Power Supply
P3.84400*800mm104*2085500-6000cd1920/3840hzMW Power Supply
P3.84400*1000mm104*2605500-6000cd1920/3840hzMW Power Supply
P3.84600*1200mm156*3125500-6000cd1920/3840hzMW Power Supply
P4512*1024mm128*2565500-6000cd1920/3840hzMW Power Supply
P4768*1408mm192*3525500-6000cd1920/3840hzMW Power Supply
P4768*1536mm192*3845500-6000cd1920/3840hzMW Power Supply
P4640*1280mm160*3205500-6000cd1920/3840hzMW Power Supply
P4800*1600mm200*4005500-6000cd1920/3840hzMW Power Supply



Note: Select large screen for headlight pole and small screen for small light pole. The lamp post is 4 meters, 6 meters, 8 meters, 10 meters.
4-meter lamp post with dimensions of 480 * 960mm
6-meter lamp post with dimensions of 600 * 1200mm
8-meter lamp post with dimensions of 768 * 1344mm
10 meter lamp post with dimensions of 800 * 1600mm



If you need to customize LED display screens of different models and sizes, please feel free to consult our sales team.

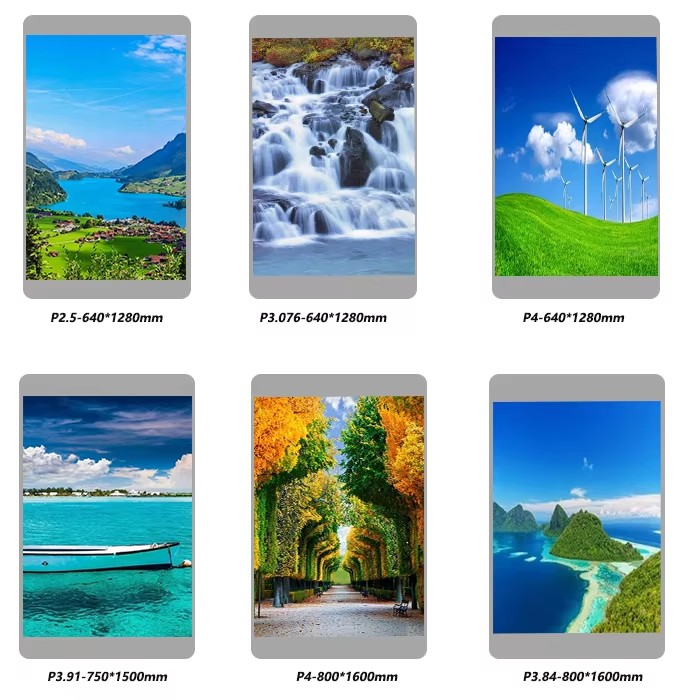

Smart Pole Light LED Signs LED Traffic Screen 1



Product Description:



Factory new design P3 mm outdoor full color high refresh led pole screen for street,highway,airport and other any place.



Product features:

1, Intelligent control:Embedded LAN, WIFI, 3G,4G intelligent management core modules, so that advertising can be controlled at will.



2,Save worry and effort:Once the installation is successful, the graphic and text information of the advertisement can be replaced at will, which saves the trouble of disassembling and assembling the billboard and saves resources.



3,High protection level:Front and rear IP65 high protection level, safe to use in all kinds of outdoor weather



4, Easy to maintain:Maintenance methods such as side opening, rear opening, and front maintenance (coming soon) allow more options for installation



5, Control system:Support 3G/4G/WIFI connection,remote cluster control is available,you can update the program any time



6,Maintenance:Modular design,LED point light source,support single module repair and single pixel repair-saving a lot of cost for you.



7,Customized :Single side/double sides for option,GPS orientation,camera to real-time monitor ,brightness and temperature



8,The screen body adopts an all-aluminum structure, which has good heat dissipation effect. The inner super-thick plate ribs are anti-stretching and shock-proof, and the service life can be as long as ten years.



Smart Pole Light LED Signs LED Traffic Screen 2

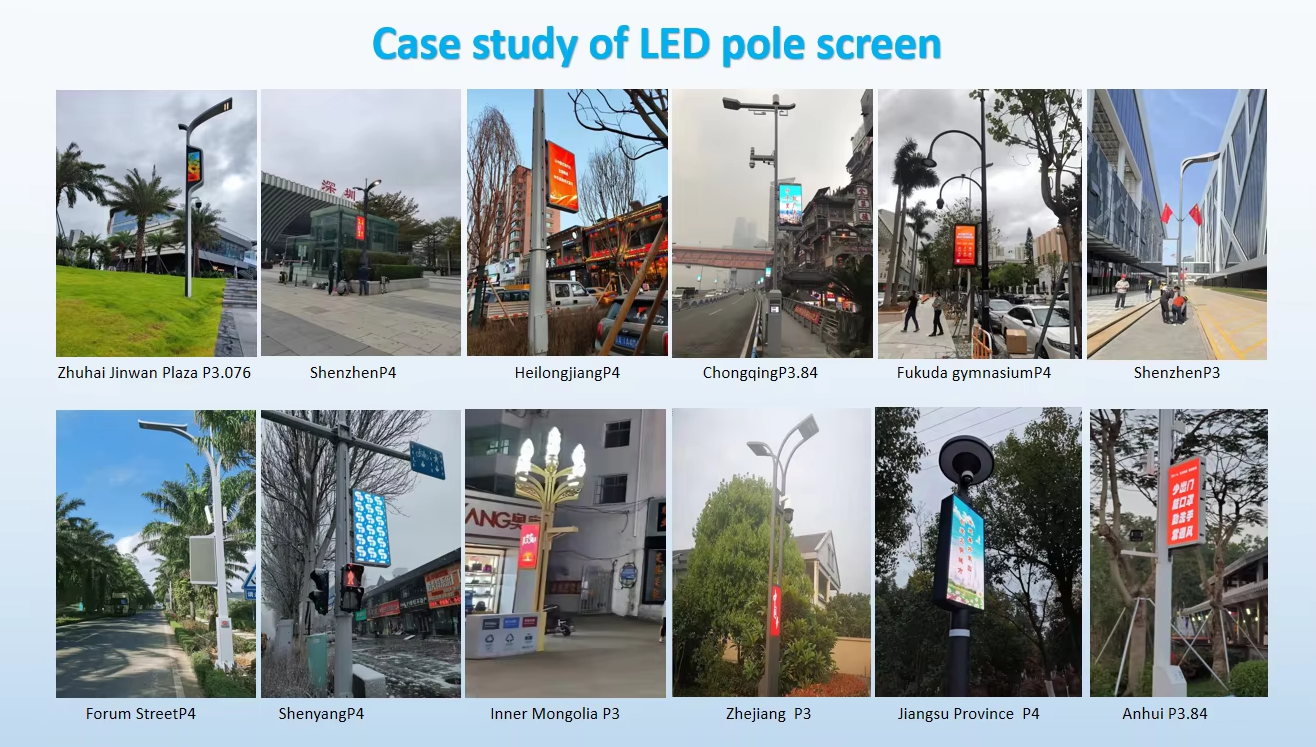

Smart Pole Light LED Signs LED Traffic Screen 3
