Product Details
Place of Origin: guangdong china
Brand Name: HSCXLED
Certification: CE ROHS FCC KC
Model Number: P1.86
Payment & Shipping Terms
Minimum Order Quantity: 1set
Packaging Details: Wooden case/Honeycomb Box/Fight case
Delivery Time: 10-15workdays
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000set
Highlight: Interior Poster LED display, Foldable LED Poster Display, Foldable Electronic Screen
Product Name: | LED Poster Screen | Application: | Indoor |
Pixel Pitch: | 1.8mm | Panel Size: | 0.64m X 1.92m |
Brightness: | 800-1000nits | Refresh Rate: | 3840Hz--7680Hz |
Voltage: | 100V-240V, 110/220V | Product Type: | Foldable LED Poster Display |
Screen Weight: | 40KG | Life Span: | 100,000 Hours |
Floor Standing Foldable Led Poster Screen P1.86 Advertising Indoor LED Poster Display
Double-sided led display Indoor Foldable LED Poster Display GOB Panel P1.86 led display
Full Color Portable Led Screen Advertising Panel P1.8 GOB Led Video Wall Stand Folding Led Poster Display
Foldable LED poster display Description:
This Removable Foldable LED Poster Display Screen offers versatile advertising solutions with pixel pitches of P1.86,P2and P2.5,suitable for both indoor and outdoor use.Featuring a 640*1920mm display size,≥95% luminance uniformity,and an 8000:1 contrast ratio,it ensures vibrant visuals.The die-casting aluminum build provides durability,while GOBprotective technology enhances reliability. With multiple control methods including Wifi,Bluetooth, and USB,as well asIoT connectivity and remote content management, it delivers smart operation.Supporting 110-240V power supply andweighing 43kg,this floor-standing digital signage is ideal for shopping malls, exhibition halls, and advertising displays.
LED poster display Advantages:
One click release of mobile app :
Support one-click upload of content on mobile phone,even novices can operate it easily

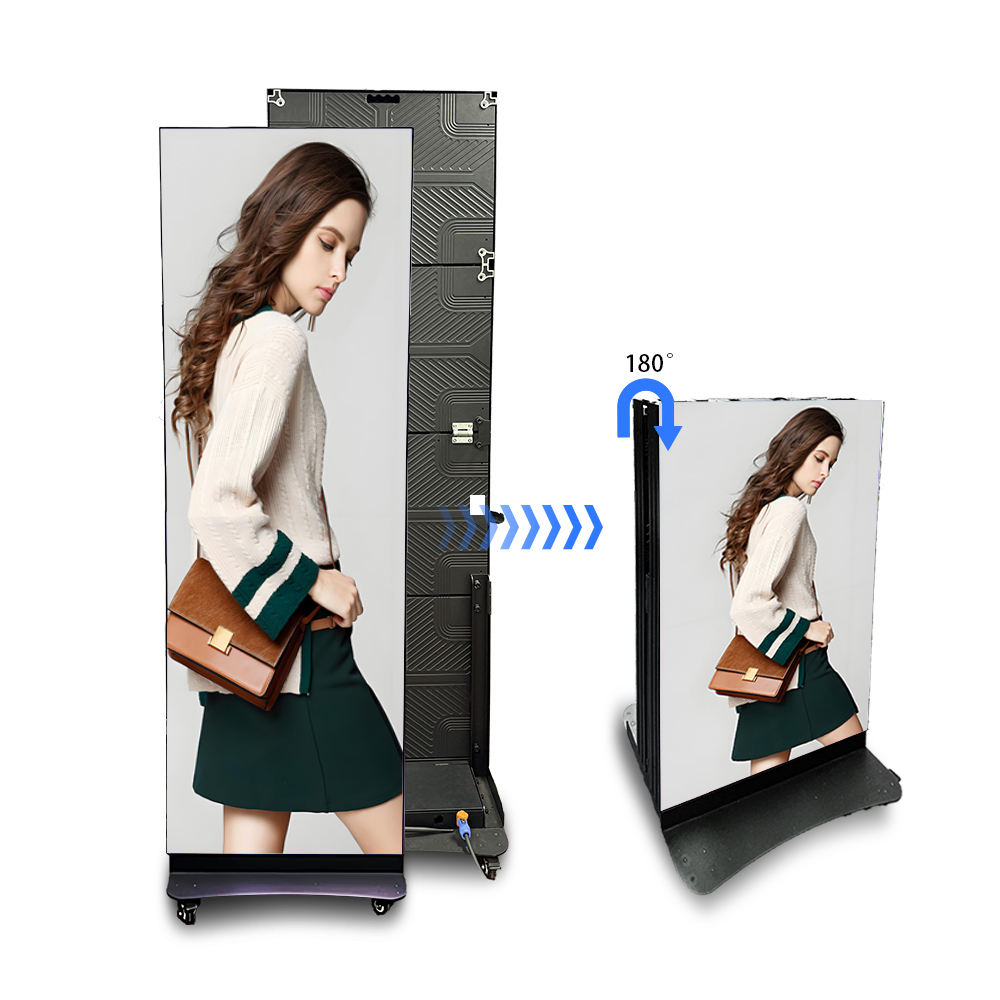

Foldable double side led poster:
It can be folded to a double sided LED screen, each side size is 640x960mm.Supports folding, small size, easy storage, convenient transportation.

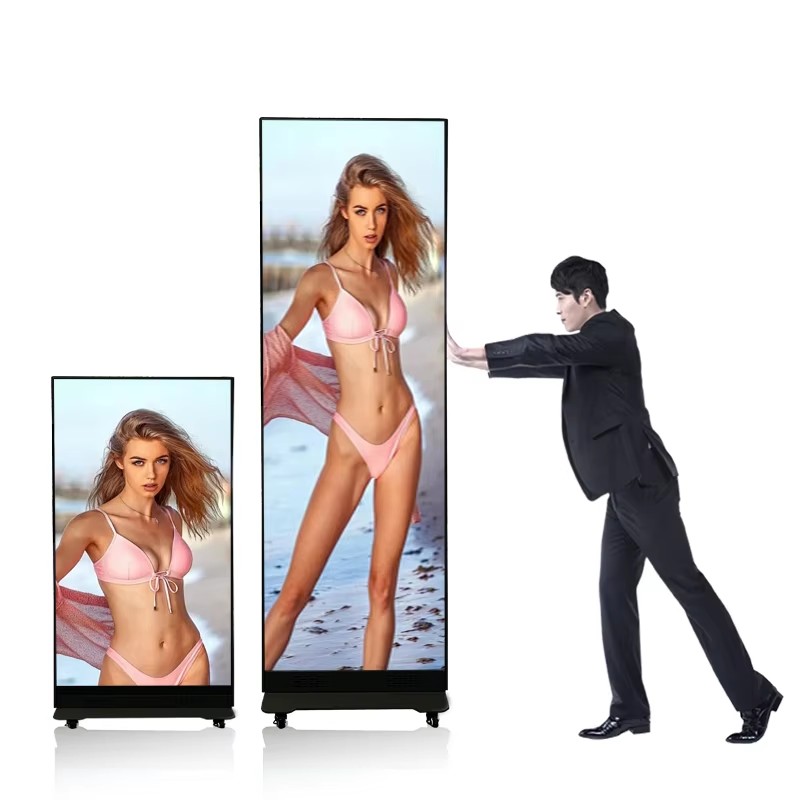

Movable wheels Design:
Comes with 4 swivel wheels, making it easier to move and place wherever you want.

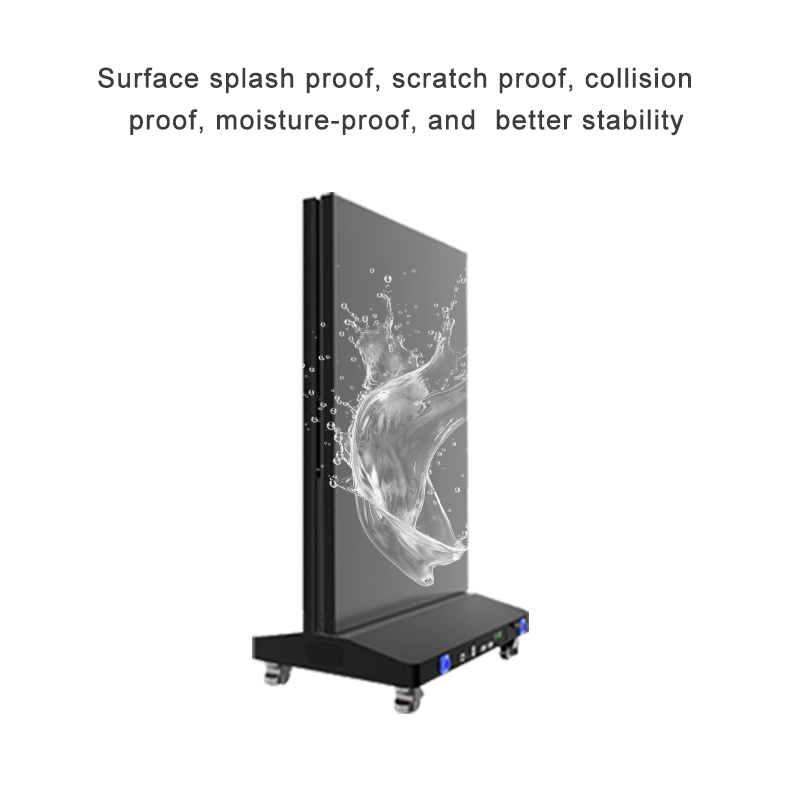

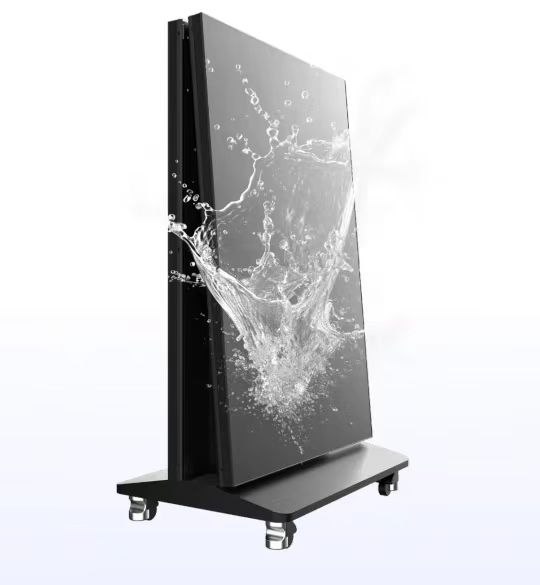

Adopt "GOB" waterproof technology:
Surface splash proof, scratch proof, collision proof,moisture-proof, and better stability.
Plug-in/energy storage:
The LED poster LED display is plug and play. After turn on, you just need to wait several seconds,
then the LED display will working.Finished product delivery,
no need for professional technical installation and debugging, plug and play.

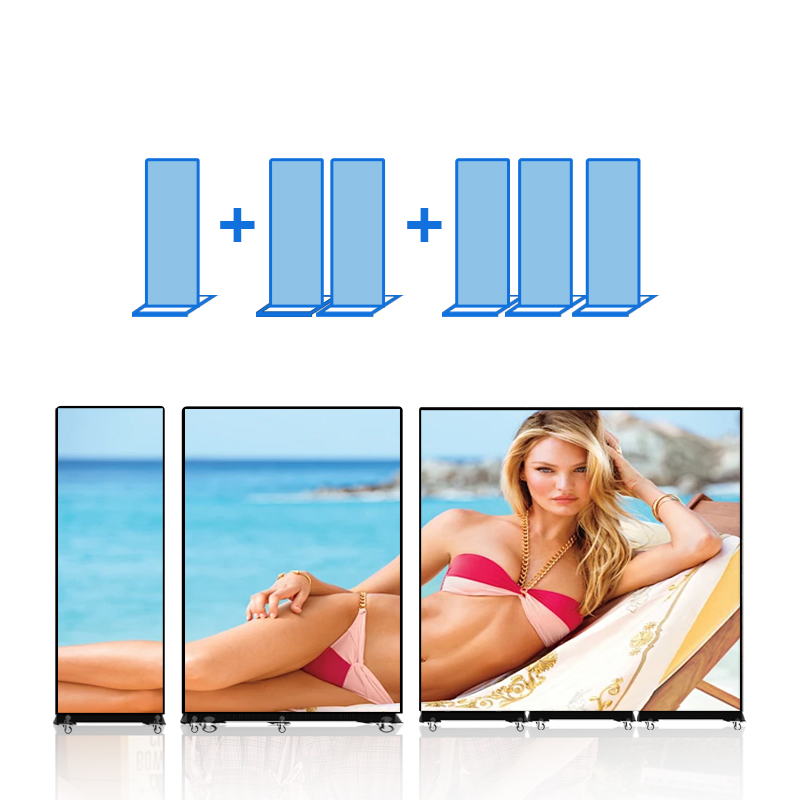

Seamless splicing of multiple units:
It can be used as a single device and also supports seamless splicing of
multiple devices into a large screen, with a wider range of application scenarios.
Supports multiple transmission methods:
The system supports synchronous/asynchronous USB flash drive Ethernet port 4G Remote Optional WiFi .
Asynchronous offline loop playback, used for advertising promotion.
It also supports synchronous display for scenarios such as meetings and live broadcasts.

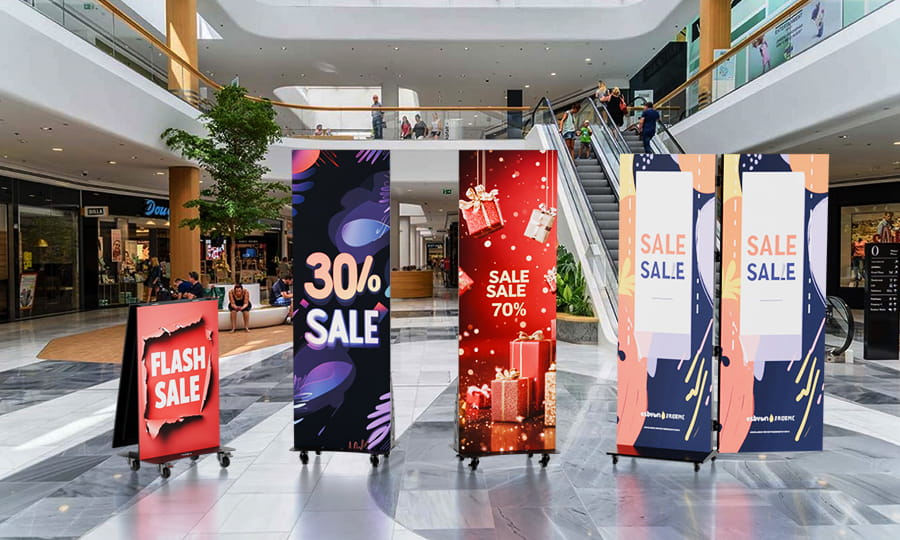

Application extensive:
Shopping malls, hotels, hospitals, banks, schools, enterprises, airports, subway stations,
govemment halls, gyms, exhibition halls, restaurants, etc.
LED poster display Features:
Up and down folding design (convenient for transportation, saving transportation costs);
Provide plugs according to customer requirements, and they can be used immediately after being powered on;
Content publishing can be done through mobile app/computer app/computer network cable/remote network control;
Up to 10 units can be cascaded to splice the entire screen, with HDMI cable cascading for plug and play functionality;
Supports synchronous and asynchronous operations, and can display videos/images/ppt/word, etc.
GOB process, moisture-proof, waterproof, and anti-collision.
poster LED display Paramenters:
| Model | P1.25 | P1.53 | P1.86 | P2 | P2.5 |
|---|---|---|---|---|---|
| Pixel pitch | 1.25mm GOB | 1.53mm GOB | 1.86mm GOB | 2mm GOB | 2.5mm GOB |
| LED configuration | SMD 1010 | SMD 1212 | SMD 1515 | SMD 1515 | SMD 2020 |
| Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Scan mode | 1/64 scan | 1/52 scan | 1/43 scan | 1/40 scan | 1/32 scan |
| Pixel matrix per Module | 256*128 dots | 208*104 dots | 172*86 dots | 160*80 dots | 128*64 dots |
| Pixel density | 640000(dots/sqm) | 422500(dots/sqm) | 288888(dots/sqm) | 250000(dots/sqm) | 160000(dots/sqm) |
| Screen size | 640mm*1920mm | 640mm*1920mm | 640mm*1920mm | 640mm*1920mm | 640mm*1920mm |
| Cabinet Resolution | 512*1536 dots | 416*1248 dots | 344*1032 dots | 320*960 dots | 256*768 dots |
| Number of splices | 3 pcs | 5 pcs | 7 pcs | 8 pcs | 10 pcs |
| Refresh rate | ≥3840 | ||||
| Brightness | 500-650nit | ||||
| Ingress Protection | IP40 | ||||
| Optimal Horizontal Viewing Angle | ≥160° | ||||
| Optimal Vertical Viewing Angle | ≥140° | ||||
| AC Input Voltage | AC 110V/220V±10%,50Hz/60Hz | ||||
| Gray Level | 12-14bit | ||||
| Working Temperature | -20—50(℃) | ||||
| Operating Humidity | 10%~95% non-condensing | ||||
| Video Format | Support RM,FLV,AVI,MP4 and other mainstream video formats | ||||
| Picture Format | Support JPG,PNG,and other image formats | ||||
| Controllnterface | HDMI*2,USB2.0*2,AUX*1 | ||||
| Operating Equipment | Phone, iPad, PC,Internet | ||||
| Life Time | ≥100000(Hours) | ||||
Foldable LED Poster Display-Foldable double side led poster
Advantages of HSCX LED:
High Resolution LED Screen
The MWE LED Screen with P1.86MM pixel pitch offers high - resolution display. At 80 inches (13.78Ft²), it gives a large, clear visual experience, ideal for detailed, vibrant images in indoor and outdoor advertising.
GOB Process for Durability
The GOB process enhances the LED digital signage's durability, protecting against dust, moisture, and physical impacts for reliable long - term use.
Wide Viewing Angle
This led poster screen With a 178° wide viewing angle, the LED poster screen ensures clear visibility from different positions,crucial for public displays.
Portable and Movable Design
The floor - standing, foldable LED digital kiosk, along with a flight case, is portable and movable, great for events and rentals.
Seamless Splicing & Plug and Play Functionality
The LED poster supports seamless splicing for larger displays and has easy plug - and - play operation.
Advanced Control Features
The led poster display includes a timer switch for energy - saving, split - screen for multi - content display, and a publishing system for remote content management.
Wireless Connectivity
WiFi - enabled, the LED screen allows for wireless content transfer and control, enabling remote updates.
HSCXLED Intelligent LED Screen Solution
led poster display Applicable to digital signage in malls, exhibition halls, etc., and suitable for events and rentals. It combines hardware and software advantages for a multifunctional, high - def, easy - to - manage advertising solution.
