Product Details
Place of Origin: SHENZHEN
Brand Name: HSCXLED
Certification: CE ROHS FCC KC
Model Number: P2.6
Payment & Shipping Terms
Minimum Order Quantity: 1set
Packaging Details: Wooden case/Honeycomb Box/Fight case
Delivery Time: 15-20workdays
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000set
Highlight: Ultra thin LED display screen, Ultra-Thin Cabinet Fixed LED Display,
Front Maintenance LED Advertising Display
Product Name: | Indoor Fixed Led Screen | Application: | Indoor |
Pixel Pitch: | 2.6mm | Module Size: | 250mm*250mm |
Cabinet Size: | 500mm*500mm | Brightness: | 600-1000nits |
Refresh Rate: | 7680HZ | Input Voltage: | AC110~220V+-15% 47~64HZ |
Product Type: | Double Sided Ultra-thin LED Screen | Maintenance: | Front Access |
Control Method: | 3G/4G/WIFI/USB/LAN | Control System: | NovaStar / Colorlight / Mooncell... |
Indoor Fixed Led display/LED Advertising Screen Ultra-thin LED Screen
Indoor Fixed Led Screen Large Portable Full-color Double Sided Led Digital Display Screen
u Indoor led display screen/ Ultra-thin LED display screen/ indoor fixed double sided led display
Ultra-thin LED display Features:
✅ Front maintenance design
Magnetic quick disassembly, single person can complete module replacement in 3 minutes
✅ Seamless splicing
Splicing gap ≤ 0.1mm,Splicing tolerance ≤ 0.3mm, eliminating visual fragmentation
✅ Silent cooling
Fanless design, noise<25dB (conference room level silence)
P2.6 indoor fiexd LED display Paramenters:
| MODEL | PH2.6 |
|---|---|
| Pixel Pitch (Resolution) | 2.6mm |
| LED configuration | SMD 2020 |
| Module size | 250*250mm |
| Scan mode | 1/32 scan |
| Pixel matrix per Module | 96*96 dots |
| Pixels Per Sq.Meter(Density) | 147456（dots/sqm） |
| Cabinet size | 500mm*500mm |
| Cabinet Resolution | 192*192dots |
| Thickness(Single-sided/Double-sided) | (Single thickness 24mm,double thickness 30mm) |
| Screen size | Customizable according to Cabinet size |
| Maintenance Method | Front maintenance |
| Refresh Rate | 7680HZ |
| Color Depth | 14-16 bit |
| Brightness | 600-800nits |
| Ideal Viewing Angle | 160°(H)/140°(V) |
| Input Voltage | AC 110V/220V±10%,50Hz/60Hz |
| Max.Power Consumption | 750W/m² |
| Avg.Power consumption | 250W/m² |
| Working Temperature | -40 -50(℃) |
| Operating Humidity | 10%~95% non-condensing |
| Video Format | Support RM,FLV,AVI,MP4 and other mainstream video formats |
| Picture Format | Support JPG,PNG,and other image formats |
| Life Time | ≥100000(Hours) |
Ultra thin LED display advantage:
Dual-Sided Display, Doubling Your Advertising Impact
Maximize space and audience reach with HSCXLED double-sided display. This screen delivers vibrant, high-resolution content on both sides simultaneously, perfect for mall atriums, exhibition halls, or hanging from ceilings. It's the ultimate solution for capturing attention from all angles, ensuring no potential customer misses your message.
High Brightness & Stunning Clarity for Indoor Use
With a peak brightness of up to 3500 nits and a wide color gamut, this screen ensures your content remains vivid and clear even under strong indoor lighting. Choose from P1.56 to P2.97 pixel pitches to match your viewing distance needs, guaranteeing a high-quality and immersive visual experience for every viewer.
Ultra-Thin 24mm Cabinet for Versatile Mounting
Engineered with an incredibly ultra-thin profile of only 26mm, this display is ideal for space-constrained fixed installation environments. Its lightweight design (4.8kg per cabinet) and standard 500x500mm size make it perfectly suited for seamless Wall Mount or suspended Ceiling Mount applications, creating a sleek, modern look without bulky intrusions.
Ultra-Smooth Video with 7680Hz High Refresh Rate
Capture every detail of fast-motion content without blur or flicker. Our advanced driving technology delivers an exceptional refresh rate of up to 7680Hz, making it perfect for dynamic advertisements and high-frame-rate video playback. This ensures a seamless and professional viewing experience for your Video Wall.
Front maintain
Support pre-installation, pre-maintenance and zero space constraint.Simple operation.quick installation and maintenance, and truly save worry, effort and time.
Smart Wireless Control with Wi-Fi & 4G Connectivity
Embrace the freedom of wireless technology. The integrated Wi-Fi and 4G control system allows you to manage, schedule, and update content on your displays remotely and in real-time. This plug-and-play connectivity simplifies operations and reduces wiring costs, making large-scale or multi-screen network management effortless.

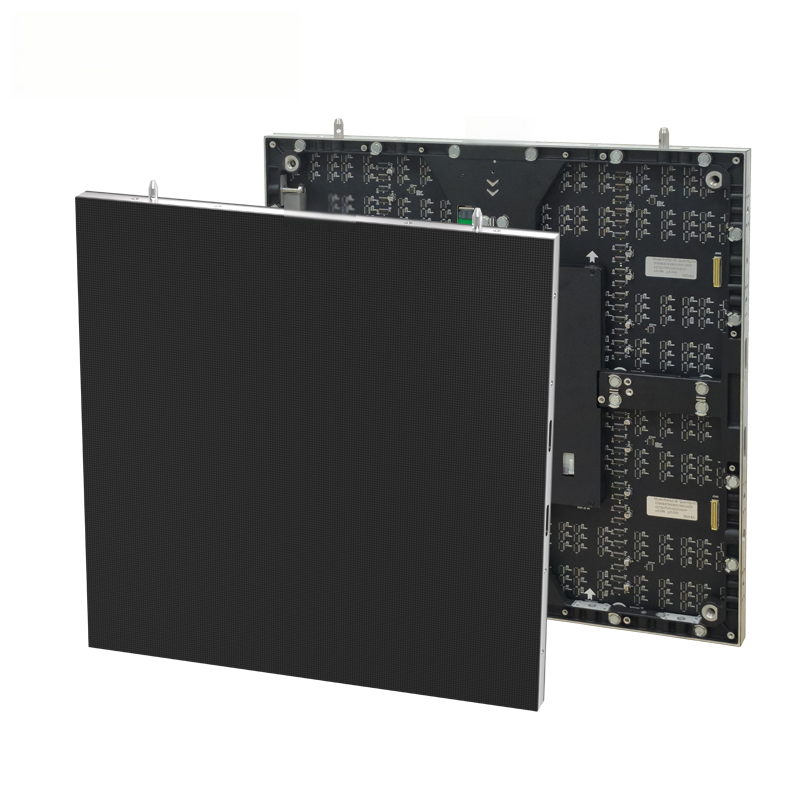

Durable profile aluminum box,Long term reliability
Built with precision die-casting aluminum cabinets, this display is not only lightweight but also exceptionally durable. The material provides superior heat dissipation and structural stability, supporting a long 100,000-hour lifespan and reliable performance for continuous operation in various indoor environments.
Ultra thin LED display Specification:

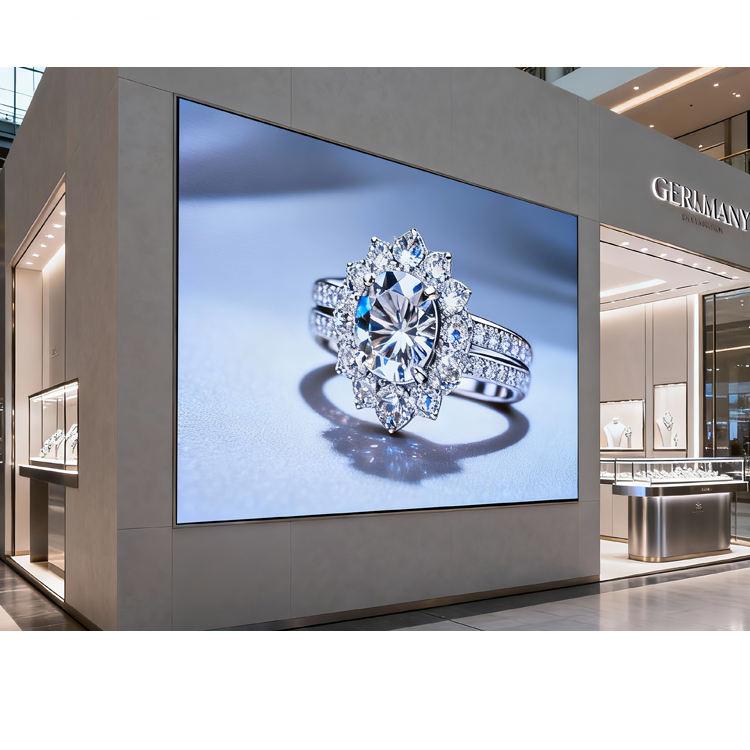

Commercial retail field
Booth in the central hall of the shopping mall: Ultra thin LED display, double-sided display of product promotion information or brand image, attracting attention from both sides.
At the entrance of the fitting room of the clothing store: a double-sided ultra-thin LED display , one side displays dressing suggestions, and the other side plays brand new product videos to enhance customers' shopping experience.
Public service space
Hospital lobby/airport waiting hall: Double sided LED display , hung above the aisle, displays public information such as flight status, medical guidance, queue calls, etc. synchronously or separately on both sides, covering more people.
Office building elevator hall: Ultra thin LED display screen, Double sided LED display,ultra-thin design does not occupy small space, double-sided loop playback of corporate announcements, property notices or commercial advertisements.

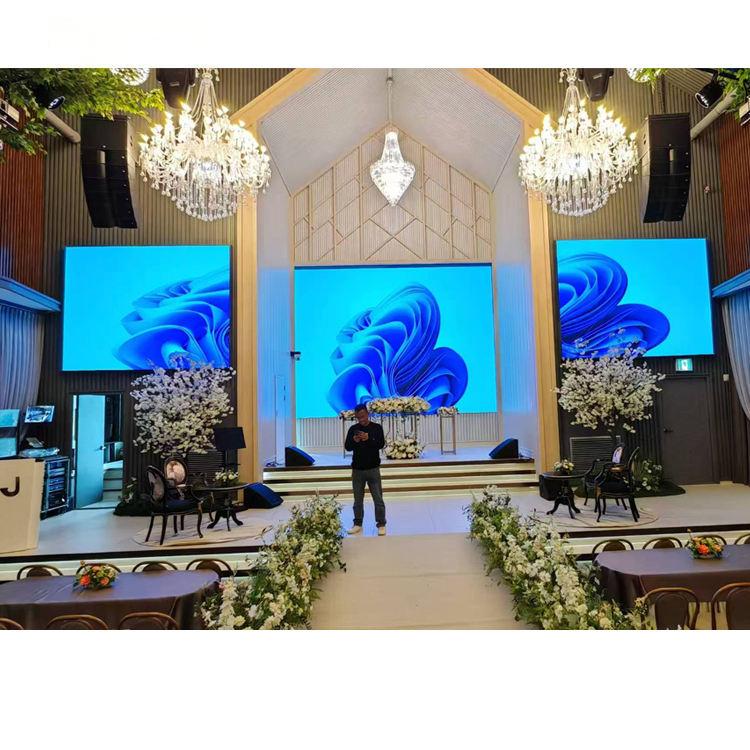

Cultural and entertainment venues
Theater/Concert Hall Front Desk: Display performance introductions, actor information, ultra-thin LED display , Double sided LED display,double-sided design allows audiences from different directions to access content.
Esports Arena/Internet Cafe
The ultra-thin LED display is used for displaying match scores or promoting games. Its lightweight feature allows for flexible installation on seat partitions or space pillars.
