Product Details
Place of Origin: SHENZHEN
Brand Name: HSCXLED
Certification: KC CE ROHS FCC CCC ISO9001
Model Number: P6.67
Payment & Shipping Terms
Minimum Order Quantity: 1set
Packaging Details: Wooden case/Honeycomb Box/Fight case
Delivery Time: 10-15workdays
Payment Terms: L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability: 1000set/30day
Highlight: Front Service LED Screen for Advertising, outdoor rental Energy-saving LED display,
Outdoor Aluminum Digital Advertising Led Screen
Product Name: | Outdoor Advertising Led Display | Model Number: | Outdoor-P6.67 |
Application: | Outdoor, Advertising | Pixels: | 6.67mm |
Brightness: | 10000nits | Refresh Rate: | 3840-7680HZ |
Cabinet Size: | 960*960mm | Material: | Aluminum Led Display |
AC Input Voltage: | AC100--240V±10%/50~60Hz | Maintenance Types: | Front & Rear Maintenance |
Keyword: | Outdoor Adverting Display | Screen Types: | Front Service LED Screen |
High Brightness Energy Saving Outdoor All Weather Advertising LED Display Screen
Waterproof IP65 8K Outdoor High Brightness LED Billboard Panel for Street Advertising

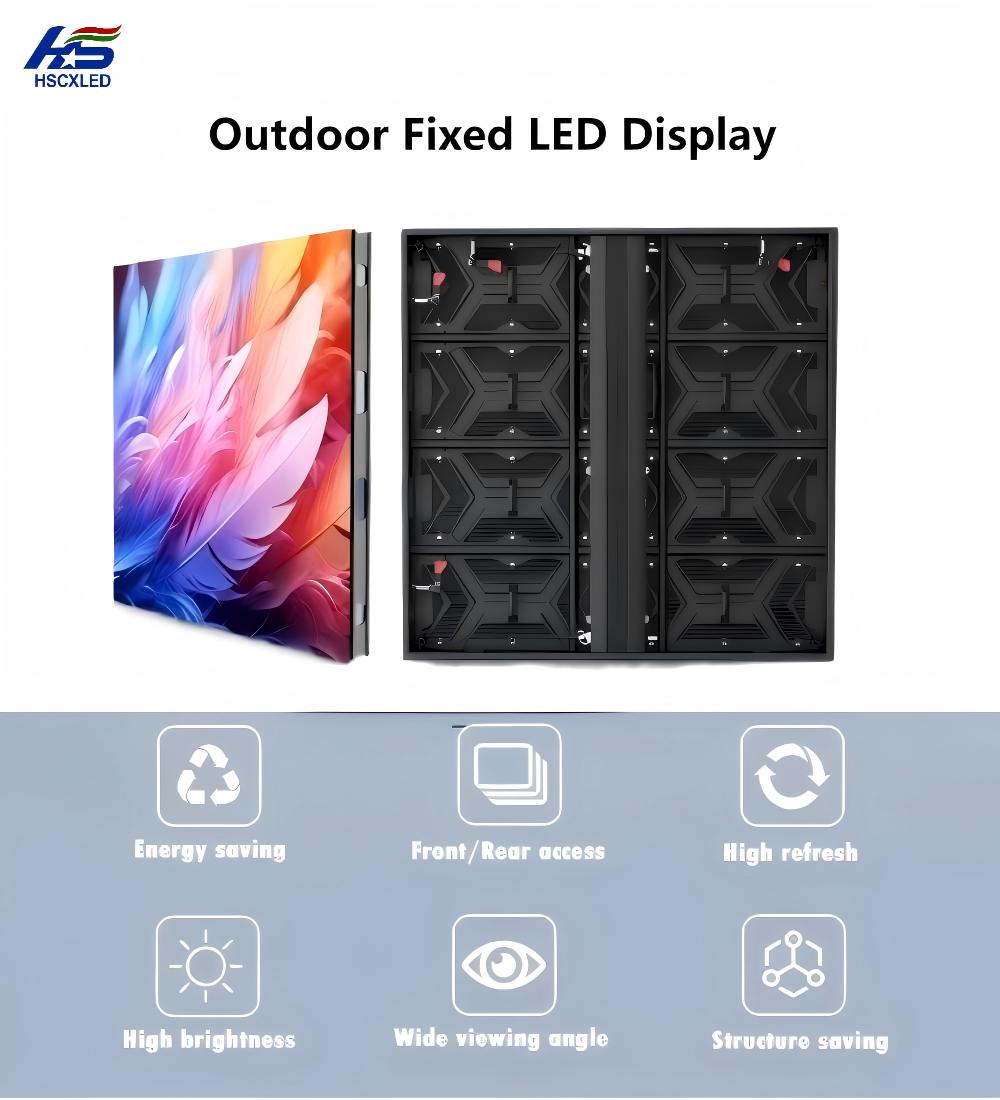

Front Service P6.67 High Brightness aluminum LED display screen
P6.67 Outdoor aluminum LED display Paramenters:
| Model | P6.67 |
|---|---|
| Pixel pitch | 6.67mm |
| LED configuration | SMD1921 |
| Module size | 480*320mm |
| Scan mode | 1/6 scan |
| Pixel matrix per Module | 72*48 dots |
| Pixel density(dots/sqm) | 22477 |
| Screen size | 960*960mm |
| Refresh rate | ≥3840HZ |
| Box material | profile aluminum |
| Brightness | 8000-10000nit |
| Ingress Protection | IP67 |
| Weight | ≤28kg/m² |
| Optimal Horizontal Viewing Angle | ≥ 160° |
| Optimal Vertical Viewing Angle | ≥ 140° |
| AC Input Voltage | AC 110V/220V±10%,50Hz/60Hz |
| Gray Level | 14bit |
| Working Temperature | -20 -50(℃) |
| Maximum power consumption | 600W/m² |
| average power consumption | 200W/m² |
| Operating Humidity | 10%~95% RH |
| Video Format | Support RM,FLV,AVI,MP4 and other mainstream video formats |
| Picture Format | Support JPG,PNG,and other image formats |
| Life Time | ≥ 100000(Hours) |

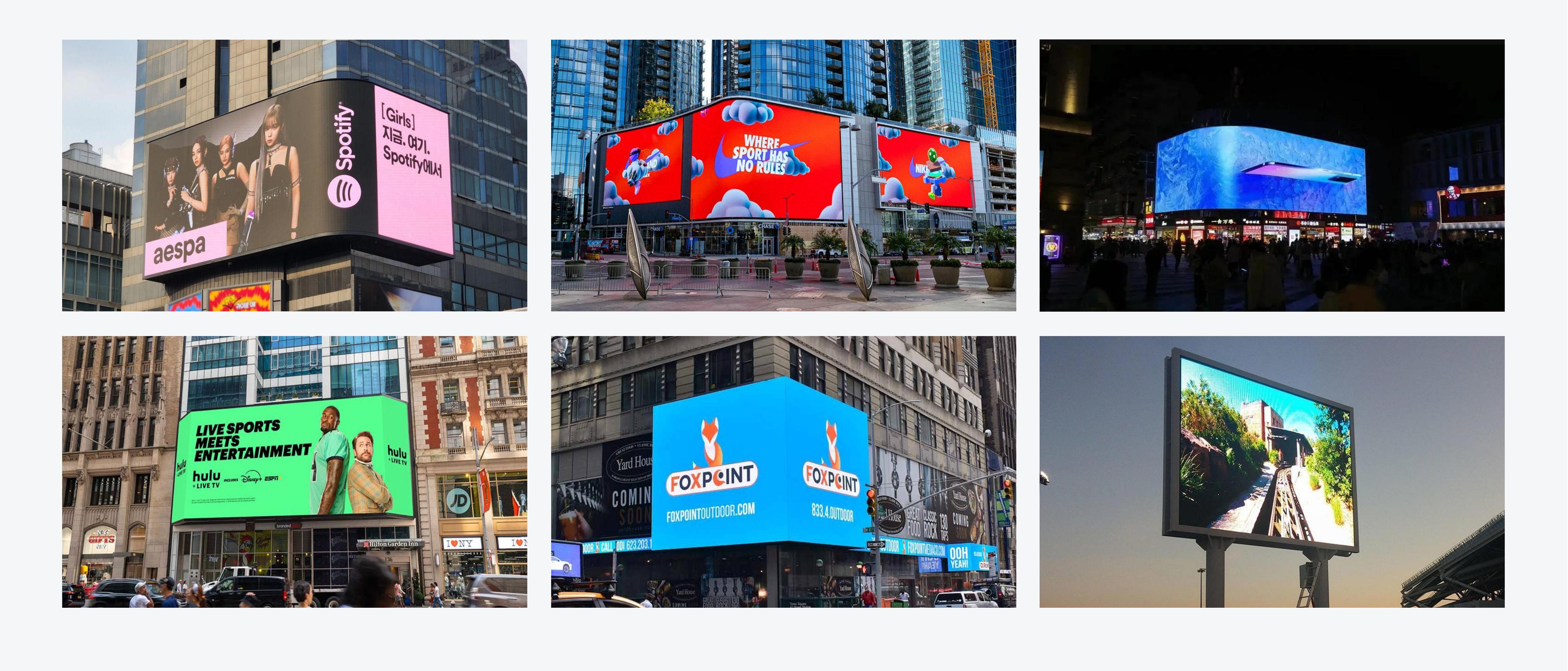

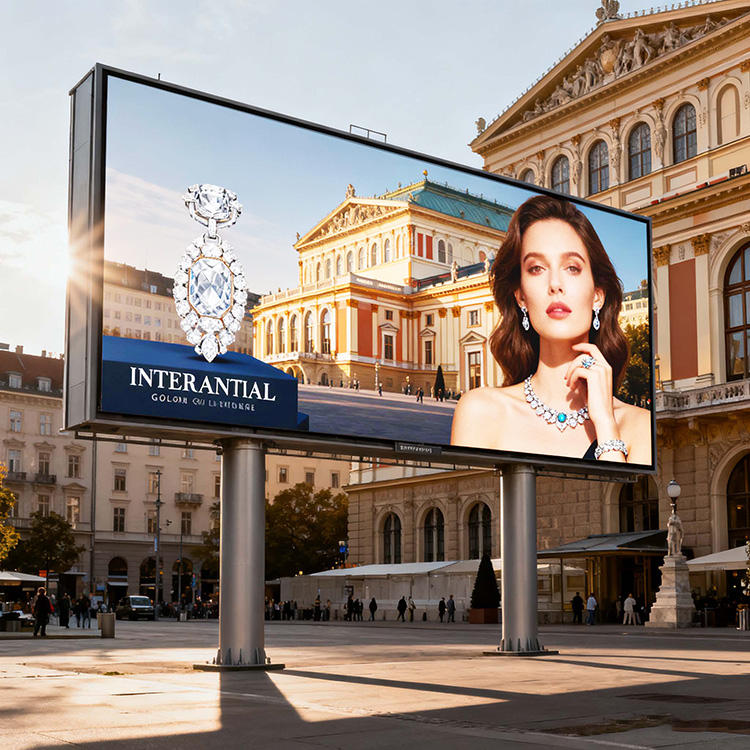

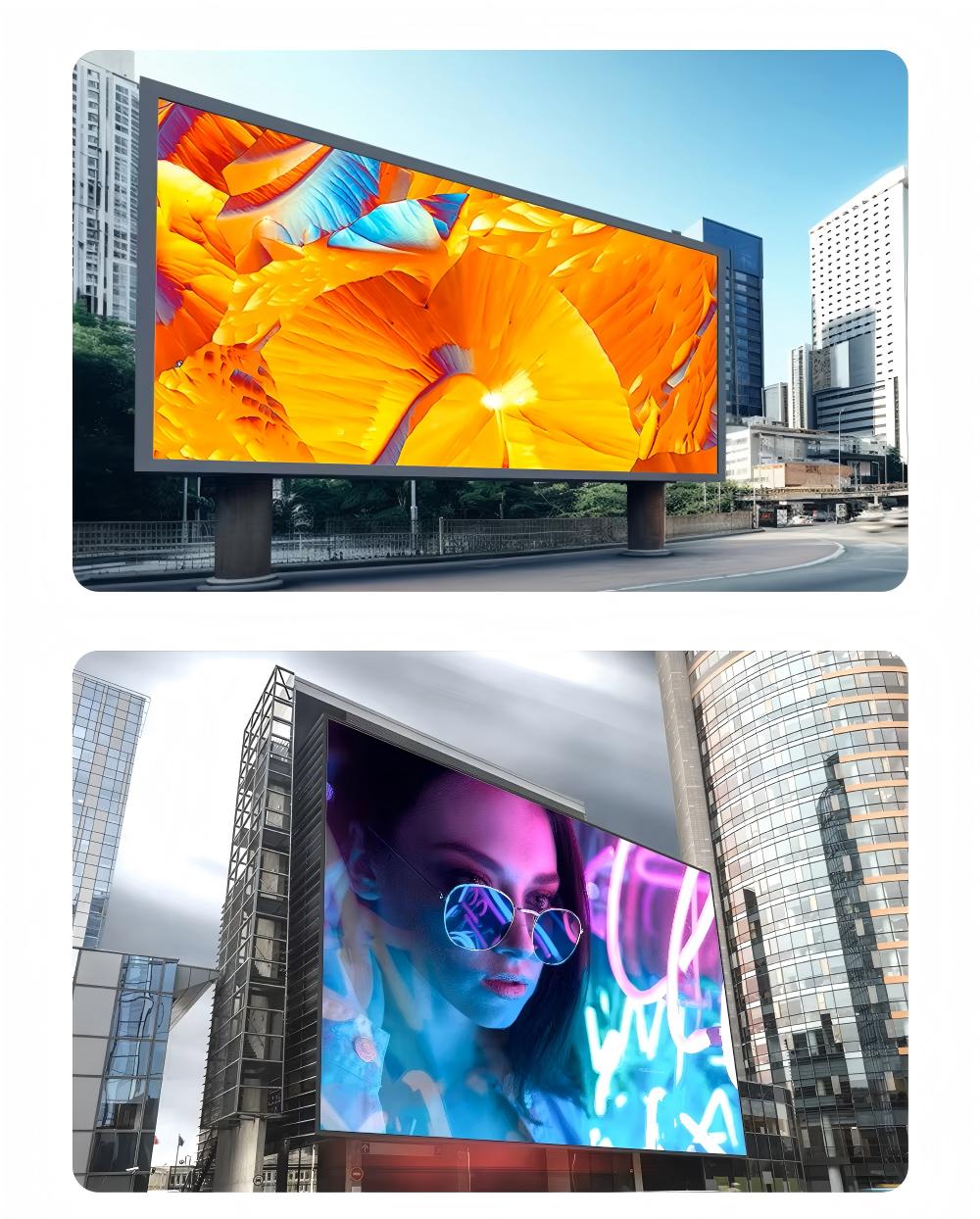

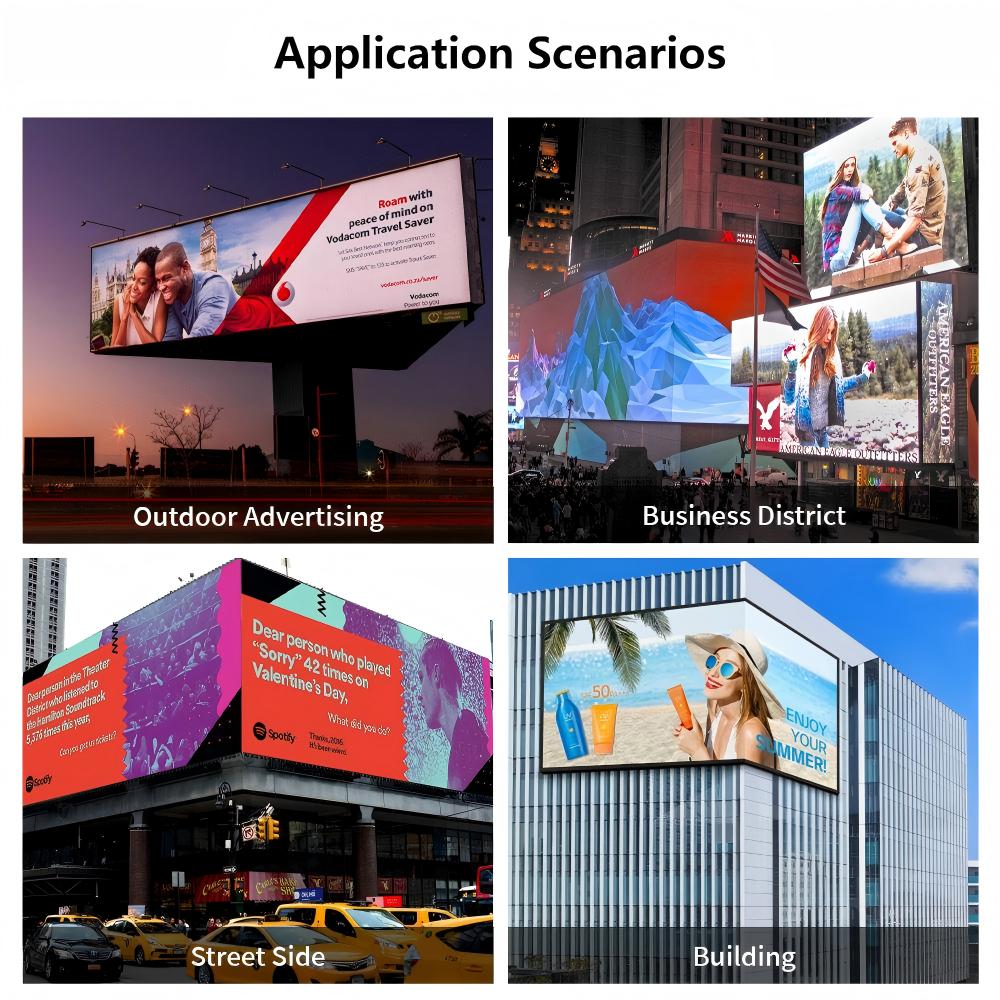

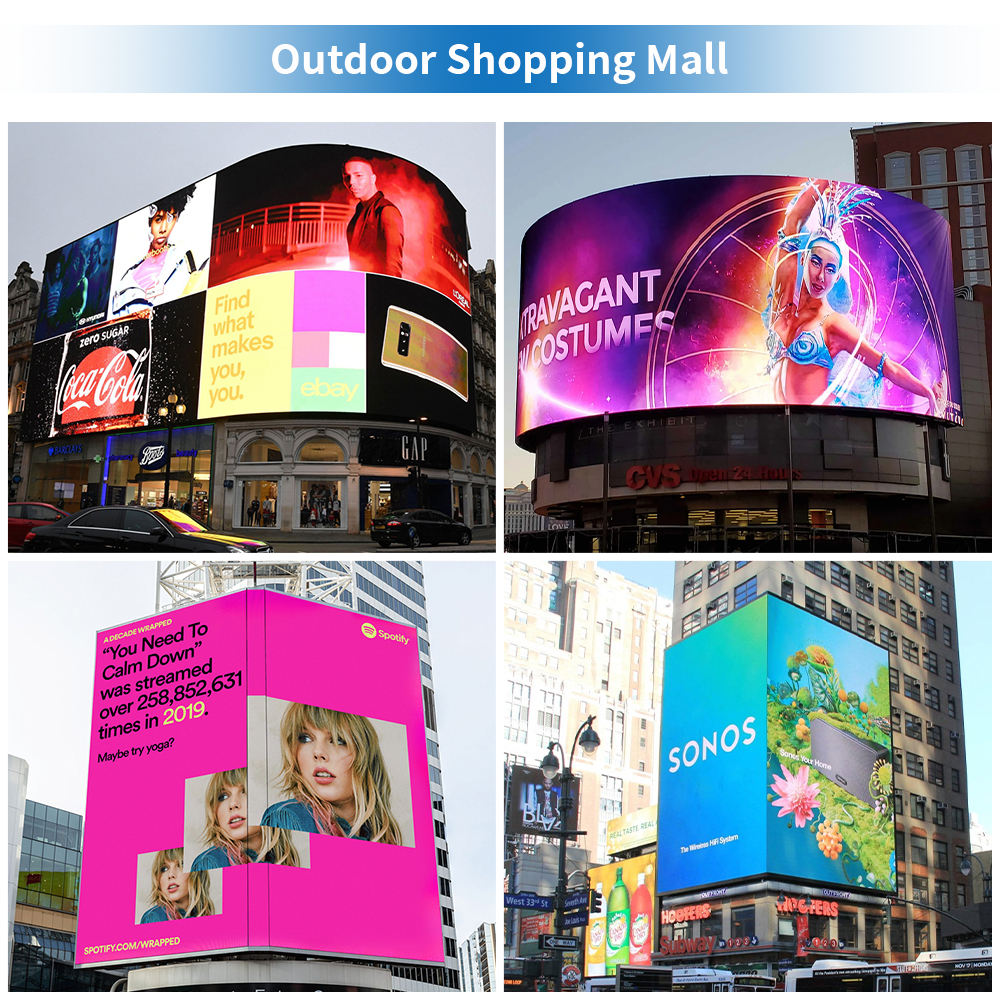

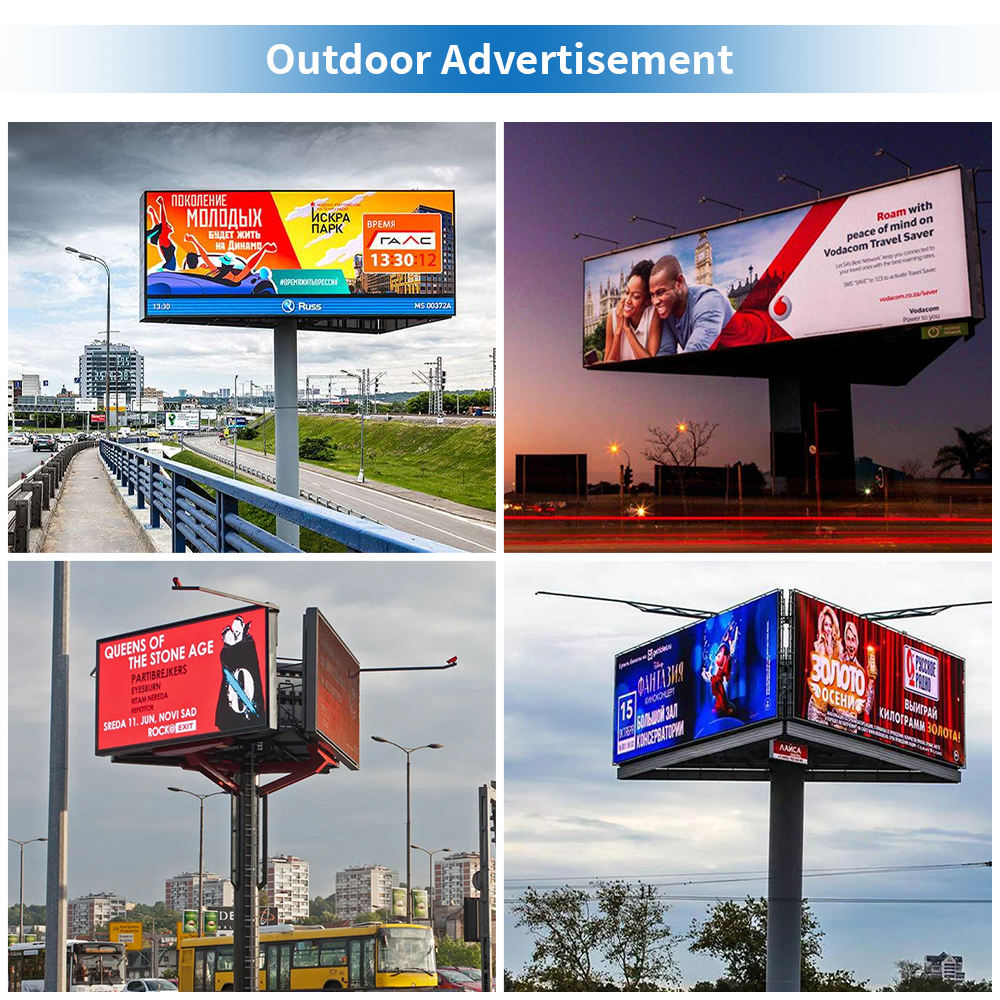

Outdoor Advertising Led Display Applications:
Advertising publish,retail store,shopping mall,display of dishes,welcome display,self-service business,exhibition hall,Restaurant & Hotel Supplies,education,medical treatment...
Outdoor aluminum LED display Specification:
High-Brightness,Energy-Saving Aluminum LED Display

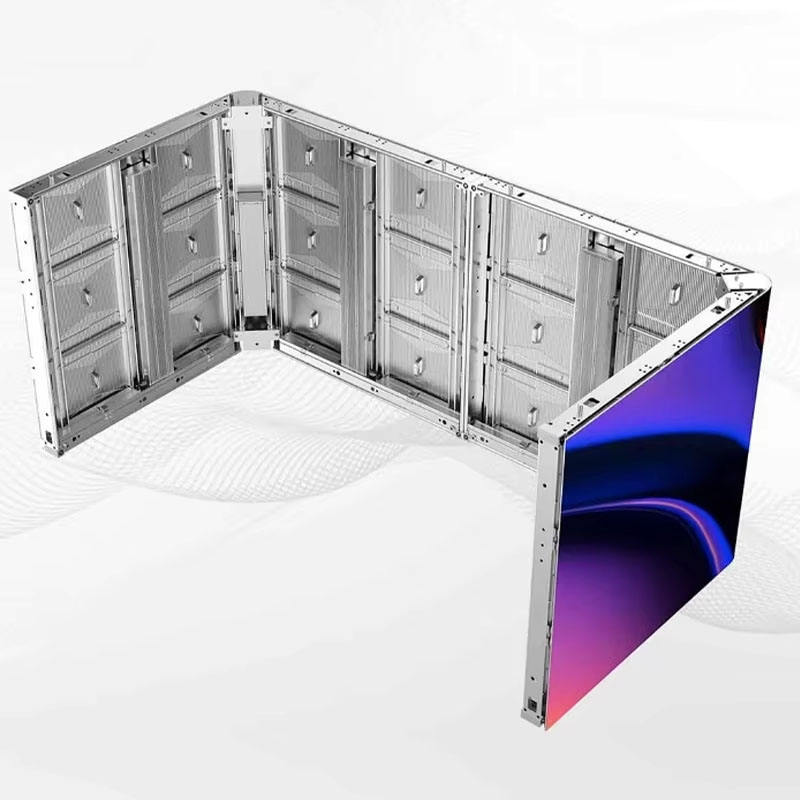

HSCXLED-Outdoor aluminum LED screen support multiple module model selections,Use standard universal 480*320mm size display module.Aluminum profile box, light and thin,The product has high brightness, high refresh rate,Modular design, low installation and maintenance costs, fast speed, supports front and rear maintenance and high protection level.
Outdoor aluminum LED display Features:

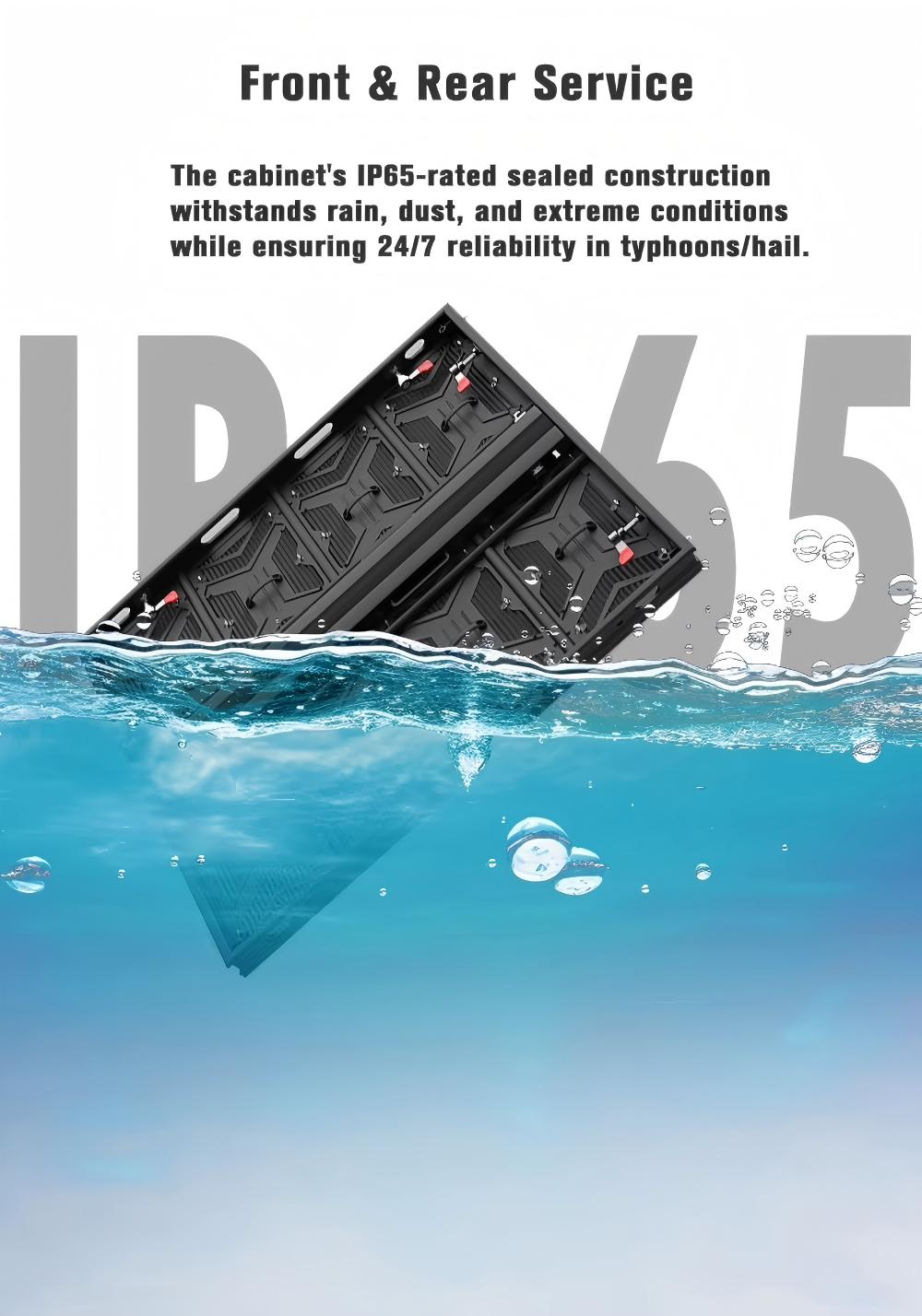

Front & RearMaintenance
No need for a rear access channel,offering a sleek appearance and cost-effective structure.
High Protective Performance
Outdoor display screen has high requirements on protection level. HSCXLED-Outdoor aluminum LED screen front and rear protecting level is IP68/IP67. With the highest standard of waterproofing. All-day work, fully capable of any harsh environment, features with anti-corrosion, moisture-proof etc.
Strong Flame Resistance
outdoor LED display screens , high temperature durability, fast heat dissipation with Noise-free, it is able to used at high temperature for a long time without deformation.
All-Weather Durability
Our IP65 waterproof LED modules offer exceptional protection against extreme weather ensuring stable performance and longevity. The fanless power supply with waterproof seals further guarantees durability and reliable operation.
High Refresh Rate
The screen display is smooth without lag,with a high refresh rate of up to3840-7680Hz.fast response speed,and no dragging,lagging,or flickering.The screen display is smooth and stable.High guality modules,Modular design for easy splicing true color high stability and long life.
Smart Control System
For cloud control,Wi-Fi control,USB Disk,4G/5G,our smart control system are allowed to make it.

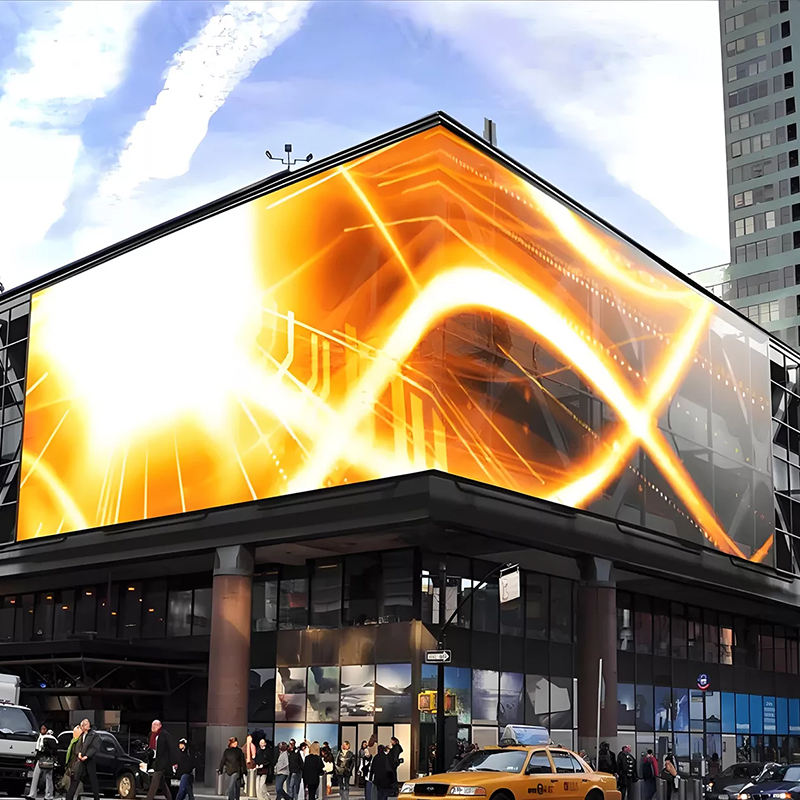

Outdoor LED Display/Outdoor aluminum LED screen
