Product Details
Place of Origin: SHENZHEN CHINA
Brand Name: HSCXLED
Certification: CE ROHS FCC KC
Model Number: P1.95
Payment & Shipping Terms
Minimum Order Quantity: 1set
Packaging Details: Wooden case/Honeycomb Box/Fight case
Delivery Time: 15-20workdays
Payment Terms: L/C,D/A,D/P,T/T,MoneyGram
Supply Ability: 1000set/30DAY
Highlight: Indoor Advertising Display Screen, Double Sided LED Display, ultra Thin LED Video Wall
Product Name: | Indoor Fixed Led Screen | Application: | Indoor |
Pixel Pitch: | 1.95mm | Module Size: | 250mm*250mm |
Cabinet Size: | 500mm*500mm | Brightness: | 600-1000nits |
Refresh Rate: | 7680HZ | Input Voltage: | AC110~220V |
Product Type: | Ultra-thin LED Screen | Maintenance: | Front Access |
Control Method: | 3G/4G/WIFI/USB/LAN | Control System: | NovaStar / Colorlight / Mooncell... |

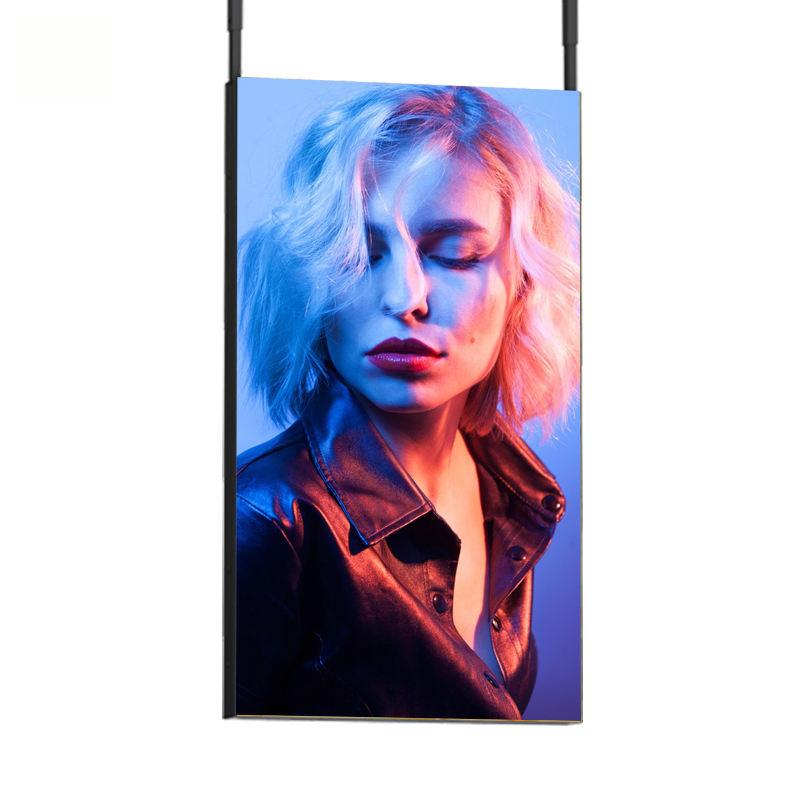

Indoor Fixed Led display/LED Advertising Screen/ Ultra-thin LED Screen
Ultra-Thin Indoor 4K 8K LED Display/Ultra-Thin led display
Indoor Fixed Led Screen /Full-color Double Sided Led Digital Display Screen
u Indoor led display screen/ Ultra-thin LED display screen/ indoor fixed double sided led display
Ultra-thin LED display Features:

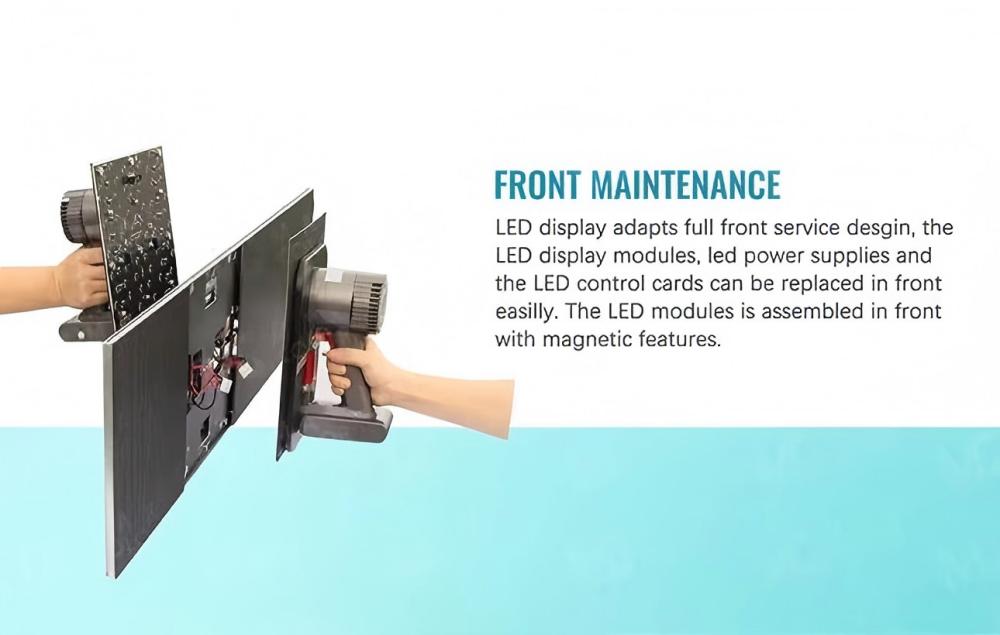

✅ Front maintenance design
Magnetic quick disassembly, single person can complete module replacement in 3 minutes
✅ Seamless splicing
Splicing gap ≤ 0.1mm,Splicing tolerance ≤ 0.3mm, eliminating visual fragmentation
✅ Silent cooling
Fanless design, noise<25dB (conference room level silence)

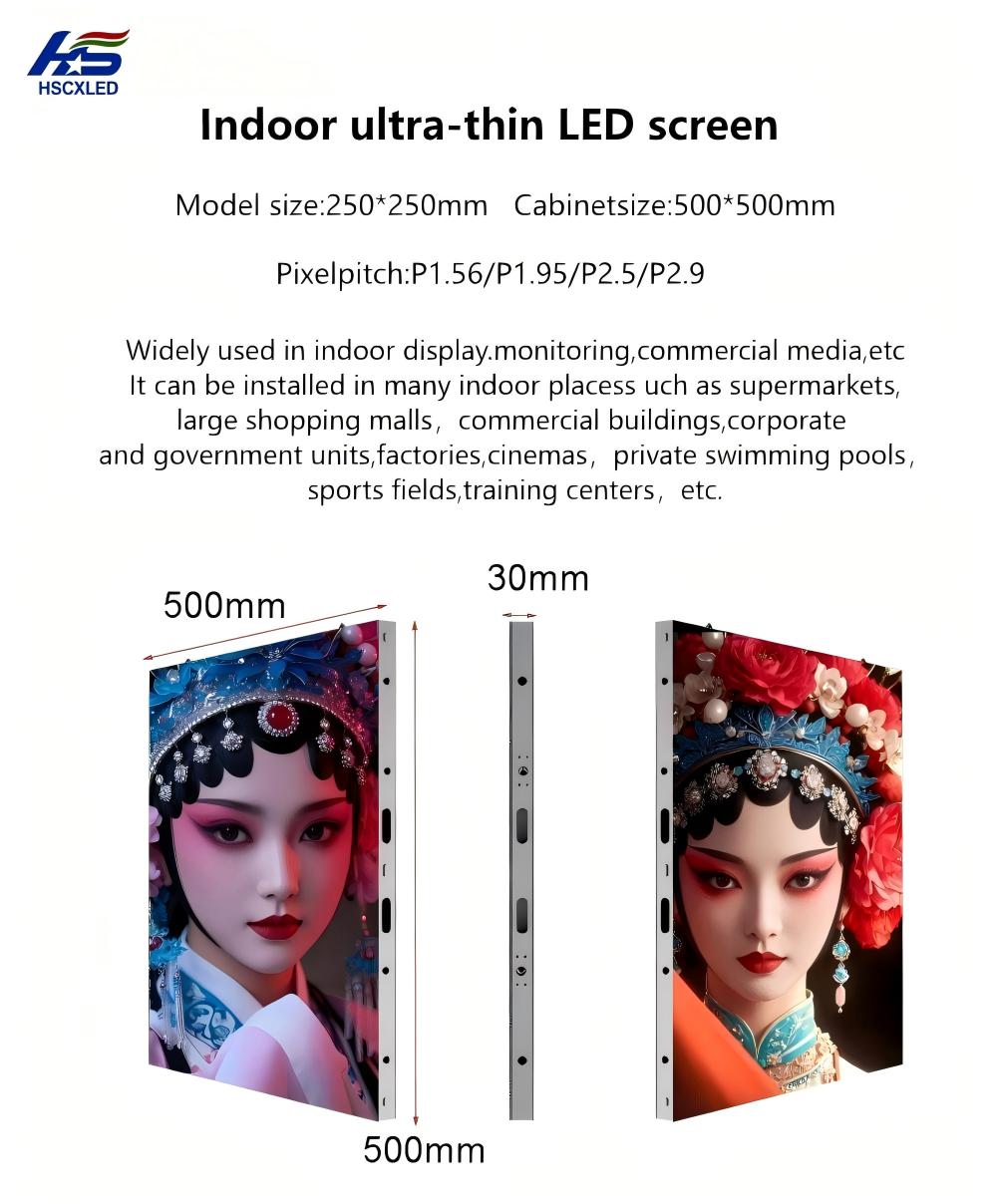

P1.9 indoor fiexd LED display Paramenters:
| MODEL | PH1.95 |
|---|---|
| Pixel Pitch (Resolution) | 1.95mm |
| LED configuration | SMD 1515 |
| Module size | 250*250mm |
| Scan mode | 1/32 scan |
| Pixel matrix per Module | 128*128 dots |
| Pixels Per Sq.Meter(Density) | 262144(dots/sqm) |

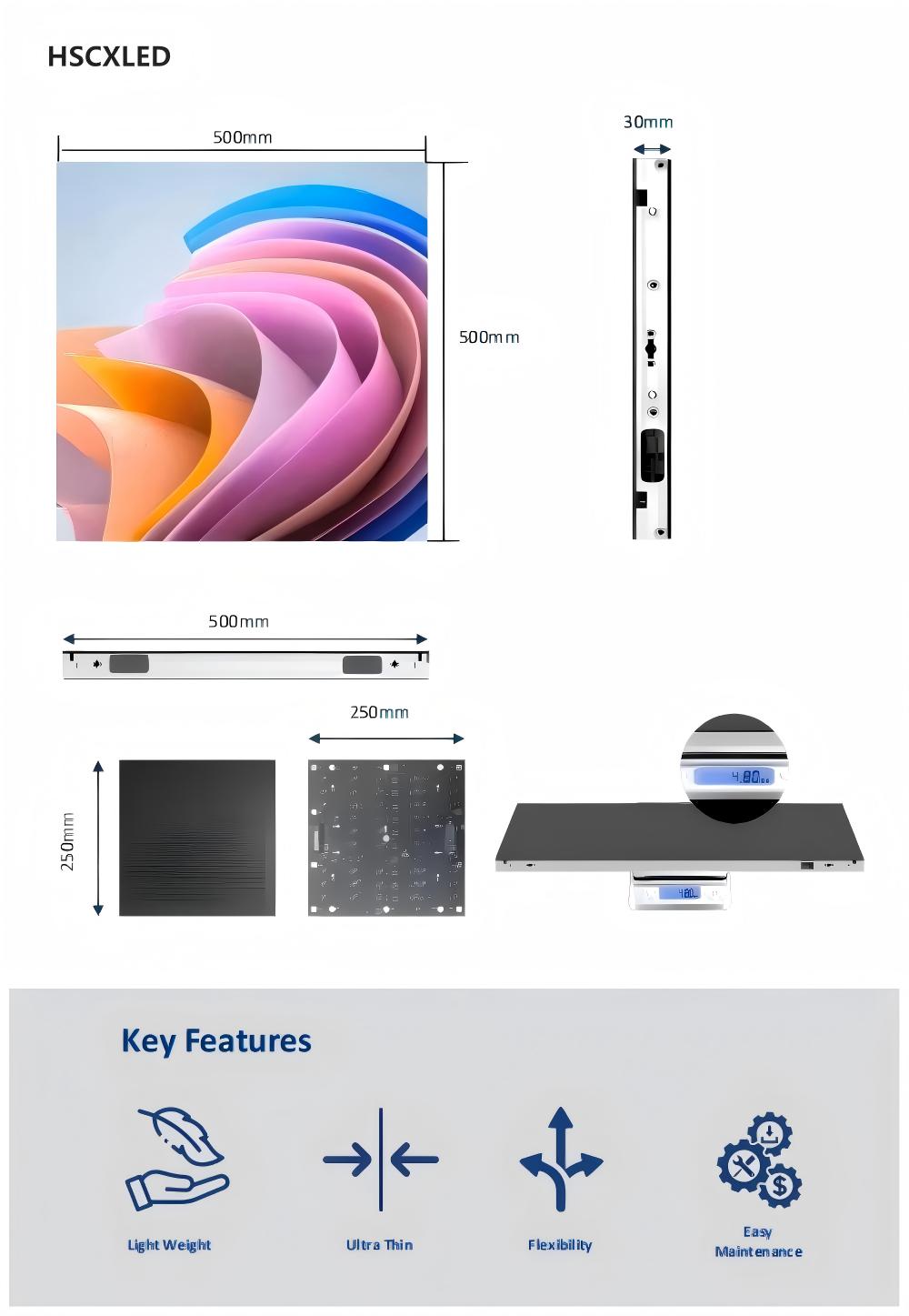

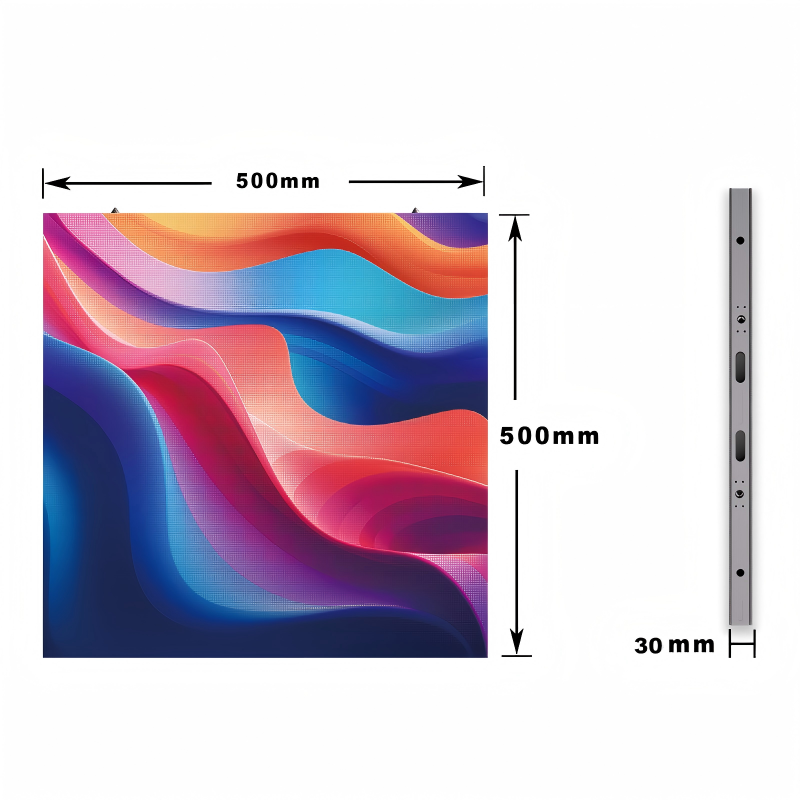

| Cabinet size | 500mm*500mm |
| Cabinet Resolution | 256*256dots |
| Thickness(Single-sided/Double-sided) | (Single thickness 24mm,double thickness 30mm) |
| Screen size | Customizable according to Cabinet size |
| Maintenance Method | Front maintenance |
| Refresh Rate | 7680HZ |
| Color Depth | 14-16 bit |
| Brightness | 600-800nits |
| Ideal Viewing Angle | 160°(H)/140°(V) |
| Input Voltage | AC 110V/220V±10%,50Hz/60Hz |
| Max.Power Consumption | 750W/m² |
| Avg.Power consumption | 250W/m² |
| Working Temperature | -40 -50(℃) |
| Operating Humidity | 10%~95% non-condensing |
| Video Format | Support RM,FLV,AVI,MP4 and other mainstream video formats |
| Picture Format | Support JPG,PNG,and other image formats |
| Life Time | ≥100000(Hours) |
Ultra thin LED display Specification:

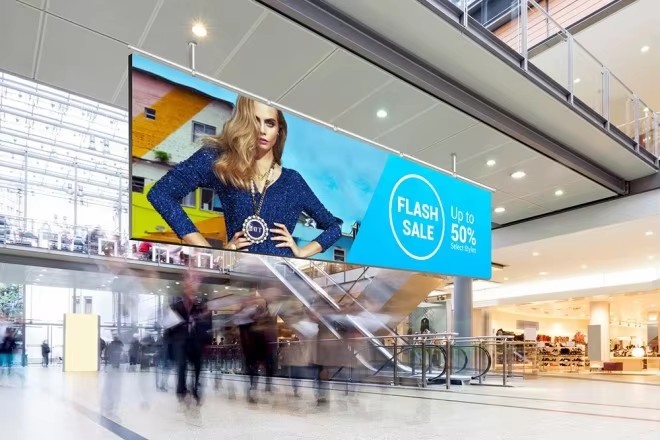

Commercial retail field

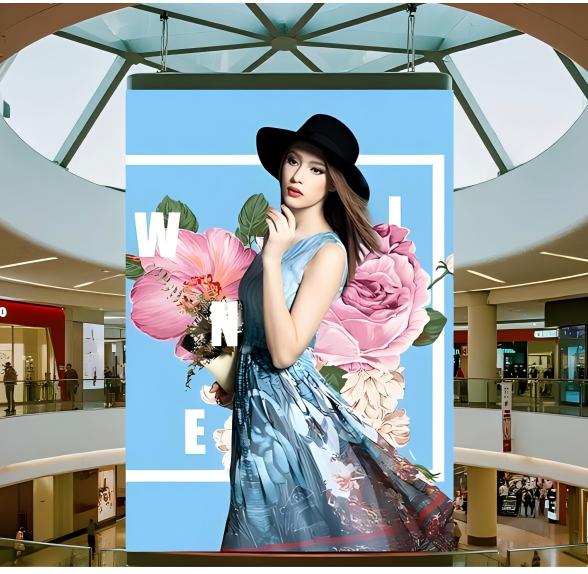

Booth in the central hall of the shopping mall: Ultra thin LED display, double-sided display of product promotion information or brand image, attracting attention from both sides.

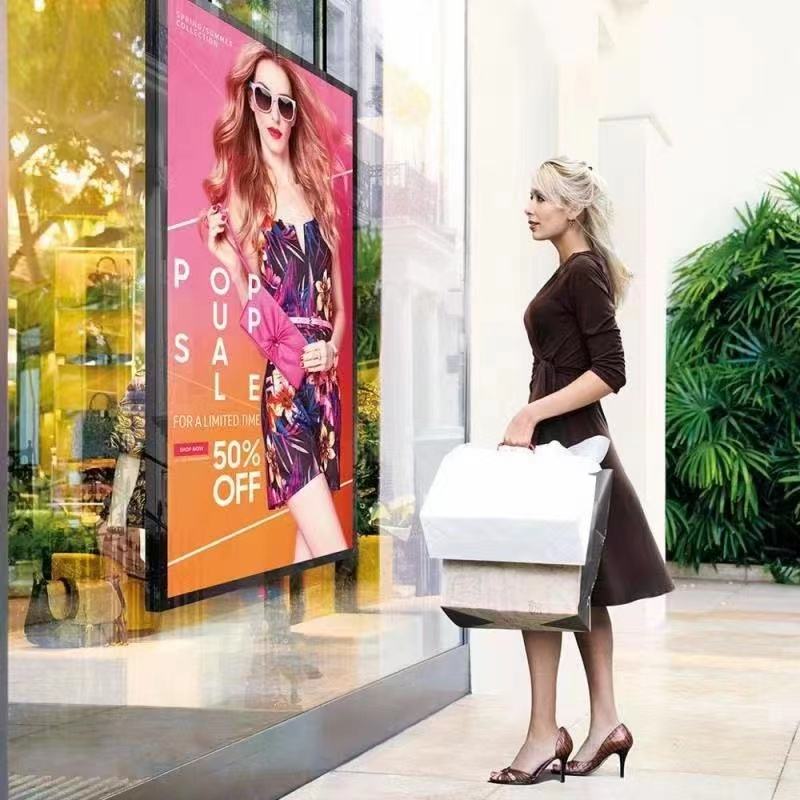

At the entrance of the fitting room of the clothing store: a double-sided ultra-thin LED display , one side displays dressing suggestions, and the other side plays brand new product videos to enhance customers' shopping experience.
Public service space
Hospital lobby/airport waiting hall: Double sided LED display , hung above the aisle, displays public information such as flight status, medical guidance, queue calls, etc. synchronously or separately on both sides, covering more people.
Office building elevator hall: Ultra thin LED display screen, Double sided LED display,ultra-thin design does not occupy small space, double-sided loop playback of corporate announcements, property notices or commercial advertisements.
Cultural and entertainment venues
Theater/Concert Hall Front Desk: Display performance introductions, actor information, ultra-thin LED display , Double sided LED display,double-sided design allows audiences from different directions to access content.
Esports Arena/Internet Cafe
The ultra-thin LED display is used for displaying match scores or promoting games. Its lightweight feature allows for flexible installation on seat partitions or space pillars.
Ultra-thin LED display advantage:
High space utilization rate

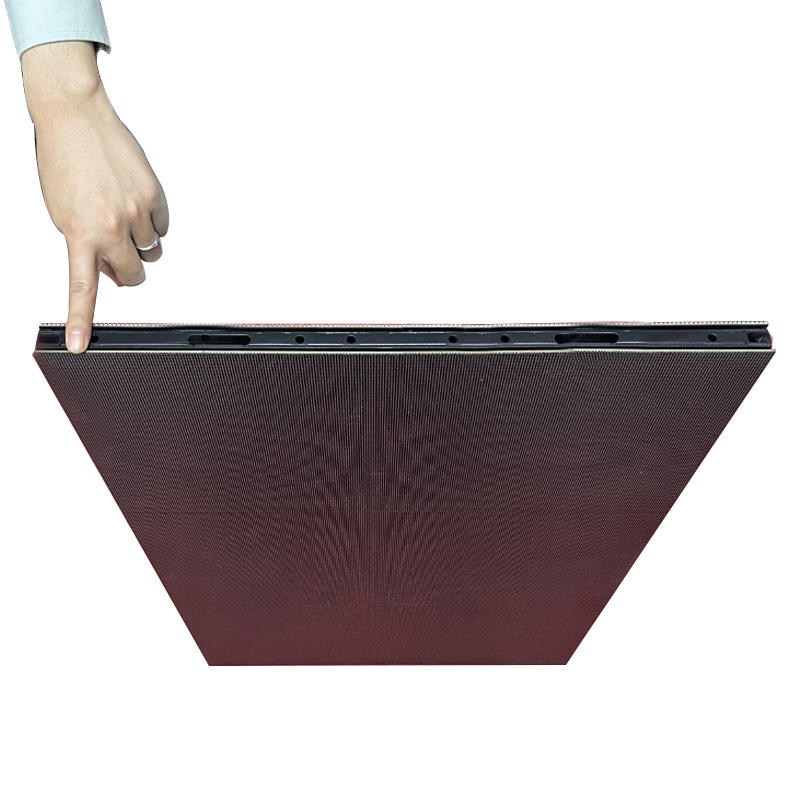

Ultra thin body (HSCLED thickness within 3cm), no need to reserve a large amount of back space during installation. The ultra-thin LED display-Double sided LED display can be directly wall mounted, suspended or embedded in the wall, especially suitable for narrow indoor environments.

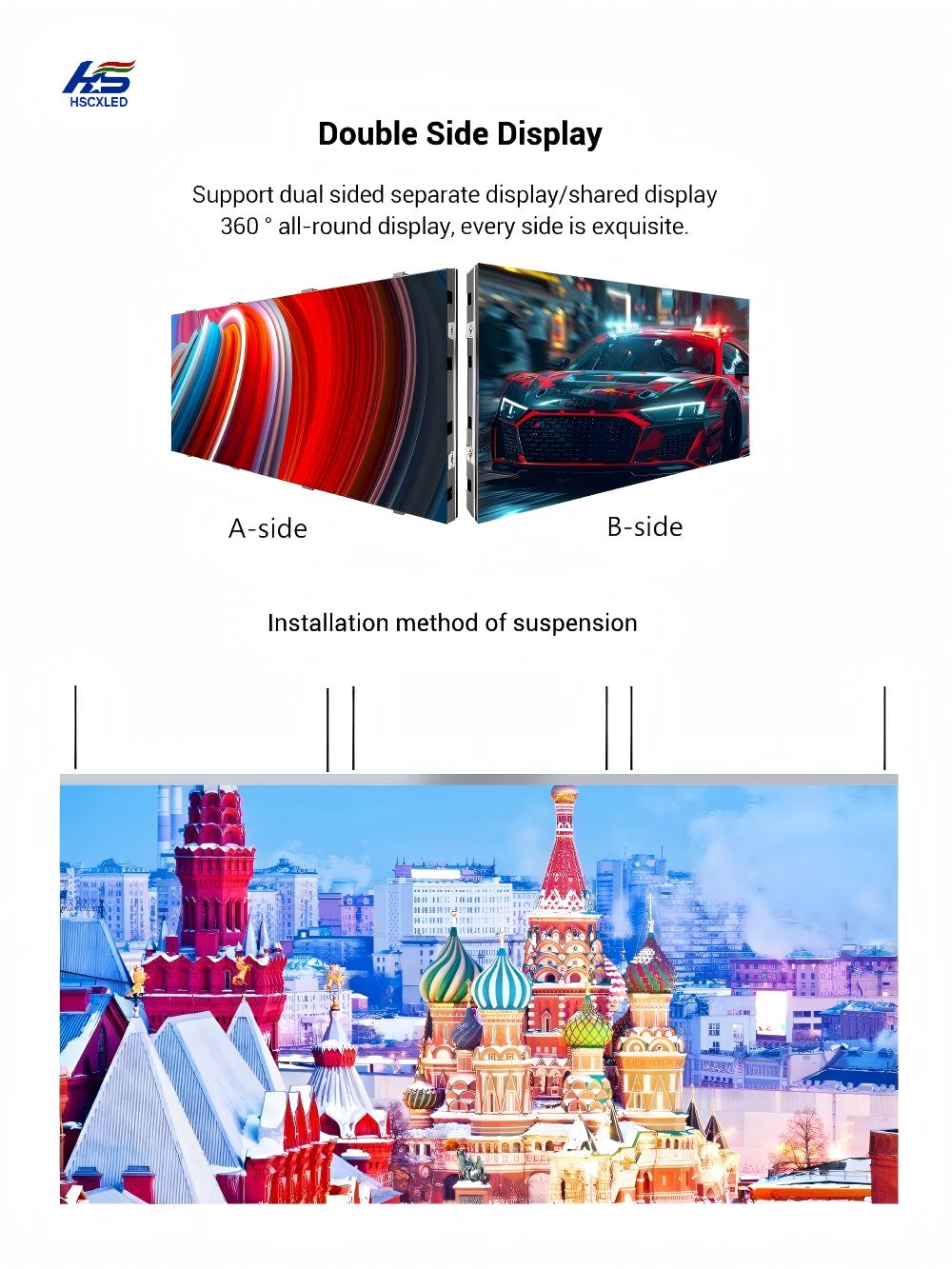

The dual sided display function of Double sided LED display(ultra-thin LED screen) is equivalent to "one screen realizing the value of two screens", reducing the number of devices and saving installation space.
Excellent visual effect
The ultra-thin LED display has high brightness (600-900cd/㎡, suitable for indoor lighting), high contrast, and wide viewing angle on both sides. No matter which side is viewed, the picture is clear and delicate, without color deviation.
The ultra-thin LED display (Double sided LED display) supports seamless splicing and can be customized in size according to needs to form a large-sized LED double-sided display, meeting the needs of brand image display or large-scale information release.
Lower usage cost
Compared to installing two single-sided screens at the same time, double-sided LED display(ultra-thin screen) have lower procurement, installation, and maintenance costs, reducing the workload of wiring and equipment management.
Ultra thin LED display(Double sided LED display), using energy-saving LED beads, with lower power consumption than traditional display devices, can save electricity expenses for long-term use.

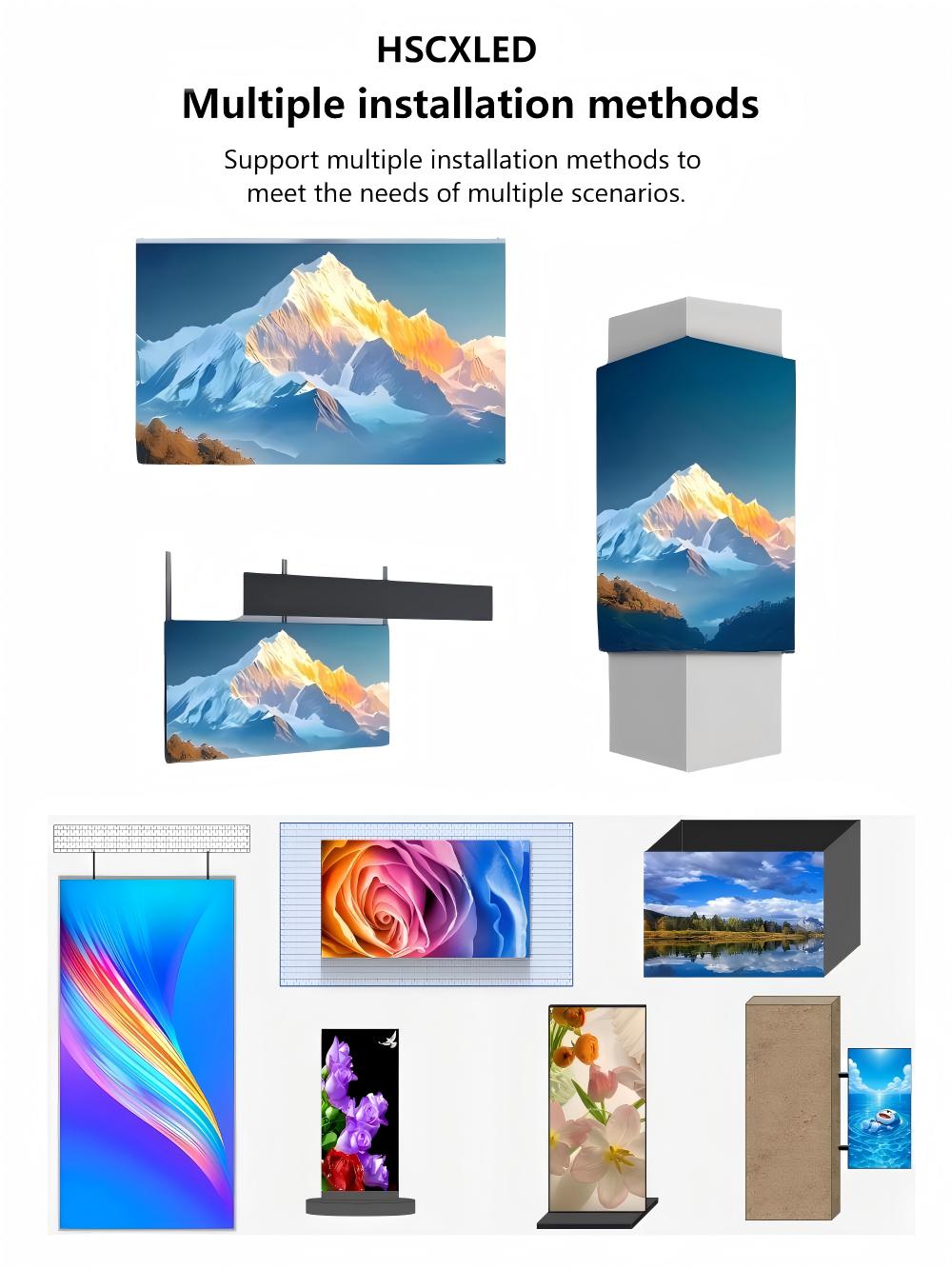

Flexible installation
The ultra-thin LED display(Double sided LED display) supports various installation methods such as wall mounted, suspended, and vertical, and can be adjusted according to the site structure to adapt to different indoor layouts.
Easy to operate: Ultra thin LED display, Double sided LED display,supports remote control, can update double-sided content synchronously through mobile phone or computer, without on-site operation, improving management efficiency.
