Product Details
Place of Origin: shenzhen,China
Brand Name: HSCXLED
Certification: KC CE ROHS FCC CCC ISO9001
Model Number: P2
Payment & Shipping Terms
Minimum Order Quantity: 1set
Packaging Details: Wooden case/Honeycomb Box/Fight case
Delivery Time: 10-15workdays
Payment Terms: L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability: 1000set/30day
Highlight: INDOOR FIXED LED DISPLAY, Indoor GOB LED Display Screen, 640x480mm LED Display
Produce Name: | Indoor LED Display Screen | Type: | LED |
Color: | Full Color | Module Size: | 320mm*160mm |
Cabinet Size: | 640*480mm/480*480mm/320*480mm... | Brightness: | 600-800cd/m² |
Power Supply: | 110V~240V | Maintenance: | Front Access |
Viewing Angle: | 160°/160° | Refresh Rate: | 3840Hz--7680Hz |
Product Type: | Small-pitch LED Display | Control Method: | 3G/4G/WIFI/USB/LAN |
Display Function: | Video/Text/Picture/Time/3D Text/Office/SWF | Control System: | NovaStar / Colorlight |
4K Meeting Room LED Video Wall / Indoor Led Display Screen.
Easy Installation 640x480mm LED Display / Indoor LED Screen
Indoor Advertising LED Display Screen /Full Color LED Indoor Display
P2 Indoor Wall 4K/8K Full Color GOB LED Screen
P2 indoor LED display Paramenters:
| HSCXLED-Indoor led display screen ---SMD LED Screen | |
| Model | P2 |
| Pixel pitch | 2mm |
| LED configuration | SMD 1515 |
| Module size | 320*160mm |
| Scan mode | 1/40 scan |
| Pixel matrix per Module | 160*80 dots |
| Pixel density（dots/sqm） | 250,000 |
| Cabinet size | 640mm*480mm/640mm*640mm/320mm*480mm/320mm*640mm/320mm*160mm |
| Screen size | Customizable according to Cabinet size |
| Refresh rate | 3840HZ / 7680HZ |
| Brightness | 600-800nit |
| Ingress Protection | IP30/IP45 |
| Optimal Horizontal Viewing Angle | ≥ 160° |
| Optimal Vertical Viewing Angle | ≥ 160° |
| AC Input Voltage | AC 110V/220V±10%,50Hz/60Hz |
| Gray Level | 14-16bit |
| Working Temperature | -20 -50(℃) |
| Operating Humidity | 10%~95% non-condensing |
| Video Format | Support RM,FLV,AVI,MP4 and other mainstream video formats |
| Picture Format | Support JPG,PNG,and other image formats |
| Life Time | ≥ 100000(Hours) |
Key Advantages of Indoor LED Displays
Superior Visual Performance
SMD LED Screen deliver ultra-high resolution and exceptional color accuracy, with a wide color gamut that reproduces lifelike and vivid images.
Flexible and Customizable Design
Full Color Led displays feature a modular panel structure that supports seamless splicing into any size or shape—from small commercial signage to large-scale video walls for conference rooms, retail stores, or auditoriums. The slim and lightweight build allows for easy installation (wall-mounted, freestanding, or curved) without occupying excessive space, adapting perfectly to diverse indoor layouts.
Energy Efficiency and Longevity
HSCXLED-equipped with advanced LED technology, indoor LED display screens consume significantly less power compared to LCD or plasma displays of the same size, reducing long-term operational costs. They also boast an extremely long lifespan (100,000 hours ) with minimal light decay, ensuring stable performance for years without frequent maintenance or replacement.
Seamless Content Control and Interaction
Indoor LED displays support real-time content updates via cloud-based or local control systems, enabling users to switch between videos, images, text, and live streams effortlessly. HD Display Indoor LED Video Wall are various control methods, PC, Laptops, computers, mobile wifi, 3G, 4G, USB, HDMI are all supported.
Low Glare and Eye-Friendly Experience
Designed for indoor viewing comfort, HSCXLED-led displays adopt anti-glare surface treatment that minimizes light reflection, even when viewed from different angles. indoor 4k/8k led display adjustable brightness function adapts to ambient light conditions.
High Reliability and Low Maintenance
Indoor LED display screens have simple replacement of LED modules and lightweight Cabinet .faulty panels can be replaced individually without disrupting the entire display system, reducing downtime and repair costs.
Why choose HSCXLED-Indoor fixed LED display screen:
ULTRA-HIGH RESOLUTION LED DISPLAY
SMALL PIXE LPITCH LED DISPLAYS
Clear image guality,full colors,no lag,no flicke,Ultra Slim & Light weight Desigr Totally Cable-less Design Totally Front maintenance.

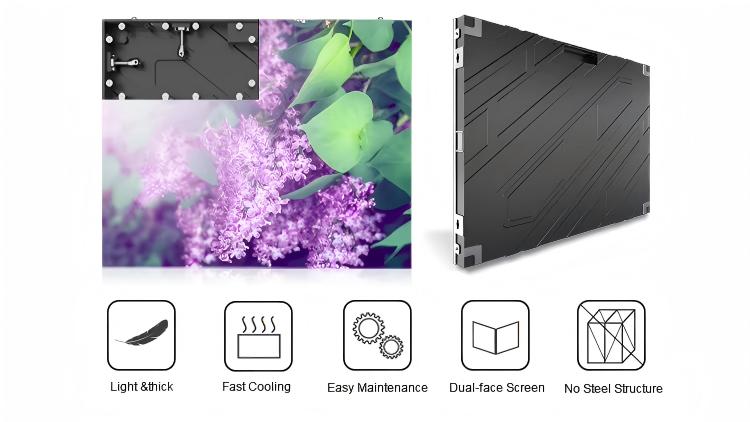

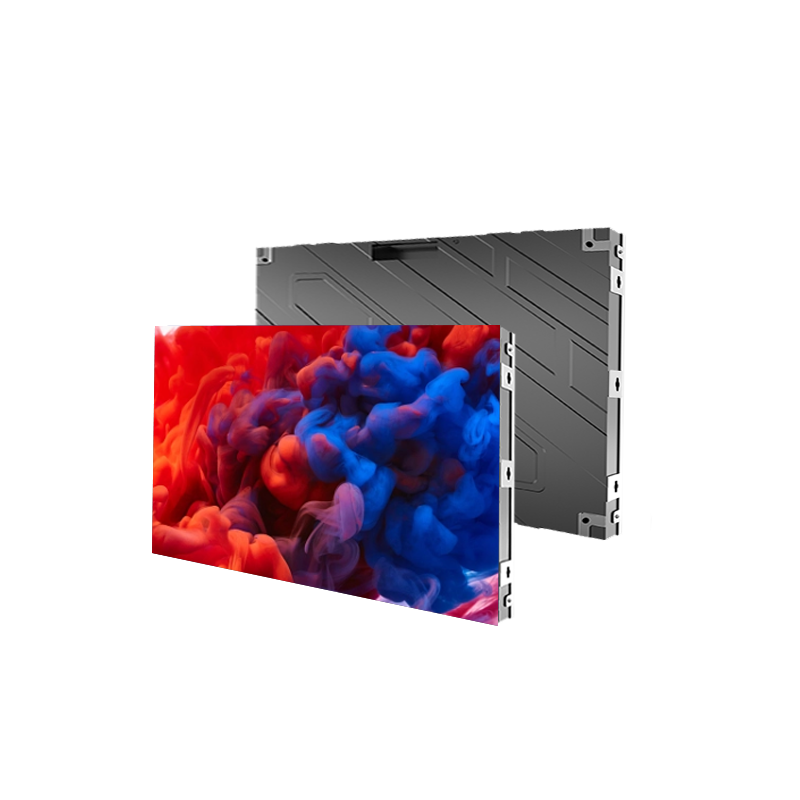

Die casting aluminum cabinets only 6.8kg and 4.6cm thickness.Ultra-Thin, With The Led Display Certifed By KC/CE/ROHS/FCC,The die-casting aluminumcabinet Sturdy and durable.
GOB TECH
The LED display adopts advanced GOB(Glue on Board) protection technology,ensuring superior durability. the LED surface is fully sealed to provide Water-proof,Scratch-proof, waterproof protection making it resistant to dust,water splashes,and impacts.This robust design prevents LED drops or damage during accidental collisions,ensuring long-lasting performance even in challenging environments.
FRONT INSTALLATION AND SERVICE
Fine Pixel Pitch LED display, 640*480mm indoor fixed installation LED display adopts magnet Adsorption LED panel to make the cabinet is accessed with frontal accessed.Easy installation cabinet-Hidden rear cable connection hole.LED modules,receiver cards and power supplies can be maintained in the front.
WIDE VIEWING ANGLES
Full RGB color produce vivid pictures.178°super wide horizontal and vertical viewing allow for maximum audience engagement in short viewing distances.Wide 170° Viewing Angle,Clear and vivid from every direction.HSCXLED Indoor LED display maintains clear display quality from different viewing angles,ensuring that the audience can see the screen content clearly regardless of the angle from which they are viewing.
HIGH DYNAMIC RANGE
Fine pixel LED display Kseries cabinet allows differentials to make screen resolution from 1080p to 4k.8k picture quality .Cabinet colors are available in black and silver.The16:9 /4:3 Visual Golden Ratio,Easypoint-to point splicing into1080P.2160P,3840P.7860P and gotherstandard resolution large screen,Any size can be customized.
HIGH CONTRAST
Black SMD LED and high grey scale makes perfect perfomance.Supports Flash Correction Storage Of Light Board Color automatic correction, bring you a better visual experience,Intelligent module design, automatically read and up load.
EASY INSTALLATION
Installation brackets will be sent together with the cabinets.Convenient And Beautiful.Convenient And Beautiful. Easy Module Replacement Module hard connection,regardless of left and right,fast installation Module replacement is more convenient and simple.
INDOOR FIXED LED DISPLAY

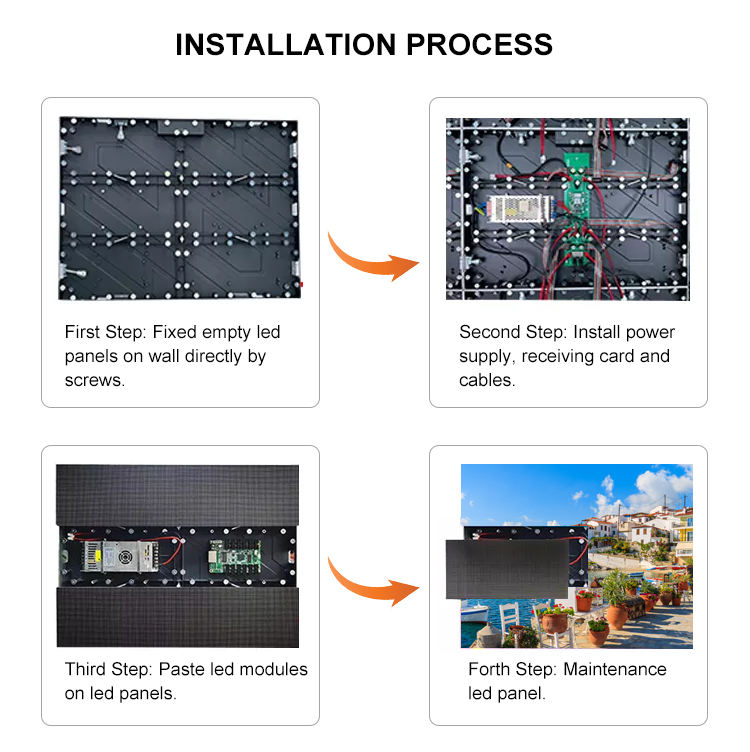

Easy Installation with HSCXLED Customized Bracket,Say No to Local Structure.
Step1:Assemble the profile aluminum bracket.
Step2:Make the required size bracket one by one,and then mount on wall with screw.
Step3:Put the empty cabinet on bracket with the matching screws and holes.
Step4:Connect the power cable and data cable on modules first,then use vacuum tool to put themodules
on cabinet.ln this process,can adiust the screen flatness.
FLEXIBLE APPLICATION SCENARIOS

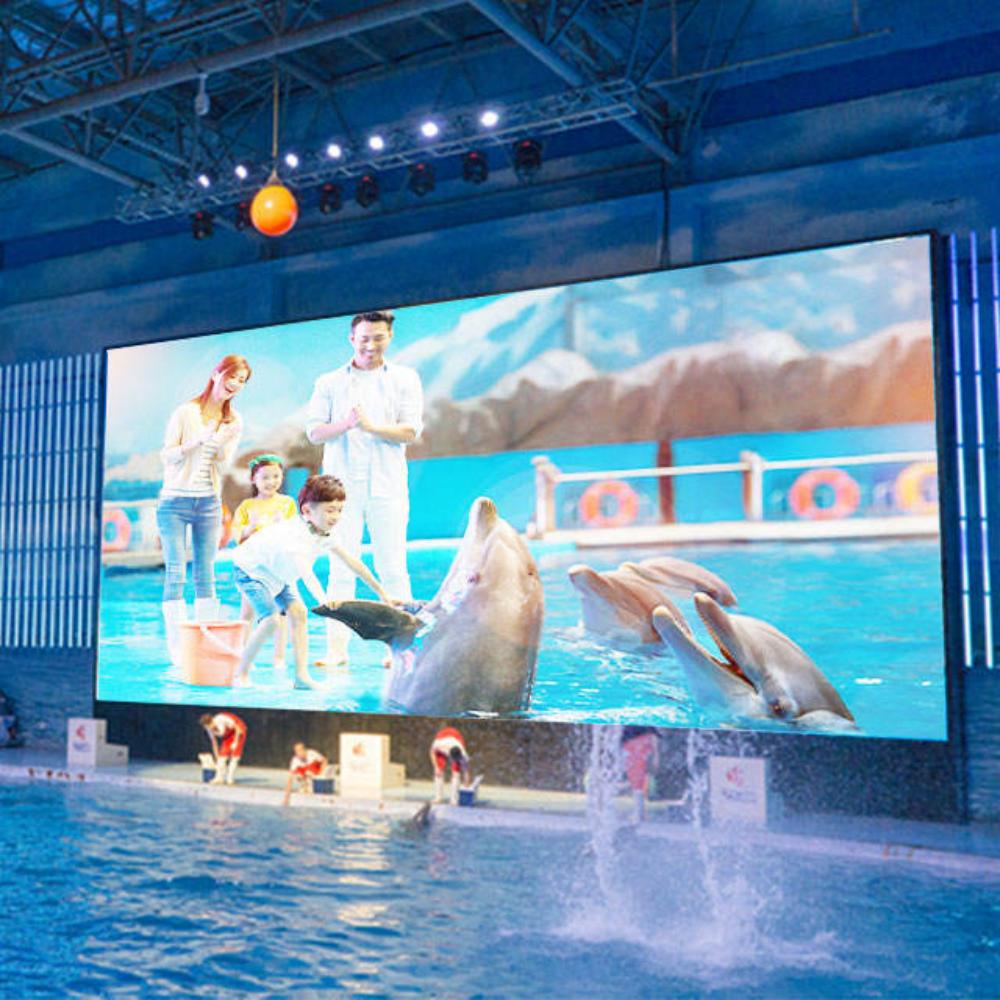

Whether it's used in conference rooms, exhibition halls, or retail stores, this indoor LED display can meet your diverse needs. It can display dynamic content, such as product promotions, event announcements, and real - time information, attracting the attention of your audience effectively.
WIDELY APPLICABLE SCENARIOS

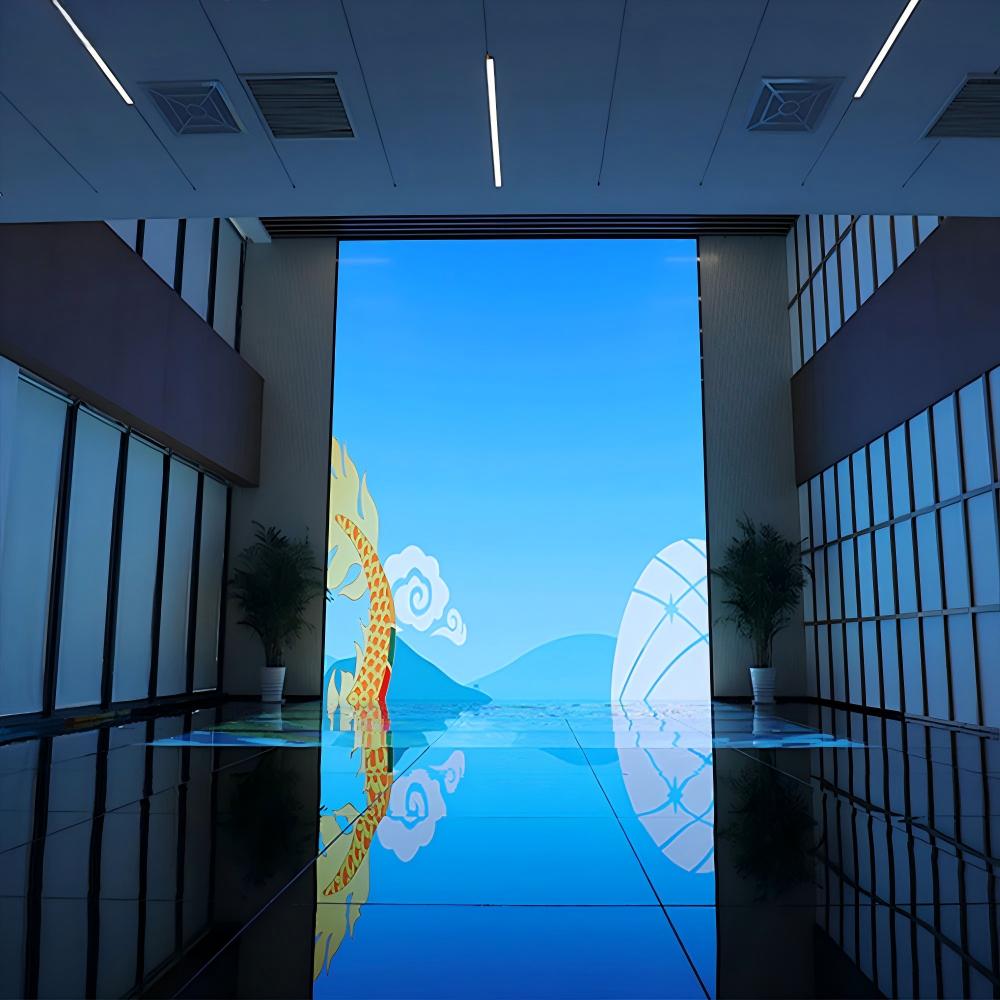

HSCXLED - Indoor LED display screen, high-definition display screen, easy to install, lightweight box design of LED display screen saves customers installation costs. widely used advertising publish, shopping mall, retail store, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, Education, medical treatment......
Keep your screen always cutting-edge
Shareable HUB & power supply and same panel design,easy to renew or upgrade your old screen after long time usage,always keep your screen newest technology and better display effects.
Indoor LED displays serve as versatile, high-impact visual communication tools across diverse commercial, institutional and public scenarios, with applications tailored to different needs as follows:
Retail & Commercial Spaces
Deployed in shopping malls, brand stores and supermarkets, indoor display screens showcase dynamic product promotions, new launch trailers and interactive advertisements. The indoor led screen capture customer attention instantly, enhance in-store shopping experience and drive sales conversion by presenting vivid, eye-catching content.

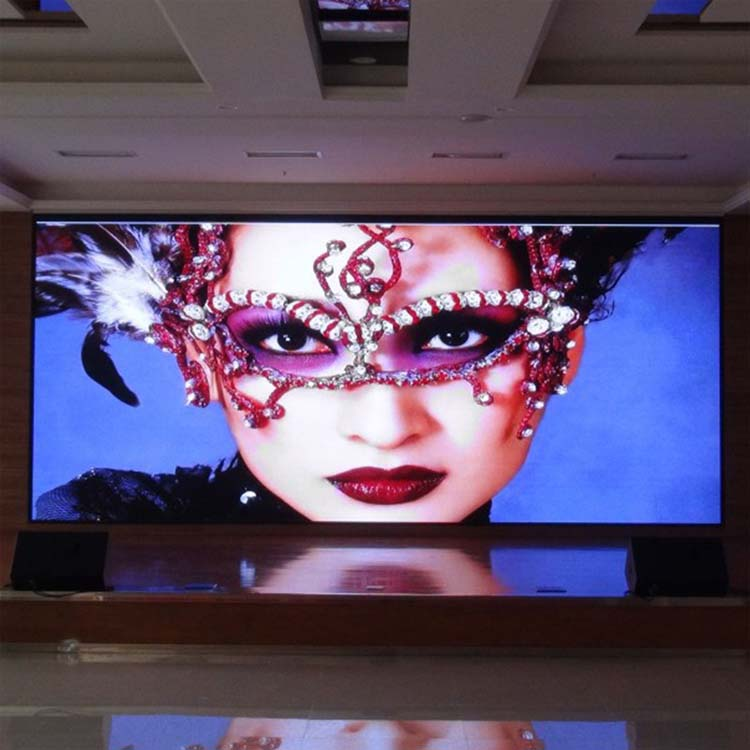

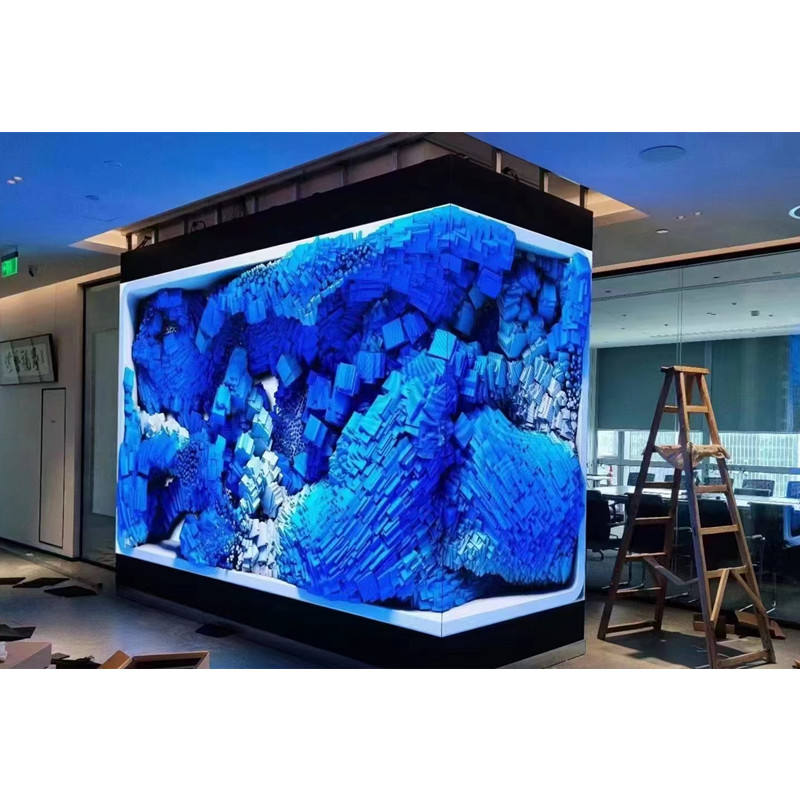

Corporate & Office Environments
SMD led display used in lobbies, meeting rooms and executive offices, indoor LED display screen function as digital signage for corporate branding, real-time data visualization (such as sales dashboards, KPI tracking and market trends) and video conferencing backdrops. Indoor fixed LED Display elevate the professional image of enterprises and facilitate efficient internal communication and decision-making.

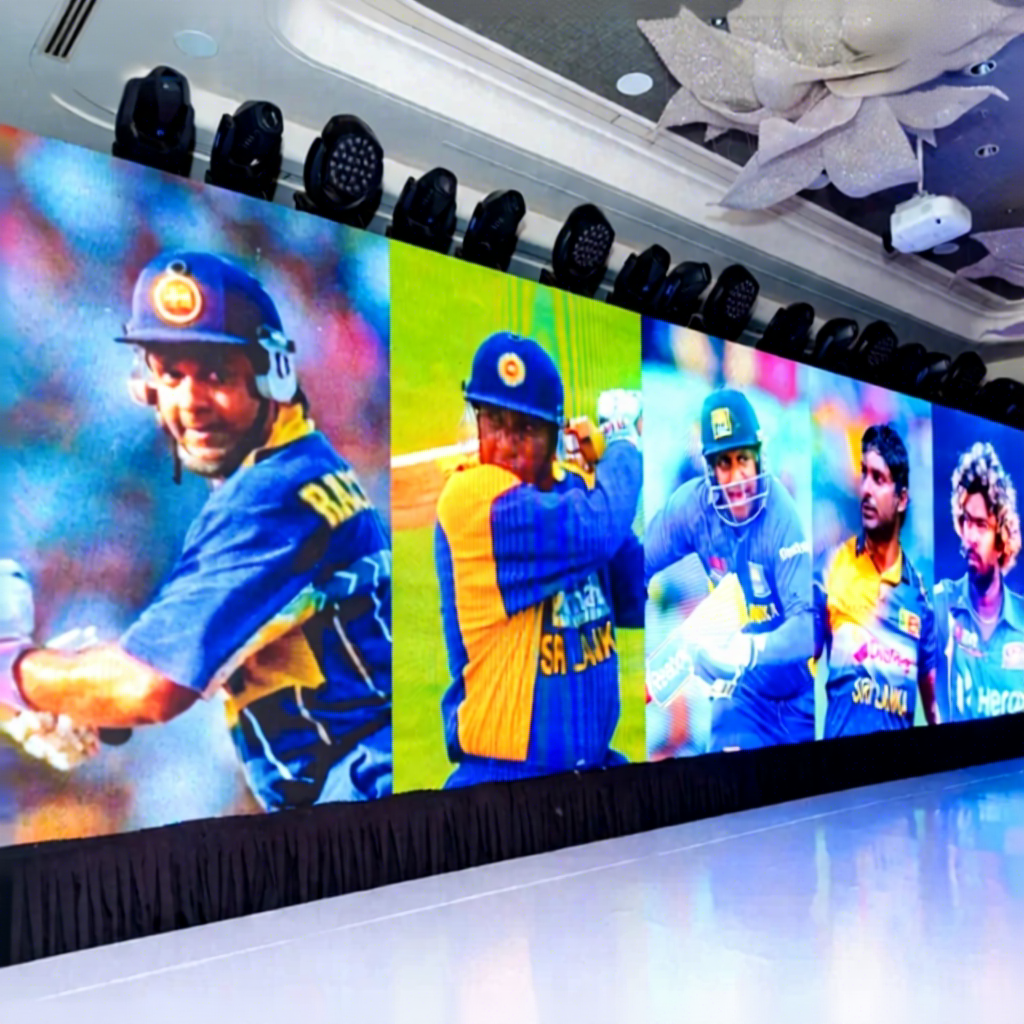

Hospitality & Entertainment Venues

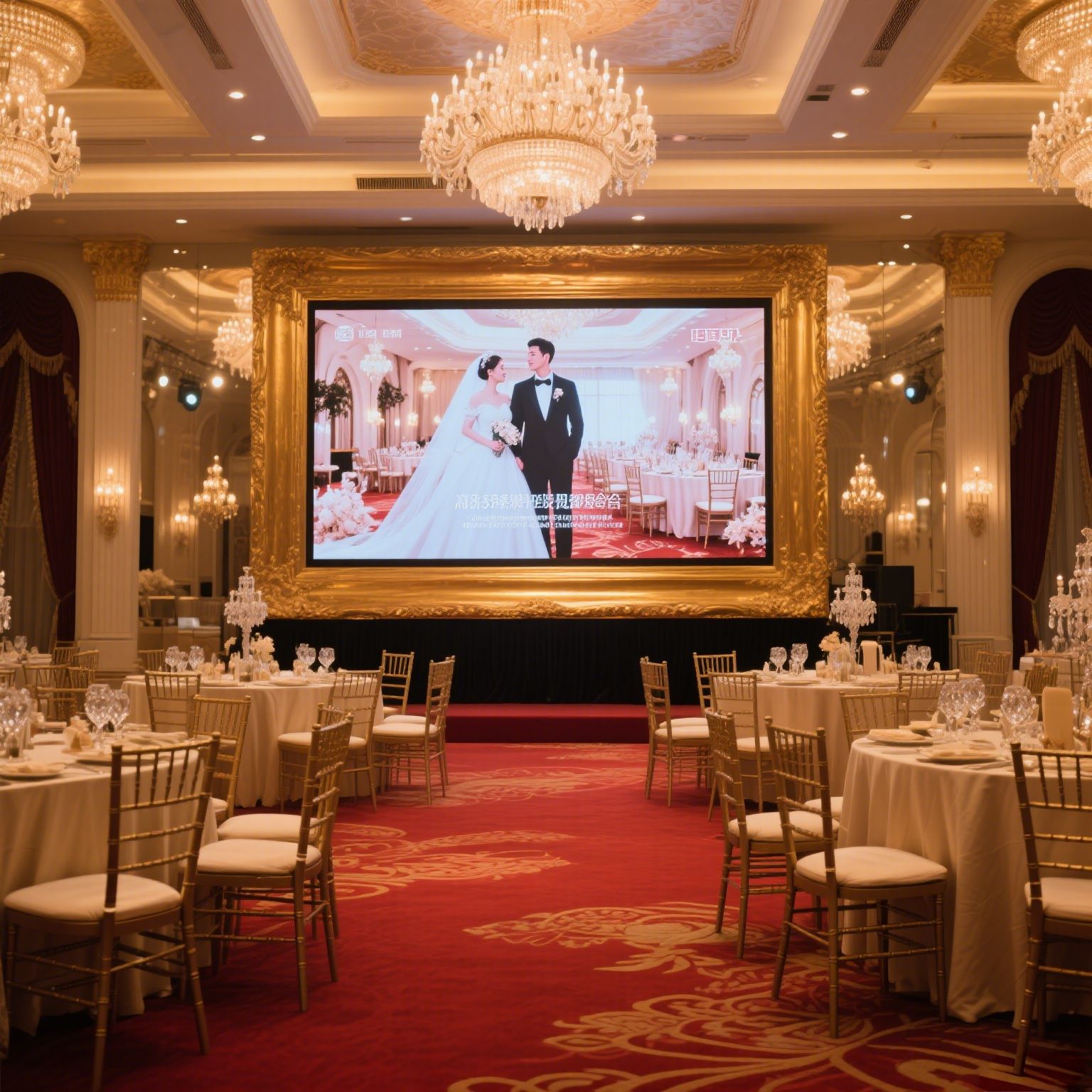

LED displays for hotels, restaurants, bars and cinemas, the HD led displays deliver welcome messages, event notifications, menu boards and entertainment content (like live sports, music videos or movie trailers). The LED Advertising Display create a lively and immersive ambiance, improving guest satisfaction and engagement.
Educational & Institutional Settings
Indoor Led Video Wall Display Screen Applied in schools, universities, museums and government buildings, indoor LED display screens support interactive teaching, academic lectures, exhibition introductions and public information dissemination (such as announcements, emergency alerts and policy promotions). Indoor Adverting Display make knowledge delivery more intuitive and information transmission more efficient.

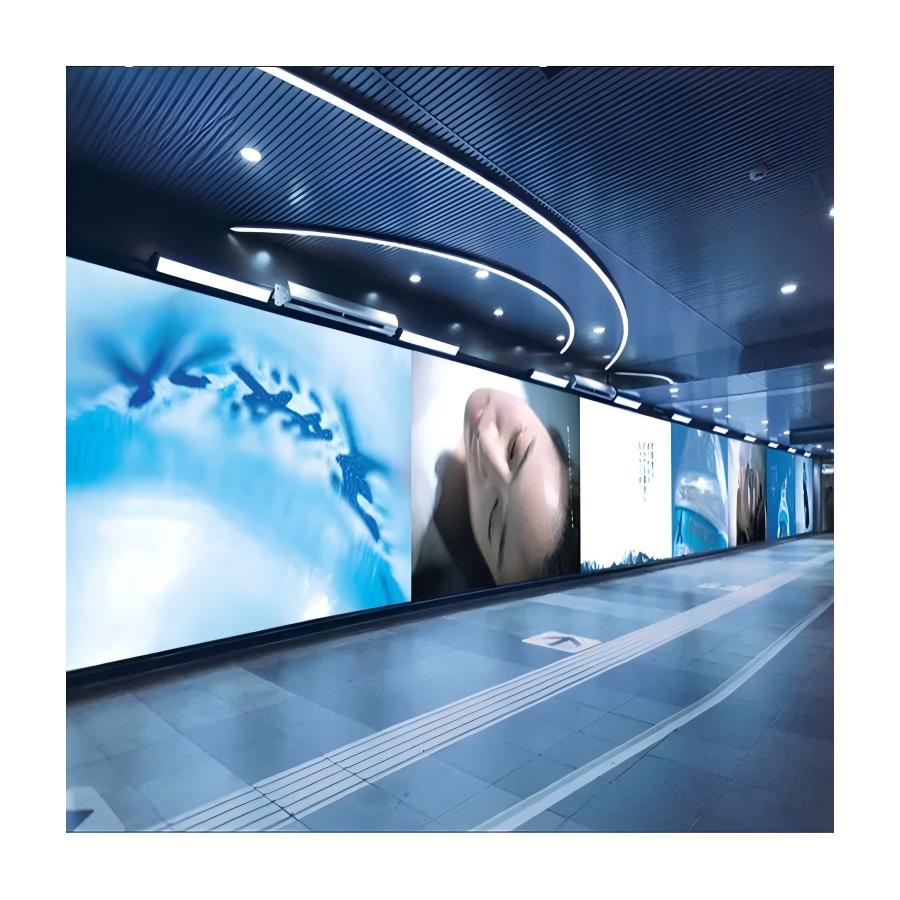

Transportation Hubs
Indoor LED Video Wall Display Installed in airports, railway stations, subway stations and bus terminals, the indoor screens provide real-time schedule updates, wayfinding guidance, weather forecasts and public service announcements. Indoor Small Pitch LED Display Screen help streamline passenger flow and ensure smooth, orderly operation of transportation hubs.
