Product Details
Place of Origin: SHENZHEN
Brand Name: HSCXLED
Certification: KC CE ROHS FCC CCC ISO9001
Model Number: P3
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Packaging Details: Fight case/Wooden case/Honeycomb Box
Delivery Time: 7-15work days
Payment Terms: L/C, T/T
Supply Ability: 1000SET
Highlight: Creative LED Circle Screen, Waterproof Outdoor Round Digital Screen, Double Sided LED Sign Screen
Name: | LED Round Screen | Application: | Outdoor Advertising LED Display |
Color: | Full Color | Pixels: | P3 |
LED: | SMD1921 | LED Display Diameter: | 1m/2m/3m/4m/5m/6m/custom Size |
Brightness: | 5000-7000cd/m² | Waterproof: | IP65 |
Refresh Rate: | 3840Hz | Working Voltage: | AC 220±10% Or 110±10% |
Control Mode: | LAN/Wifi/USB/3G/4G(optional) |

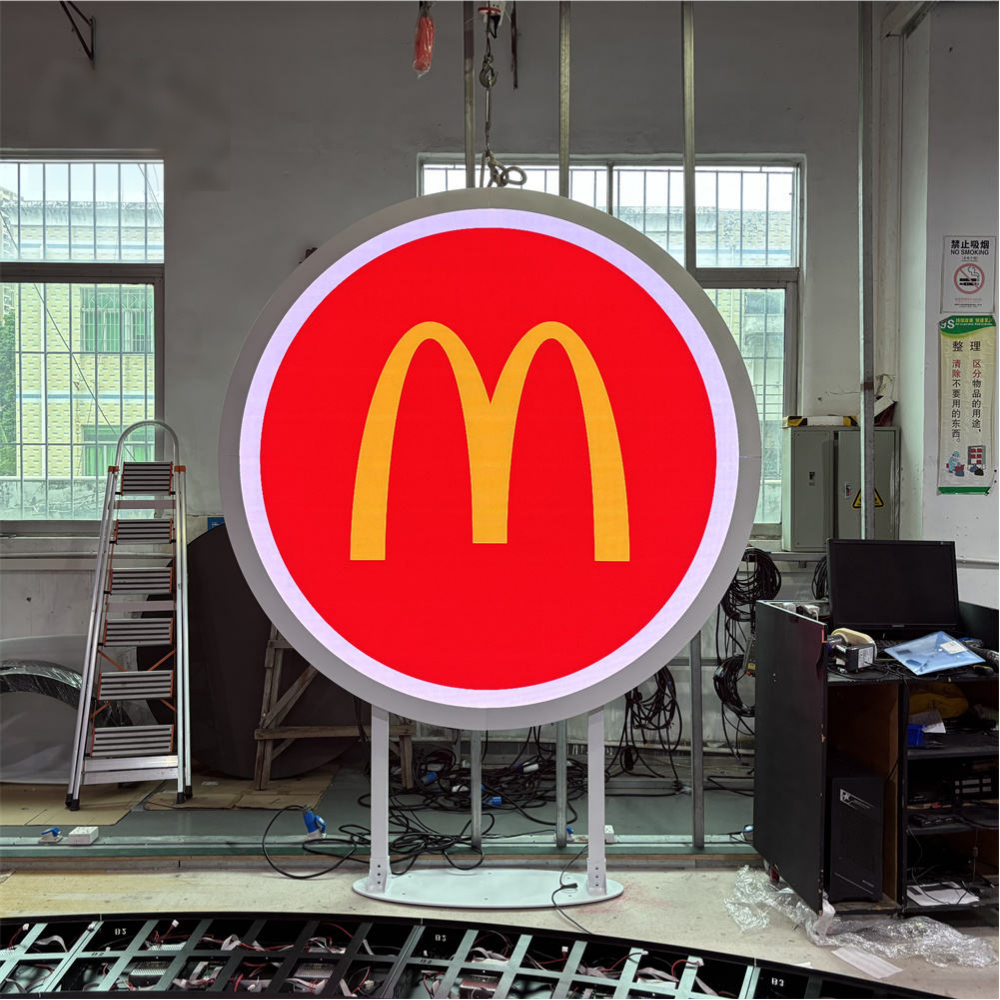

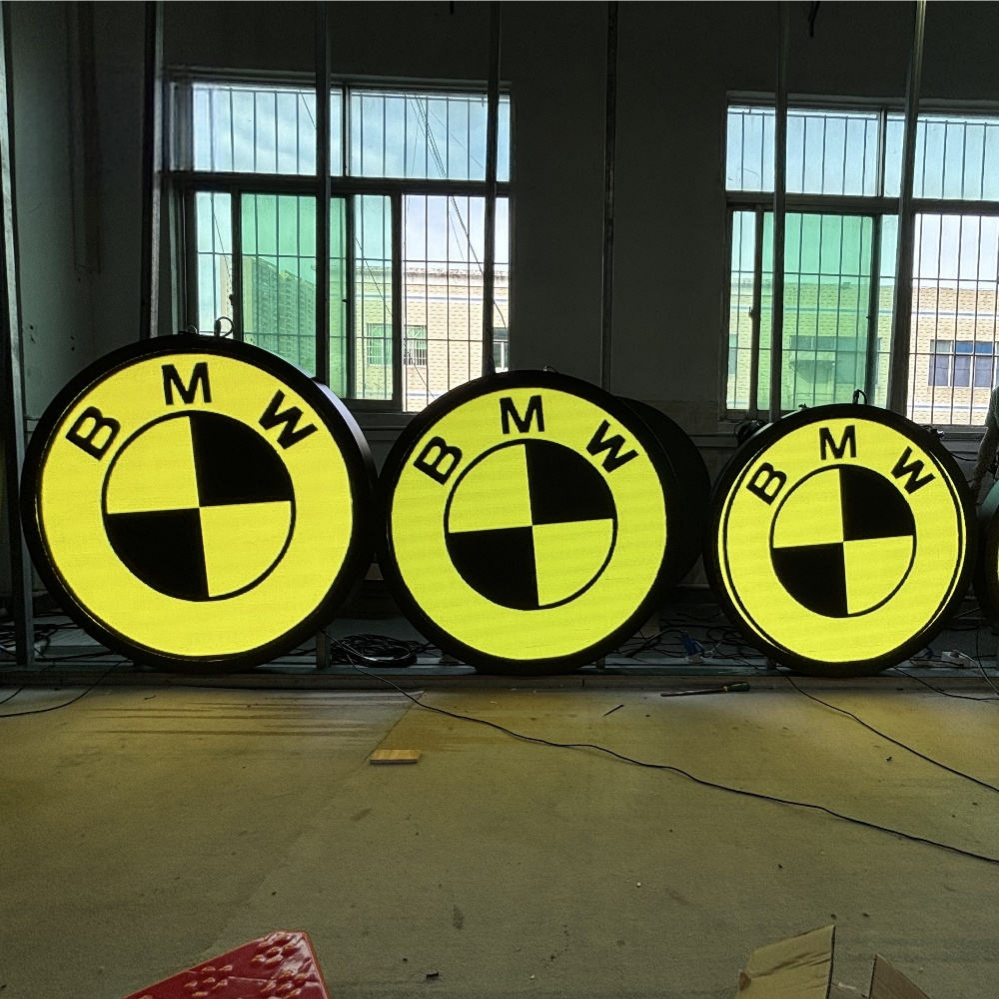

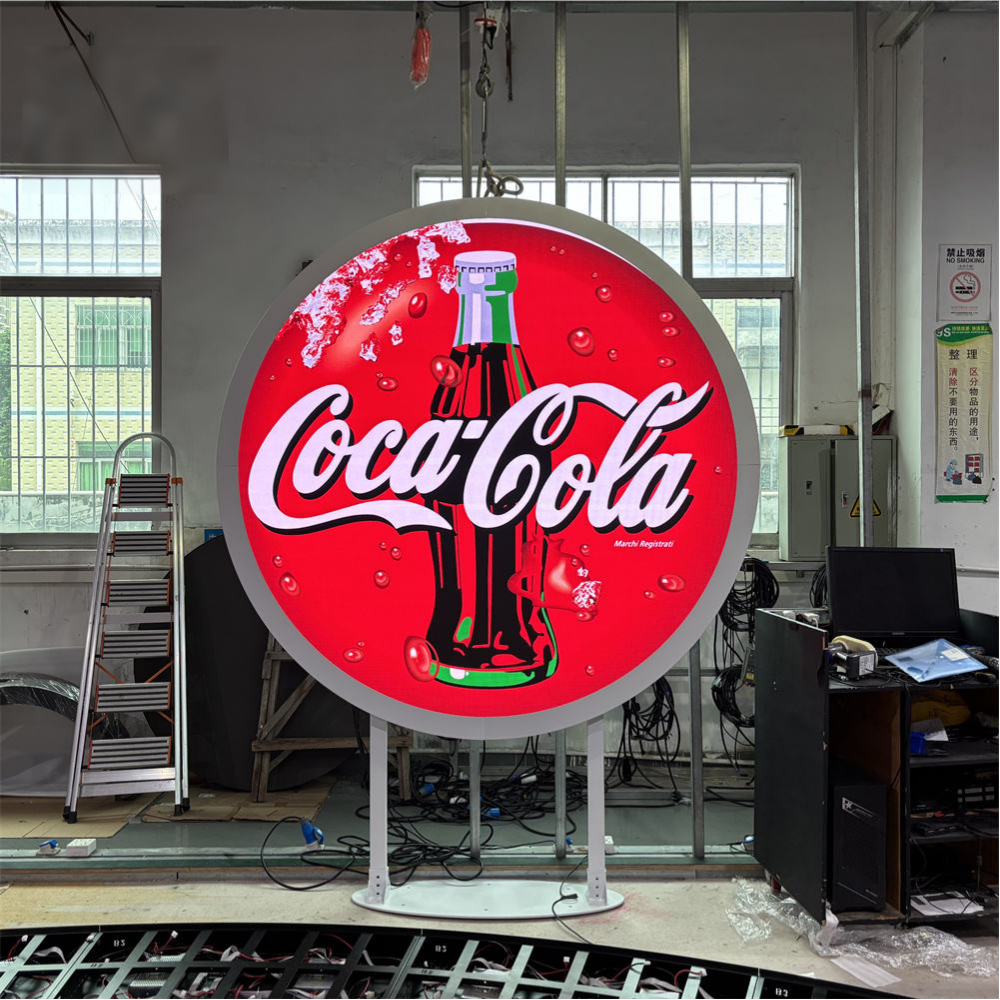

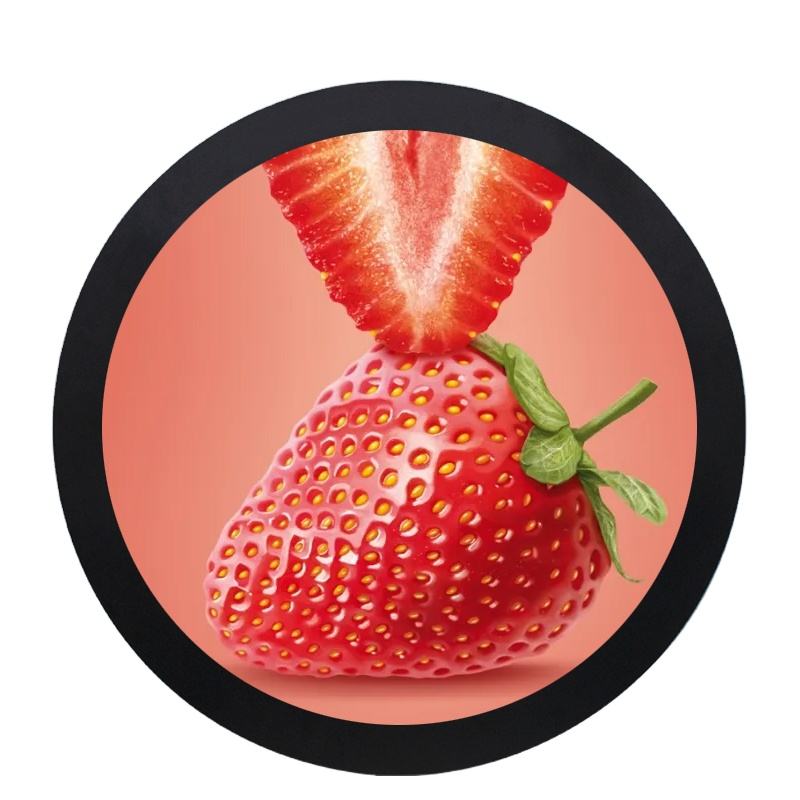

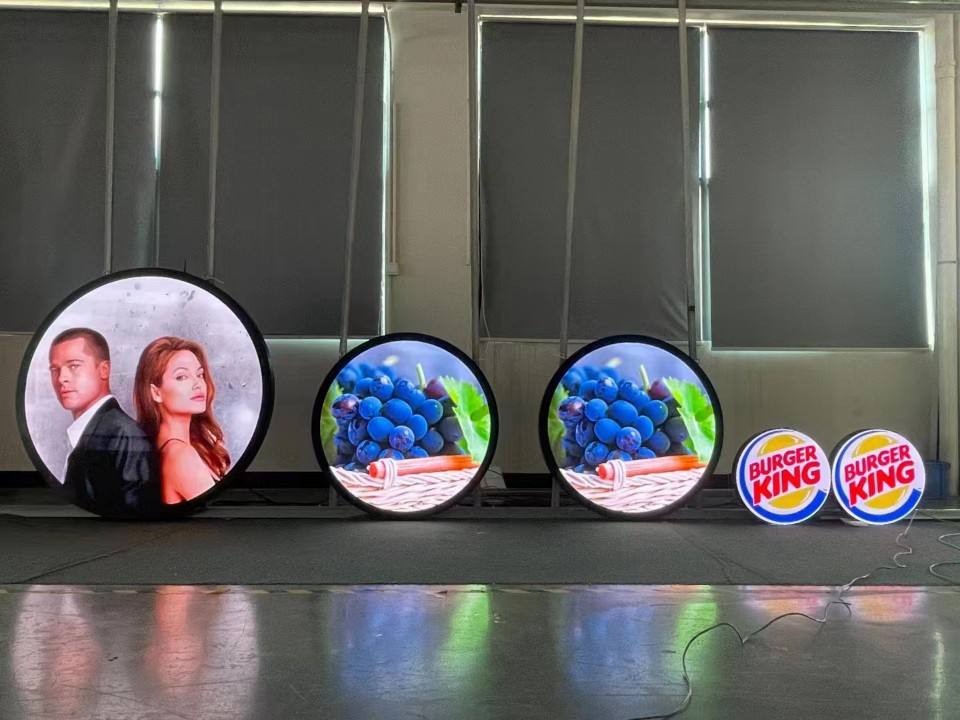

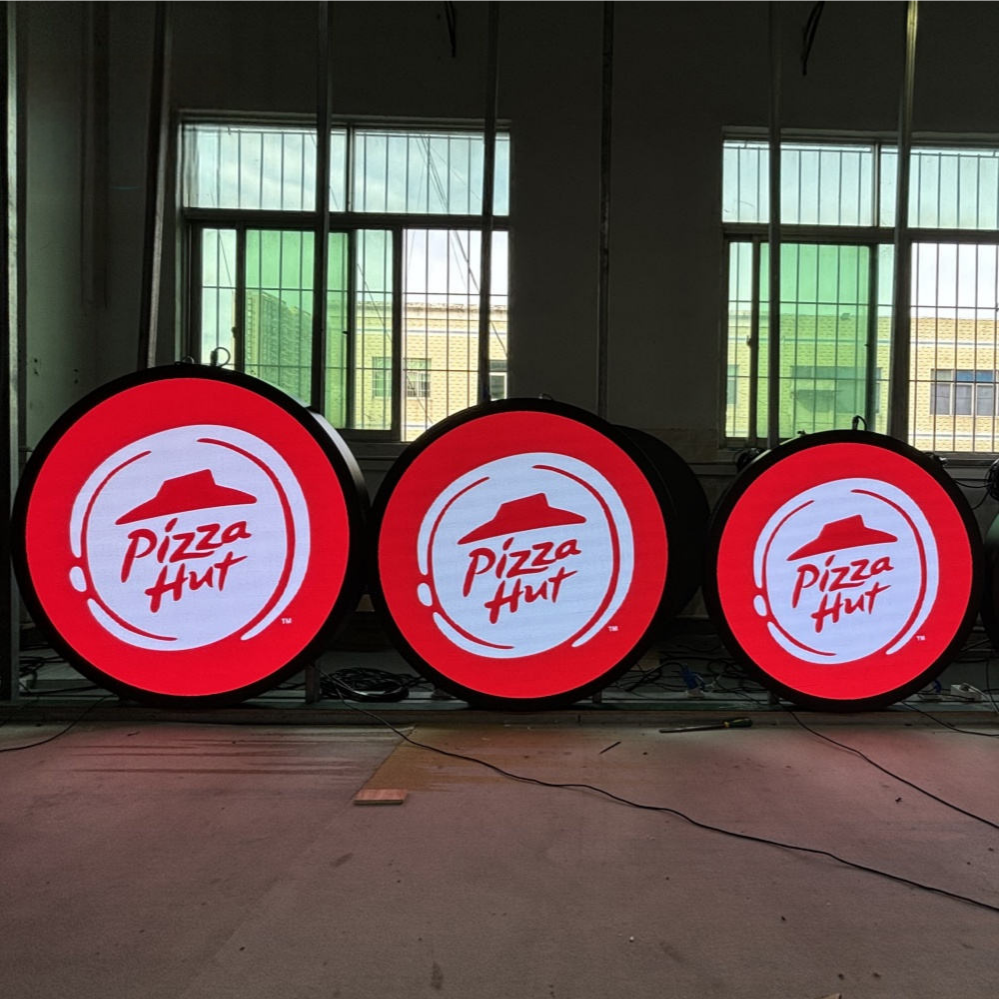

Outdoor P3 Double sided circular led panel screen display
Outdoor Waterproof Dual-Side Circle LED Display for Advertising
LED Circle Screen Creative LED Display Round LED Screen
Advertising LED Round Video Wall Screen
1. Creative LED Circle/Round Screen, Custom size.
2. Single Side/Double Side LED Round Screen for optional.
3. Outdoor and Indoor LED Round Screen for optional
4. Support wall mounted, ceiling mounted, etc
5. Can perfectly display Videos, Pictures, Animation, LOGO, Texts, Messages,etc
6. Support Front Maintenance and Back Maintenance (optional)
7. Support LAN/Wifi/3G/4G/USB Control (optional)
8. Application: Shopping mall, Hotel, Night Club, Bars, Stage Background, Event Show, etc
Outdoor Round LED Display Technical Parameter:
| P3 Full Color Outdoor Round LED Display Screen | ||
| Specification | Item No. | Round led display |
| lassification | Full color | |
| Pixel pitch | 3mm | |
| Size of module (mm*mm) | customized | |
| Pixel density | 111111dots/m2 | |
| Pixel composition | 1R1G1B | |
| LED encapsulation | SMD1921 | |
| LED Display Diameter | 1m/2m/3m/4m/5m/6m/custom size | |
| Best viewingangle(Horizontal/Vertical) | 160°/160° | |
| Brightness | ≥5000-7000nits | |
| 1/13Scan | ||
| Refresh rate | ≥3840HZ | |
| Working voltage | AC 220±10% or 110±10% | |
| Best viewing distance | m | |
| Cabinet size | 500*1000mm | |
| Ingress protection | IP65 | |
| Cabinet material | Outdoor waterproof iron box/aluminum box | |
| Greyscale | 14bits | |
Environment temperature range | -20-60℃ | |
| Humidity(working) | H:140° V:140° | |
| Color Temperature | 10-95% | |
| Input Voltage | AC110-220V±15% 50-60Hz | |
| Control mode | LAN/Wifi/USB/3G/4G(optional) | |
| service life | >100,000 Hours Theoretical value | |
LED round Screen advantages:
Outdoor LED Circle Screen-Outstanding visual and styling advantages:
Circular LED displays break the visual inertia of rectangles and are more likely to become the visual focus of squares and commercial districts, with significantly longer visual dwell times than ordinary screens; 360 ° full view coverage. (Half circle LED display/Double sided LED display)
High brightness (generally above 6000cd/m ²), circular LED screen supports automatic brightness adjustment, clear image under strong light, and no glare at night; Vibrant colors, high refresh rate, and smooth video playback without trailing shadows.
HSCXLED - Outdoor circular LED display screen can be customized with diameter and pixel spacing, and can be seamlessly spliced into circular LED screens and curved LED screens to meet the landscape needs of different scenes.
Outdoor LED Circle Screen-Strong weather resistance and protective performance
Outdoor advertising LED display usually have a protection level of IP65 or above, with waterproof, dustproof, corrosion-resistant, and UV resistant capabilities; Structural reinforcement, capable of withstanding strong winds, lightning strikes, and adapting to extreme outdoor environments such as high and low temperatures; LED chips have a long lifespan, with normal use lasting up to tens of thousands of hours and a low failure rate.
Outdoor LED Circle Screen-Modularization and flexible installation
HSCXLED outdoor P3 LED circular LED screen adopts modular splicing design, which is convenient for transportation, installation and maintenance. Local faults only need to replace the corresponding module; The circular LED display screen supports various methods such as lifting, vertical installation, wall mounting, and embedded installation, and can be adapted to different positions such as square columns, building domes, and theme park landscapes.
Outdoor LED Circle Screen-Intelligent Control and Energy Conservation
HSCXLED - Outdoor circular LED display screen supports synchronous/asynchronous control and can remotely update graphic, text, and video content; Some products have intelligent monitoring (temperature, brightness, fault warning); Our outdoor advertising LED display adopts an energy-saving driving scheme, which is more energy-efficient than traditional outdoor advertising screens and reduces long-term operating costs.
Outdoor LED Circle Screen-Diversified application scenarios
Circular LED display screens are suitable for urban landmarks, commercial squares, pedestrian streets, sports venues, theme parks, etc. Outdoor LED advertising display are often used for advertising promotion, information dissemination, festival lighting, interactive display, etc., combining practical functions with artistic decoration effects.
Characteristics of LED round Screen
1, Unique design, round LED display is more eye-catching and highly recognizable,360 ° visibility, no blind spots, wide coverage, easy to install or disassemble.
2, Easy and fast to set up the screen, convenient to change the site with flight cases.Flexible installation, can be lifted, erected, and wall mounted, suitable for various scenarios.
3, IP65 grade, full waterproof, high protection level.Waterproof and dustproof, round LED display suitable for long-term outdoor use.
4, P3 outdoor round LED display High Brightness (over 5000nits) , still clear in the direct sunlight.High brightness, clear during the day and soft at night, good display effect.
5, Round LED display with fast locks, flexiblely adjust the screen size according to requirements.Durable and stable, with a long lifespan, low failure rate, and easy maintenancew.
LED round Screen Applications:
LED display for outside are widely used in show, stage performance, commercial advertising,sports and live events,transportation industry,and other public service places, with powerful media display, information release, Creative display and other functions.
Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Self-Service Business, Airport, Restaurant & Hotel Supplies
