Product Details
Place of Origin: SHENZHEN
Brand Name: HSCXLED
Certification: KC CE CE-LVD CE-EMC ROHS FCC CCC ISO9001
Model Number: p0.9/p1.2/p1.5/p1.8
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Packaging Details: Fight case/Wooden case/Honeycomb Box
Delivery Time: 7-15work days
Payment Terms: L/C,T/T
Supply Ability: 1000SET
Highlight: High Resolution Led Video Wall, Small Pixel Pitch Display Screen, Cob Indoor Led Screen
Name: | P1.25 Led Video Wall | Application: | Indoor Led Video Wall |
Pixel Configuration: | COB 1R1G1B Flip-chip | Configurations: | COB |
Module Size: | 150*168.75mm | Cabinet Size: | 600*337.5mm |
Cabinet Material: | Die-casting Aluminum | Brightness: | 600-800nits |
Contrast Ratio: | 5000:1 | Viewing Angle: | 160°, 170° |
Refresh Rate: | 3840Hz-7680hz | Working Voltage: | 100-240V |
Screen Type: | Indoor Advertising LED Display | Display Function: | Video/ Text/ Picture/Animation/ Graphics |
Cob Led Display Screen detail:
HD LED Video Wall LED Display Panel LED Screen
* Multi Pixel Pitch For Options:P0.9/P1.2/P1.5/P1.8
* Panel size: 600*337.5mm & 16:9 resolution
* High brightness 3840Hz refresh rate.
* Nova star control system indoor HD led screen
* UHD series led panel specially use for TV studio,conference center,monitoring center and cinema, museum, ect.
* Seamless connection, high contrast ratio, high refresh rate, 16 bit high gray level.

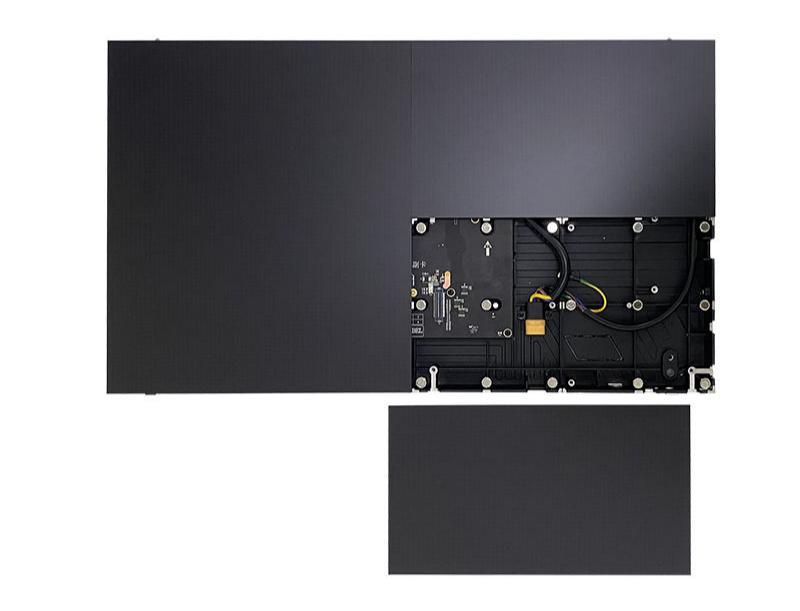

* Front Service: Magnetic Module Ergonomic design, aspect & resolution ratio 16:9, easy to reach 2K,4K,8K HD requirements.
* High contrast, high refresh, and high gray output, and the screen display is more high-definition and delicate.
Cob Led Display Specification:
| Indoor Small Pixel Pitch HD LED Video Wall LED Display Screen | ||||
| Item | P0.93mm | P1.25mm | P1.56mm | P1.87mm |
| Pixel Pitch | 0.93mm | 1.25mm | 1.56mm | 1.87mm |
| LED Chip | MiniLED | SMD1010 | SMD1212 | SMD1515 |
| Module Size | 300x168.75mm | |||
| Module Resolution | 320x180pixel | 240x135pixel | 192x108pixel | 160x90pixel |
| Cabinet Size | 600x337.5mm | |||
| Cabinet Resolution | 640*360pixel | 480x270pixel | 384x216pixel | 320x180pixel |
| Scanning mode | 1/60 | 1/60 | 1/64 | 1/45 |
| Maintenance | Full front service | |||
| Brightness | ≥800CD | |||
| Refresh rate | ≥3840Hz-7680Hz | |||
| Viewing angle | 160° (V/H) | |||
| Contrast ratio | 5000:01:00 | |||
| Working voltage(input) | 100-240V, 50/60Hz | |||
| Max./Avg.Power consumption | Max: 500W/M2 Ave: 165-260W/M2 | |||
| Working temperature | -20°C-50°C | |||
| IP ratings | IP45 | |||
| Signal output | HDMI/VGA/DVI/DP/SDI... | |||
| Life Span | 100000hours | |||
| Certification | KC/CE/FCC/CCC/ROHS/ISO9001 | |||
Cob Led Display Screen Features:
1. Featuring high refresh, contrast, and grayscale levels, the image is more high-definition and delicate;
2. The box is lightweight and easy to install, disassemble, and transport;
3. Humanized power supply and signal indicator light, convenient for discovering faults and timely troubleshooting;
4. Adopting professional aviation plugs, ensuring quality and safety;
5. It can be designed in a curved shape, making the design and installation more diverse;
6.Multiple installation methods to choose from, including stacking, hanging, lifting, etc
Ultra-fine pitch COB LED display with 4K/8K UHD resolution, delivering crystal-clear images without graininess even at close viewing.

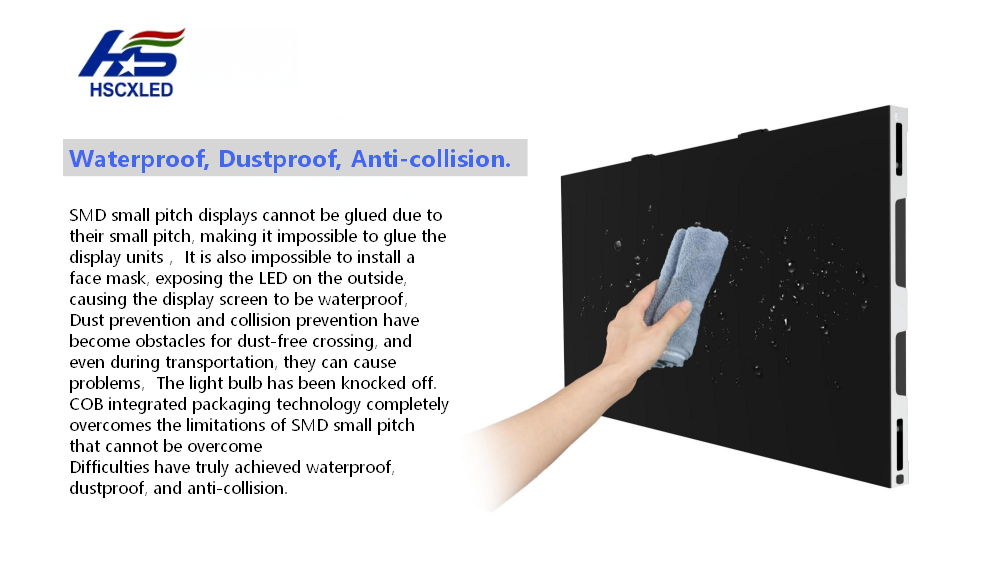

Fully encapsulated structure for waterproof, dustproof and anti-static performance, ensuring high reliability and long lifespan.
High contrast, wide viewing angle and efficient heat dissipation, perfect for control rooms, conference rooms and high-end commercial spaces
HSCXLED- LED display manufacturer:
1. Wide application field & short ROI time:
commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media,shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen；air port LED display screen, telecommunication LED display screen system for information showing and instruction .
2. High Contrast ratio: 4000:1
Which is a very high level to ensure a vivid image of our LED display screen system.
3. First-class LED chip:
Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display screen system
4. Clear vivid image quality:
Even in direct, full-on sunlight to ensure you attract more audience to get short ROI of your LED display screen's investment.
