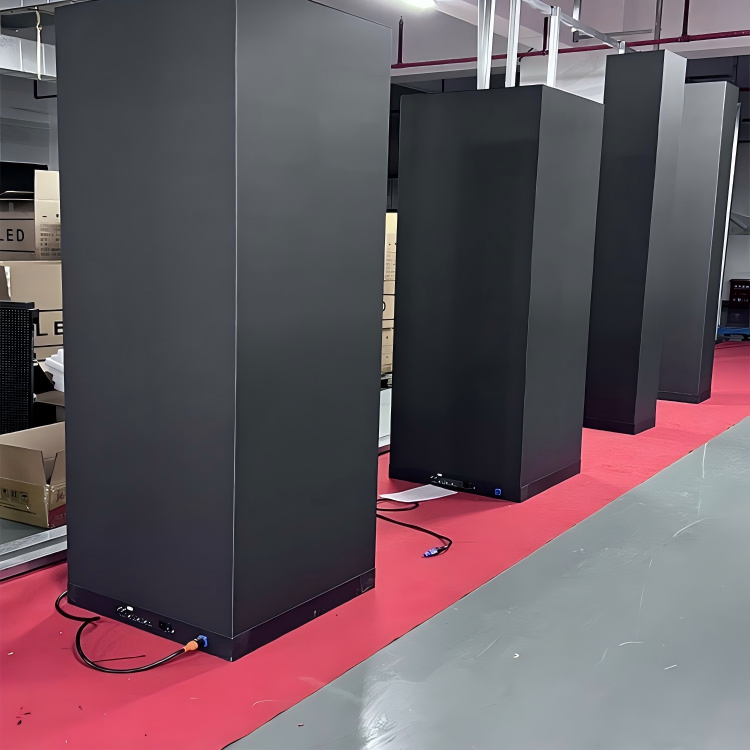

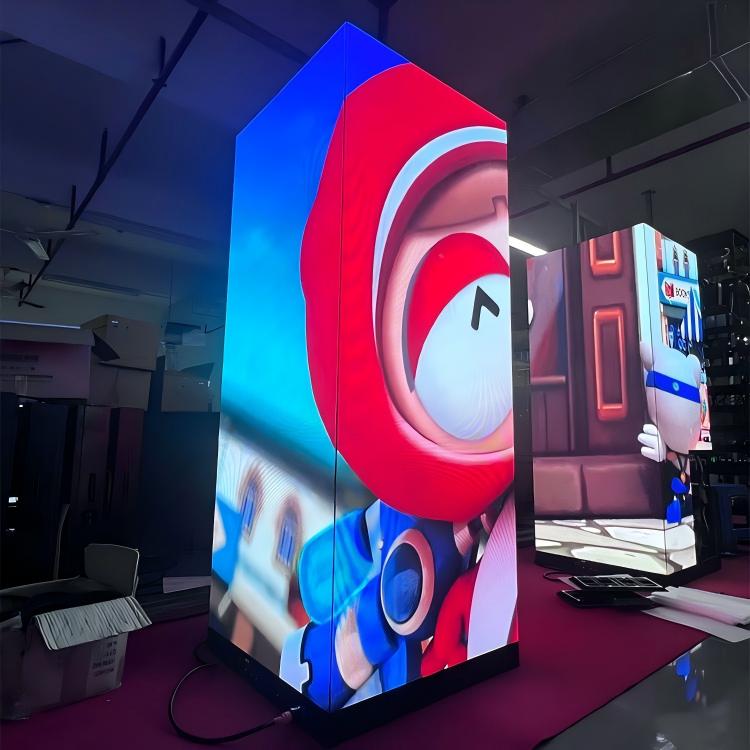

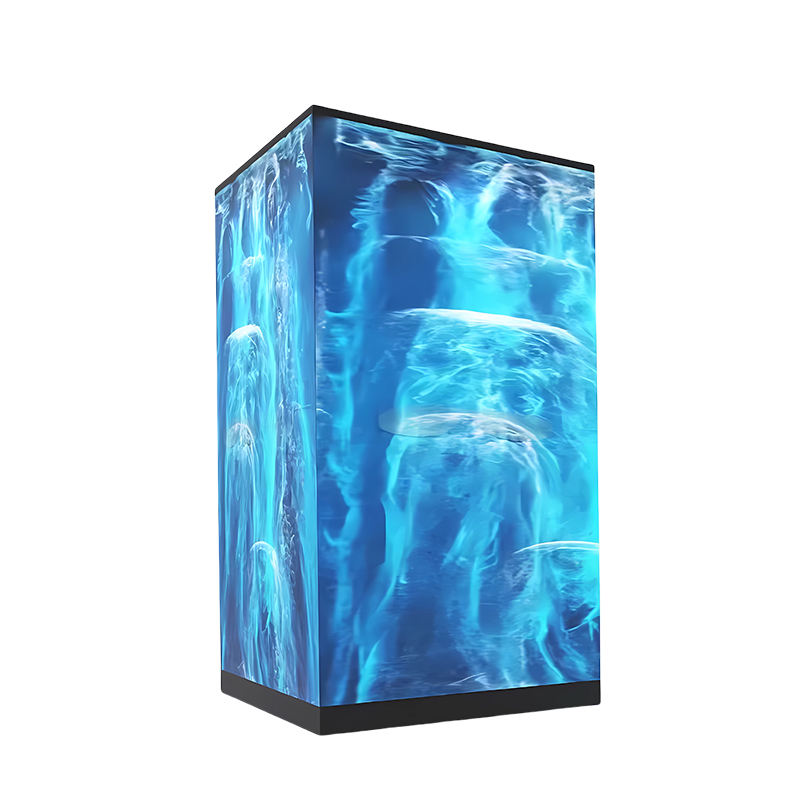

outdoor right angle led display 90 Degree Right-angle LED Display Screen

Highlight: Outdoor Adverting led Display, Waterproof LED Display Screen Panels, Right Angle Billboard LED Large Screen

The outdoor right angle LED display is a high-performance, multi-functional and creative outdoor display device. It not only solves the problem of limited outdoor display space but also breaks the visual limitations of traditional displays, bringing more possibilities for outdoor visual communication. With the continuous development of digital technology, outdoor right angle LED display will play a more important role in urban construction, commercial promotion and public services, creating greater value for users and society.

outdoor right angle LED display Specification:

outdoor right angle LED display Features:

The outdoor right angle LED display has unique structural design and excellent performance characteristics, which are specially optimized for outdoor complex environments and corner installation needs.

• Seamless 90-Degree Splicing: It adopts two 45-degree angled LED modules for precise splicing, with no visible gaps or dark seams at the right angle joint, ensuring that the displayed content transitions naturally and smoothly around the corner without distortion, forming a continuous and complete visual surface.

• Superior Outdoor Protection Performance: Most products have an IP65 or even IP66 protection rating, featuring professional dustproof, waterproof and anti-ultraviolet designs. Special sealing processes and anti-corrosion materials effectively prevent moisture, dust and UV radiation from damaging the internal components, ensuring stable operation in harsh outdoor environments.

• High Brightness and Clear Display: Equipped with high-brightness LED chips, the brightness can reach 4500cd/㎡ to 7000cd/㎡, making the content clearly visible even under direct sunlight. It also supports 16-bit grayscale and a wide color gamut, presenting vivid, lifelike colors and natural light-dark transitions, with a high contrast ratio of up to 10,000:1, enhancing the layering and three-dimensional sense of the picture.

• Wide Viewing Angle and Comprehensive Coverage: The L-shaped right angle design achieves a 270-degree viewing angle, which is much wider than the 180-degree viewing angle of flat displays, ensuring that the audience can see clear and consistent images and colors from any direction, effectively reducing viewing blind spots.

• Flexible Customization: It supports customized pixel pitch (ranging from 1.25mm to 10.4mm) and cabinet size, and can be flexibly combined according to the actual installation space and display needs. The modular design also facilitates quick assembly and disassembly, adapting to different architectural corner sizes and shapes.

• Extreme Environment Adaptability: With a wide operating temperature range of -40℃ to 70℃, it is equipped with an intelligent temperature control system and efficient heat dissipation design, which can stably operate in extreme weather such as high-temperature deserts, cold icy areas and heavy rain, ensuring long-term reliable use.

outdoor right angle LED display Application Scenarios:

With its flexible adaptability and excellent performance, the outdoor right angle LED display is widely used in various outdoor scenarios, bringing new visual experiences and commercial value to different fields.

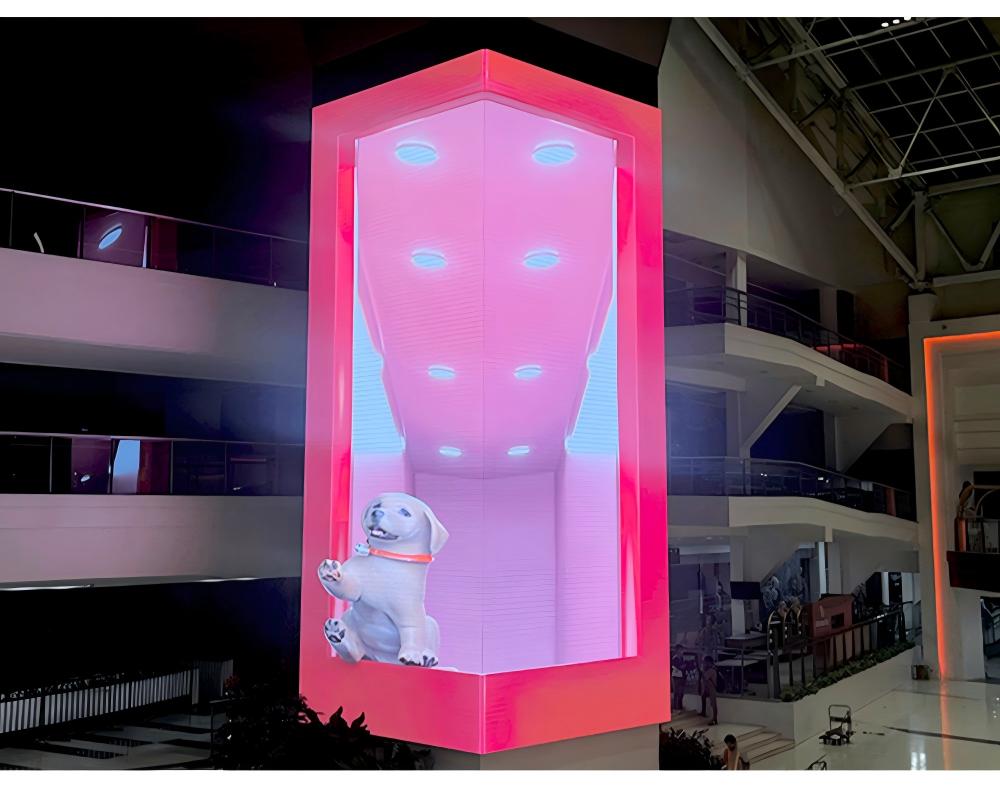

• Urban Commercial Landmarks and Business Districts: Installed at the corners of high-rise buildings, shopping malls and commercial streets, it is used to play brand advertisements, promotional activities and creative content. The unique right angle design and naked-eye 3D effect can create urban Internet-famous check-in spots, attract pedestrian flow and enhance the commercial value of the area.

• Transportation Hubs: Applied in airports, railway stations, subway stations and highway intersections, it is used to display real-time flight/train information, traffic guidance, safety warnings and public service advertisements. The wide viewing angle ensures that the information can be clearly seen by passengers and drivers from multiple directions, improving travel efficiency and safety.

• Cultural and Sports Venues: Used in stadiums, concert halls and theme parks, it can play live pictures, slow-motion replays, event notices and interactive content. The seamless right angle display and high refresh rate (up to 7680Hz) ensure smooth dynamic pictures, enhancing the on-site atmosphere and audience experience.

• Public Spaces and Smart Cities: Installed in urban squares, parks and government buildings, it is used to release weather forecasts, emergency notices, policy publicity and cultural and artistic works. It can also be integrated with smart city systems to realize human-screen interaction, providing convenient services for citizens and improving the image of the city.

• Brand Flagship Stores and Exhibition Booths: Used in the corner positions of high-end brand flagship stores and exhibition booths, it is used to display product details, brand stories and exhibition information. The high-definition display and flexible customization can perfectly match the brand image, leaving a deep impression on customers and visitors.

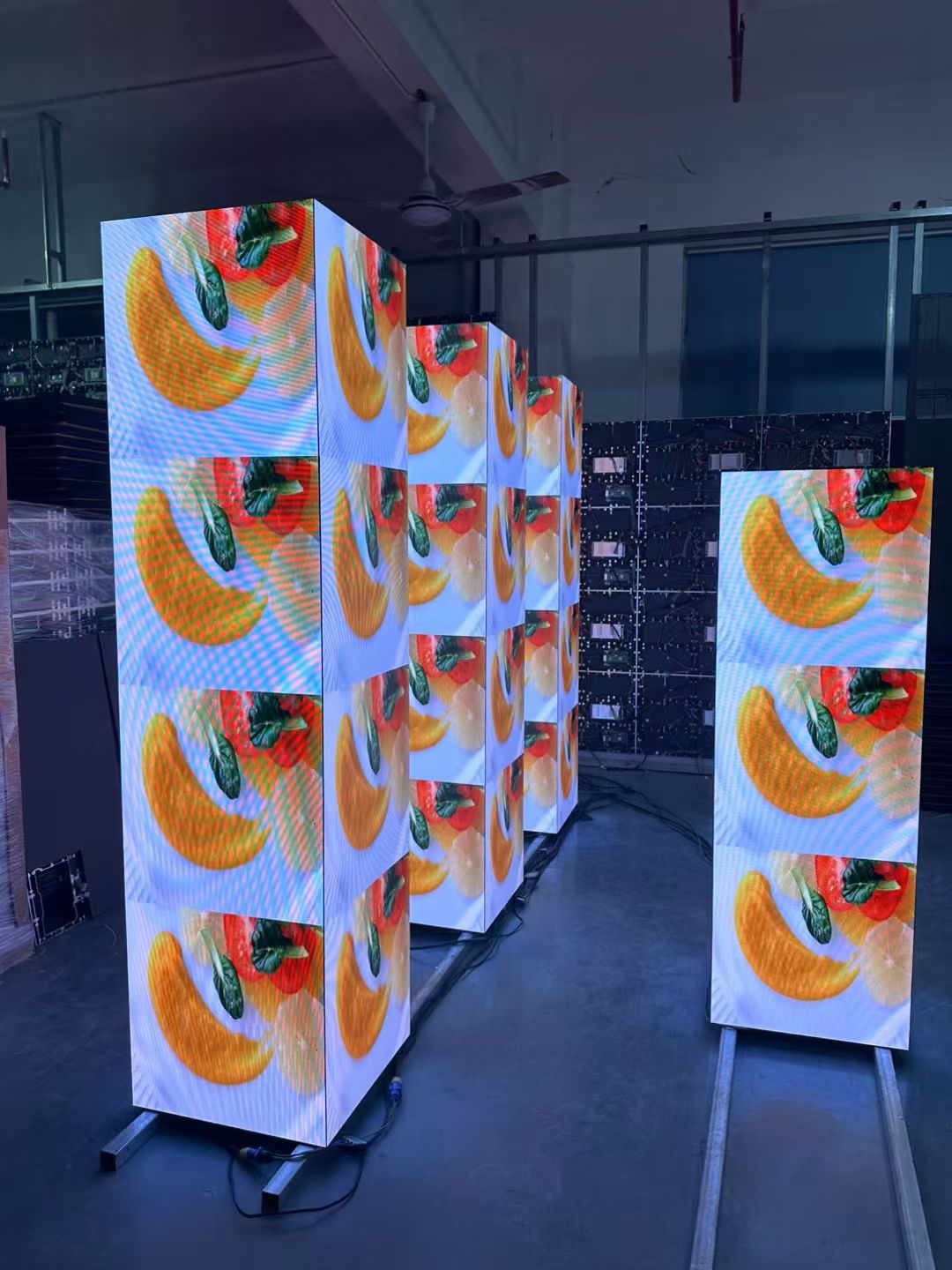

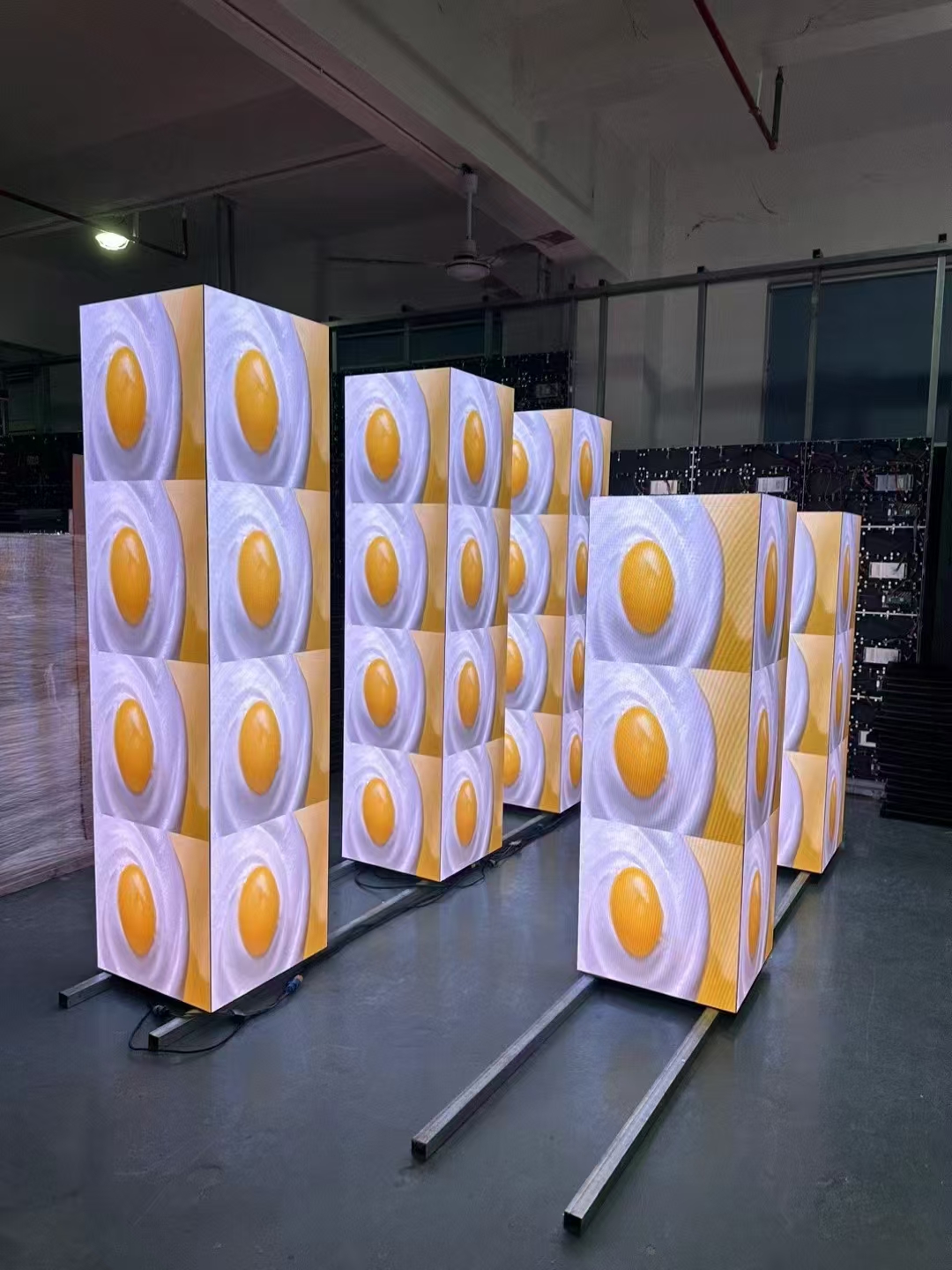

Why choose HSCXLED-square column led display?

• High Quality Leds:We use good quality copper wire leds for Indoor led screen,long life span.The quality of KI's lamp beads is very stable. Customers in Korea, Thailand, and EU market customers all specify to use this lamp bead.Indoor leds is black, black leds with high Contrast Displays Richer Colors.

Indoor square column led screen module can be fixed by magnet or screws.Magnet is recommended. And this Indoor square column led screen module with mask.

• Customized IC:The Indoor Square Pillar LED Screen standard IC is ICN2038/2037/SM16380 etc, refresh is 3840Hz, but we accept customized IC, like ICN2153/MBI5124 with 7680Hz refresh.

• Interface type

1. HUB75 interface for signal input.

2. Plug in power socket.

3. Free 5V flat cable and 5V red-black power cable of module.

4. Led module is DC5V input voltage

5. One module max power is about 40W

6. Indoor Square Pillar LED Screen :P1.25/P1.5/P1.8/P2/P2.5 The led display module is 320mmx160mm /320mmx160mm/320mmx250mm

• Customized size and style:Indoor Square Pillar LED Screen-any size and style are customized.

• Led display user manual:Indoor Square Pillar LED Screen, screen size is customized and the cabinet with strong die cast al-cabinet case.it is IP43, can use for indoor and Programmable message by PC software save to u-disk and update through U-disk,Or sent the message by WIFI. PC software support Windows and iOS system, also can program message by smart phone.Wi-fi connection by phone APP to update the message.

• Quality assurance

1. Modules test-After the modules are produced, it needs to be powered and tested for 48 Hours. During this period, if the modules has quality problems, it will be detected.

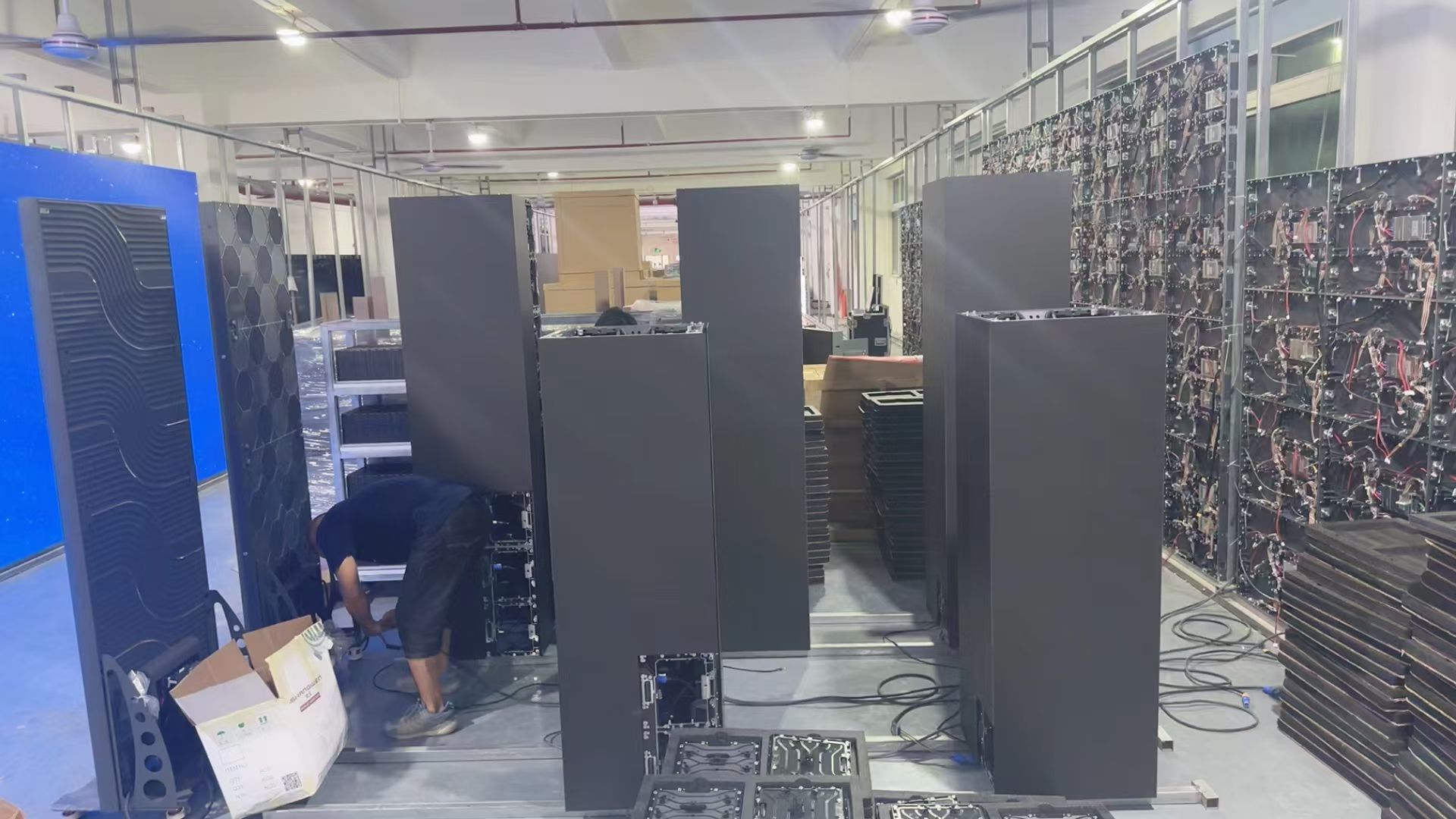

2. Screen test-After there are no problem with the modules, install them on the cabinet and connect the power supplies and control cards,it needs to be powered and tested for 48-72 Hours. During this period, if some part has quality problems, it will be detected.

3. Package-After the whole process, confirm that there is no quality problem, we will pack it and arrange transportation.

4. Quality guarantee:During the warranty period, if the damage is caused by product quality problems, we will re-produce the module for free.
