Product Details
Place of Origin: SHENZHEN
Brand Name: HSCXLED
Certification: KC CE CE-LVD CE-EMC ROHS FCC CCC ISO9001
Model Number: P1.25/P1.53/P1.86/P2/P2.5
Payment & Shipping Terms
Minimum Order Quantity: 1set
Packaging Details: Wooden case/Honeycomb Box/Fight case
Delivery Time: 25-35workdays
Payment Terms: D/A,L/C,,D/P,T/T,Western Union
Supply Ability: 100set/30day

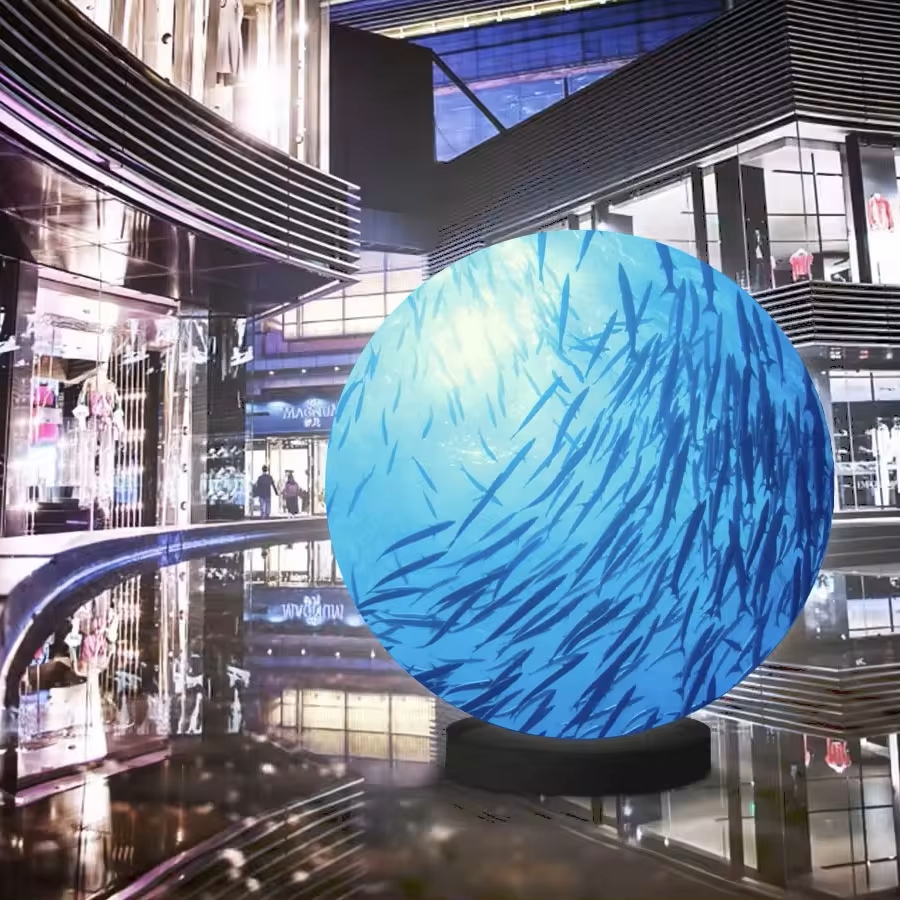

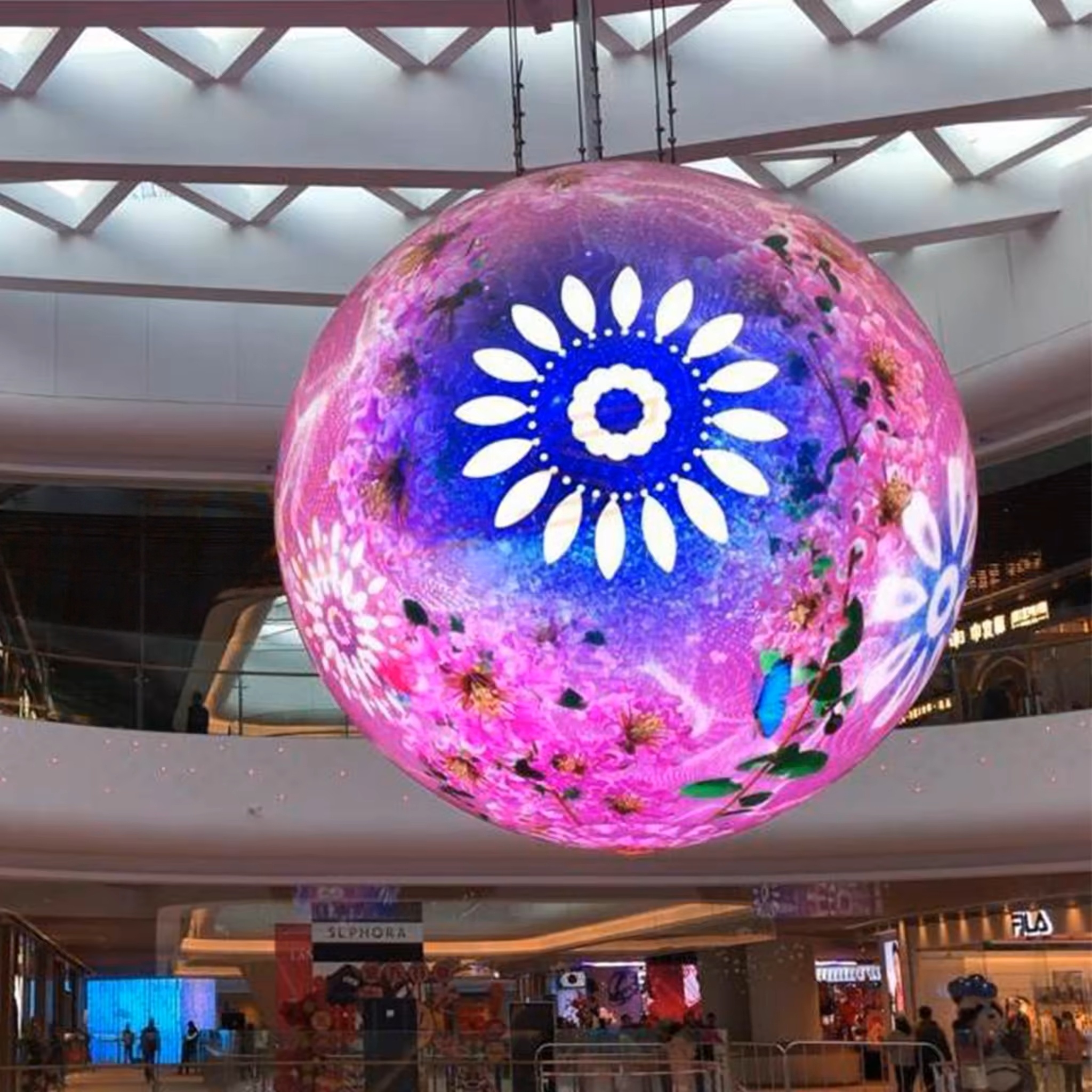

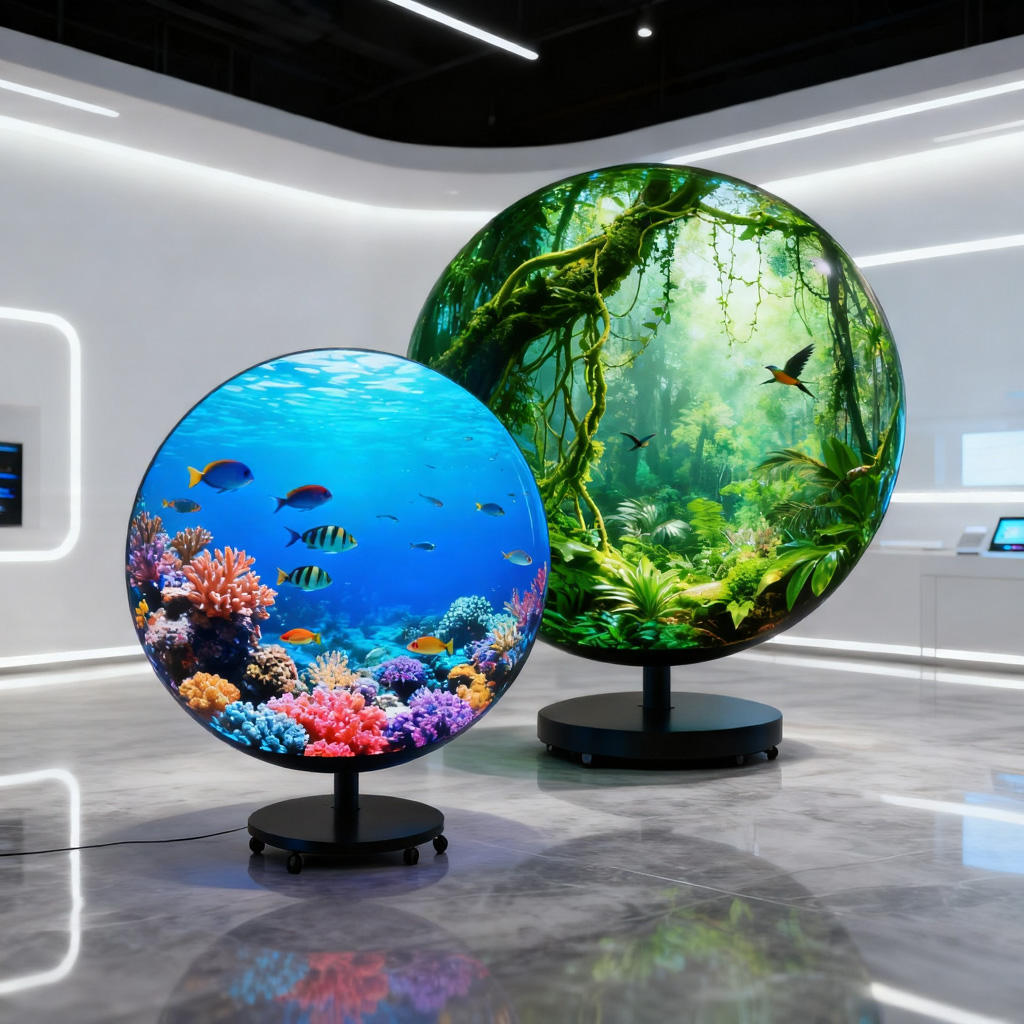

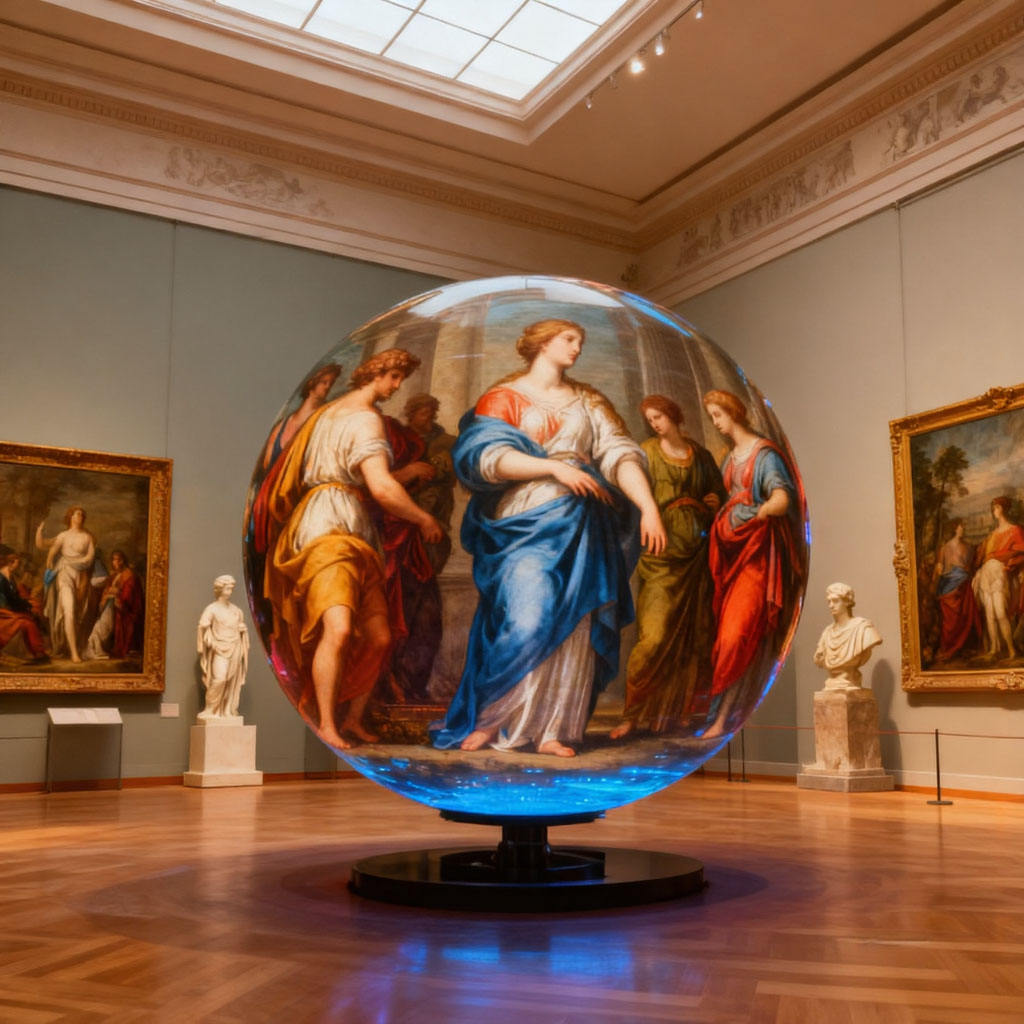

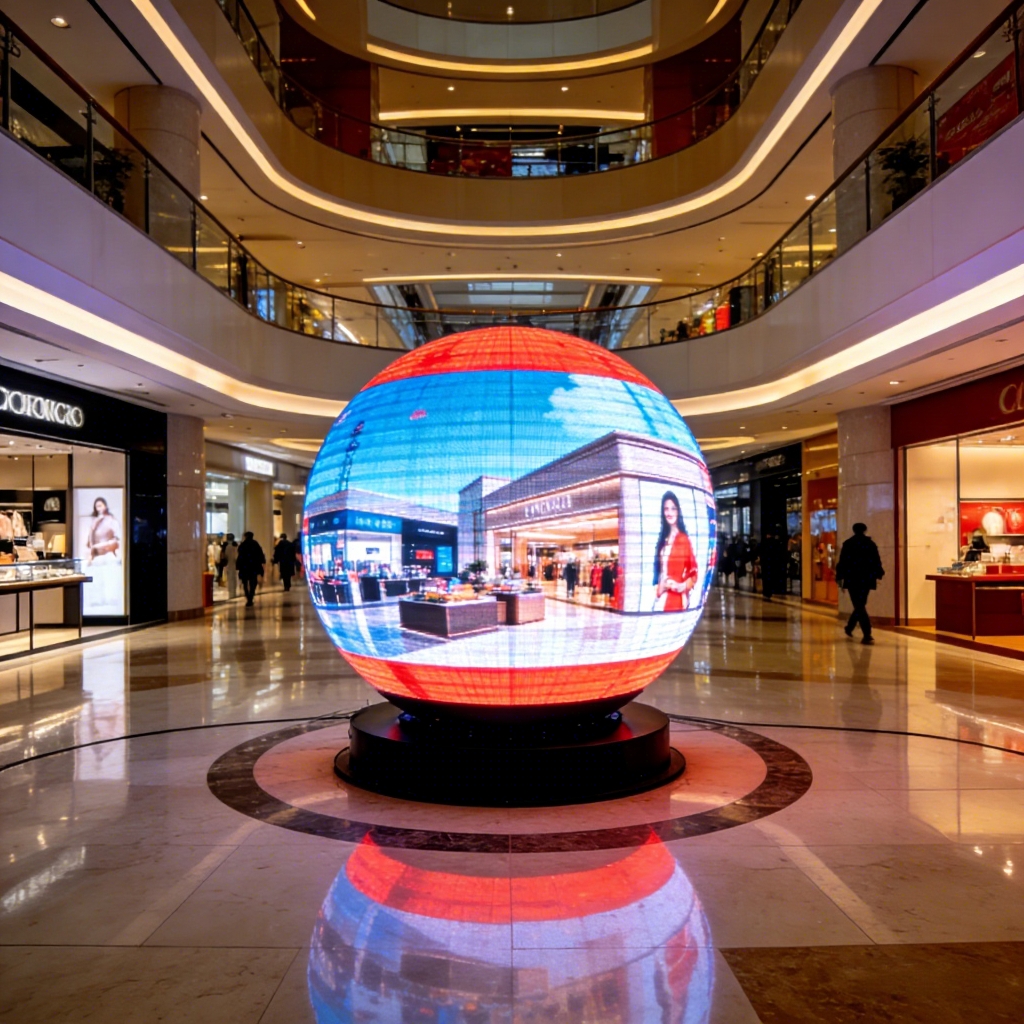

Sphere Led display Highlights :
360° Full View Display: Provides 360-degree panoramic visuals, no blind spots, delivering immersive viewing experience from any angle.
Flexible Modular Design: Modular LED panels for easy assembly, disassembly and maintenance, adaptable to different sphere sizes (small to large).
High-Definition & Vivid Visuals: High resolution, high refresh rate and wide color gamut, ensuring clear, flicker-free and true-to-life images.
Creative & Attractive Appearance: Unique spherical shape stands out, ideal for creating eye-catching visual highlights in public spaces.
Durable & Reliable: High-strength cabinet with good dustproof and waterproof performance (IP54/IP65 optional), suitable for indoor and semi-outdoor use.
Easy Installation & Transportation: Lightweight modules, convenient for on-site assembly and transportation, reducing labor and logistics costs.
Wide Compatibility: Compatible with mainstream control systems, supporting real-time content update, video playback and dynamic effects.
Energy-Saving & Low Power Consumption: Optimized circuit design, low power operation, energy-efficient for long-hour continuous work.
Versatile Application: Perfect for shopping malls, exhibition centers, science museums, theme parks, hotels, stages and commercial advertisements.
Customizable Size: Supports custom sphere diameter to meet different space and display requirements.

Indoor spherical LED display Paramenters:
| INDOOR SPHERE LED DISPLAY | |||||
| Pixel Pitch | P1.25 | P1.5 | P1.8 | P2 | P2.5 |
| Use Place | Indoor | Indoor | Indoor | Indoor | Indoor |
| Pixel Density | 640000dots/㎡ | 422500dots/㎡ | 289050dots/㎡ | 250000dots/㎡ | 160000dots/㎡ |
| LED Package | SMD1010 | SMD1010 | SMD1212 | SMD1212 | SMD1515 |
| Sphere LED Screen Diameter | 0.2m / 0.3m / 0.4m / 0.5m / 0.6m / 0.8m / 1m / 1.2m / 1.5m / 2m / 2.5m / 3m / 4m / 5m / 6m / 7m / 8m / 9m /10m......More diameter customization | ||||
| Module Size | Customized | ||||
| Cabiner Weight | 30kg/㎡ | ||||
| Brightness | 800cd/m² | ||||
| Refresh Rate | ≥3840Hz/7680hz | ||||
| Humidity | 10%~90% | ||||
| Maintenance | Front/Back service | ||||
| Ingress Protection | Indoor Front: IP35, Back: IP45 | ||||
| Life-Span | 100000 Hours | ||||
| Working Voltage | Input 100V-240V,50Hz/60Hz, Output: DC 5V | ||||
| Temperature Range | Working :-25°C~60°C,Storage:-35°C-80°C | ||||
| Ontrol system | Synchronous/Asynchronous System | ||||

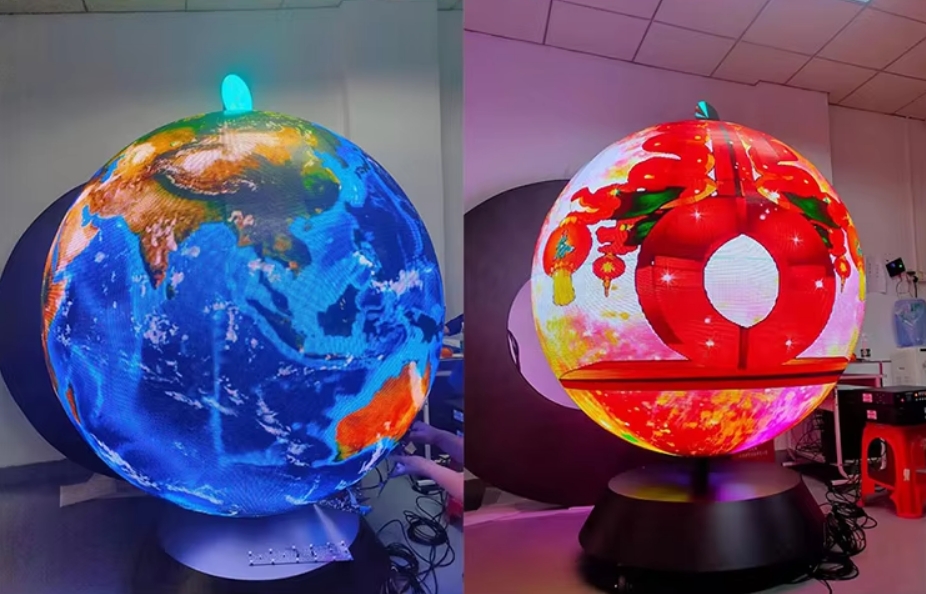

Spherical LED displays/ LED Sphere Display Screen
P1.25/P1.53/P1.86/P2/P2.5/P3/P4 3D Spherical LED Flexible Soft Module LED Video Ball Screen.
1. Customized: Can be customized required as any sizes and any pixel pitches.
2. Application: Indoor/Outdoor.
3. flexible control: compatible with asynchronous, support offline and online two ways.
Flexible material and creative shape
1.Soft materials ,can realize the radian of shape,circle ,arc- shaped , both Horizontal and vertical can be rolled up,meet the requirements of creative stage.
2.Optional brightness and high refresh rate.
3.Optional Brightnes 1000nit or 4000nit , to meet the requirements of indoor and outdoor high brightness display effect Up to 40% transparent rate ,to ensure the light-through smoke-through, sound-through request.
4.High refresh rate ≥3840Hz,very stable image.
Unique Cabinet Design - Easy to Install & Transport
* Rich colors: with three basic colors (red, green and blue) to form the unit boxes, making the electronic displays showing rich colors, high saturation, and high resolution, and also enabling them to show high frequency dynamic images.
* High brightness: the products adopt super-high brightness LED, so that you can see clearly from a long distance even in strong sunshine.
Curved Surfaceinstallstion
* Good effect: the products adopt non-linear calibration technology to realize clearer images with stronger feeling of layers.
* High reliability: using distributed scanning technology and module design technology that makehigher reliability and stability.
* Diversified display modes: the products support multiple display modes.
* Easy operation: the products adopt popular video playing software to facilitate system operations.

HSCXLED Shaped LED display:
Quality: We have a strict quality control system. All products ordered from our factory are inspected by a professional quality control team.
After-sales service: We provide after-sales service team, all problems and questions will be resolved by our after-sales service team.
MOQ: We accept small orders and mixed orders. According to our customers' requirements, as a dynamic team, we want to connect with all our customers.
Experience: As a dynamic team, through our more than 10 years of experience in this market, we are still continuing to research and learn more knowledge from customers, hoping that we can become the largest and professional supplier in China in this market Business one.
OEM: Accept ODM/OEM.
Samples: We provide of this product from our source.
Production time: Within 15 -25 working days after confirming the order.
