Product Details
Place of Origin: SHENZHEN
Brand Name: HSCXLED
Certification: CE ROHS FCC KC
Model Number: P6
Payment & Shipping Terms
Minimum Order Quantity: 1set
Packaging Details: Wooden case/Honeycomb Box/Fight case
Delivery Time: 10-15workdays
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000set
Highlight: Transparent Film LED Screen, LED chip screen, Led Film Display on Window
NO: | LED Chip Screen | Pixel Pitch: | 6.25*6mm |
Module Size: | 1000mm(W)*240mm(H)*2mm)T) | Weight: | 0.3Kg/pcs |
Pixel Density: | 26,560 Pixels/m² | Brightness: | 1000-5000cd |
Refresh Rate: | 3840Hz | /Protection Level: | IP43 |
Working Voltage: | 110V/240V±10%,50Hz/60Hz | Certificate: | CE/ROHS/FCC/KC/3C/ISO |
Full Color LED Display Video Wall Transparent Film LED Screen Indoor Advertising LED display
Transparent Led Film Display on Window Flexible Transparent Video Wall Soft Film Transparent Led Display Screen
Transparent Led Film Display Introduction:
LED chip screen is a product that breaks away from conventional LED transparent screens. LED naked Crystal Chip implantation technology is used, and the lamp board uses transparent crystal film, with a transparent mesh circuit etched on the surface. The components are fixed on a high transparency flexible film, and after the surface is pasted with the components, the vacuum sealing process is used to integrate the display module into a high transparency optical lens type substrate that can emit light. Unlike traditional LED displays, chip screens has the characteristics of high energy efficiency, lightness, thinness, high transparency, simple installation, softness, flexibility, and adjustable.
Transparent Led Film screen Application :
The product is widely used in commercial display windows, commercial curtain walls, exhibition halls, creative displays, cultural and tourism industries, commercial centers, and other fields.

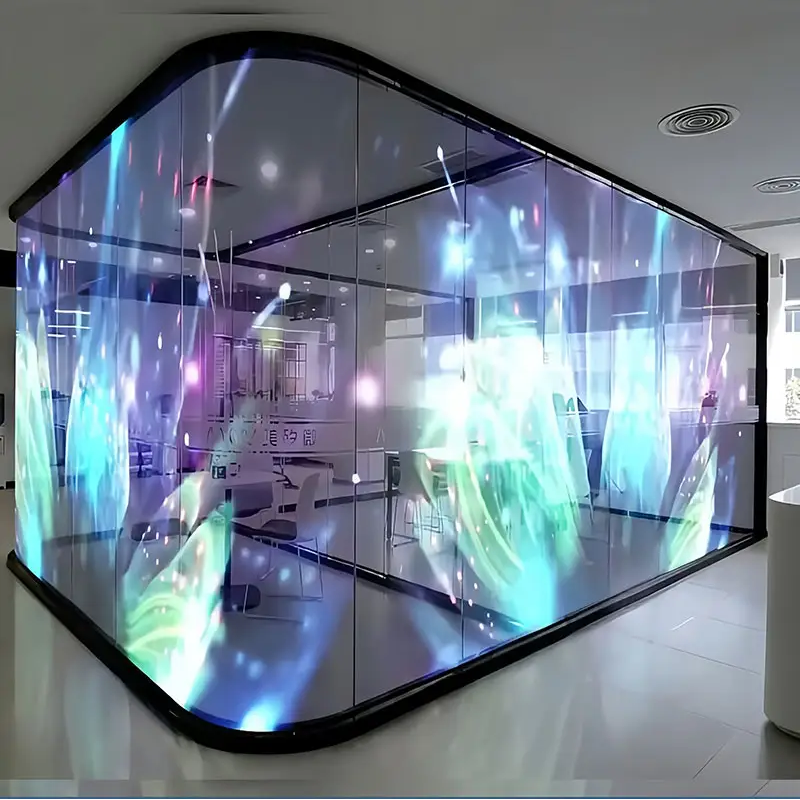

Building Curtain Wall:Enhancing the aesthetics and modernity of building curtain walls, achieving a perfect balance between transparency and display effects.
Museum:Enhance interactive experience, make exhibit information more vividly conveyed, enrich display forms, break spatial limitations, and promote cultural dissemination and education.

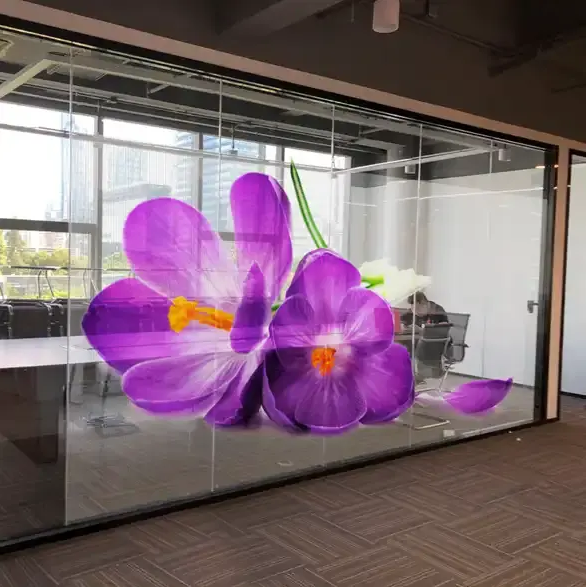

Vitrine:Revitalize glass display windows, showcase dynamic light and shadow art, enhance product appeal, attract customers to stop and admire, and promote sales and brand communication.
Commercial Centre:Enhance brand image and shopping experience, attract custom- ers with unique transparent display effects, and improve guidance efficiency.
Transparent LED display Features:
LED chip screens have high transparency characteristics, with a transparency rate of over 95%, allowing the chip screen to present display content clearly without affecting the background visual effect, providing more possibilities for creative display.

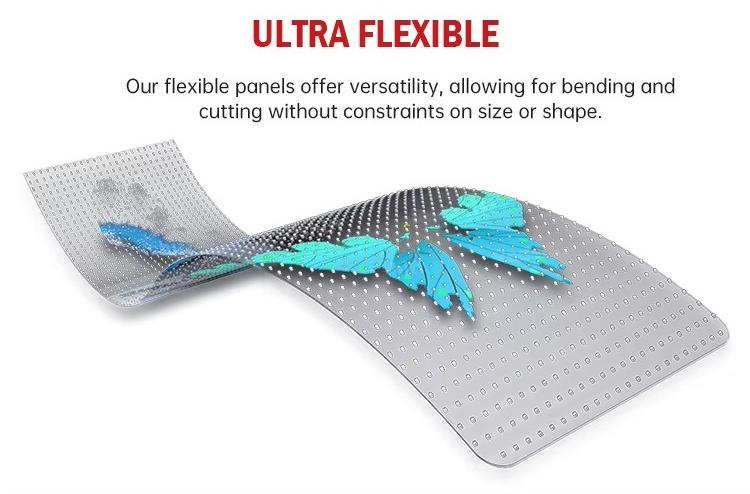

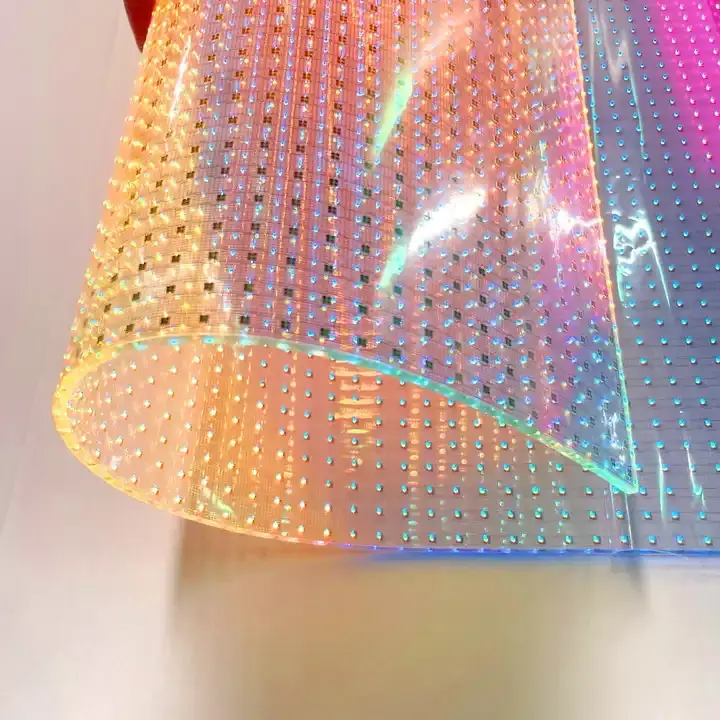

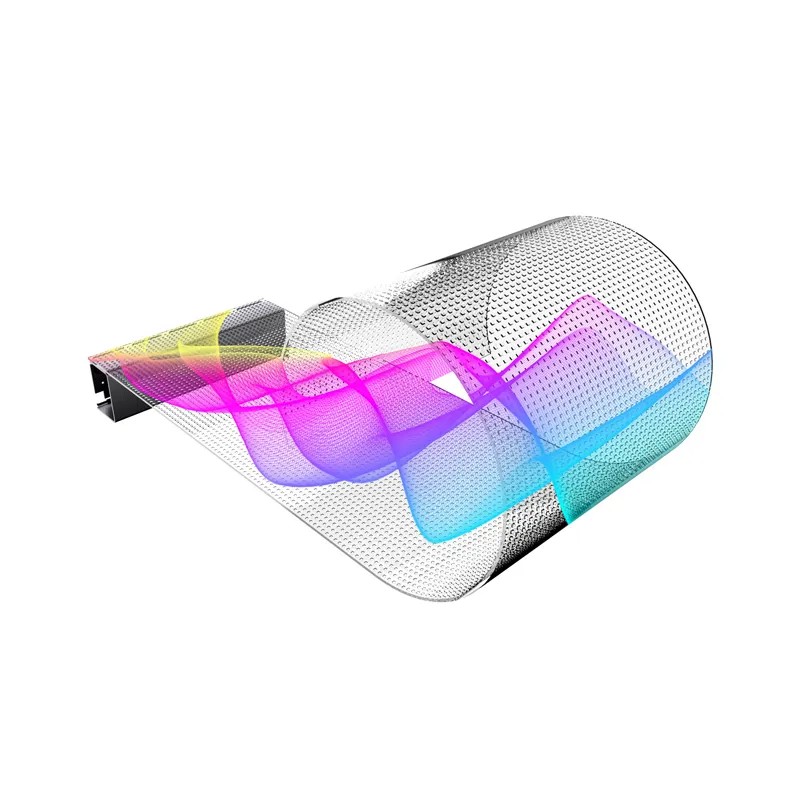

Unlike traditional LED display screens, LED chip screens have the characteristics of softness and bendability, which can adapt to various complex shapes of installationsurfac- es, such as arcs, curved surfaces, etc.

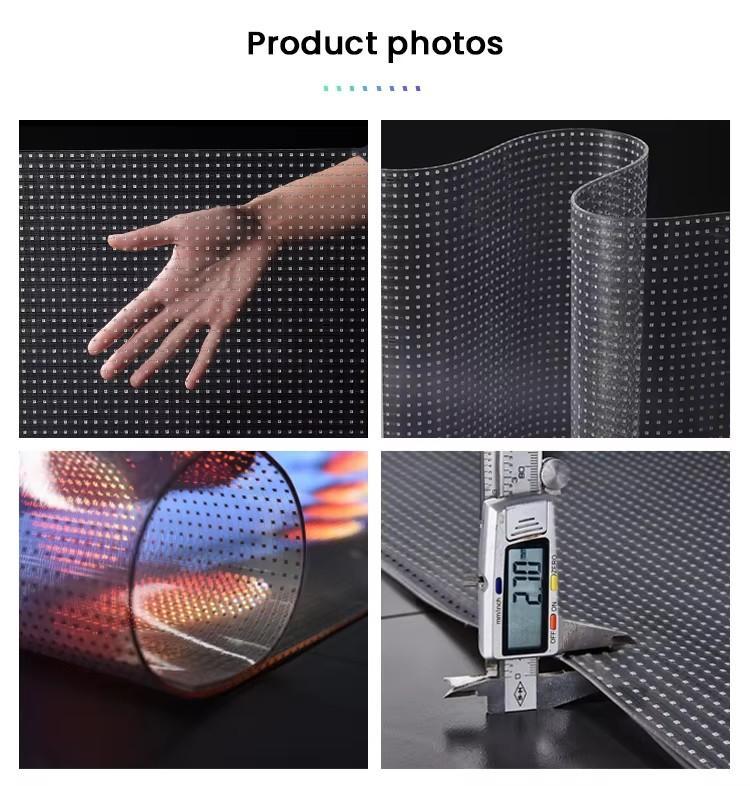

By adopting advanced LED bead bare crystal ball implantation technology, the crystal element is cleverly fixed on the thin film, resulting in an overall thickness of only 0.8mm, reducing installation difficulty and transportation costs.
The perfect combination of solid crystal process and external drive technology is adopted, with an average power stable control of 50-80W/m2, achieving up to 70% energy consumption reduction.
By adopting COB inversion technology, efficient heat dissipation and stable connection are achieved, ensuring stable light emission, significantly extending product service life, and improving overall performance.
Transparent Led Film screen Specification:
| Model | P3.75 | P5 | P6 | P8 | P10 |
|---|---|---|---|---|---|
| Pixel pitch | 3.75*3.75mm | 5*5mm | 6.25*6mm | 8.125*8mm | 10*10mm |
| Module Resolution | 144×64Pixel | 144×48Pixel | 160×40Pixel | 123×30Pixel | 100×24Pixel |
| Module size | 540*240*2mm | 720*240*2mm | 1000*240*2mm | 1000*240*2mm | 1000*240*2mm |
| Weight | 0.18Kg/pcs | 0.2Kg/pcs | 0.3Kg/pcs | 0.3Kg/pcs | 0.3Kg/pcs |
| Installation method | Glass direct/clamp tempered glass inner/inner arc installation | ||||
| Pixel density | 71,111 Pixels/m² | 40000 Pixels/m² | 26,560 Pixels/m² | 15,375 Pixels/m² | 10,000 Pixels/m² |
| Brightness | 1500-2000/3500-4000cd/m² | ||||
| viewing angle | 140°/140° | ||||
| Evenness | ≥98% | ||||
| Highest contrast ratio | 4,000:1 | ||||
| Protection level | IP43 | ||||
| Colour | 16bit | ||||
| Refresh rate | ≥3,840Hz | ||||
| Change frame frequency | 60Frame /Second Suppot High Resolution3D:120Frame | ||||
| Screen color temperature | 2,000K～9,500K /Adjustable | ||||
| Interface | Windows | ||||
| Working voltage | AC:110V~240V,50~60Hz | ||||
| Peak power | ≤160W/m² | ||||
| Average power | 50W/m²~60W/m² | ||||
| Continuous working hours | ≥7×24h | ||||
| Mean time between failures | ≥10,000h | ||||
| Screen temperature rise | ≤3° | ||||
| Operating ambient temperature | -10～60℃ | ||||
| Operating environment humidity | 10％～90％RH/No condensation | ||||

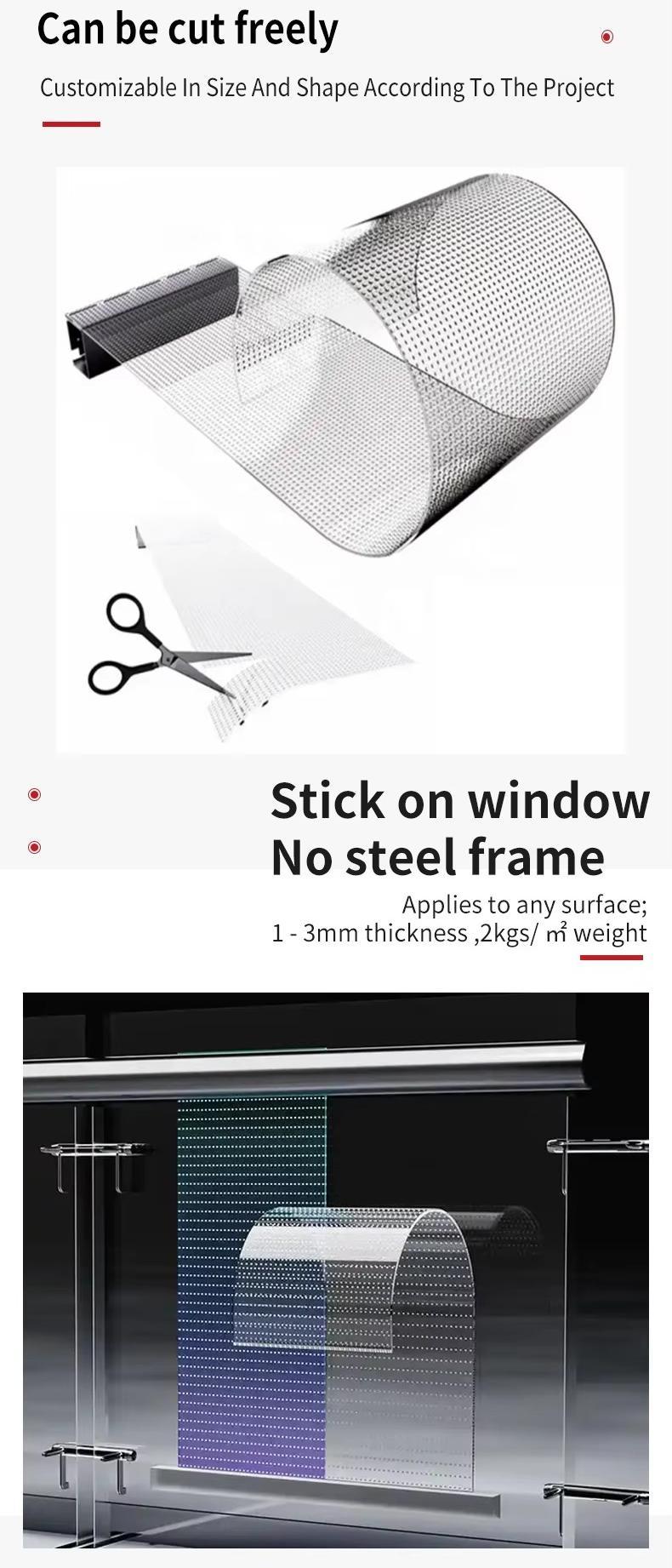

Transparent Led Film screen Module Installation Method:
step 01.Tear off the surface protective film
step 02.Directly attached to the glass, it can be used after being powered on
