Product Details
Place of Origin: china shenzhen
Brand Name: HSCXLED
Certification: KC CE ROHS FCC CCC ISO9001
Model Number: P6.25
Payment & Shipping Terms
Minimum Order Quantity: 1set
Packaging Details: Wooden case/Honeycomb Box/Fight case
Delivery Time: 10-15workdays
Payment Terms: L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability: 1000set
Highlight: LED film screen, Transparent Led Display, Glass Film Crystal LED Display
Product Name: | Led Transparent Film Screen | Application: | Indoor, Outdoor |
Type: | Led Film Screen | LED Light: | Smd1515 |
Model:: | P6.25 | Permeability: | 90%~95% |
Brightness: | 2000-4000 | Input Voltage: | AC110-240V50/ 60Hz |
Average Power: | 200W/㎡ | Life Span: | 100000hours |
Indoor Transparent LED Film Screen PCB Board Flexible Soft Curved Curtain Transparent Led Screen
Transparent Led Film Full Color Screen Transparent Led Screen
Feature highlights:
This New Technology Indoor Transparent LED Film Screen offers high transparency up to 95%, making it ideal for glass curtain walls and retail environments. With a thin profile of just 2.5mm thickness, it supports versatile display functions including video, pictures, text, animation, and cartoons. The product ensures vibrant visuals with brightness levels of 2000/4000 CD/㎡ and a wide viewing angle of 160°. Certified with CCC, KC, CE ROHS FCC, it guarantees compliance with quality and safety standards, enhancing market access for buyers.
The core usage characteristics of LED film screen are light, thin, flexible, high transparency and invisibility, which can adapt to special carriers such as glass curtain walls, and balance display function with the original appearance of the building.

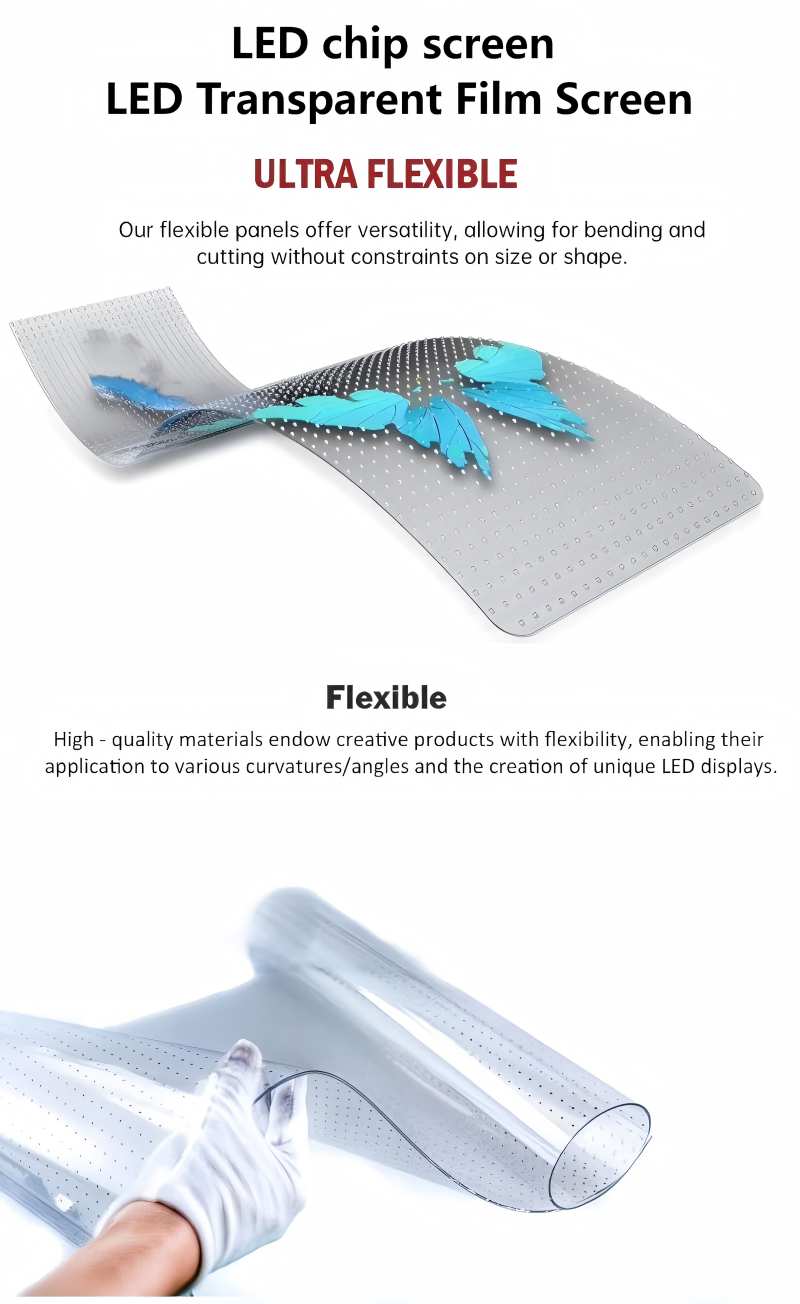

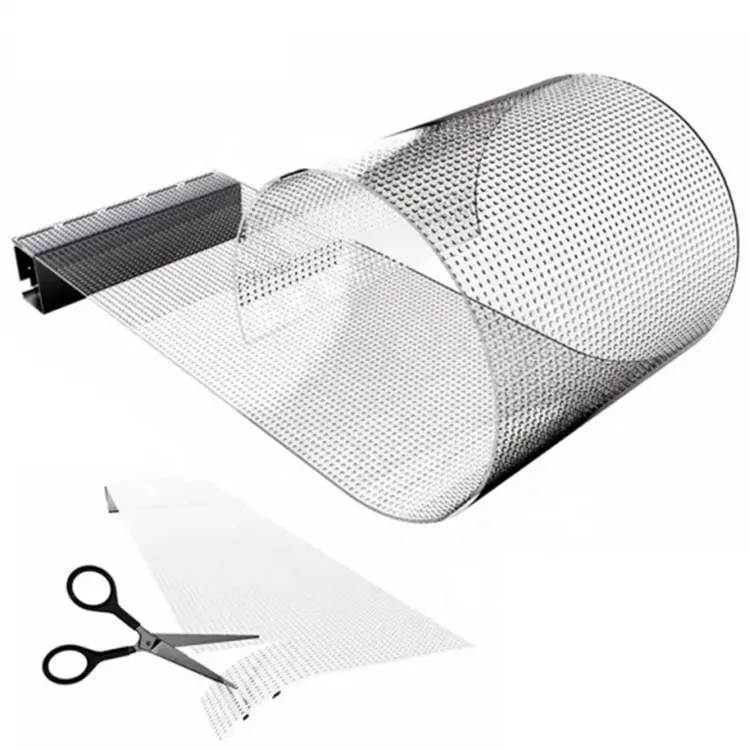

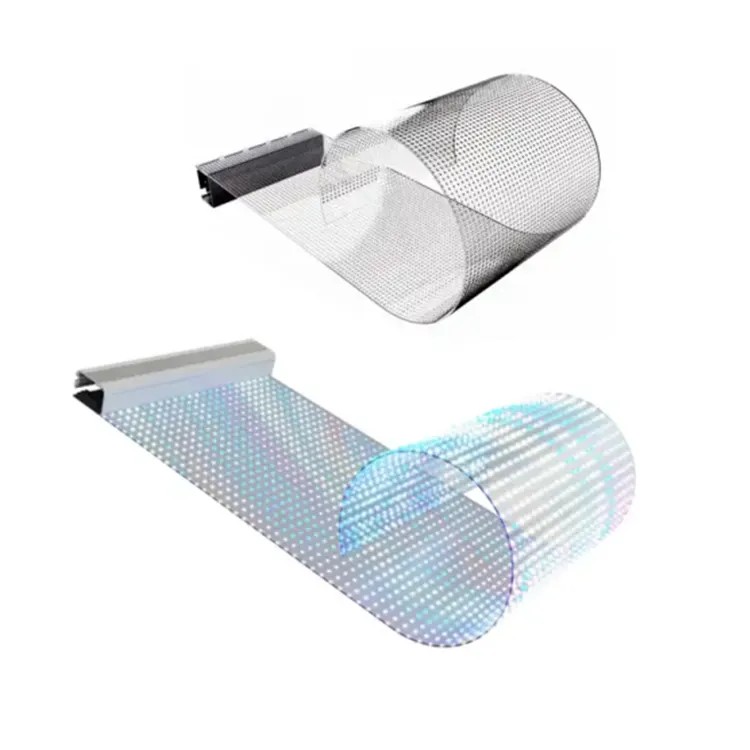

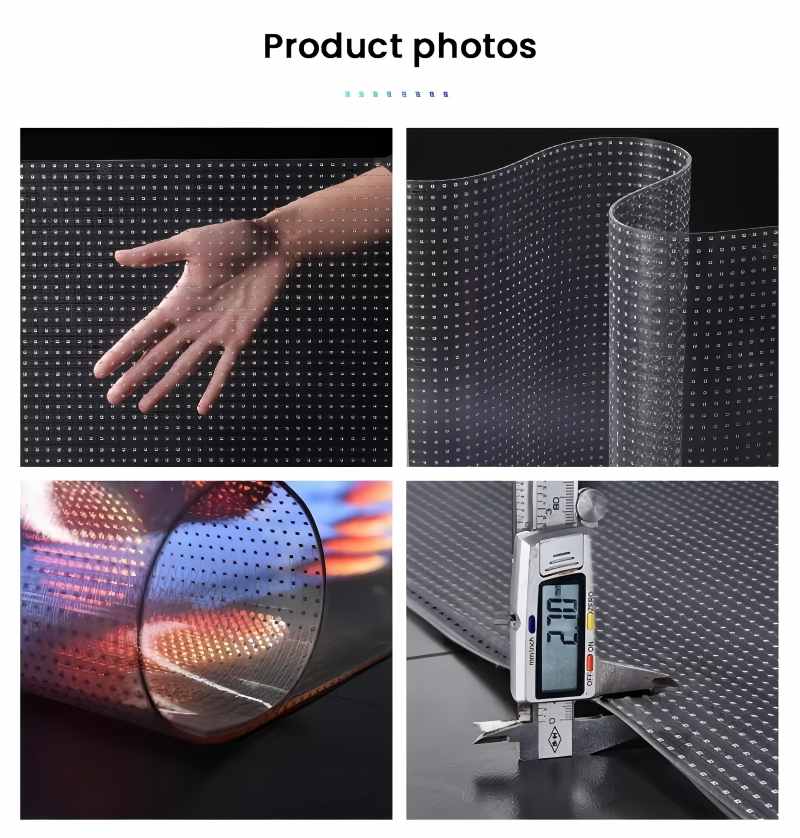

Lightweight and flexible LED display screen

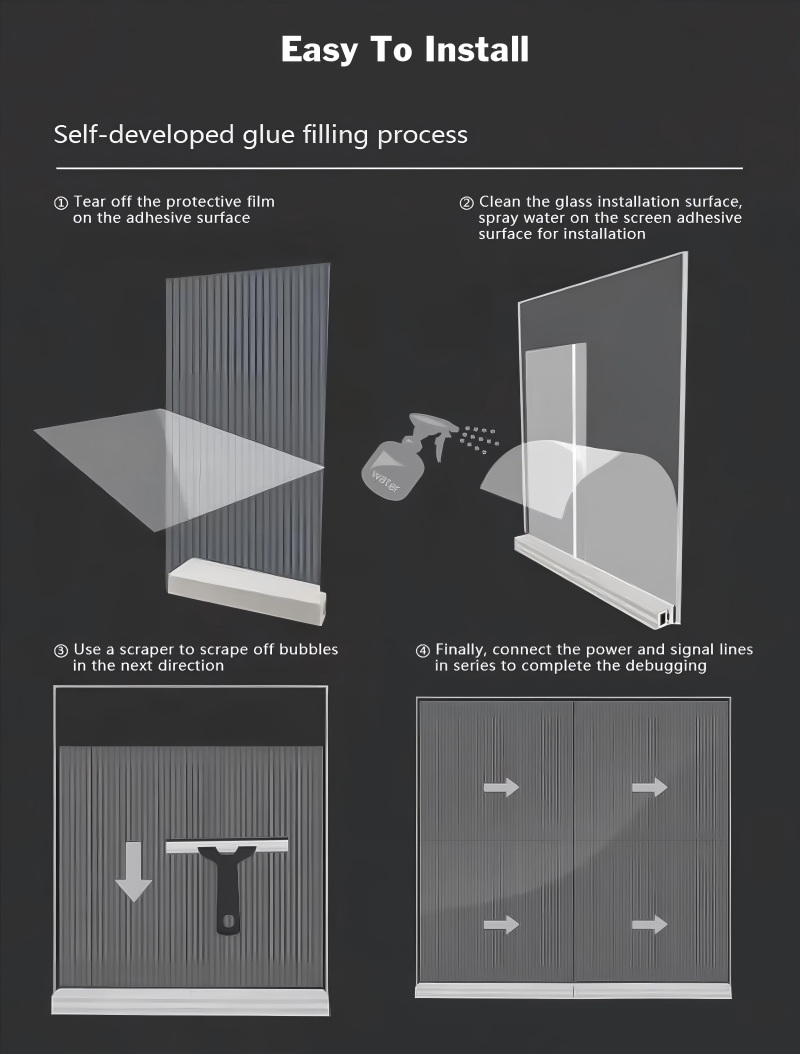

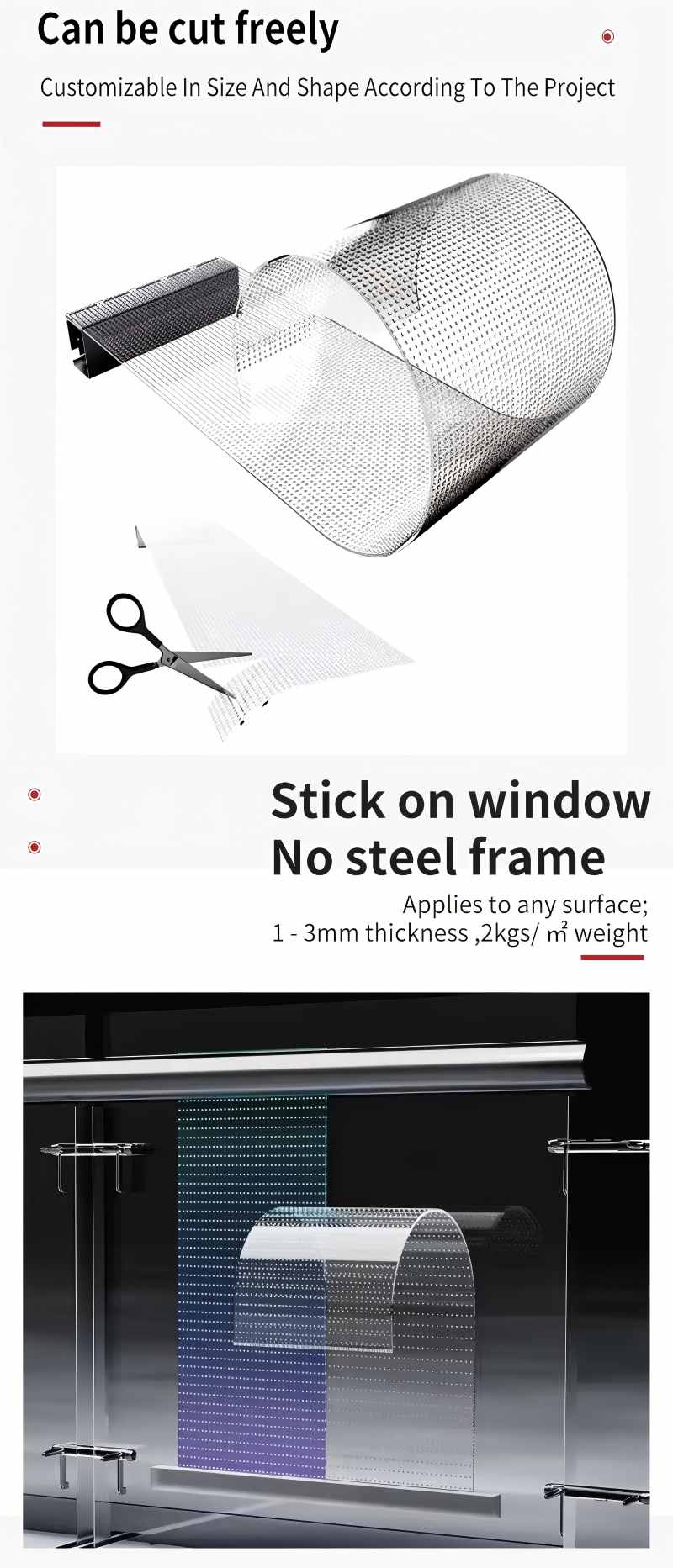

Convenient installation of LED film screen
Modular splicing

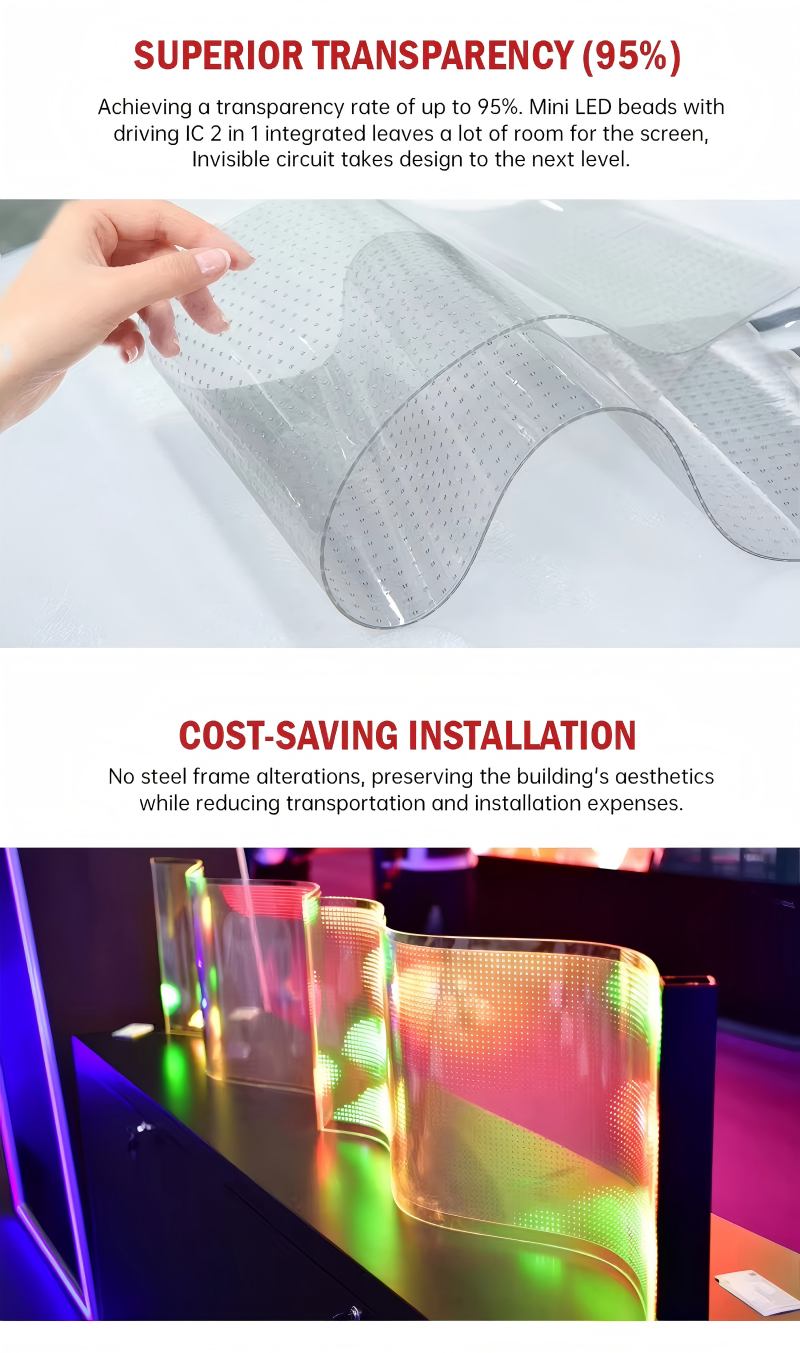

High transmittance LED transparent screen
Transparent LED Film Screen Application:
Advertising promotion: LED film screen supports multiple playback modes, playing videos, pictures, text and other advertising content to attract attention;
Information display: LED film screen can release public information such as notifications, guidelines, and data;
Decorative lighting: LED film screens have high transparency display effects, enhancing the visual hierarchy of buildings or spaces through dynamic light and shadow effects;
Interactive experience: LED display combined with touch or sensing technology enables interaction between people and screens (such as window display interactive advertising)
LED film screen parameters:
| Model | P3.75 | P5 | P6 | P8 | P10 | P15 | P20 | P30 |
|---|---|---|---|---|---|---|---|---|
| Pixel pitch | 3.75*3.75mm | 5*5mm | 6.25*6mm | 8.125*8mm | 10*10mm | 15*15mm | 20*20mm | 30*30mm |
| Pixel density | 71,111 Pixels/m² | 40000 Pixels/m² | 26,560 Pixels/m² | 15,375 Pixels/m² | 10,000 Pixels/m² | 4444 Pixels/m² | 2500 Pixels/m² | 1,111 Pixels/m² |
| Module Resolution | 144×64Pixel | 144×48Pixel | 160×40Pixel | 123×30Pixel | 100×24Pixel | 64×16Pixel | 50×12Pixel | 32×8Pixel |
| Module size (W*H*T) | 540mm *240mm | 720mm *240mm | 1000mm *240mm | 1000mm *240mm | 1000mm *240mm | 960mm *240mm | 1000mm *240mm | 960mm* 240mm |
| Weight/pcs | 0.18Kg | 0.2Kg | 0.3Kg | 0.3Kg | 0.3Kg | 0.3Kg | 0.3Kg | 0.3Kg |
| Installation method | Glass direct/clamp tempered glass inner/inner arc installation | |||||||
| Brightness | 1500-2000/3500-4000cd/m² | |||||||
| H/v viewing angle | 140°/140° | |||||||
| Evenness | ≥98% | |||||||
| Highest contrast ratio | 4,000:1 | |||||||
| Protection level | IP43 | |||||||
| Colour | 16bit | |||||||
| Refresh rate | ≥3,840Hz | |||||||
| Change frame frequency | 60Frame /Second Suppot High Resolution3D:120Frame | |||||||
| Screen color temperature | 2,000K～9,500K /Adjustable | |||||||
| Interface | Windows | |||||||
| Working voltage | AC:110V~240V,50~60Hz | |||||||
| Peak power | ≤160W/m² | |||||||
| Average power | 50W/m²~60W/m² | |||||||
| Continuous working hours | ≥7×24h | |||||||
| Mean time between failures | ≥100,000h | |||||||
| Screen temperature rise | ≤3°(during use) | |||||||
| Operating ambient temperature | -10～60℃ | |||||||
| Operating environment humidity | 10％～90％RH/No condensation | |||||||

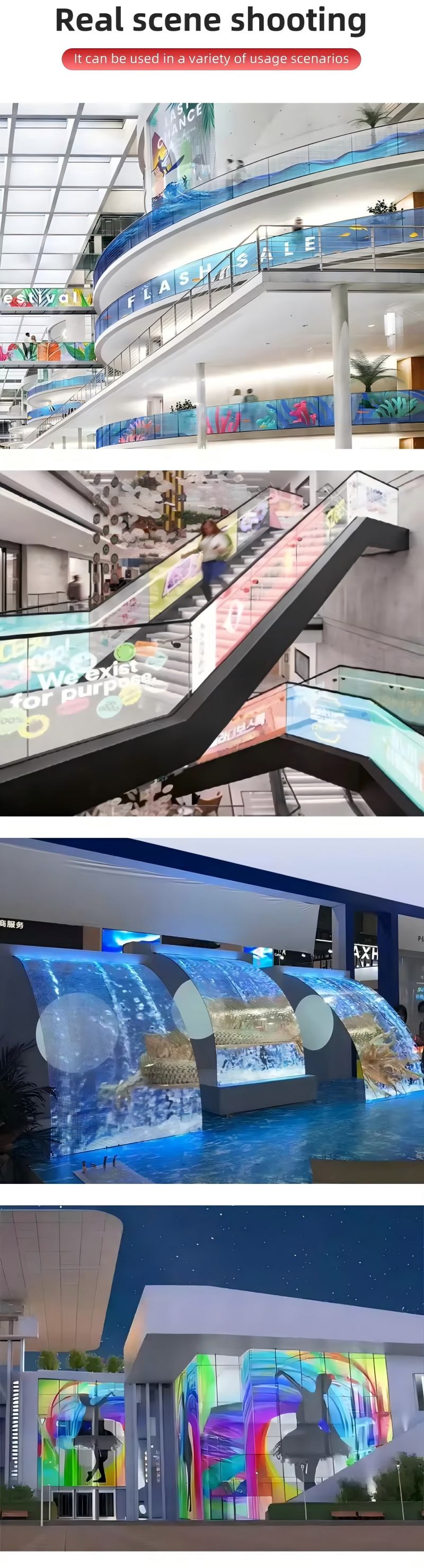

LED film screen Usage scenarios:

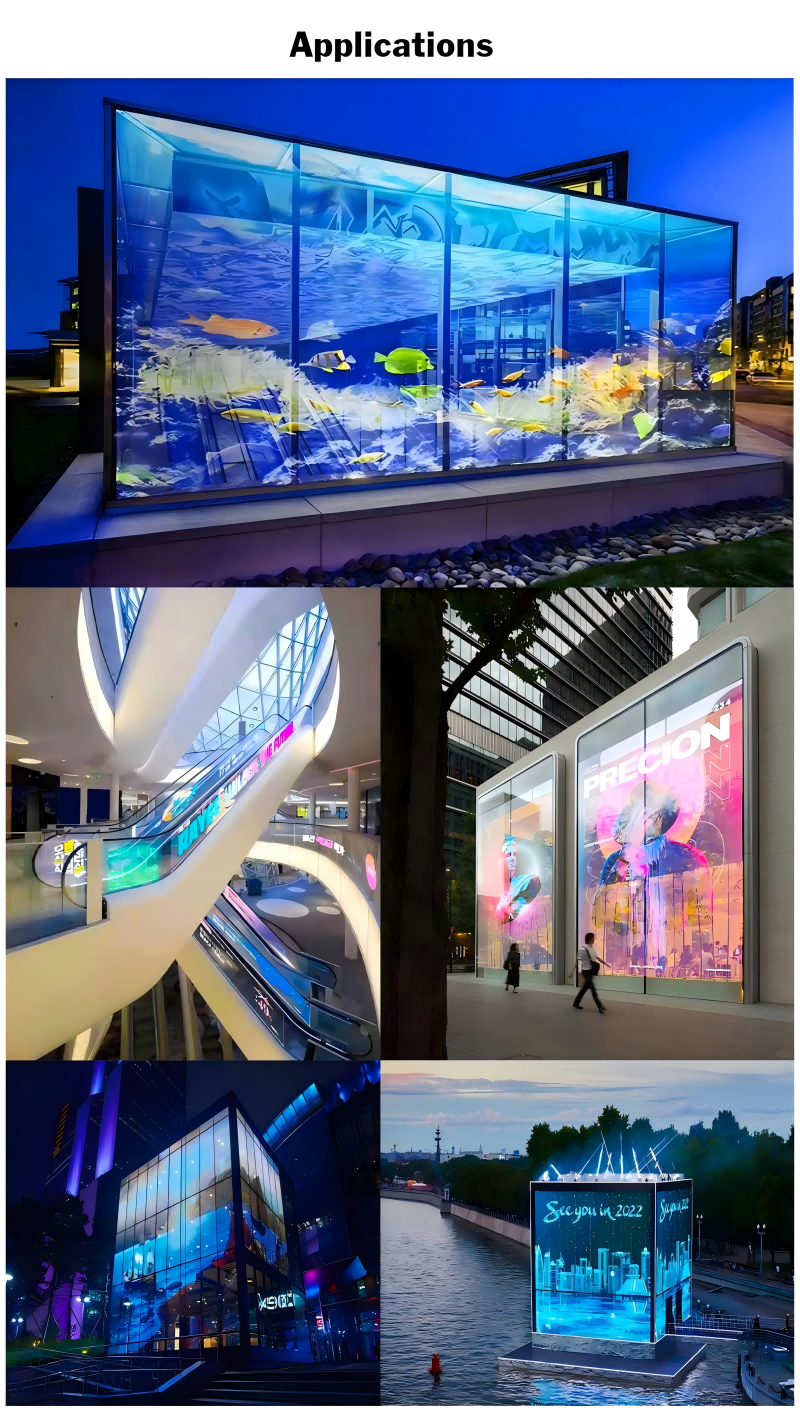

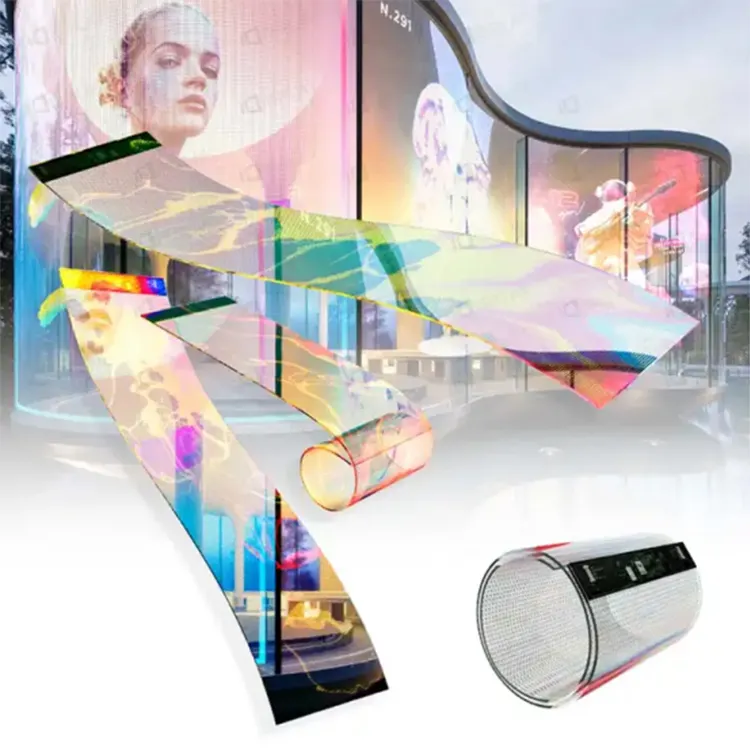

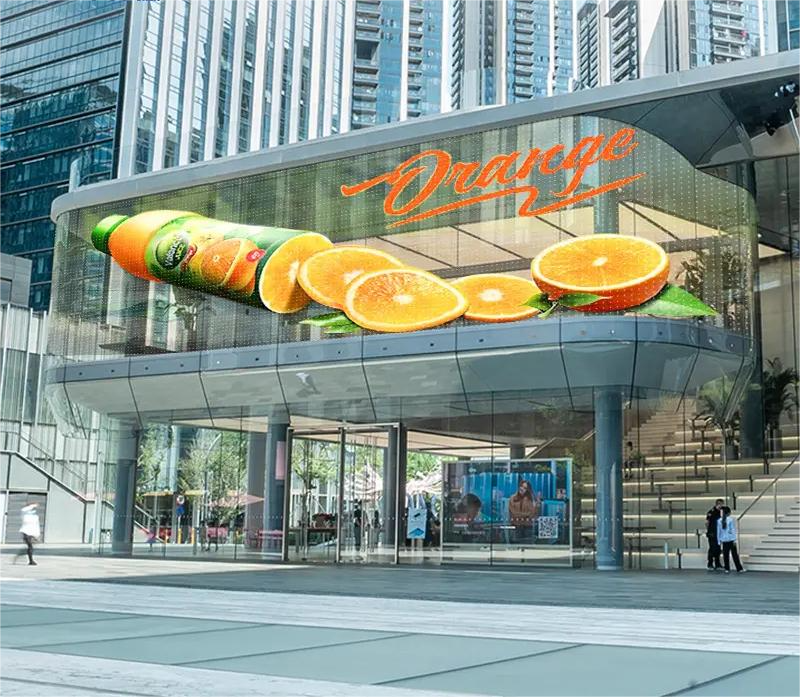

Building glass curtain wall LED transparent screen:
The exterior glass of office buildings, commercial complexes, hotels, etc. serves as a giant outdoor advertising screen when powered on, and does not affect the transparency of the building after power failure.

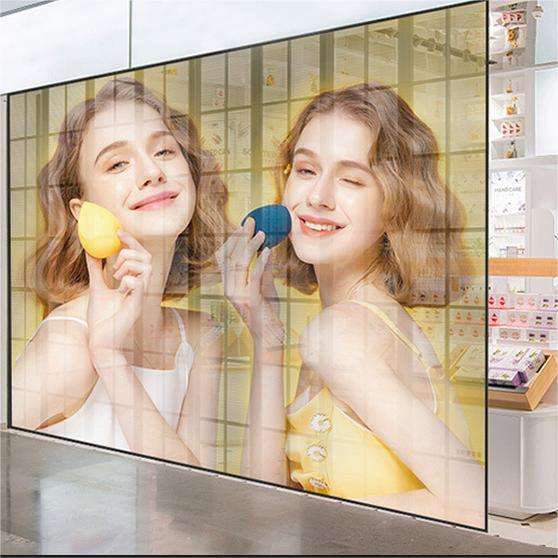

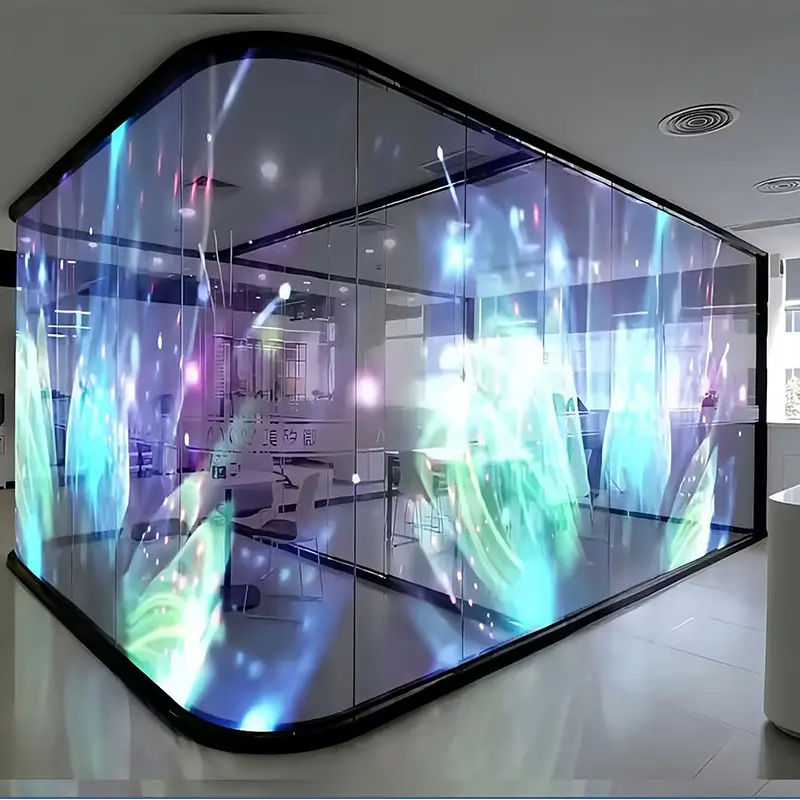

Indoor glass LED film screen/storefront LED display screen:
Shopping mall windows, exhibition hall glass partitions, and glass walls in banks/airports are used for product display or brand promotion, balancing lighting and display functions.
Curved LED Display Screen/Irregular LED Display Screen:
Curved glass LED screens, cylindrical LED displays, and wavy LED screens are used to achieve flexible displays (such as irregular decorations in science museums and art centers).
LED film screen for temporary activity scenes:
Exhibition LED film screens, press conference LED film screens, pop-up stores, etc., due to their convenient installation and disassembly, can quickly build temporary display walls to meet short-term display needs.
