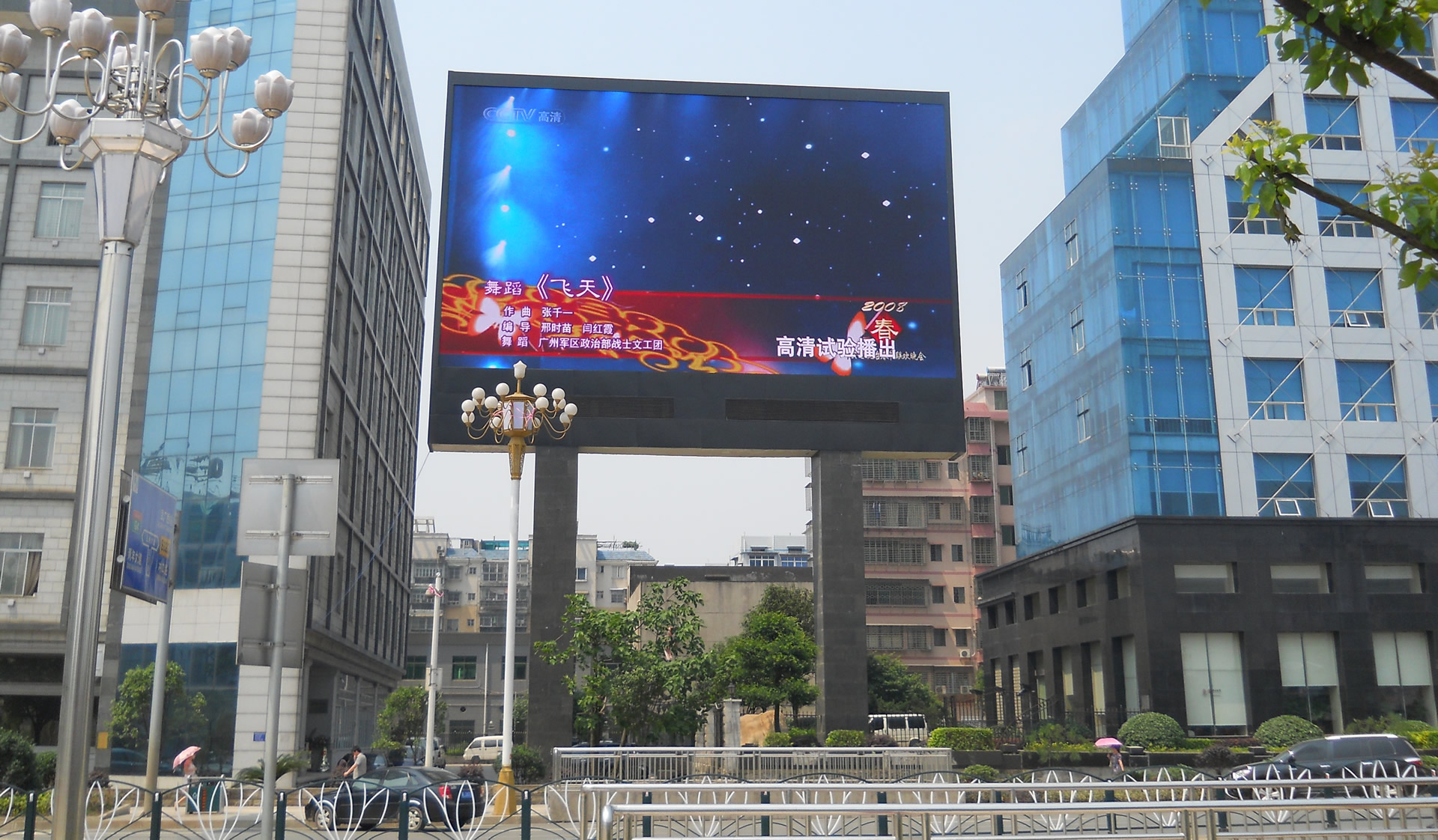

Shenzhen H&S Innovation Technology Co., Ltd delivered a PH10 outdoor full-color dual-pillar LED display totaling 200㎡ at Chenzhou Wuling Square—featuring high brightness, IP65 waterproofing & dual-sided visibility for maximum outdoor advertising impact.
| Project Overview | |
| Item | Details |
| Project Name | Outdoor P10 LED Display Screen |
| Location | Wuling Square, Chenzhou City, Hunan Province, China |
| Product Model | PH10 (P10) Outdoor Full Color LED Display |
| Pixel Pitch | 10 mm |
| Total Screen Area | 200 m² (Dual Screens / Pillar-Mounted) |
| LED Configuration | SMD 1R1G1B |
| Brightness | ≥ 5,500–6,000 nits |
| Protection Level | IP65 front / IP54 rear |
| Refresh Rate | ≥ 1920 Hz |
| Application | Public information broadcasting & commercial advertising in city square |
| Solution Provider | Shenzhen H&S Innovation Technology Co., Ltd (HSCXLED) |
Client Objectives:
Directional Visibility Issue: A single-face screen would only serve half the pedestrian/vehicle flow; a dual-sided solution was essential.
Sunlight Readability Concern: The square faces direct afternoon sun—screen washout would be unacceptable.
Structural & Wind-Load Constraints: The installation had to withstand regional wind loads (typhoon-season gusts) on a dual-column steel structure.
Water & Dust Ingress Risk: Chenzhou's humid subtropical climate demanded true IP65-rated front protection.
Maintenance Access: Limited rear access on a pillar-mounted structure required thoughtful cabinet and module design.
Content Management Flexibility: Multiple advertisers needed independent scheduling without on-site intervention.
Our Solution: PH10 Outdoor Full Color LED Display
Shenzhen H&S Innovation Technology Co., Ltd proposed a custom-engineered P10 outdoor LED display system, pillar-mounted on two reinforced steel columns, with the following key features:
Dual-Pillar / Dual-Sided Configuration: Two large LED screens mounted back-to-back on separate steel columns , each side independently controllable or synchronized—maximizing visibility from east–west and north–south approaches.
P10 Pixel Pitch (10 mm): Optimal for outdoor viewing distances of 10–150 m; balances resolution with cost-efficiency for large-format signage.
High-Brightness LEDs (≥6,000 nits): Ensures excellent contrast and readability even under direct midday sunlight; integrated light sensor enables auto-dimming at night to reduce light pollution and power draw.
IP65-Rated Waterproof Cabinets: Fully sealed die-cast or steel cabinets with rubber gaskets protect against rain, dust, and humidity.
Rear / Front Serviceable Modules: Depending on site clearance, cabinets were specified with rear-access doors or magnetic front-service modules for fast module replacement.
Standard 960×960 mm Cabinets: Ensures flatness, seamless splicing, and interchangeability of spare parts.
Novastar Sending/Receiving System: Supports remote content upload via LAN / 4G / Wi-Fi, multi-program scheduling, and split-screen layouts (video + text + clock/date).
Anti-Lightning & Overvoltage Protection: Integrated into the power distribution cabinet for outdoor electrical safety.
72-Hour Factory Aging Test: Every cabinet underwent full-load aging before shipment to guarantee field reliability.
Customer Feedback
Following commissioning and continuous operation, the management team reported:
"TheOutdoor Advertising LED Display have become a landmark feature of Wuling Square. The images remain vivid and legible even under the strongest afternoon sun, and the system's remote scheduling has made it easy for us to rotate public announcements and commercial ads. Structural stability has held up perfectly through seasonal storms, and routine maintenance has been minimal."
Product Advantages – Why P10 Outdoor LED Displays?
outdoor advertising LED display
✅ Excellent Cost-Performance for Large Areas – P10 delivers big-screen impact at lower total cost vs.
✅ Daylight-Readable High Brightness – 6,000+ nit output ensures visibility in full sun.
✅ Dual-Sided Pillar Mount Maximizes Reach – One structure serves two directional audiences.
✅ Rugged Weatherproof Design – IP65 front protection withstands rain, dust, snow, and salt spray.
✅ Energy Saving with Auto-Dimming – Reduces nighttime power draw and light pollution.
✅ Remote Content Management – Update ads from anywhere; support for 4G/Wi-Fi/LAN.
✅ Long Lifespan & Low Maintenance – Industrial-grade components + aging-tested assemblies.
✅ Custom Steel Structure Engineering – Wind-load calculations and foundation design provided.
Why Choose Shenzhen H&S Innovation Technology Co., Ltd (HSCXLED)?
With hundreds of successful outdoor LED projects across China and overseas, HSCXLED is a trusted manufacturing partner for advertisers, integrators, and municipal clients.
Our Strengths:
Proven Outdoor LED Expertise – Specializing in P2/P2.5/P3/P4/P5/P6/P8/P10/P16 outdoor displays, including pillar, wall-mounted, and rooftop structures.
In-House Production & QC – ISO-certified workshop; full optical & functional testing, 72-hr aging.
Structural Engineering Support – We provide CAD drawings, wind-load calculations, and steel structure fabrication specs.
Turnkey Service – From pixel-pitch recommendation and 3D renderings to on-site installation guidance and remote debugging.
Spare Parts & Warranty – 2–3 year warranty with readily available module/cabinet spares.
International Certifications – KC,CE, RoHS, FCC ready; export packing & global shipping experience.
Responsive After-Sales – Dedicated technical support team available via email, phone, and remote desktop.
Our goal is to deliver a durable, visually impactful, and commercially viable LED advertising solution—on time and on budget.
