Model Number: P2.5/P4.28
Customised Size: Diameter 500mm/Diameter 600mm
high-brightness and IP65 waterproof for outdoor use.
plug-and-play digital advertising LED display
Customised cabinet color and LOGO
Easy Control:4G/WiFi/HDMI Multi-Mode Intelligent Control
Dual Sided Design&Round Shapey
Supports Single and Double sided Display
Long Lifespan & Energy-Saving
Certificate: KC FCC CCC CA ROHS CE-LVD CE-EMC ISO9001

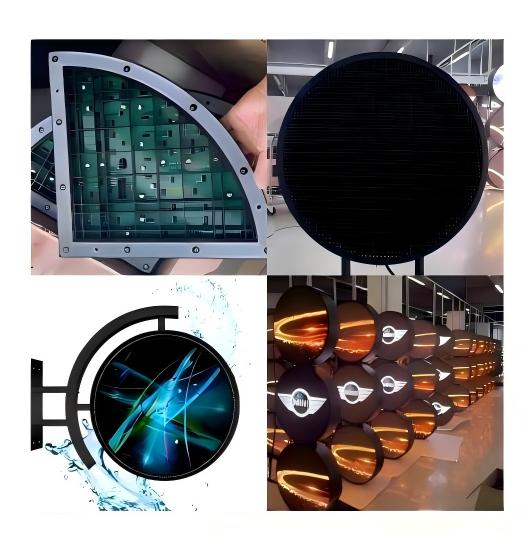

 | Round LED Display Circular LED display (disc LED screen)offers a 360-degree visual appeal that naturally draws the human eye. Whether you are displaying a dynamic logo, promotional text, or looping video ads, the unique form factor ensures your message is seen from every angle. |

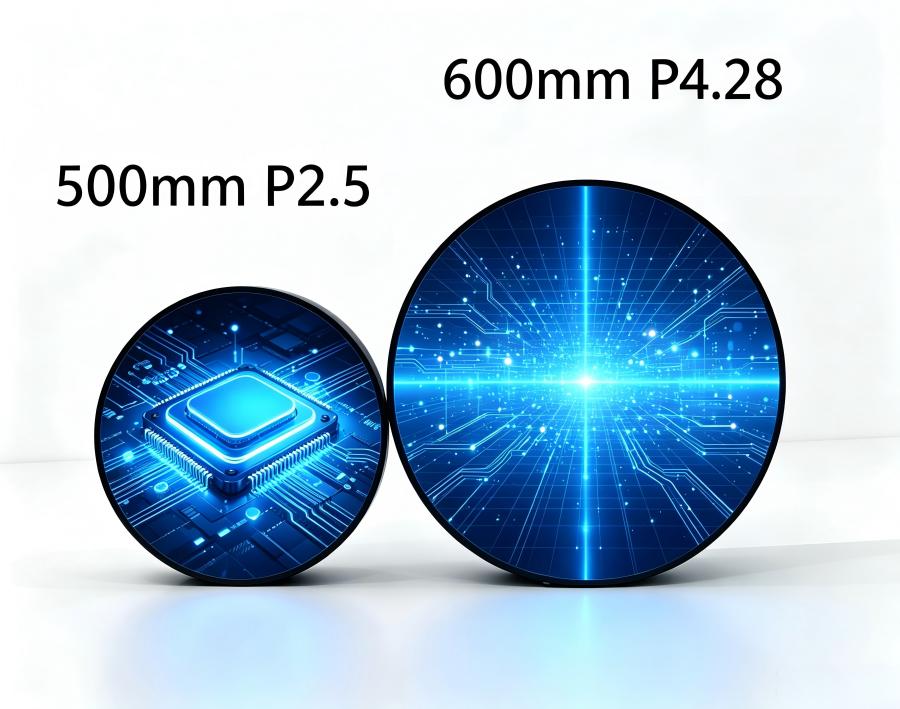

High Quality Outdoor Circle LED Screen Outdoor P2.5 Circle LED display for 500mm diameter Outdoor P4.28 Circle LED display for 500mm diameter high resolution and best visual quality |  |

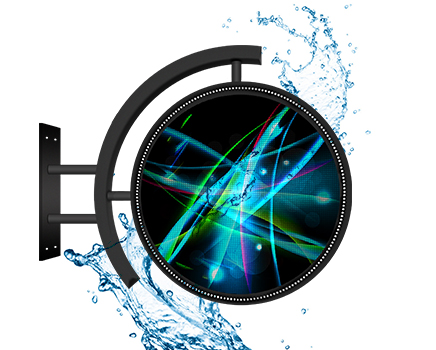

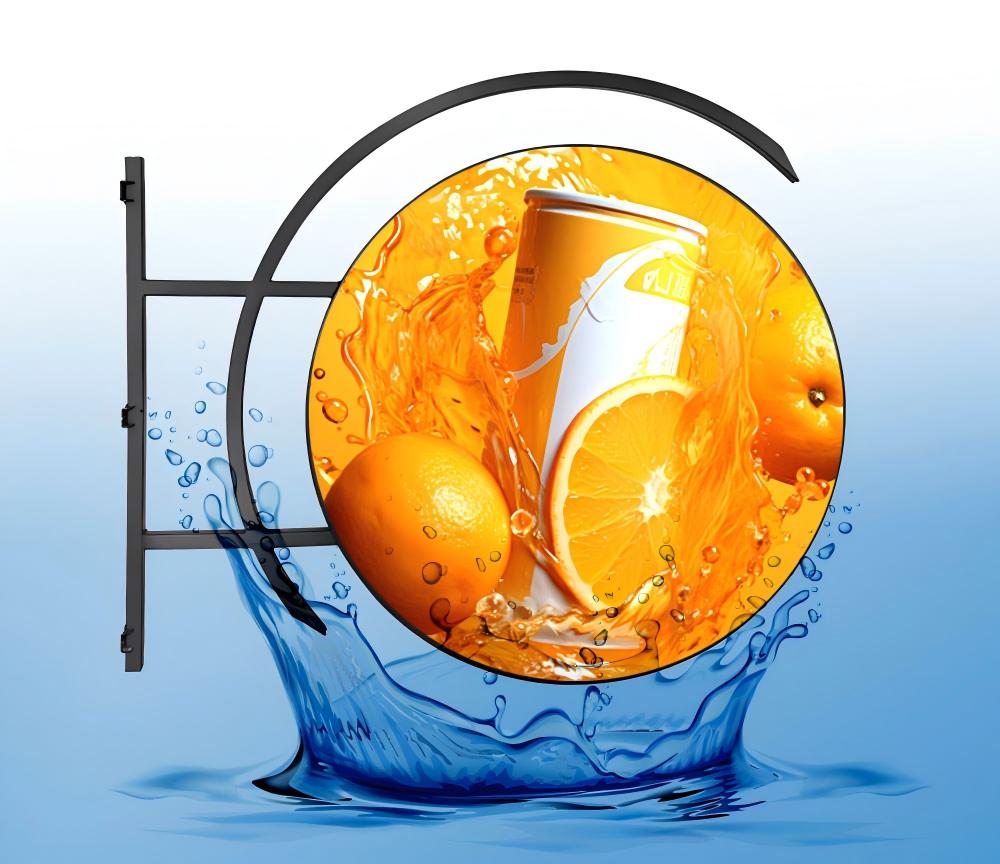

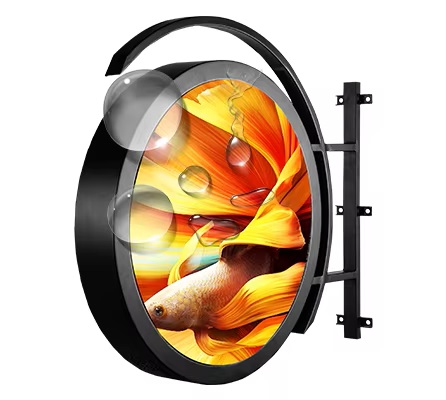

 | IP65 Waterproof & All-Weather Protection Engineered with an IP65 waterproof outdoor circle LED screen rating，Our Circular Round LED Screen has good anti-static, waterproof, dust-proof, lightining protection.waterproof front mask and dustproof back cover design, adapting to harsh outdoor weather conditions and greatly reducing outdoor screen failure rate. |

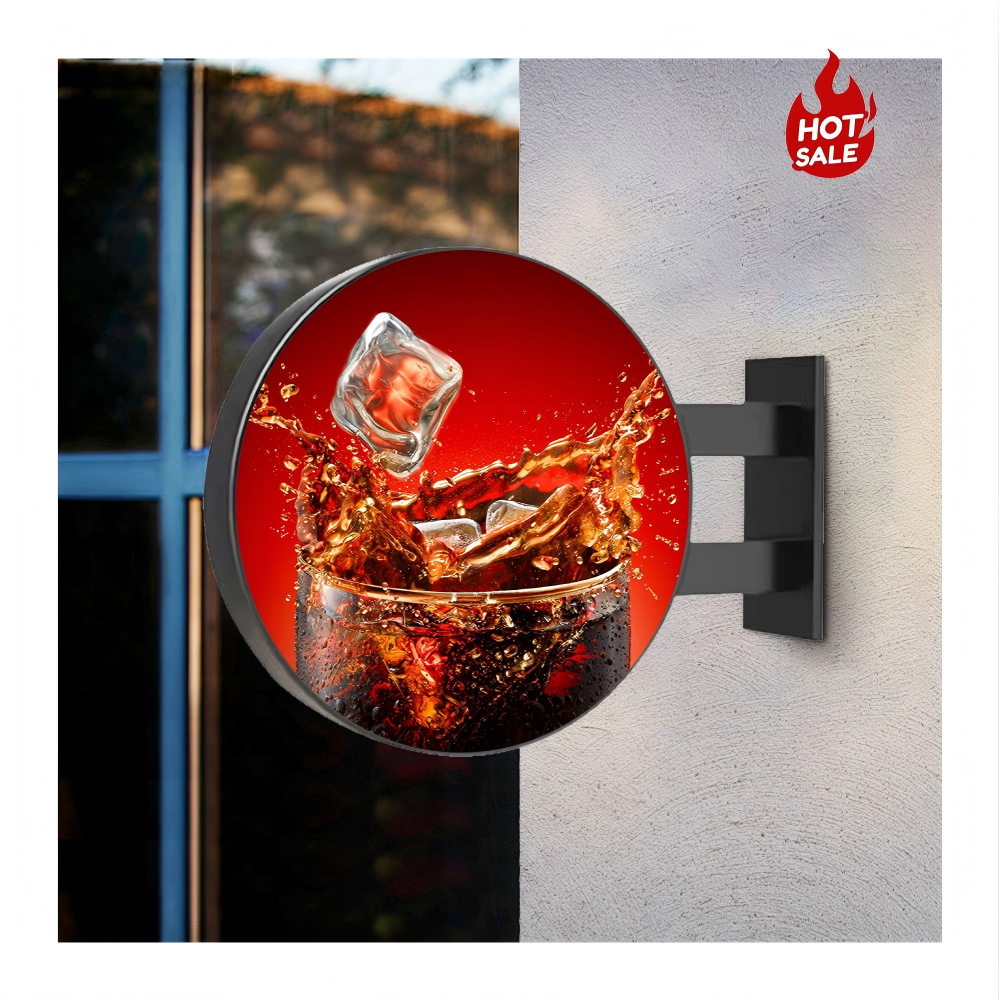

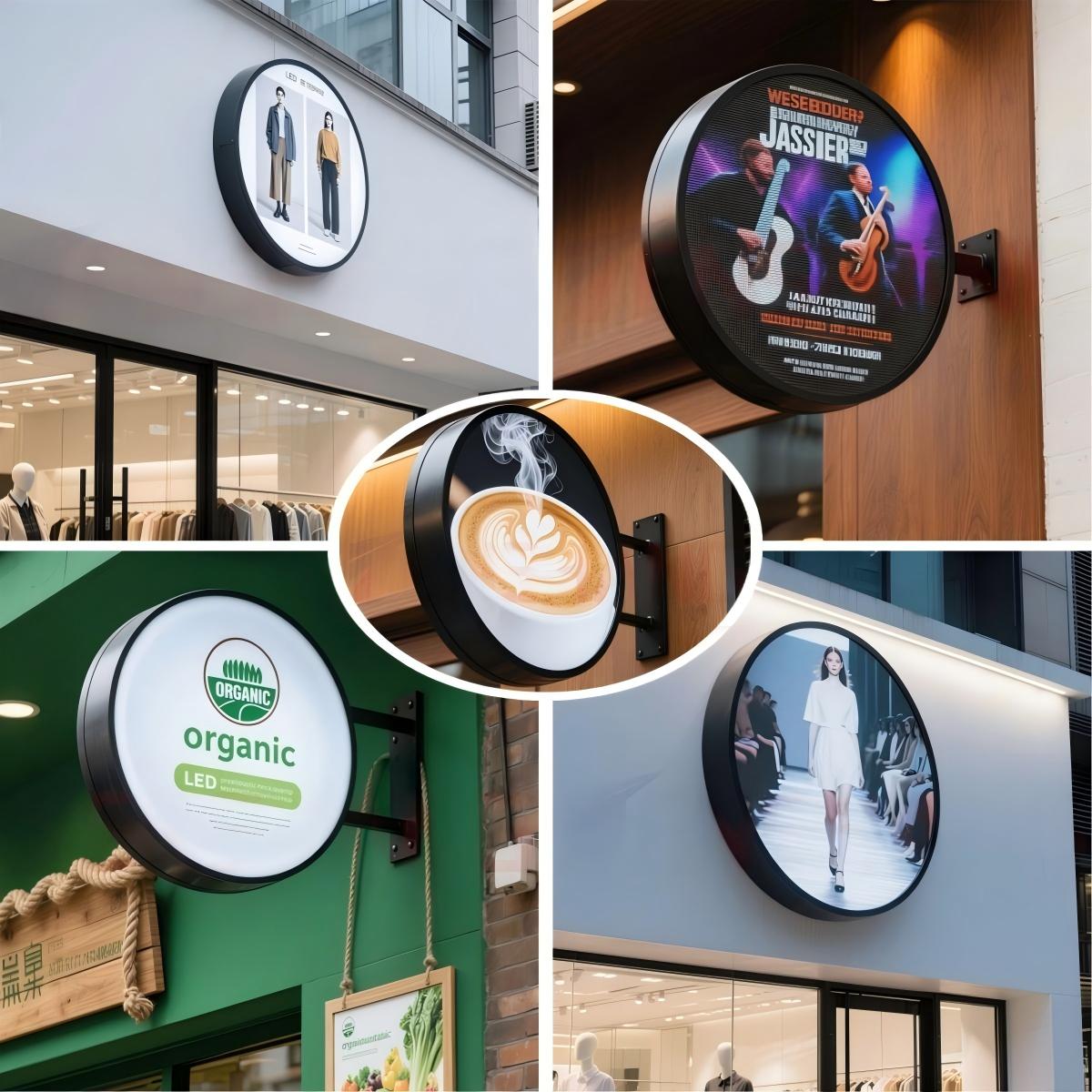

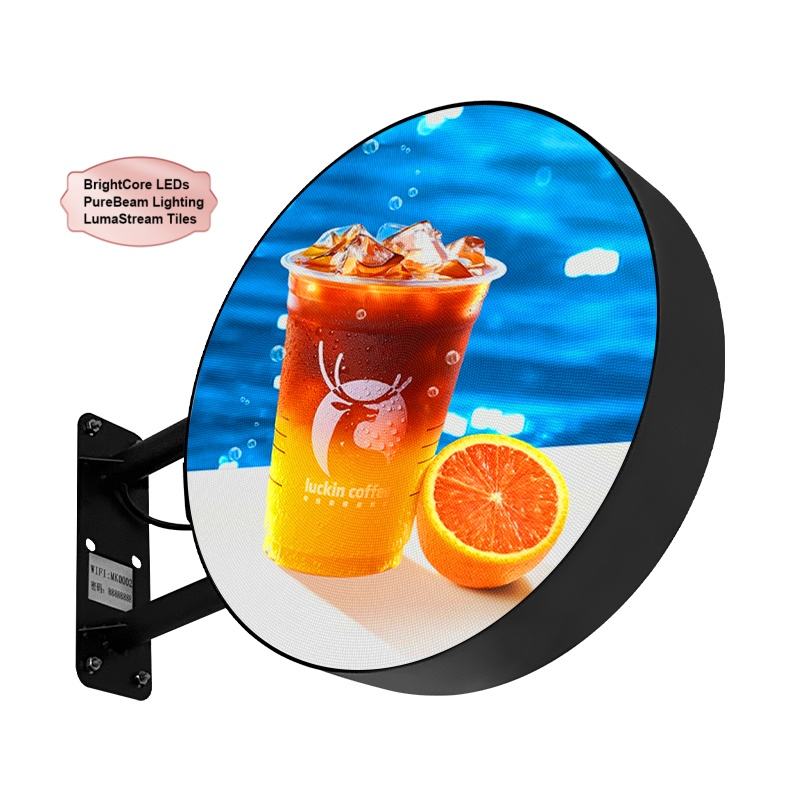

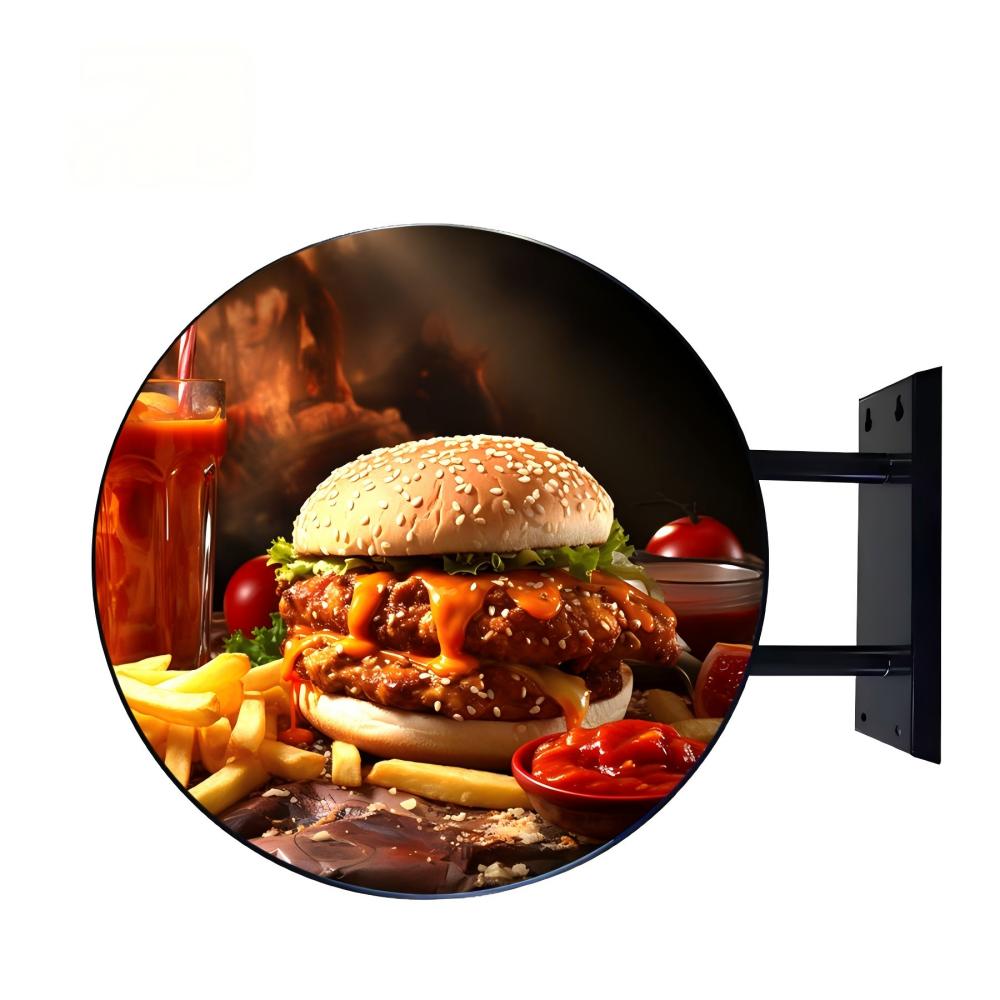

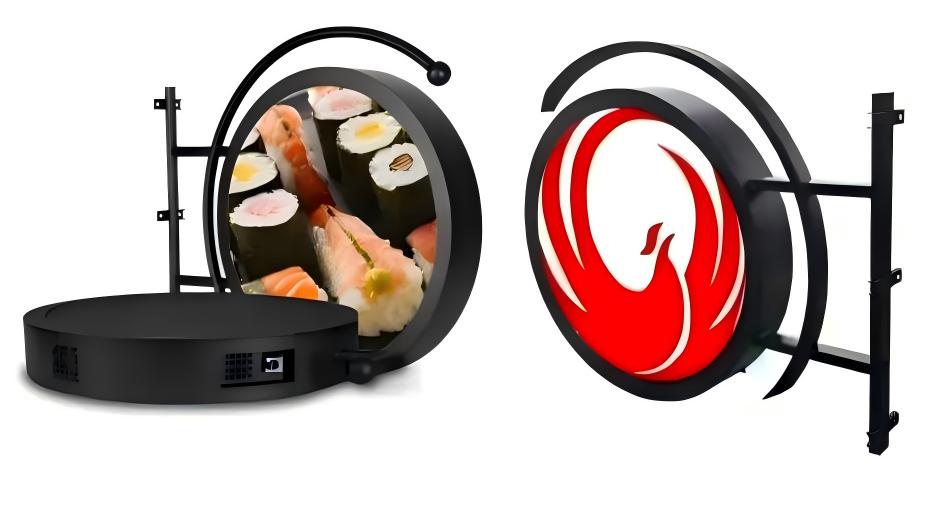

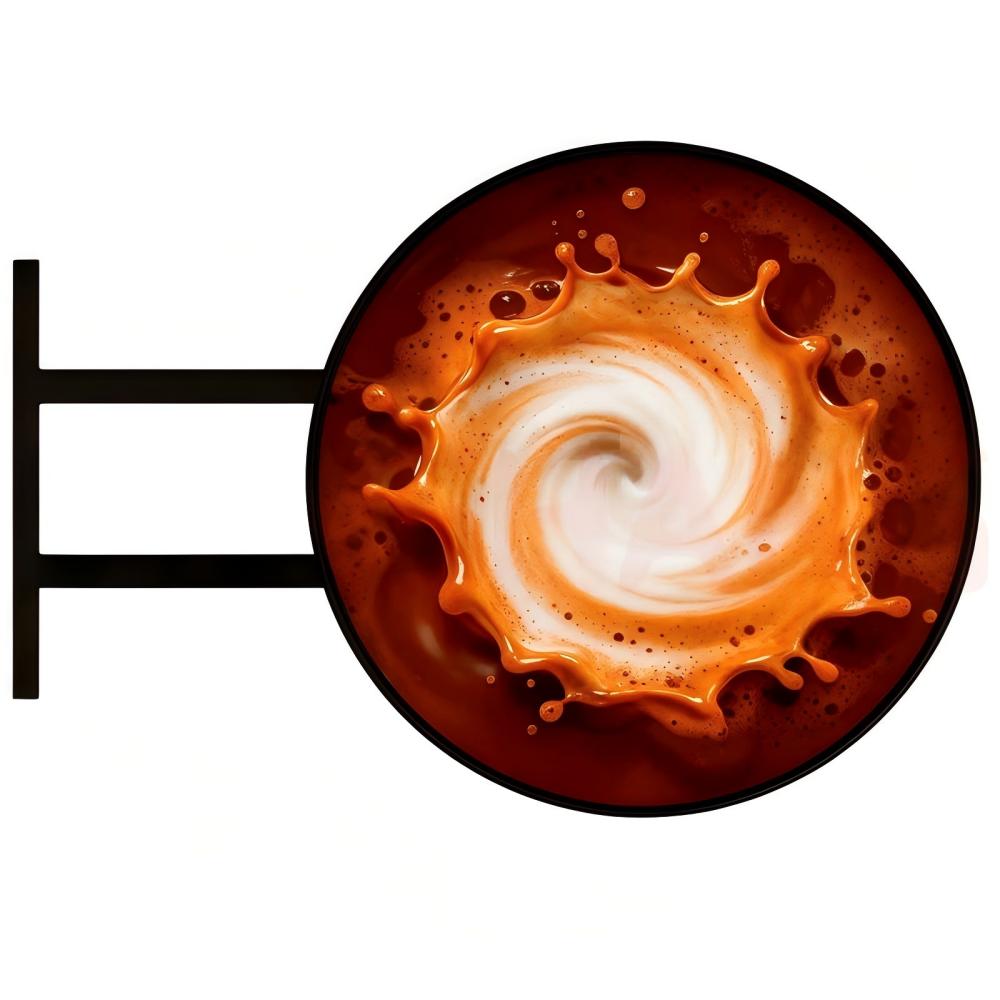

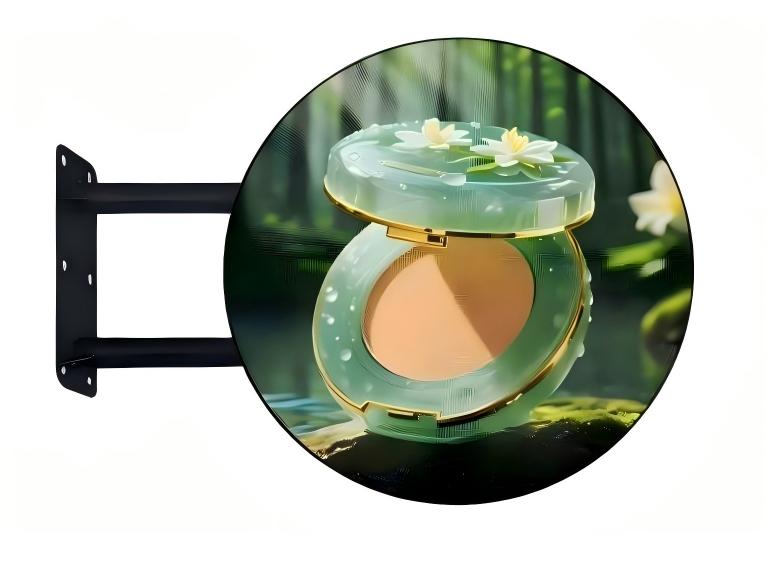

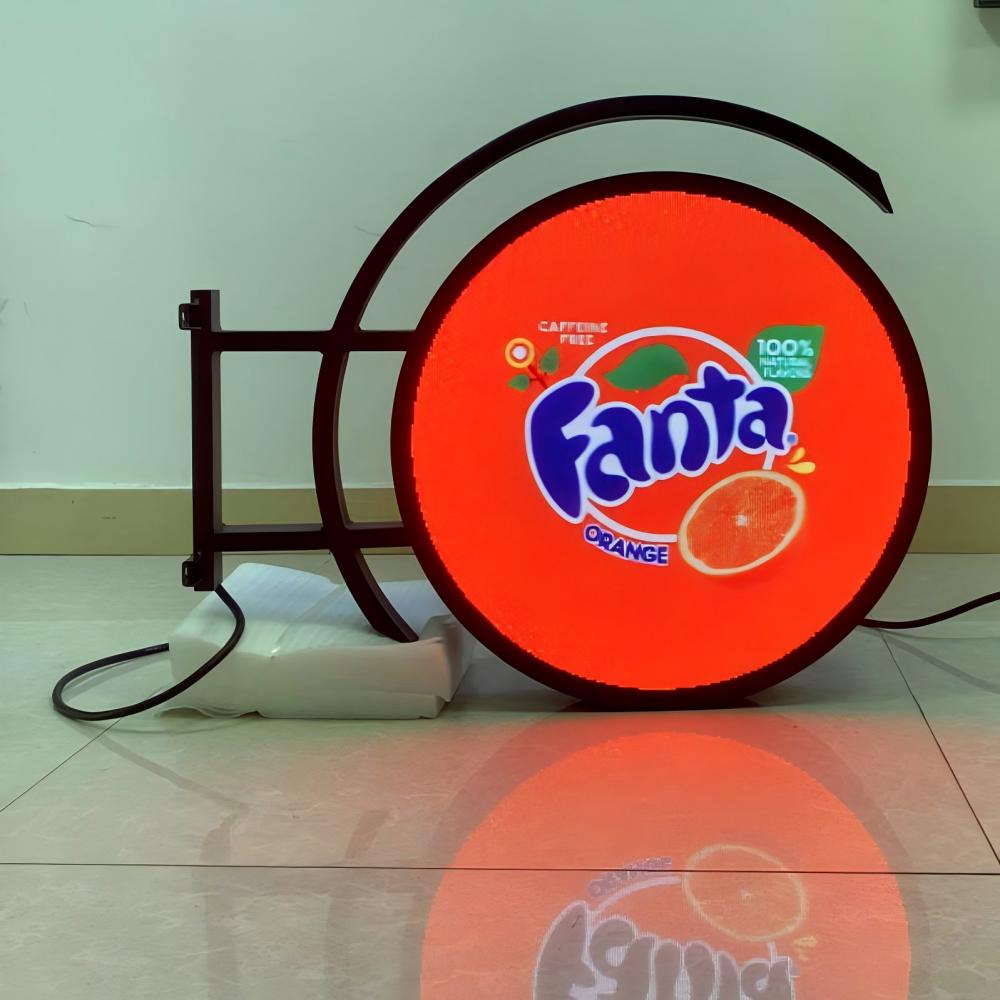

Single & Double-Sided Display Available as a single-sided circular LED display for flat wall mounting or a double-sided Circular Round LED Screen to capture pedestrian traffic from both directions along busy sidewalks. Dual-sided design achieves double advertising exposure, suitable for roadside hanging signs, building exterior logos, street lamp post displays, and mall outdoor facades. Single-sided mode fits wall-mounted fixed brand signage scenes. |  |

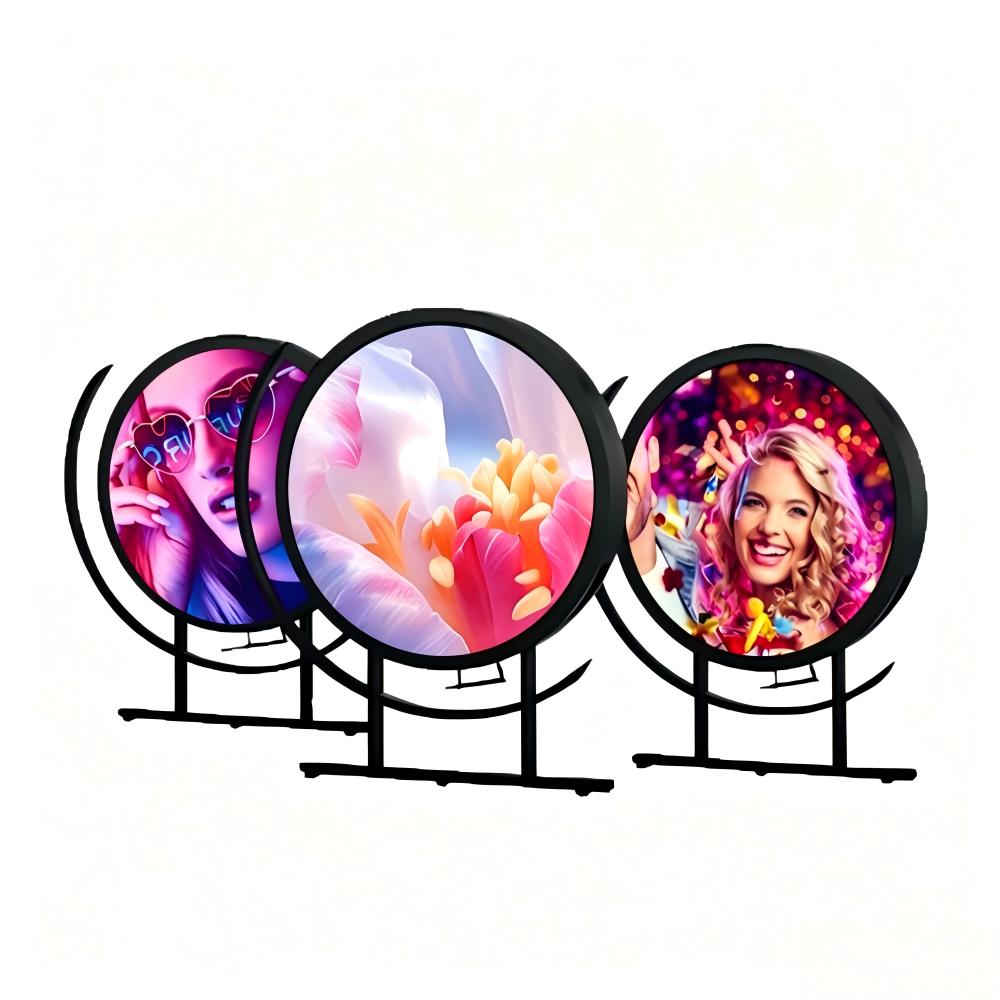

 | HD Clarity Full-Color Display A high-definition display delivering unparalleled visual immersion,Experience exceptional image depth,sharpness and color brilliance for true visual enjoyment. |
Ultra-High Brightness>5000nits Adopting outdoor high-brightness LED, our Circular Round LED Screen outshines direct, glaring daylight to ensure clear visual exposure even during peak midday sun. No screen fading, no color distortion, maintaining vivid and dynamic advertising effects in daytime outdoor environments. |  |

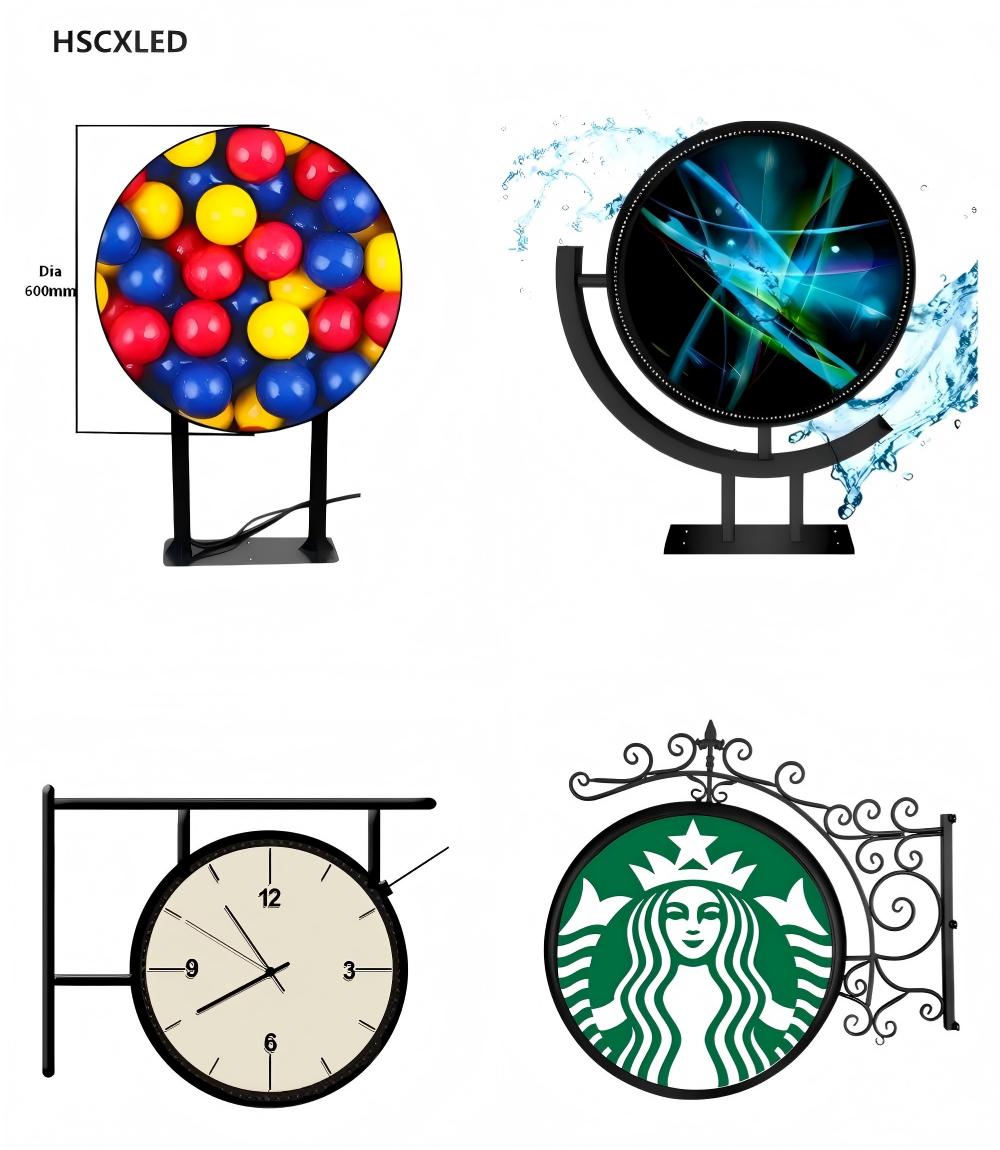

 | Customised cabinet color and LOGO Diversified shapes/customizable borders Multiple installation methods |

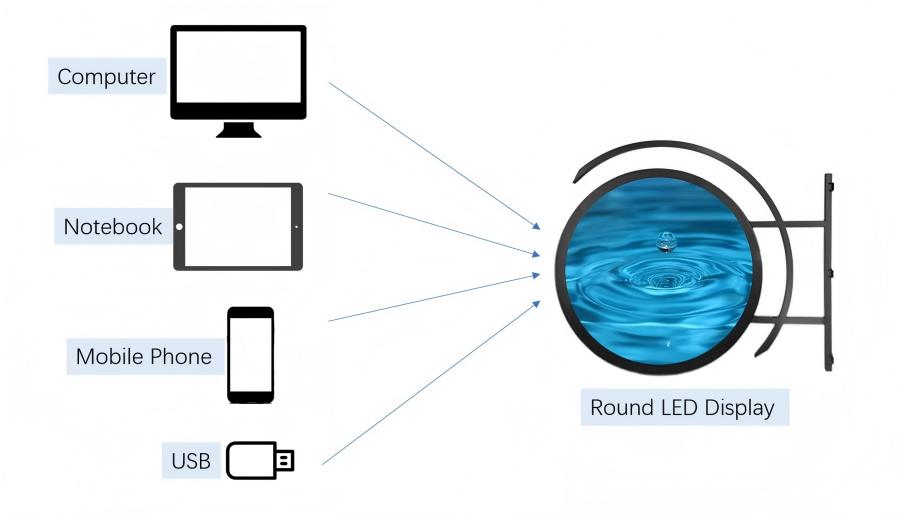

Smart & Easy Content Management Our Circular Round LED Screen supports multiple control methods including Wi-Fi, USB, 4G, and dedicated Mobile APP. Loop Advertising Display,Support Video/Text/Picture/Time/3D Text/Office/SWF. |
|
 | Plug & Play Solution It's a plug and play solution for our Circular Round LED Screen. No need for extra configuration, Extremely easier and simpler for end-users. |
| Lightwieght and Convenient The Circular Round LED Screen can be used for outdoor environment . The circular LED display screen has beautiful apperance, good rendering effect, light structure, light weight, reliable quality and high precision. |

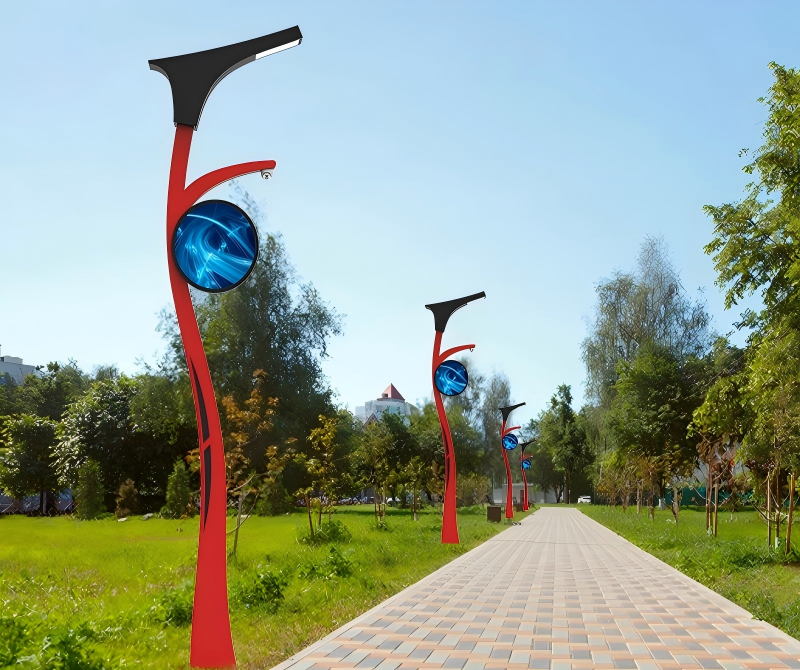

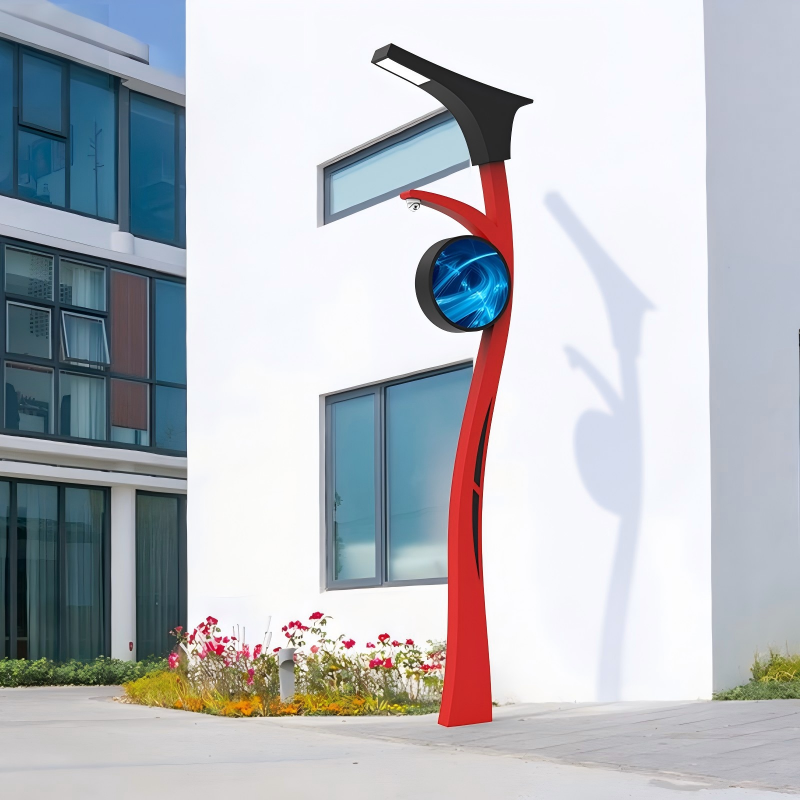

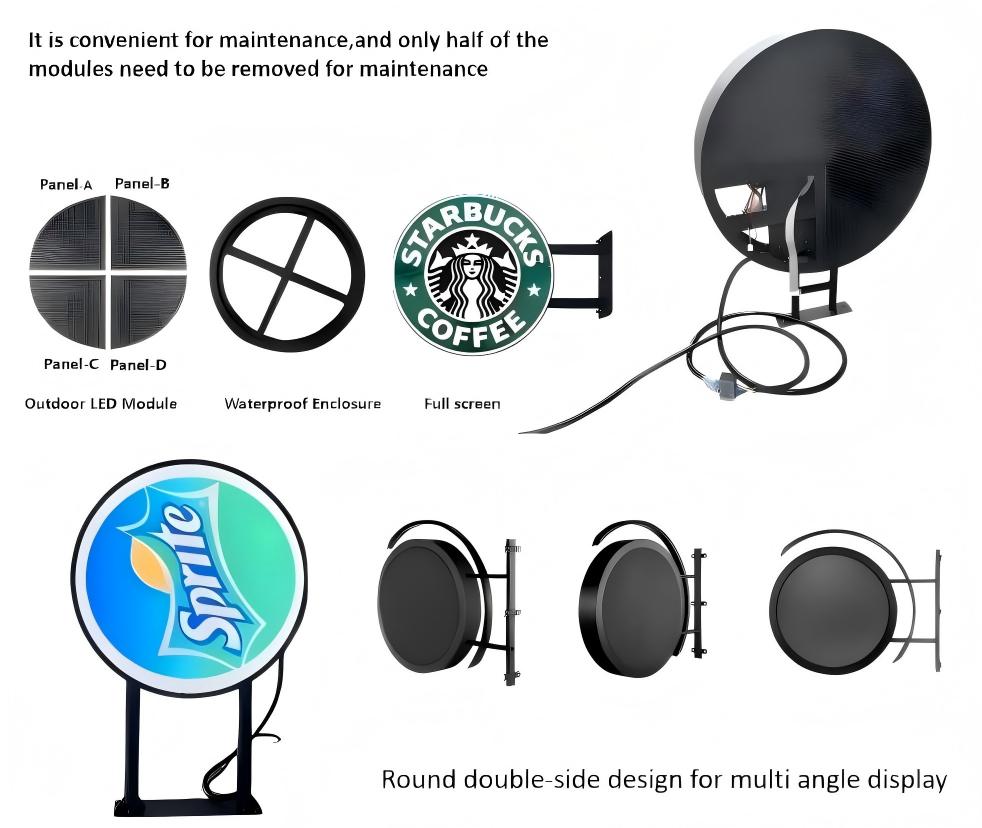

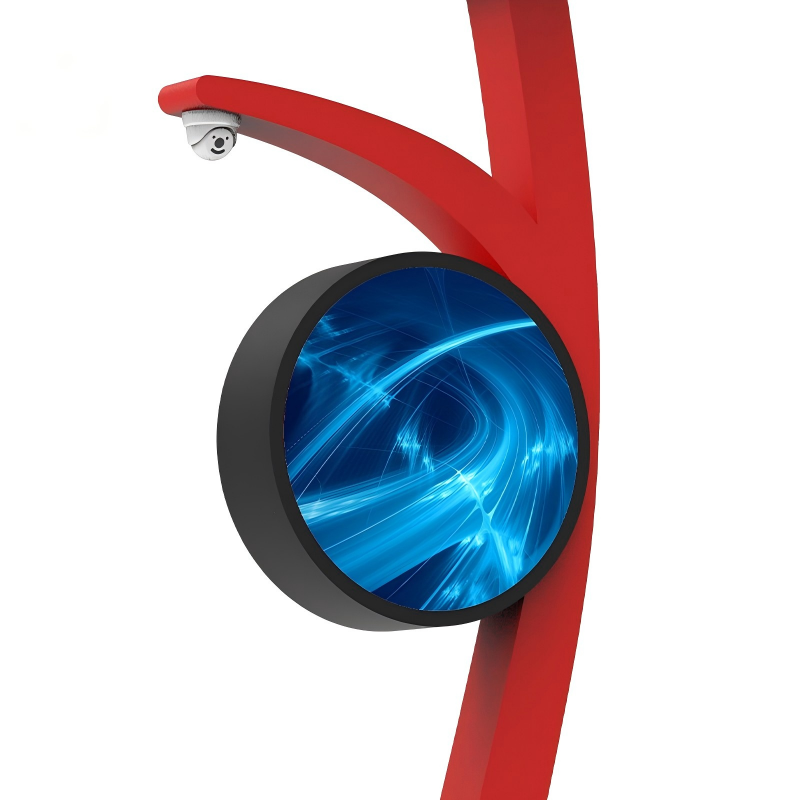

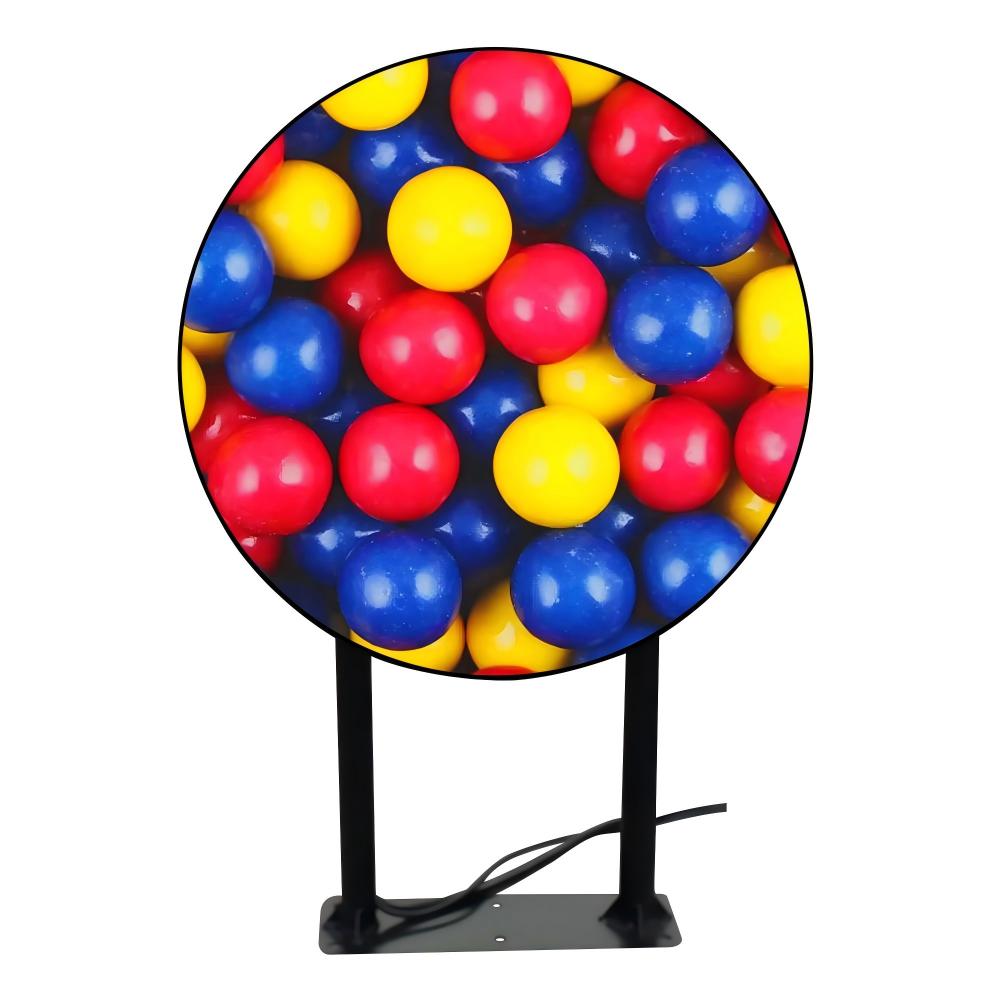

Flexible Installation & Maintenance The HSCXLED-Circular Round LED Screen lightweight design supports versatile mounting options: wall-mounted, ceiling-hung, or standing on a pole. Maintenance is hassle-free with a front-access design—simply open the cover or replace the modular parts without needing rear space. |
|
| Long Lifespan & Energy-Saving Our Circular Round LED Screen supports 24/7 continuous operation with low power consumption and efficient heat control, preventing overheating or screen damage. |
| Outdoor Circle LED Sign Specification: | ||
| Product name | Outdoor Circular LED Logo Board | |
| Model | P4.28 | P2.5 |
| LED type | SMD1921 | SMD1415 |
| Pixel pitch | 4.28mm | 2.5mm |
| Module size | 300mm*300mm | 260mm*260mm |
| Module resolution | 70*70dots | 104*104dot |
| Display area | 600mm*600mm | 500*500mm |
| Full screen size | 640mm*640mm*120mm | 550*550*120mm |
| Dot density | 54289 dot/㎡ | 160000dot/㎡ |
| Screen resolution | One side: 140*140 points; Double-sided: 280*140 points | One side: 208*208 points; Double-sided: 516*208 points |
| Best visual distance | 4-100m | 2-100m |
| Case materials | aluminum profile | aluminum profile with PC |
| Customization | Single Sided/Double Sided | |
| Refresh rate | 3840Hz | |
| Brightness | 5500cd/㎡ | |
| IP level | IP65 | |
| Viewing angle | 170°/170° | |
| Weight | Single side ≈10Kg; double side ≈12.5Kg | |
| Maximum power | Single side 200W/set; double side 400W/set | |
| Average power | Single side 67W/set; double side 134W/set | |
| Operating Temperature | -40°C~+60°C | |
| Install method | Side hanging; Mosaic; wall hanging; lifting | |
| brilliance control | Manual/automatic/program control | |
| Display Function | Video/Text/Picture/Time/3D Text/Office/SWF | |
| Control mode | Asynchronous control/mobile APP, WIFI, U disk, cloud platform | |
| Control System | NovaStar / Colorlight / HUIDU / Mooncell... | |
| Life | >100,000 Hours Theoretical value | |
Highlight: Round Shaped Led Screen, Outdoor Circular Led Display,
Circular Led Display Screen,Round LED Display
Q:Can this circle LED display be installed as both a flat wall sign and a double-sided LED display?
A: Yes. We supply specialized mounting brackets for flat wall mounting (single-sided configuration) as well as side-pole or wall-projecting brackets (double-sided configuration). The iron housing is pre-engineered for rapid, secure installation on concrete, steel, or brick storefronts.
Q: What standard diameters do you manufacture for outdoor circular LED displays, and can sizes be customized?
A: Our standard mass-production diameters include 500mm, 600mm. For large architectural projects, we can also engineer custom-diameter circular LED displays upon request.
Q: How do I choose between P2.5, P4.28, P3 pixel pitches for an outdoor round LED screen?
A: P2.5 (500mm)/P4.28 (600mm): (2-5+ meters)Ideal for high-end boutique storefronts with ultra-close pedestrian traffic、 retail windows、Storefront Blade、Projecting Signs、Smart City Street Furniture、Kiosks、Coffee Shops、Bars、Restaurants...
P3 (1000mm-5000mm) : (5+ meters)Amusement parks, scenic spots, outdoor advertising screens, etc
Q: Is the outdoor circle LED screen fully waterproof and dustproof against harsh weather?
A: Yes. The unit features a certified IP65 waterproof rating. The housing uses anti-corrosion die-cast aluminum, waterproof rubber gaskets, and conformal-coated LED modules to resist torrential rain, snow, heavy dust, and extreme temperature fluctuations.
Q: Will the display screen be clear under direct midday sunlight?
A: Absolutely. Our outdoor circle screens output a brightness level of >5000nits, guaranteeing high visual contrast, rich color saturation, and complete readability even under direct, harsh sunlight.
Q: What control system drives the circular display, and can we update content remotely via 4G or WiFi?
A: The display is powered by the NovaStar control system. You can update content locally via WiFi/USB/HDMI using the NovaStar ViPlex app, or manage large multi-screen fleets remotely via 4G LTE connected to the NovaStar VNNOX cloud platform.
Q: On a double-sided circle LED display, can we play different videos on each side simultaneously?
A: Yes. The NovaStar dual-output controller allows you to either mirror the same media on both sides or configure side A and side B to run completely independent video loops, graphics, and text schedules.
Q: What is the operating voltage and power consumption of the outdoor circle LED display?
A: The system includes a wide-voltage industrial power supply supporting AC100V–240V (50/60Hz). Due to energy-efficient LED IC architecture, the average power consumption is low, minimizing operational electricity costs.
Q: Is the outdoor circle LED screen easy to install and maintain?
A: The integrated round disc design is lightweight and pre-assembled, easy for wall mounting, hanging, and bracket installation. Modular structure supports convenient daily maintenance.
Q: How is the after-sales warranty and technical support?
A: We provide standard manufacturer warranty for LED modules and control systems. Global remote technical support, operation guidance, and long-term spare parts supply are available for all overseas orders.
Q:who are we?
A:HSCXLED (Shenzhen H&S Innovation Technology Co., Ltd) is a professional manufacturer of LED display screens. based in Guangdong, China, start from 2018,sell to Southeast (18.00%),Western Europe(16.00%),Eastern Europe(9.00%),Southern Europe(8.00%),Domestic Market(8.00%),Mid East(7.00%),Northern Europe(7.00%),North America(6.00%),Southeast Asia(6.00%),Africa(4.00%),Central America(4.00%),South Asia(4.00%),Eastern Asia(3.00%). There are total about 20-50people in our office.
Q:how can we guarantee quality?
A:Always a pre-production sample before mass production; Always final Inspection before shipment;
Q:what can you buy from us?
A:Digital LED Poster,Outdoor advertising led display,Flexible LED Display,Ultra-Thin LED Display Screen,Creative LED Display
Q:why should you buy from us not from other suppliers?
A:HSCXLED specializes in creative LED display and solutions, such as Ultra-Thin LED Display Screen, poster LED display, flexible LED screen, circle LED sign and tailored LED screen & integrated solutions. It's also a great benefit for us with custom-made solutions.
