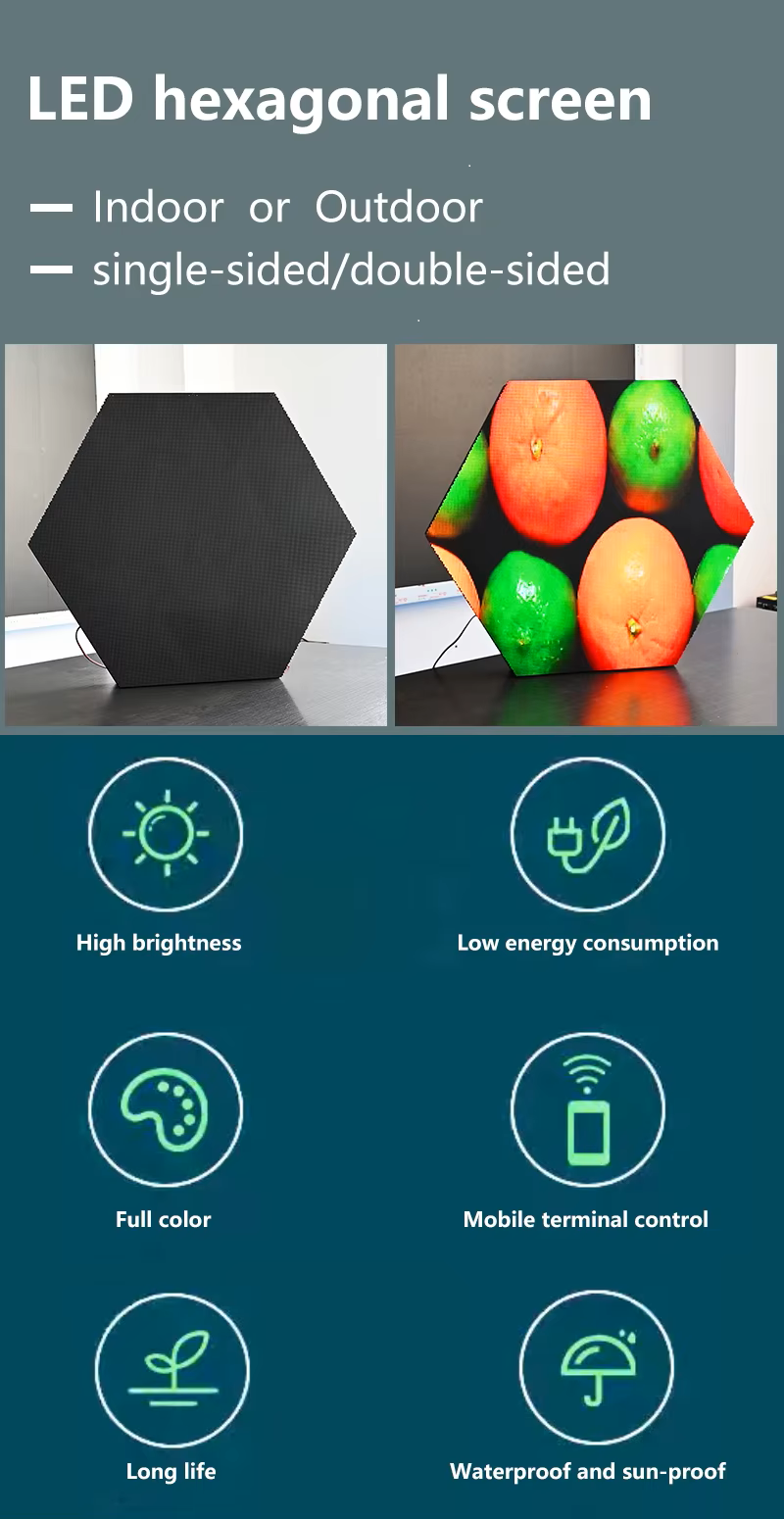

Hexagon LED Screen---HSCXLED
Indoor/Outdoor Use
LED display screen (single/double-sided)
Pixel Pitch:Indoor P2, P3.2, P4 OutdoorP3.125

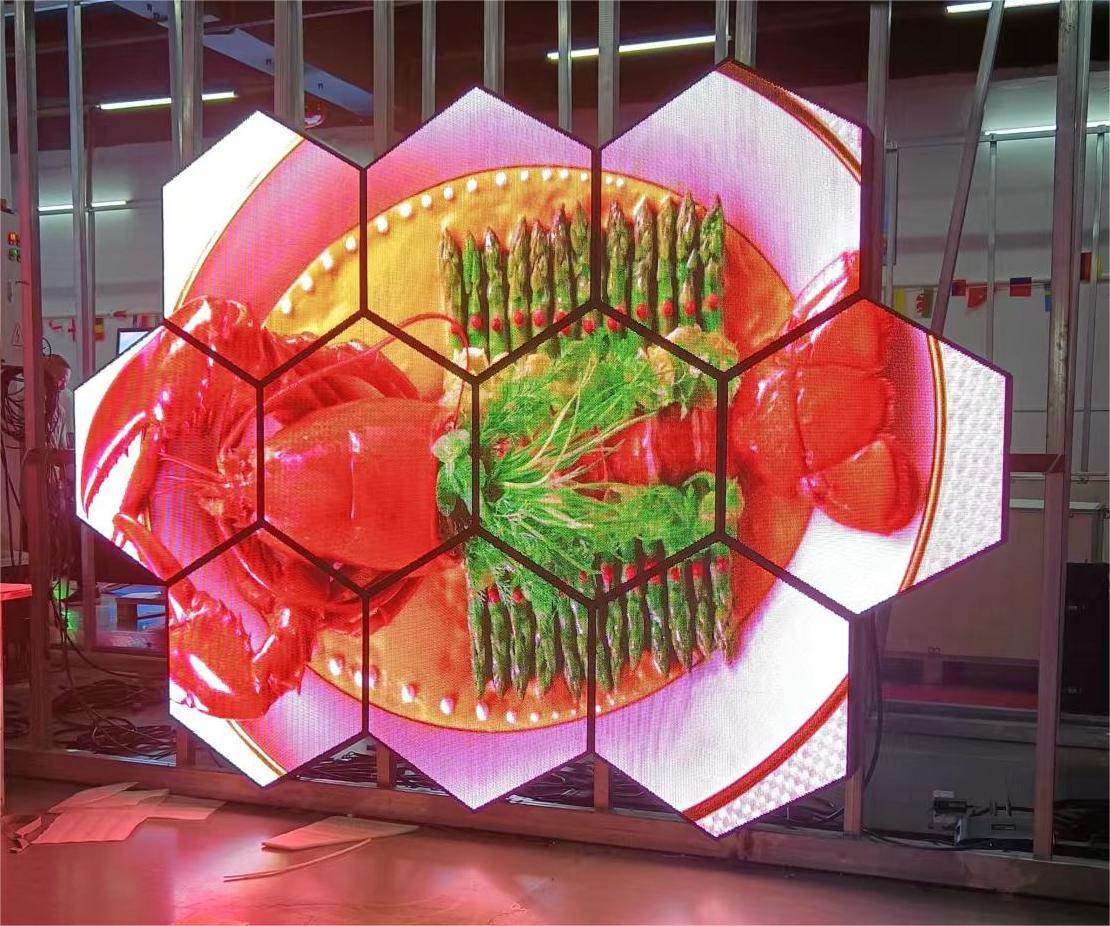

Hexagon LED display is a kind of led display with 6 sides.
Hexagon LED display panel is tailored for lots of different shapes and sizes.
Control: WiFi / 4G/5G / RJ45 / USB / HDMI / CloudI.
Certificate: KC FCC CCC CA ROHS CE-LVD CE-EMC ISO9001

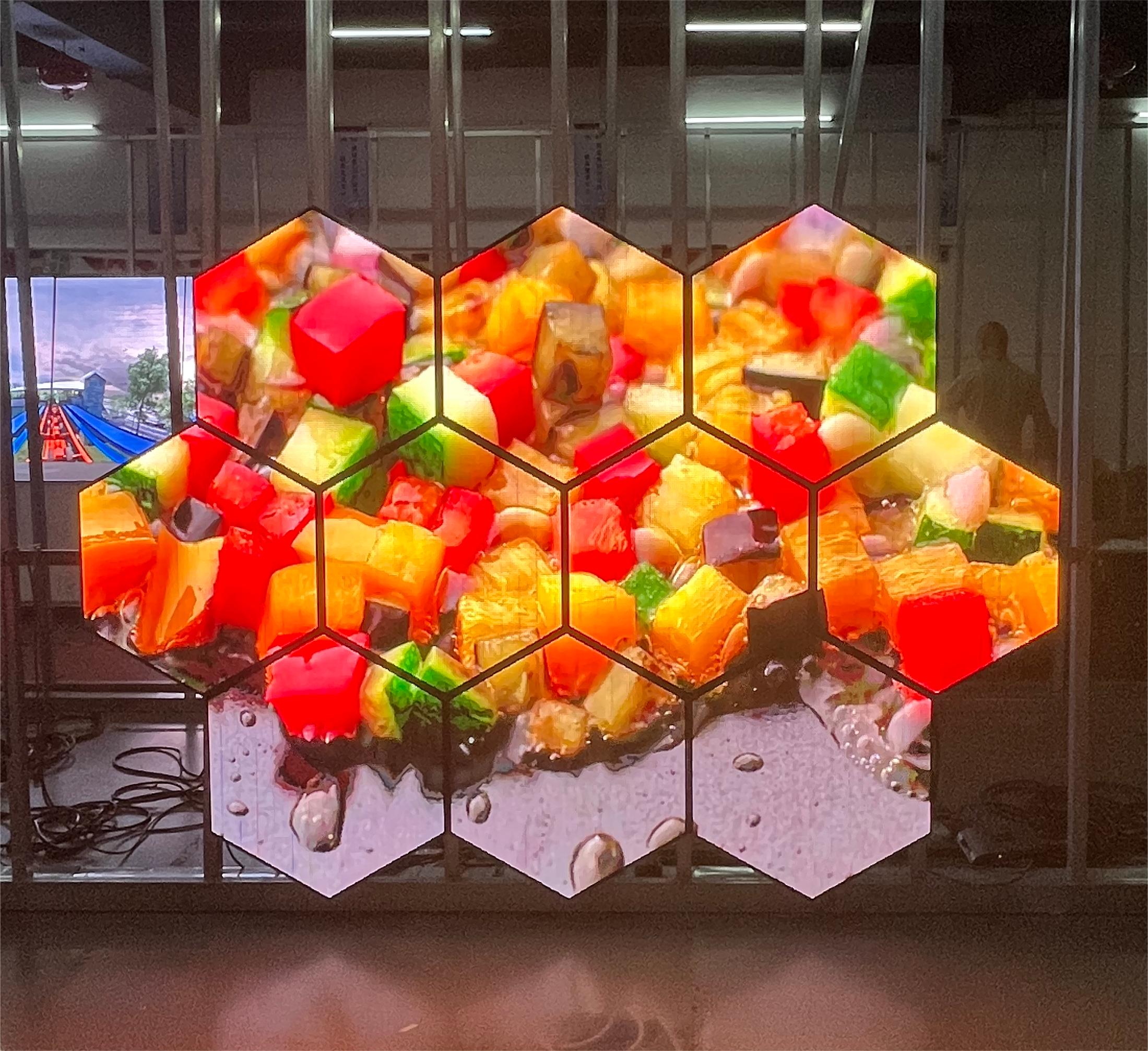

Unique Hexagon Design for Magic & Fantasy Effect Hexagon led video display has special and creative shapes. It's magic decoration and effect with such hexagon led video screen. Hexagonal led display has 6 same side length. |
|

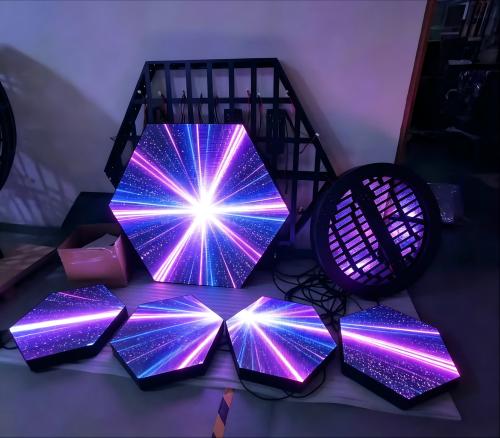

| Creative Design & Custom Size LED hexagon supports customization. Single sided display/double-sided display Indoor/Outdoor Model/LED display screen size can be customized. |

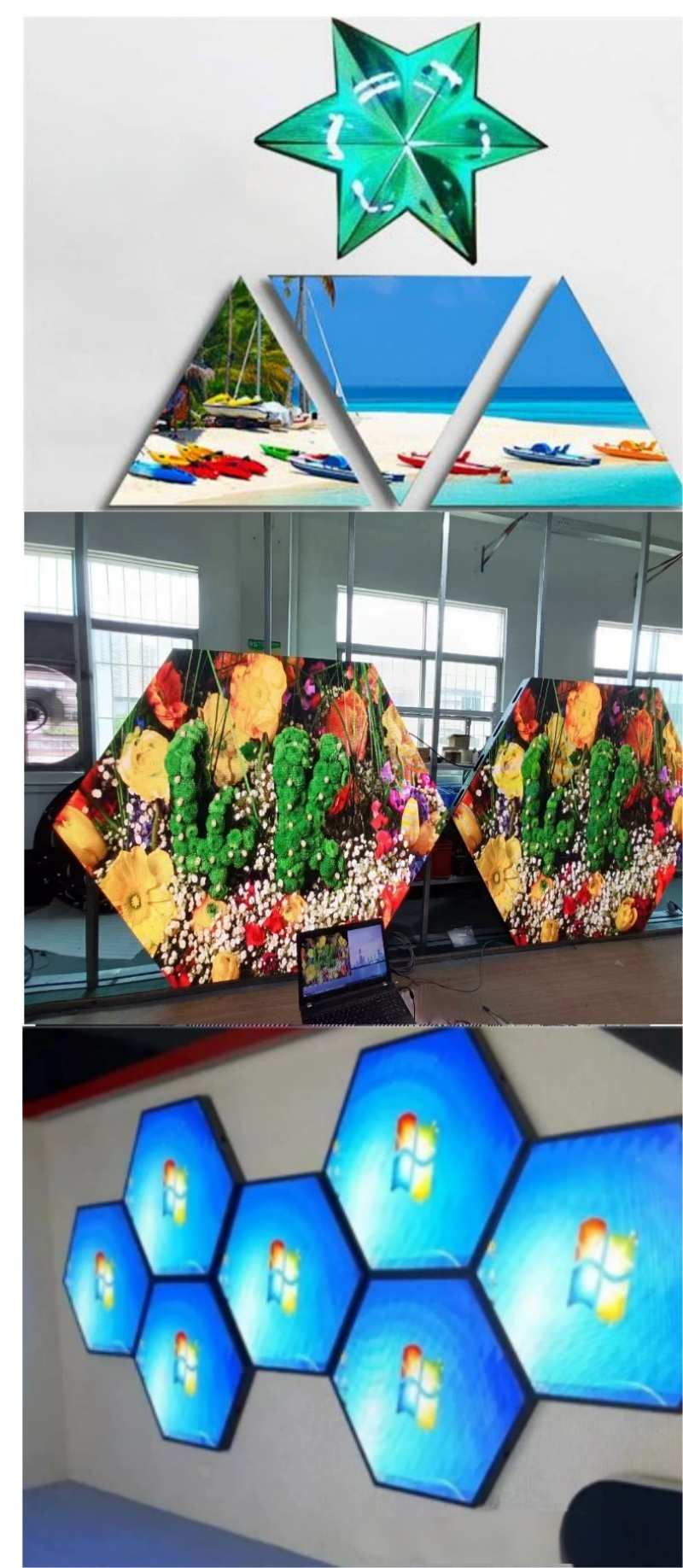

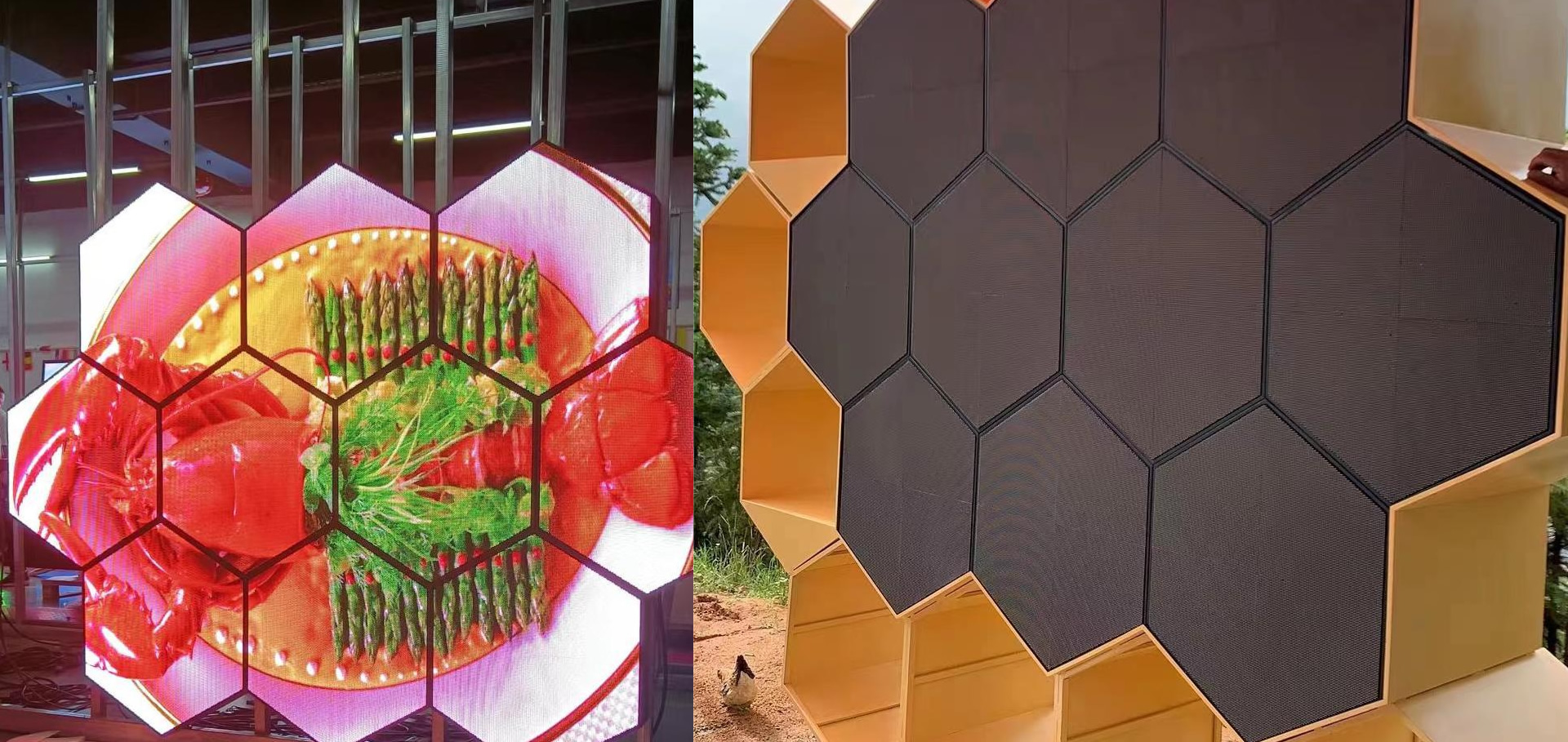

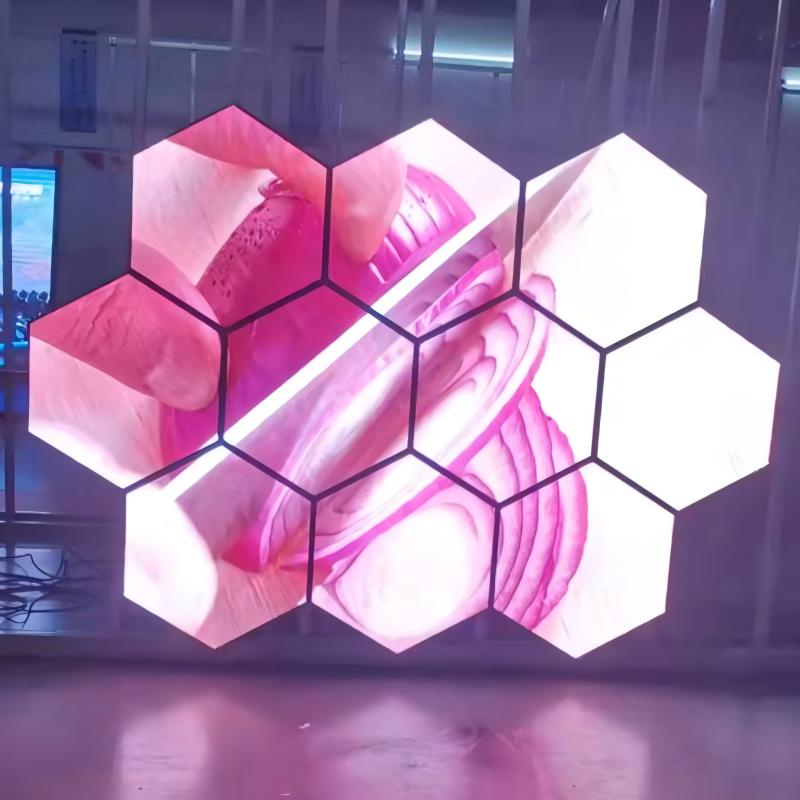

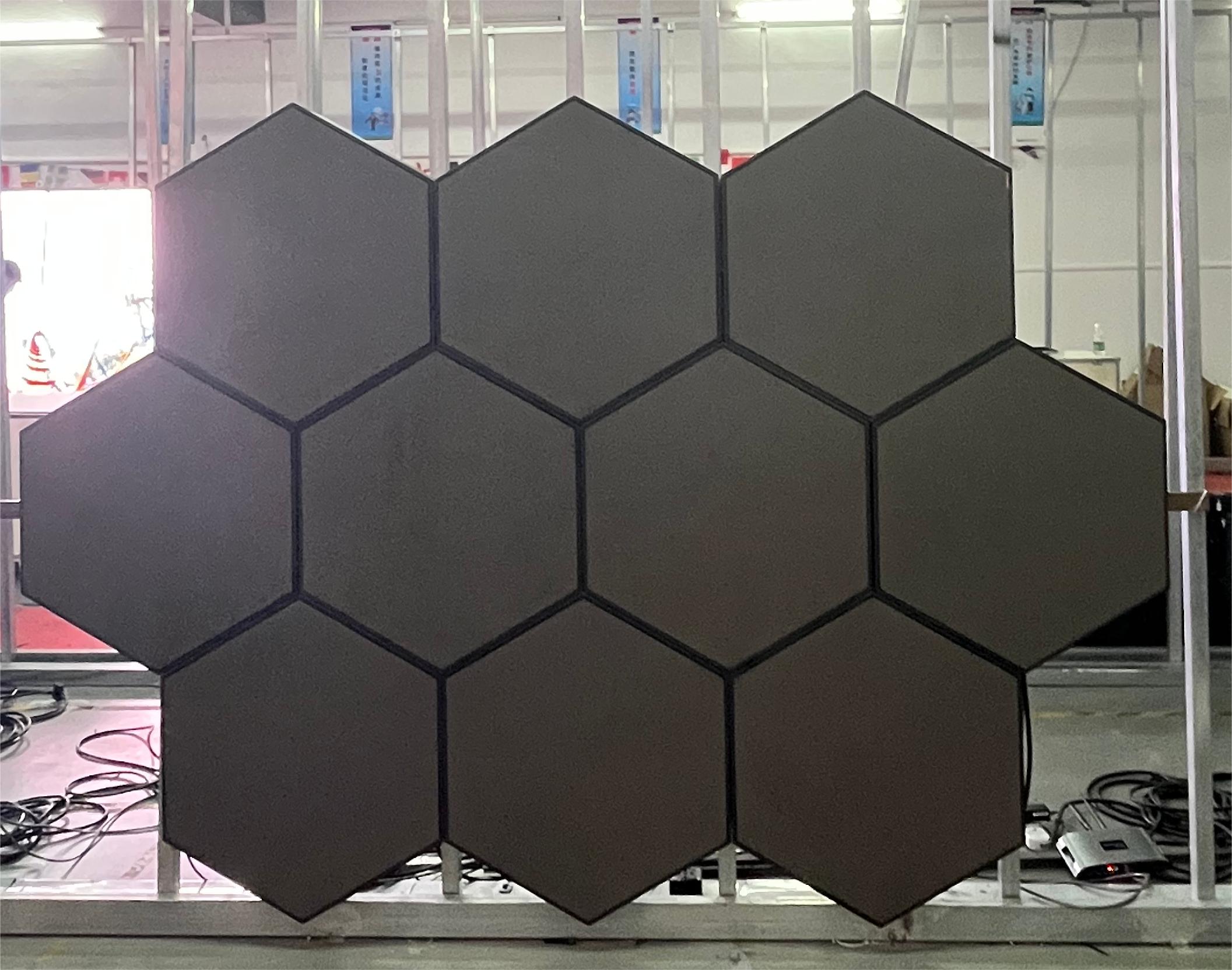

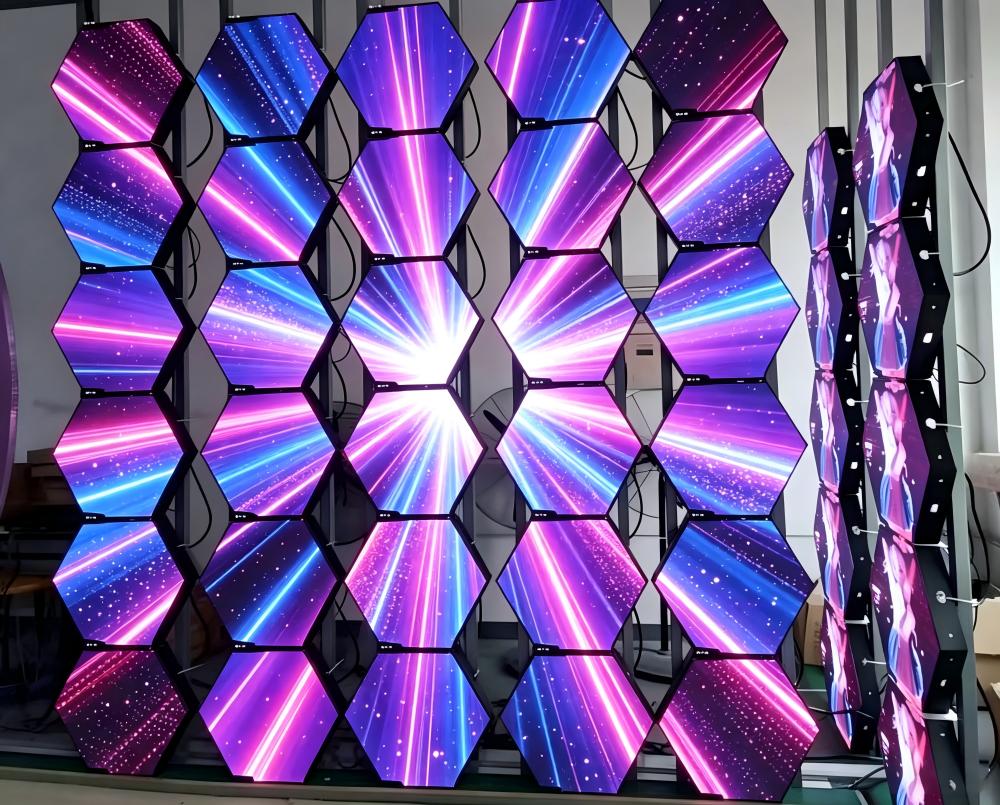

Flexible in shape and strong in combination Hexagons have natural splicing advantages and can be seamlessly combined into various irregular shapes such as triangles, diamonds, circles, etc., which can adapt to the installation needs of different outdoor scenes and have higher creativity. |  |
 | High brightness and good visibility Outdoor LED screens usually have high brightness and high contrast characteristics, which can display content clearly even in strong light environments, ensuring long-distance viewing effects. |
Strong durability and adaptability outdoor environments Adopting a waterproof, dustproof, and high/low temperature resistant shell design, it can withstand harsh outdoor conditions such as rainwater, sandstorms, and ultraviolet rays, with a long service life and relatively low maintenance costs. |  |

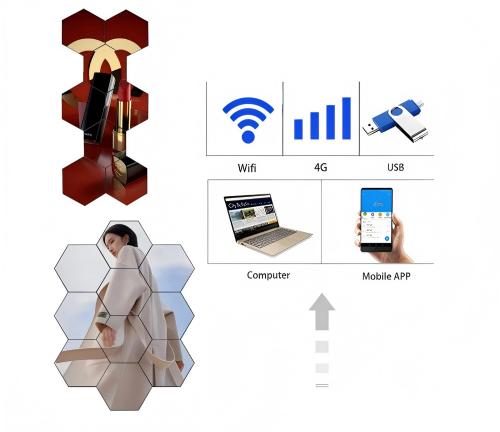

 | Easy Control & User-friendly Software Support LAN/Wifi/3G/4G/USB Control (optional) |
Plug and play It's plug & play solution for a single unit applications. No need for extra configuration It can display videos, pictures, animations and texts. |  |

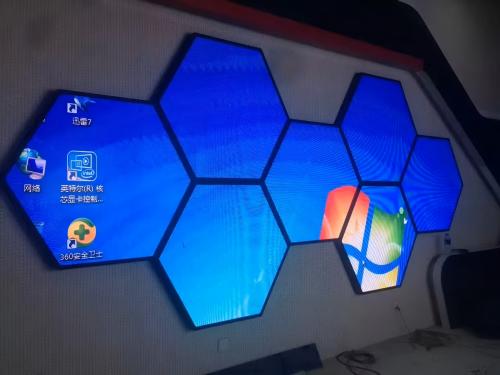

 | Flexible Installations Our hexagonal led display can be hanging and wall-mounted solutions. For hanging, it can be hang with hooks on the top or back side. For wall-mounted, it can reserve holes on the back side and mount on the wall with screws. |

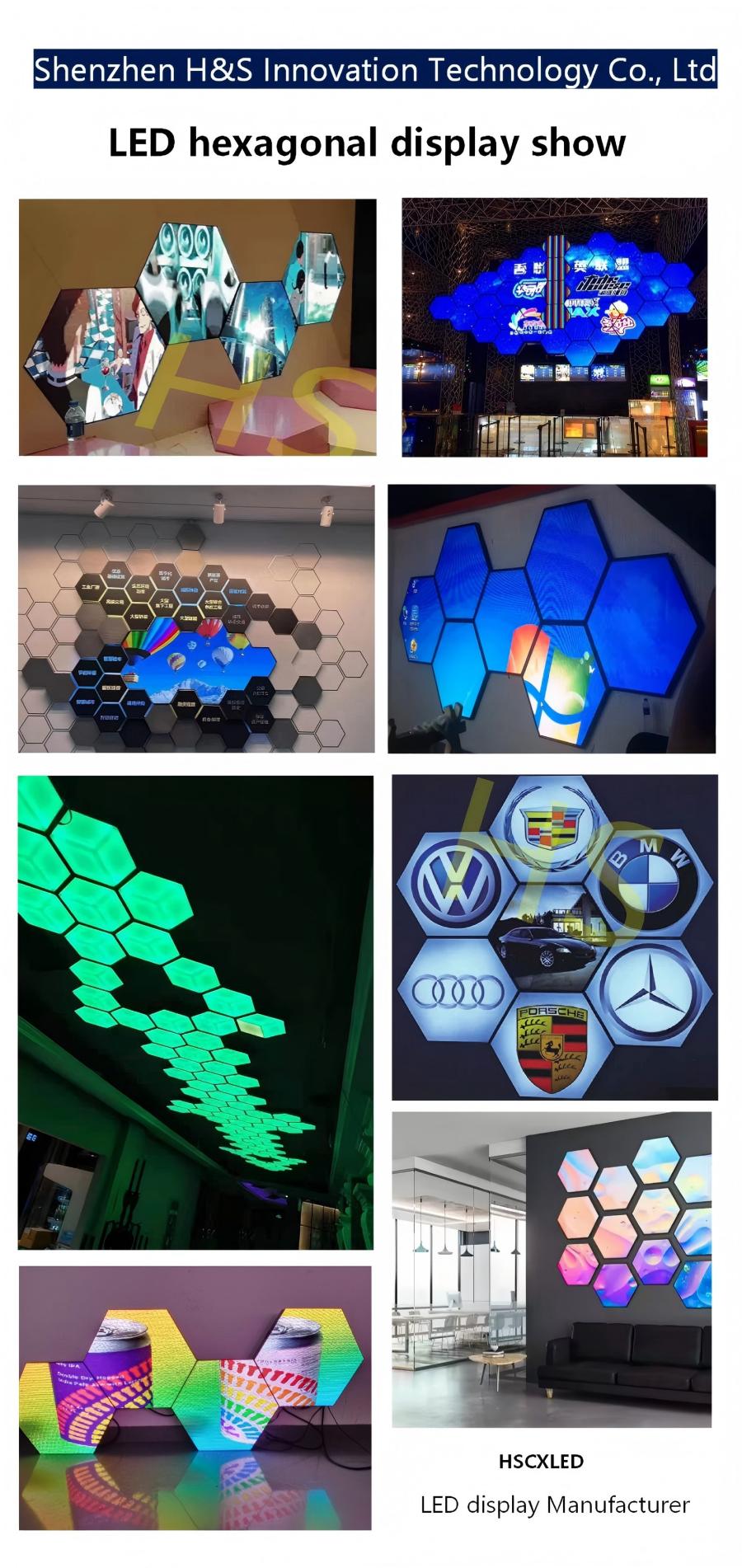

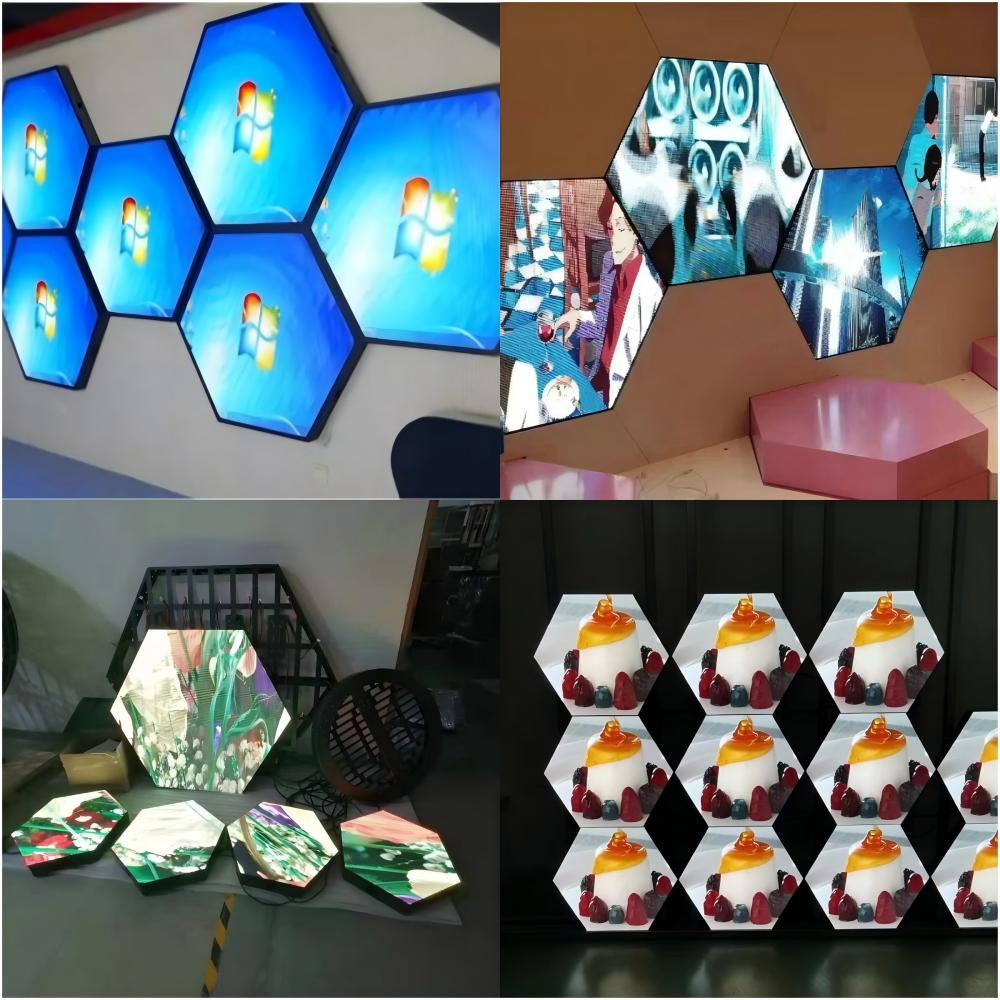

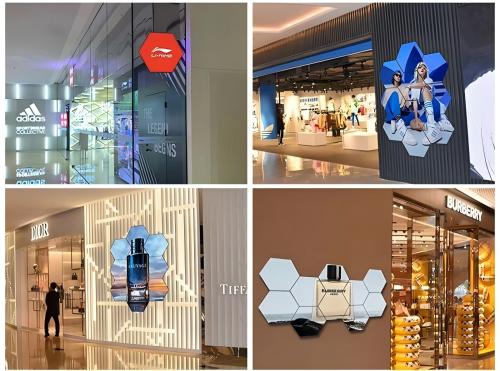

Wide Applications Ideal for concerts, retail advertising, exhibitions, stage backgrounds, DJ booths, events, bars, clubs, and airports. |
|

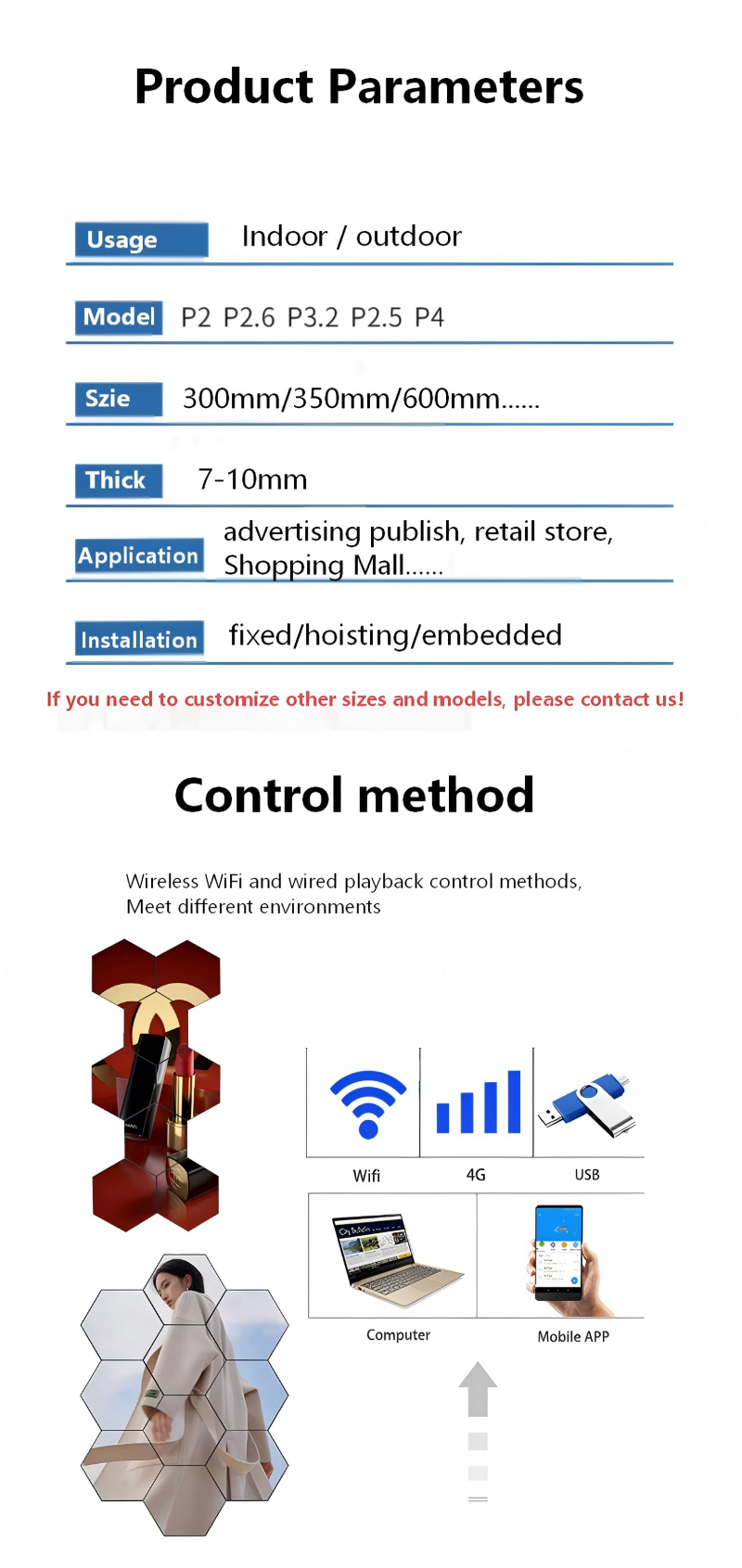

Hexagonal Led Screen Specification:
| Hexagonal LED display screen (single/double-sided) | ||||||
| Usage environment | INDOOR | OUTDOOR | ||||
| Model No. | P2 | P3.2 | P4 | P3.1525 | ||
| Size | 140mm * 6 | 512mm * 6 | 300mm * 6 | 300mm * 6 | 600mm * 6 | 350mm * 6 |
| cabinet resolution | 140*121 | 512*443 | 180*160 | 192*160 | 300*260 | 230*200 |
| physcial density(dot/m²) | 16940 | 226816 | 97969 | 62500 | 62500 | 111111 |
| Best viewing distance(m) | 2-100M | 2-100M | 3-100M | 4-100M | 3-200M | |
| Brightness(nits) | 600-900cd/m2 | ≧5000cd/m22 | ||||
| IP Grade | IP31 | IP65 | ||||
| Cabinet material | Iron | |||||
| Box thickness | Single sided-7cm ,Double sided10cm | |||||
| Installation method | Wall mounted / Hoisting / Inlay | |||||
| Control mode | Asynchronous control/mobile APP, WIFI, U disk, cloud platform | |||||
| Best viewingangle | (Horizontal/Vertical)140 /140 | |||||
| Gray scale(bit) | 14-16bit | |||||
| Refresh rate(HZ) | 3840HZ-7680HZ | |||||
| Maintenance methods | Pre maintenance | |||||
| Working voltage | AC110-220V±15% 47-64HZ | |||||
| Service life | >100,000 Hours Theoretical value | |||||
Highlight: Customized led display screen , Hexagon led screen, outdoor hexagon led display
Hexagonal Led Screen Overview:

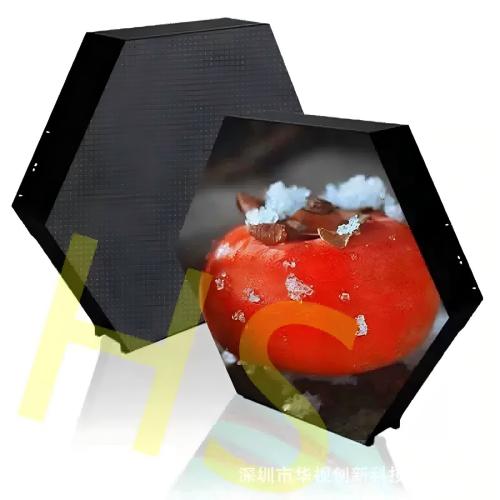

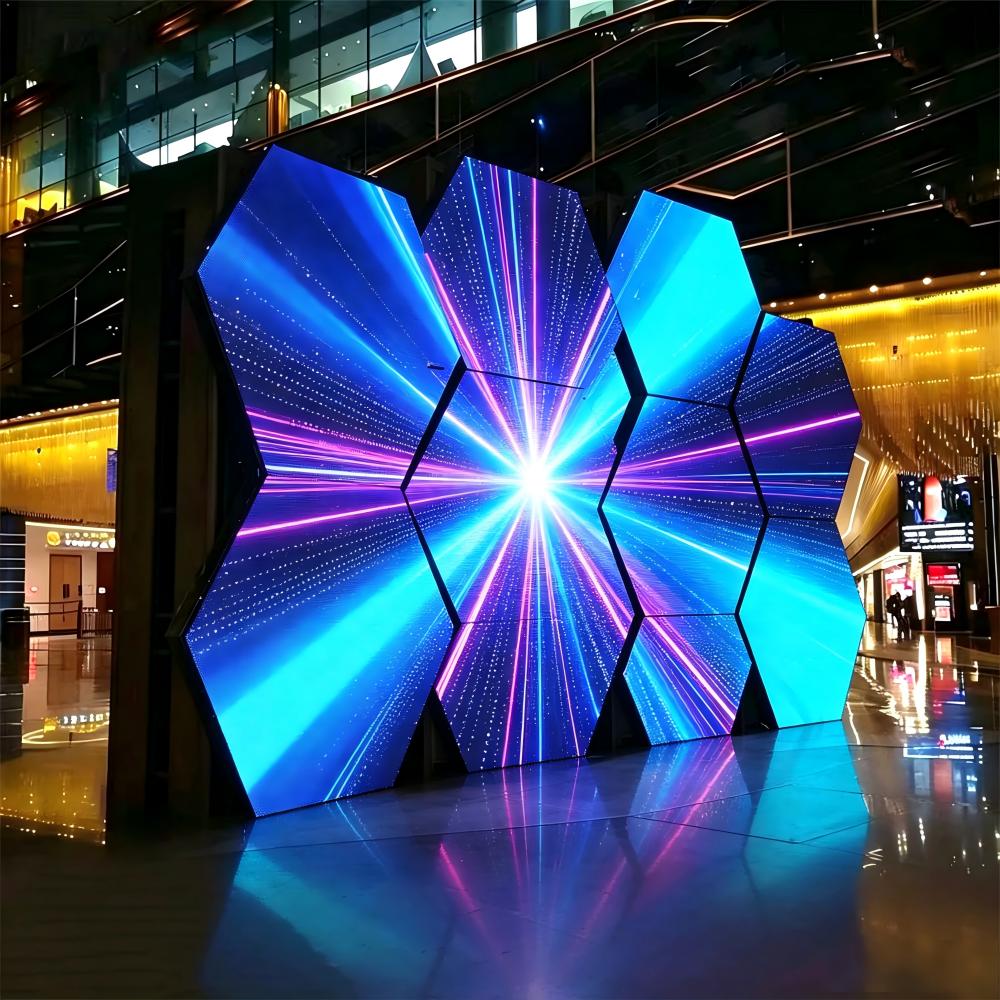

The Hexagonal LED Display is an innovative and visually striking display solution that leverages advanced LED technology to deliver vibrant and high-resolution imagery. Unlike traditional rectangular or square screens, this display features a unique hexagonal shape, offering a fresh perspective and design aesthetic. It is composed of numerous high-brightness LED pixels meticulously arranged to form a seamless, curved surface that enhances the viewing experience from multiple angles. The display is encapsulated in a durable, weather-resistant housing, making it suitable for both indoor and outdoor applications.
