Product Details
Place of Origin: SHENZHEN
Brand Name: HSCXLED
Certification: KC CE CE-LVD CE-EMC ROHS FCC CCC ISO9001
Model Number: P2.604/P2.976/P3.91/P4.81
Payment & Shipping Terms
Minimum Order Quantity: 1set
Packaging Details: Fight case
Delivery Time: 15-20work days
Payment Terms: T/T,L/C,D/A,D/P,Western Union
Supply Ability: 10000set/30days
Highlight: Outdoor Rental LED Screen, Stage LED display screen, Outdoor Advertising led display
Product Name: | Rental LED Display | Color: | Full Color |
Model Number: | P2.604/P2.976/P3.9/P4.81 | Module Size: | 250*250mm |
Cabinet Size: | 500*500mm/500*1000mm | Display Size: | Customize Any Size You Need |
Rate Refresh: | 3840-7680HZ | Brightness: | 4500-6000nits(adjustable) |
Input Voltage: | 100-240V AC±10% | Control System: | NovaStar / Colorlight...... |
Installation Type: | Wall-mounted, Hanging...... | Keyword: | Outdoor Led Display |

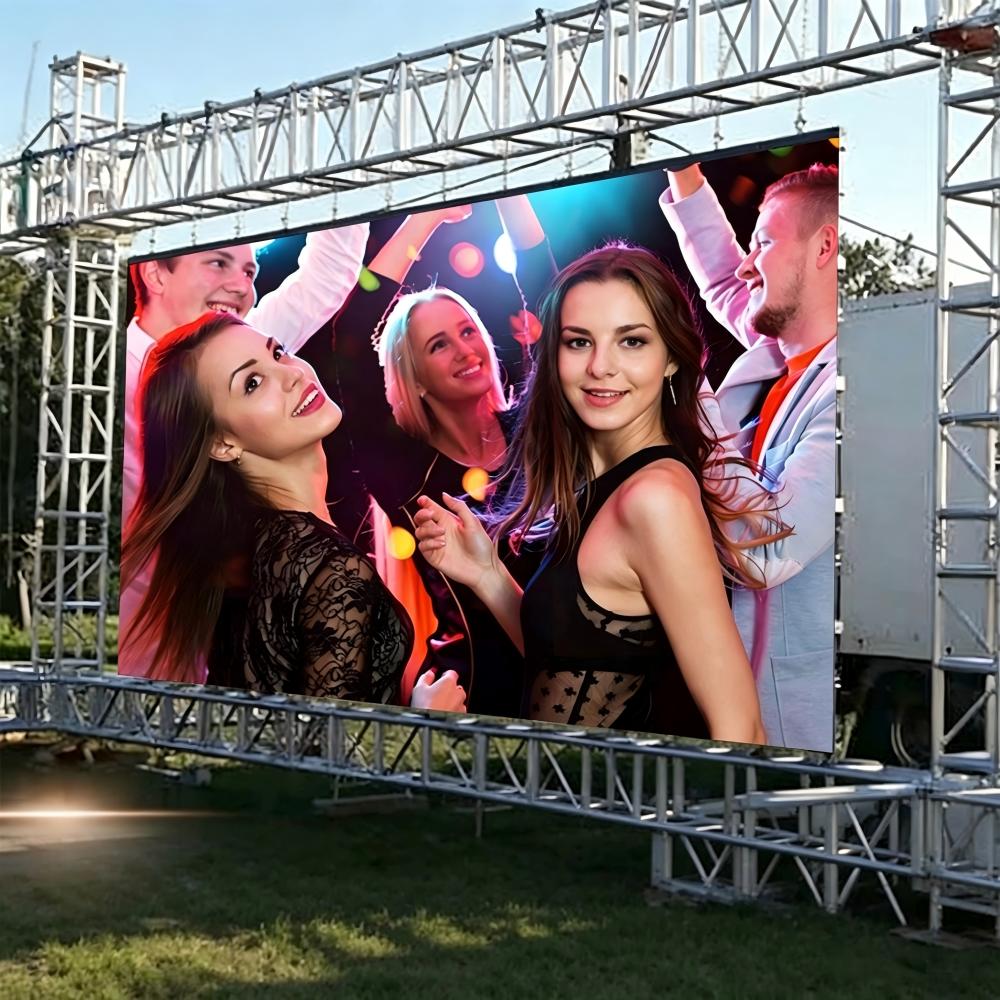

Outdoor Rental LED Display Highlights :
Fast installation: 5 seconds for installation using fast lock, seamless side lock makes high precision and seamless splicing effect.

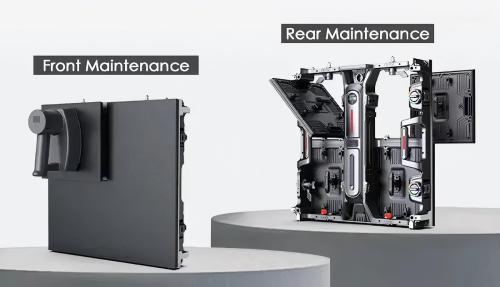

Easy Maintenance: Front and back service, 20 seconds for changing failure parts using cable free connection style with HUB card.
Adapt to changing weather: When sudden outdoor rainfall occurs, the waterproof performance can prevent rainwater from seeping into the interior of the screen.
High contrast ratio to display excellent from high light to low light.
Up to 3840Hz/7680Hz high refresh rate for taking photo or video by camera.
16 bit high gray scale to display color smoothly.

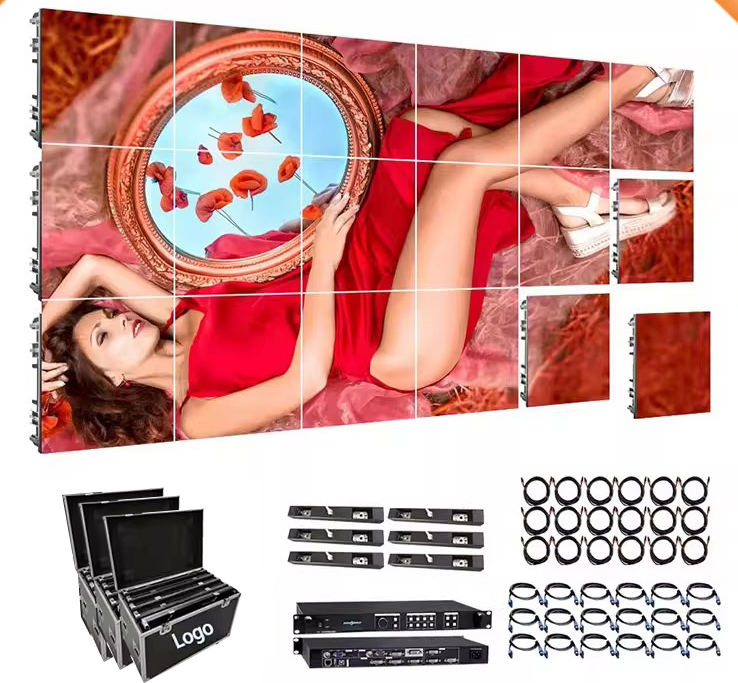

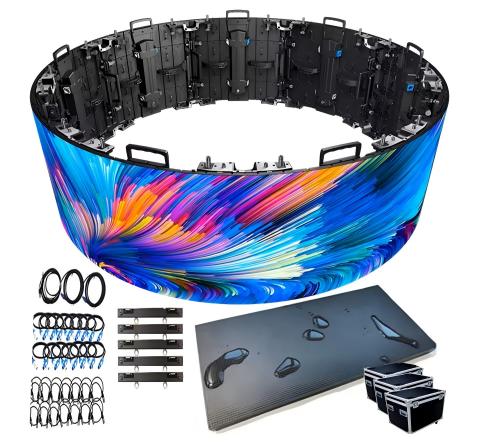

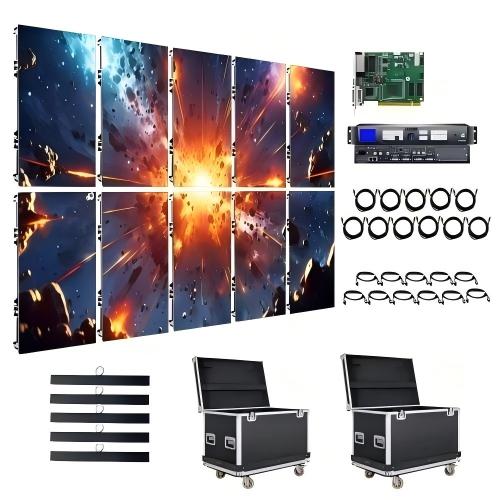

Turnkey complete led video wall system: We provide complete led video wall proposal, including led panels, power supply, control system, hanging beam, flight case, installation frame and other accessories.

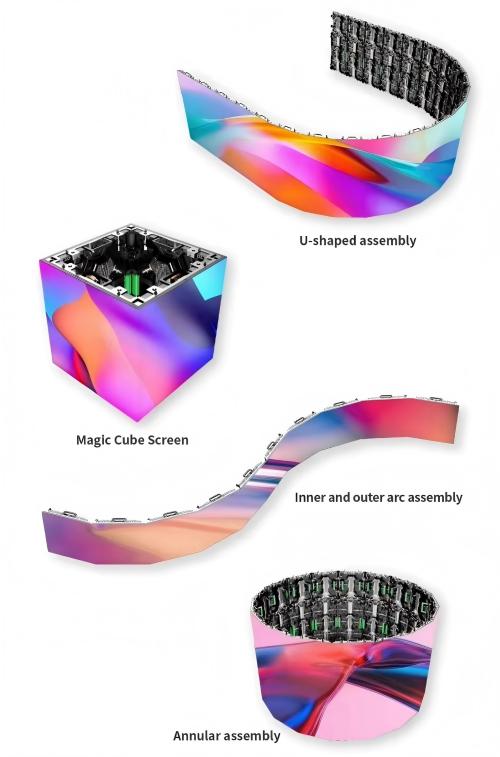

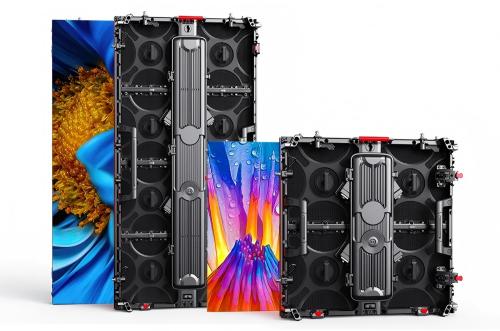

Seamless visual enjoyment: Cabinet positioning column, side and upper and lower quick connection locks, make high precision and seamless splicing effect.
Outdoor Rental LED Display Paramenters:
| Outdoor Rental LED Display/Stage Led Display | ||||
| model | P2.604 | P2.976 | P3.91 | P4.81 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| LED Lamp | SMD1415 | SMD1921 | SMD1921 | SMD2525 |
| Density | 147,928dots/sqm | 112,910 dots/m2 | 65,536dots/m2 | 43,264dots/m2 |
| Module size | 250x250mm | 250x250mm | 250x250mm | 250x250mm |
| Module Resolution | 96x96dots | 84x84 dots | 64x64 dots | 52x52 dots |
| Best Viewing Distance | 2.5-200m | 3-200m | 4-200m | 5-200m |

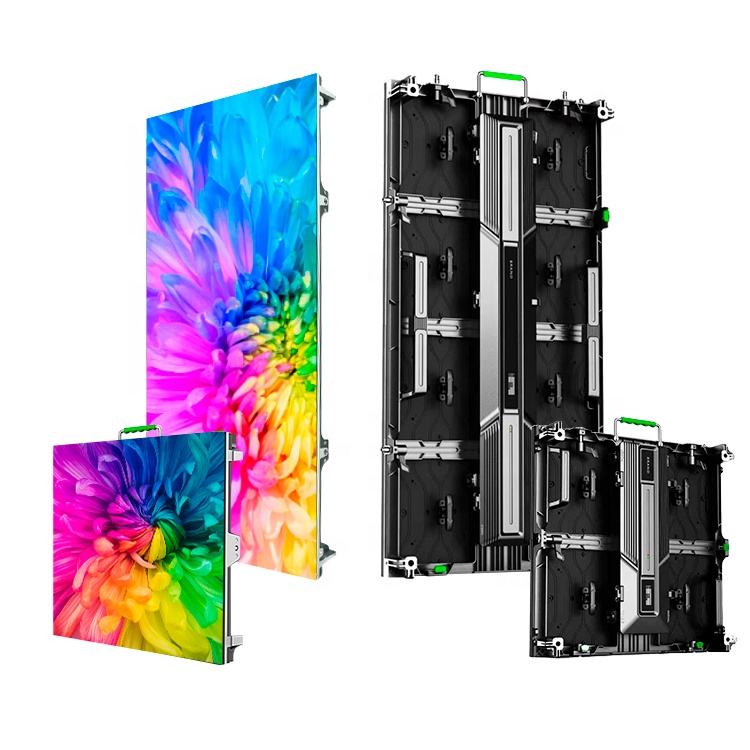

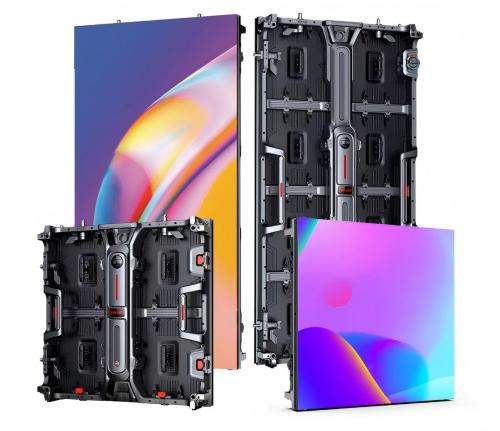

| Panel Material | Die Casting Aluminum | |||
| Panel Size | 500x500mm / 500x1000mm | |||
| Screen Weight | 7KG/12.5Kg | |||
| Brightness | ≥5000nits | |||
| Refresh Rate | 3840Hz/s 7680Hz/s | |||
| Input Voltage | AC100V-240V | |||
| Max Power Consumption | 800W | |||
| Average Power Consumption | 320W | |||
| Viewing Angle | 160° | |||
| Color Depth | 14-16-Bit | |||
| Operating Temperature | -40℃~70℃ | |||

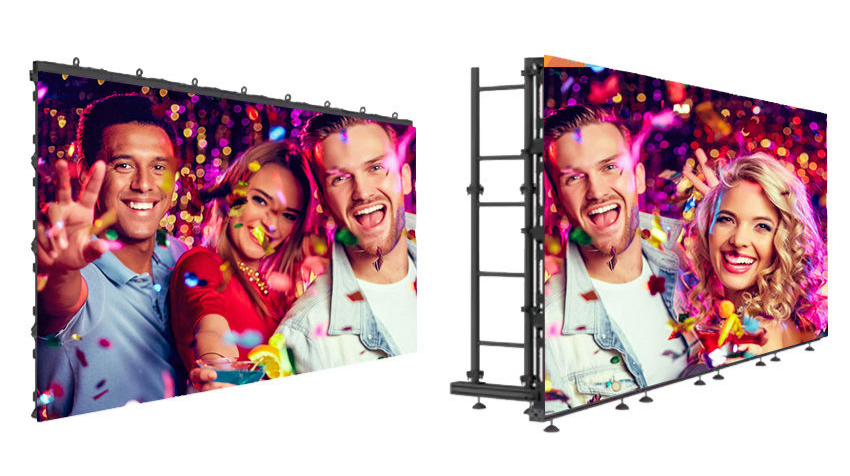

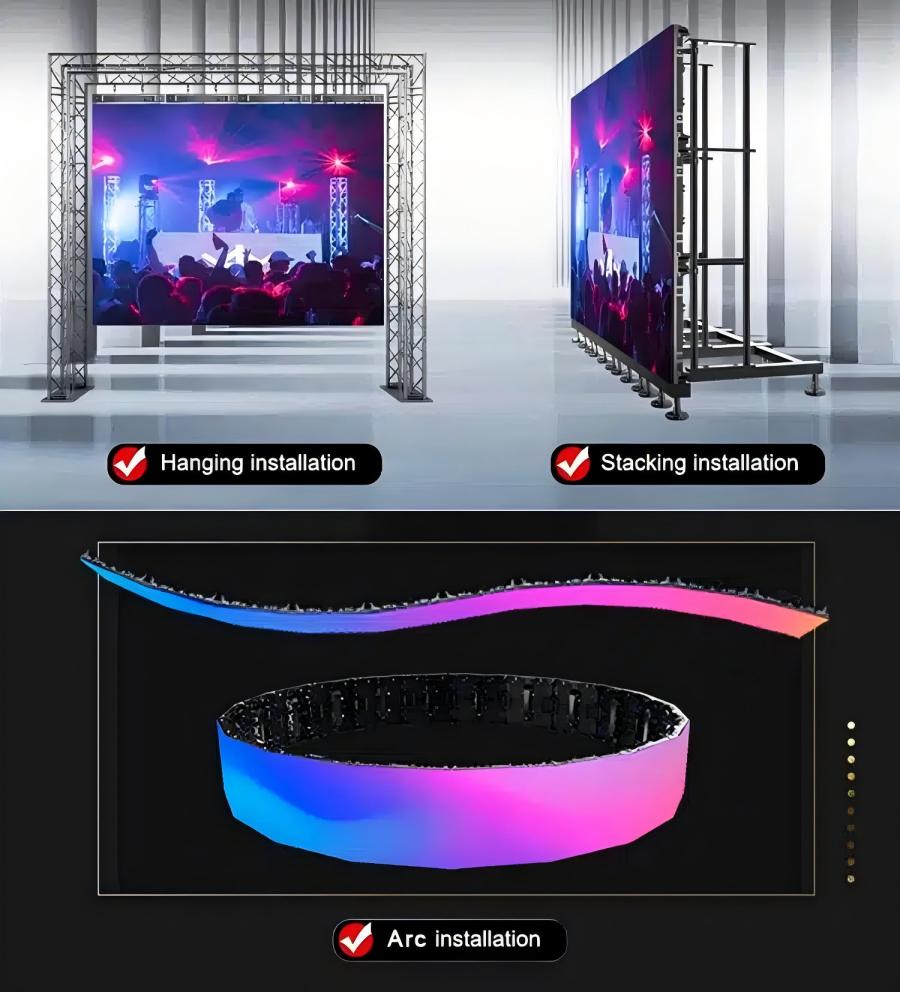

| Mounting options | Floor Stand, Ceiling Mount, Wall Mount...... | |||
| Display Function | Video/Text/Picture/Time/3D Text/Office/SWF | |||
| Life Span | 100,000 Hours | |||
