Smart City Light Pole LED Screen
Customized Single and Double Side led display
Outdoor Street Pole Advertising LED Screen
Waterproof:lP65,fit for use in harsh outdoor weather conditions
High brightness:5500-7000cd
custom size for smart city advertising led display
Flexibility and customizability: LED displays can be customized according to different venues and needs
Multi-display Synchronization
Connection way :LAN/3G/4G/WIFI/USB/SD...
Ultra light and ultra-thin,low maintenance cost.
Outdoor Street Lighting Pole Vertical Digital Signage Signs LED Advertising Display Screen
Certificate: KC FCC CCC CA ROHS CE-LVD CE-EMC ISO9001

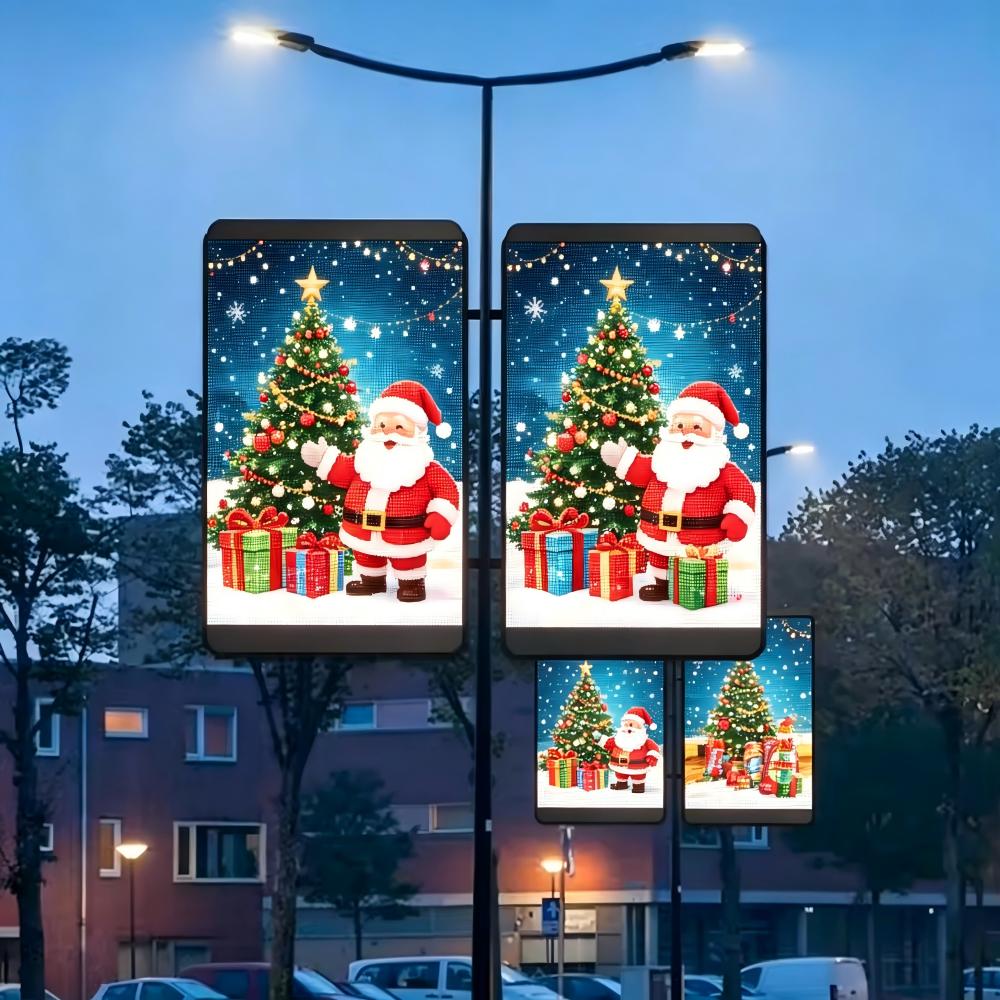

![]() | One-top smart pole LED Advertising display Solution HSCXLED pole LED display is made with a high-quality aluminum profile structure, which is lightweight, anti-corrosion, and durable. Compared with steel, aluminum profile is easier to install and ensures long-term stability in outdoor environments. The elegant design makes it suitable for pole mounted LED screens, street advertising, and smart city digital signage projects. |

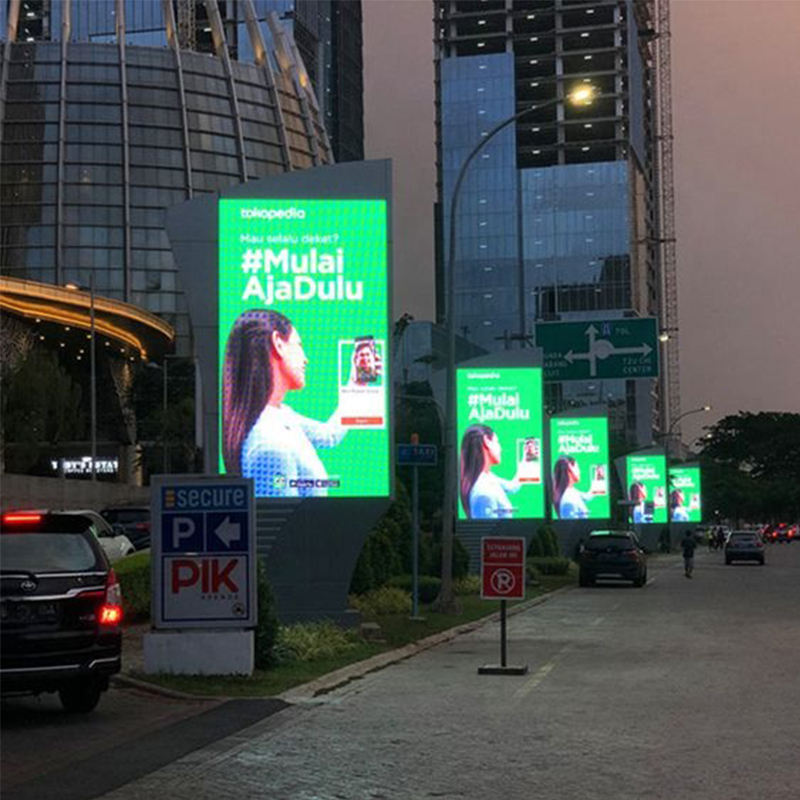

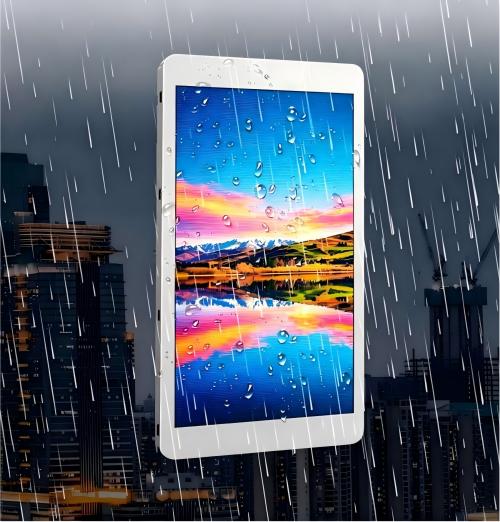

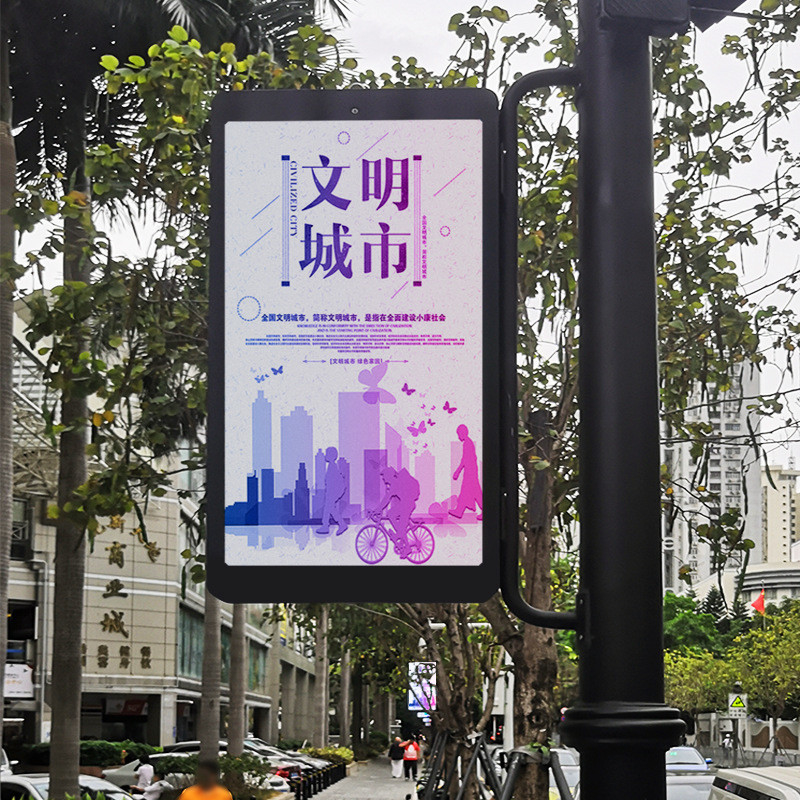

High Brightness & IP65 Protection Lamp pole led display offers high brightness, ensuring excellent visibility even in bright daylight, making it ideal for street advertising applications. It can withstand harsh climate and environment, such as high humidity and high temperature. Street light pole led display is also anti-dust and waterproof with IP65 Waterproof Rating.This outdoor LED screen ensures long service life and consistent advertising performance for street pole displays and smart pole LED signage. | ![]() |
Customized : led display Size:Modular design for the screen,any size if you need. |
|

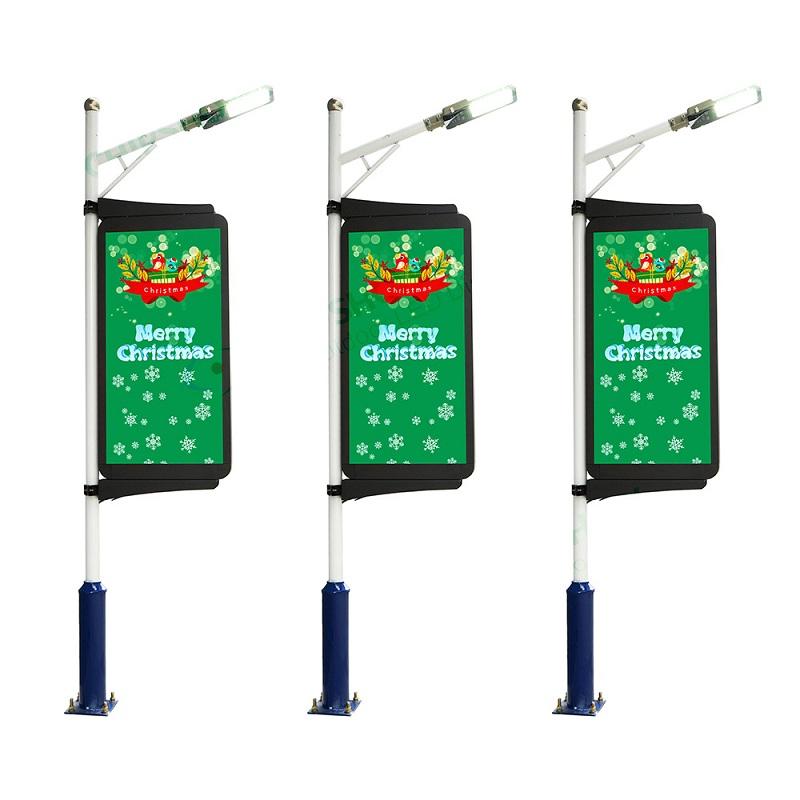

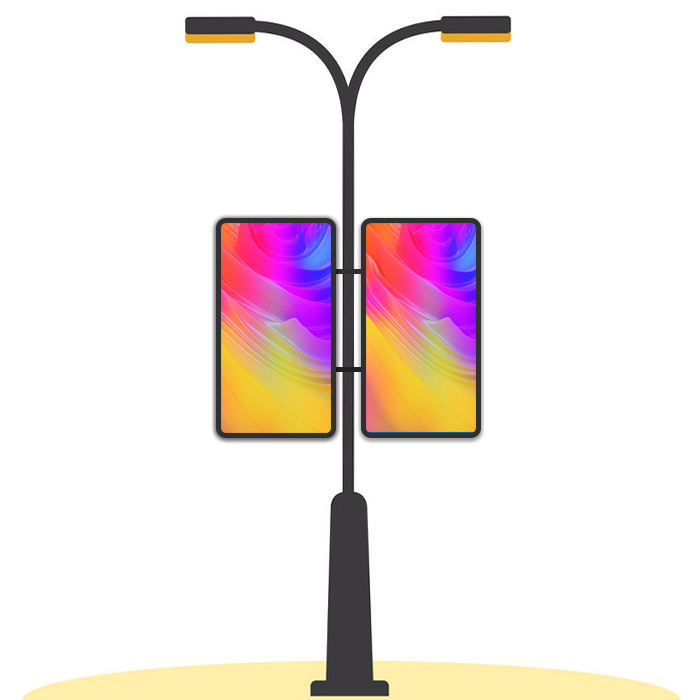

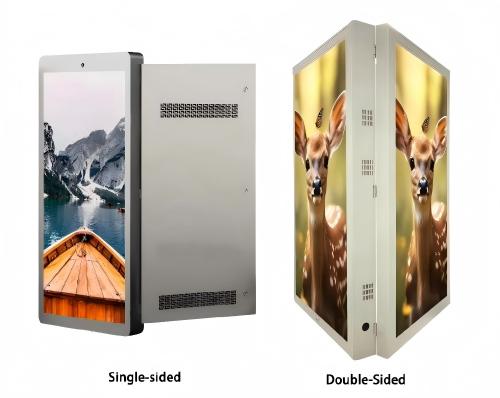

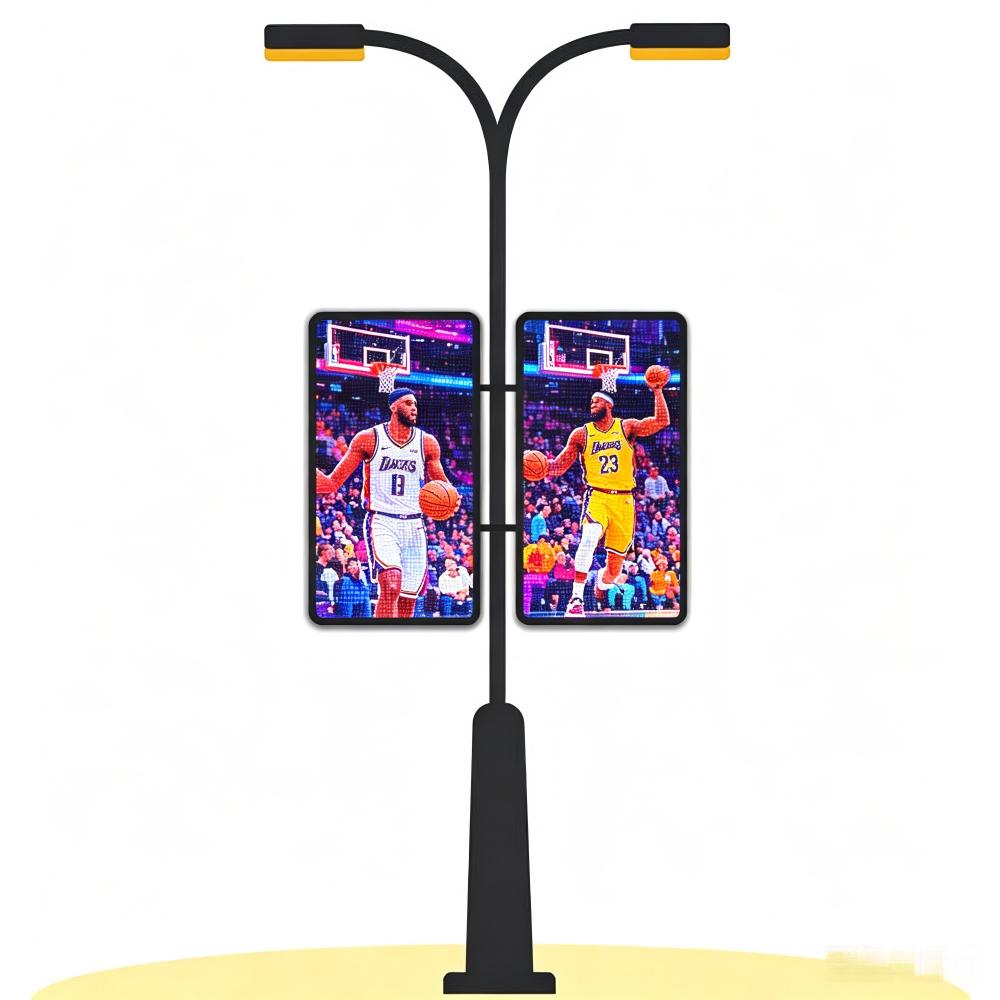

![]() | CUSTOMIZABLE STYLE Customers can choose single-sided display or double-sided display according to their needs, and can even customize the appear-ancestyle,rightangles orrounded corners,color, brightness, etc. |

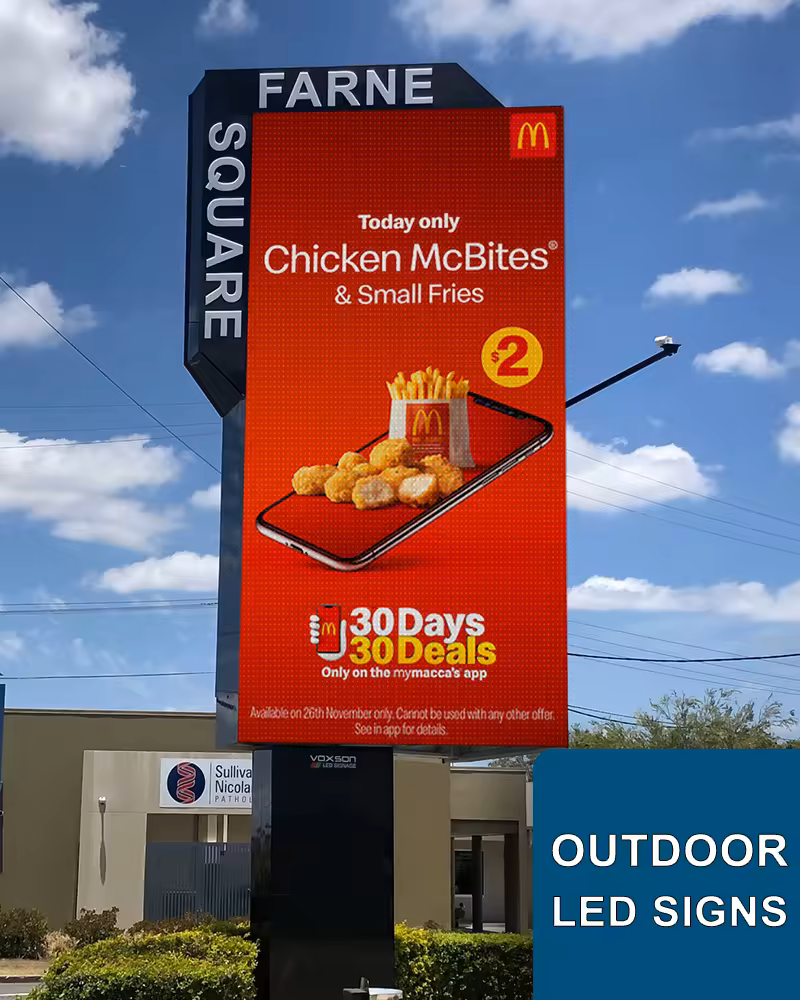

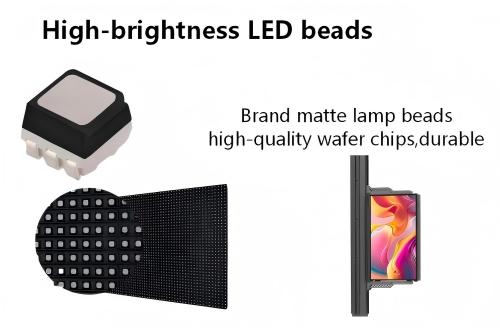

Crisp Display Quality: The LED screen delivers crisp and clear visuals, allowing for vibrant and eye-catching content display to effectively capture the attention of the target audience. | ![]() |

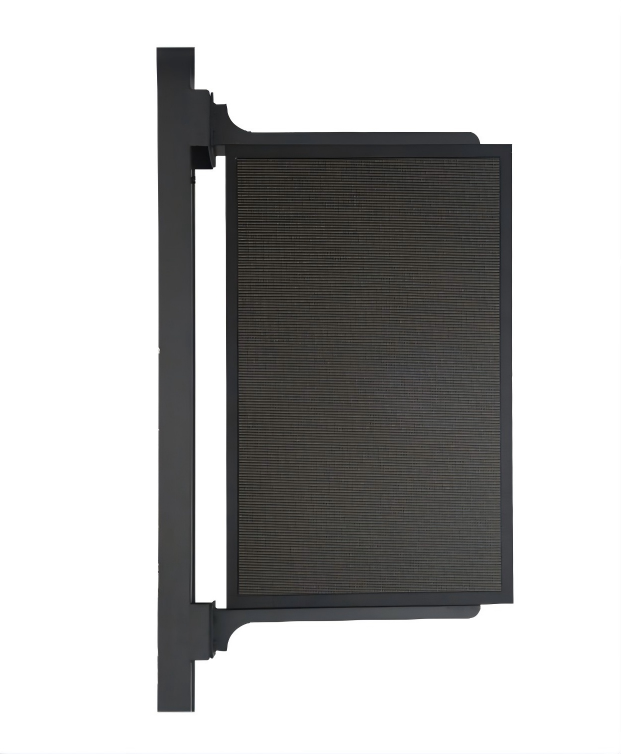

![]() | Durable Construction: Constructed with quality materials, this outdoor LED screen is built to last, ensuring long-term durability and stable performance for continuous advertising needs on the streets. |

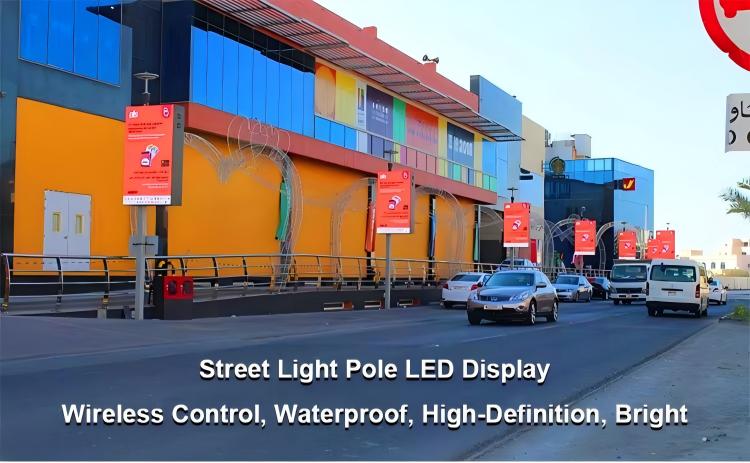

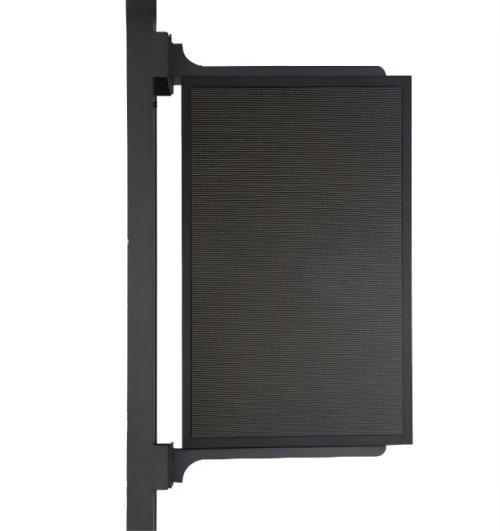

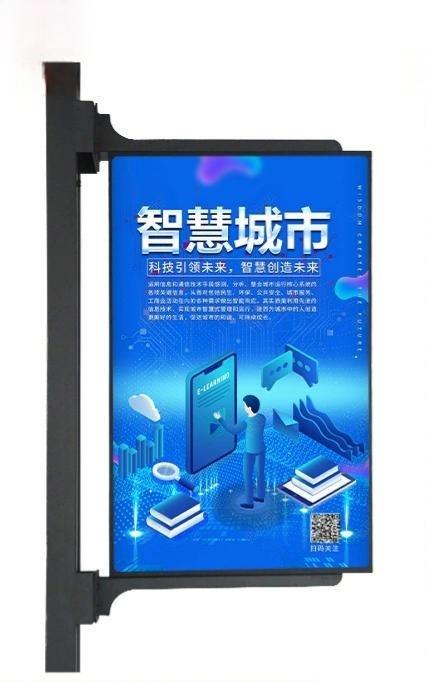

Pole-Mounted Design: Specifically designed for street pole advertising, this LED screen can be easily mounted on poles along roads, maximizing visibility and exposure to passing pedestrians and vehicles. | ![]() |
![]() | 140-degree Wide Viewing Angle The pole led display screen vertical and horizontal viewing angles are up to 140 degrees, providing a wide viewing angle. Ultra-wide viewing angle gives you the largest screen viewing area. street pole LED display provides you with clear and natural images in all directions. |

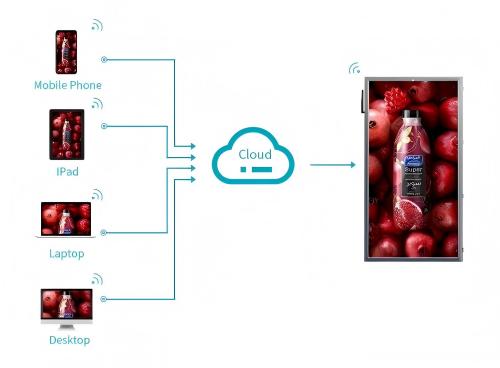

Intelligent Group Management System Light pole LED display Support 3G/4G/WIFI/LAN connection,remote cluster control is available,you can update the program any time any place via phone/pad/PC. We can help build cloud for hundreds of street light pole led display with intelligent group management system. All programs for all lamp post led display could be uploaded and changed at the same time via cloud. It's totally wireless and remote. | ![]() |

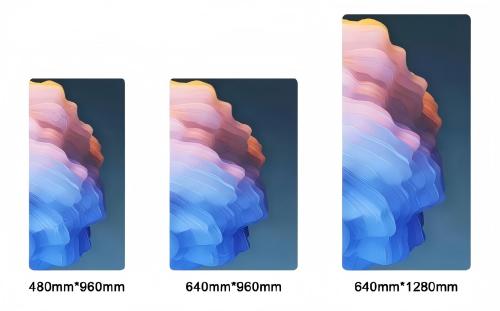

![]() | Customized LED Screen Size and Pixel Pitch are customized The Street Pole LED Display Cabinet Size 800x1600mm/480*960mm/640*1280mm/960*1600mm or customized design needs. Module Size: 200*200mm, 320*160mm Color Is Customized The Street Pole LED Display frame’s color is optional.meets different occasions to keep the same as the original environment design. |

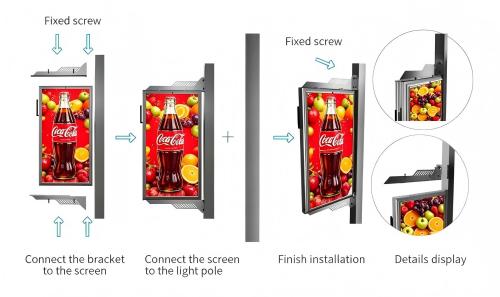

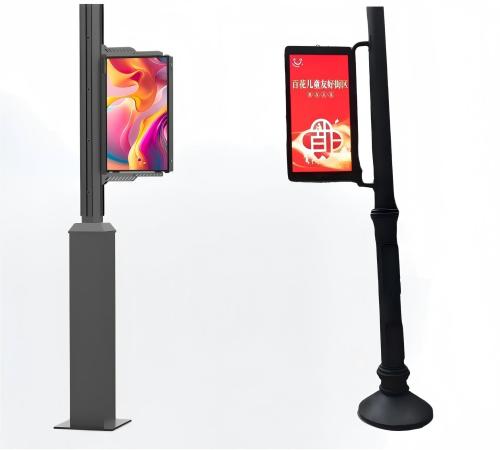

Fast Installation & Easy Maintenance Lamp post led display supports multi-installation solutions, such as hanging, side hanging, and mounting etc. Front service solution is also available for street light pole led display. Street pole LED display can be opened from front, side and back side for easy maintenance. | ![]() |

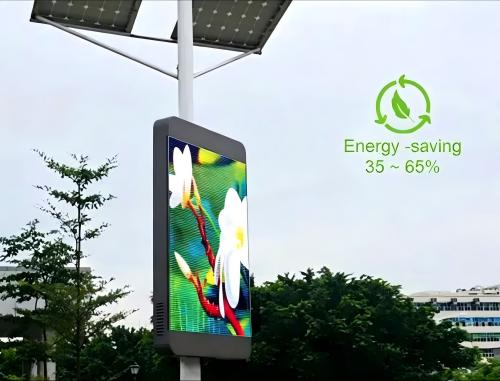

![]() | Efficient and energy-saving: The unidirectional light of LED lamps in the LED pole screen ensures efficient lighting effect and bright and clear image display, while saving energy. |

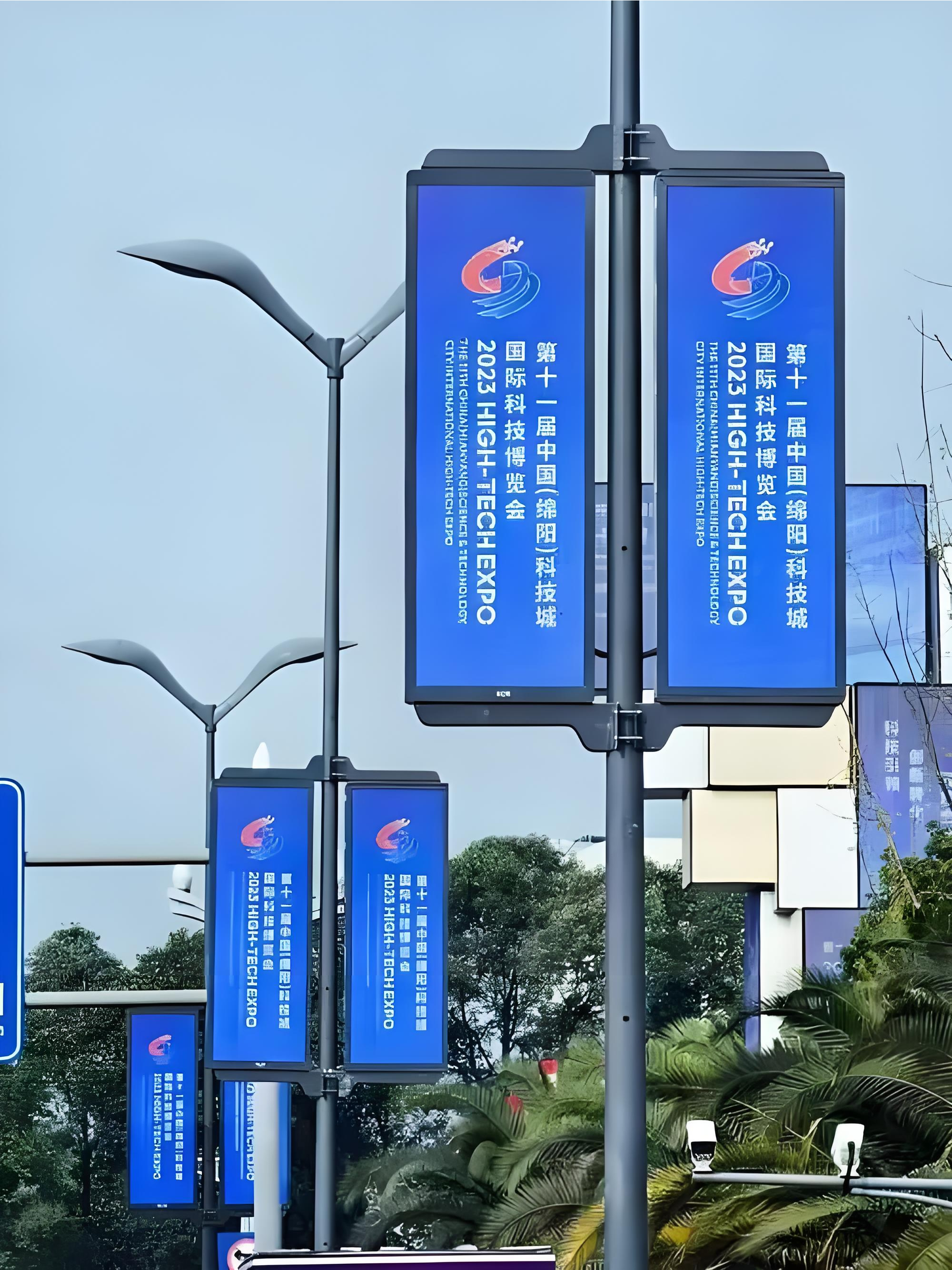

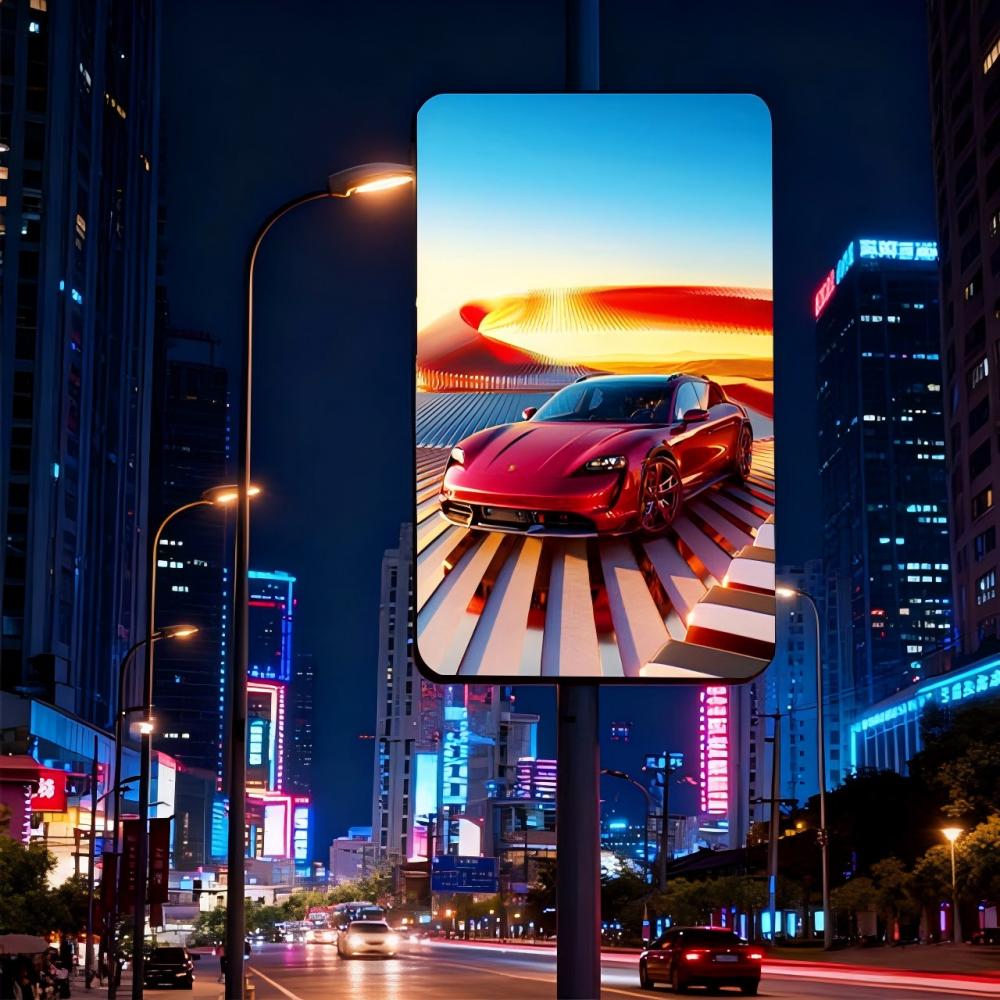

Pole-Mounted Design Specifically designed for street pole advertising, this LED screen can be easily mounted on poles along roads, maximizing visibility and exposure to passing pedestrians and vehicles. | ![]() |
![]() | Rich in functions, meeting various needs: Ourdoor LED pole screen effectively integrating multiple needs such as smart transportation, municipal publicity, security monitoring, commercial advertising, environmental monitoring, 5G base station applications, information promotion, advertising release, etc., one pole can be used for multiple purposes, reducing costs and beautifying the city. |
Street Pole LED Display Paramenters:
| Street Pole LED Display | ||||||
| Pixel Pitch(mm) | P2mm | P2.5mm | P3.076mm | P4mm | P3.33mm | P3.84mm |
| LEDs | SMD 1415 | SMD1415 | SMD1415 | SMD1921 | SMD1415 | SMD1921 |
| Module size(mm) | 320*160 | 320*160 | 320*160 | 320*160 | 200*200 | 200*200 |
| Driving Method | 1/20 scan | 1/16 scan | 1/13 scan | 1/10 scan | 1/13 scan | 1/12 scan |
| Display size(mm) | 480*960mm/640*1280mm /960*1920mm | 400*800mm/600*1200mm /800*1600mm | ||||
| Cabinet | Optional: Sealed waterproof iron cabinet/aluminum profile/Die -Casting aluminum cabinet Single or double sided/Customized | |||||
| Brightness(cd/m2) | >=5000cd-6200cd ( brightness sensor) | |||||
| IP grade | IP65 | |||||
| View Angle | H: 160°/ V: 160° | |||||
| Grayscale | 14-16 bit | |||||
| Refresh Rate | 3840Hz/7680Hz | |||||
| Power consumption | Max.: 830W/m2, Average: <400W/m2 | |||||
| Working Temperature | -40 -50(℃) | |||||
| Operating Humidity | 10%~95% non-condensing | |||||
| Working voltage | Input: AC100-240V 50/60HZ, Output: DC 5V | |||||

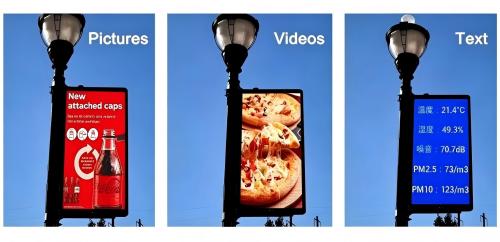

| Video Format | Video/Text/Picture/Time/3D Text/Office/SWF | |||||
| Internet access method | 4G/wired connection | |||||
| Control system | Xixun/Nova/Colorlight/Huidu | |||||
| Life time | >100,000hrs | |||||

LED pole display Introduction:
LED smart light pole screen is a practical application for smart cities based on street lights, combined with WiFi Internet technology, power carrier Internet of Things technology, sensor technology, etc. Its main functions include smart street light integrated management center, smart lighting management system, video monitoring system, WiFi coverage system, smart sensing and release system, emergency alarm system, charging pile system, etc.

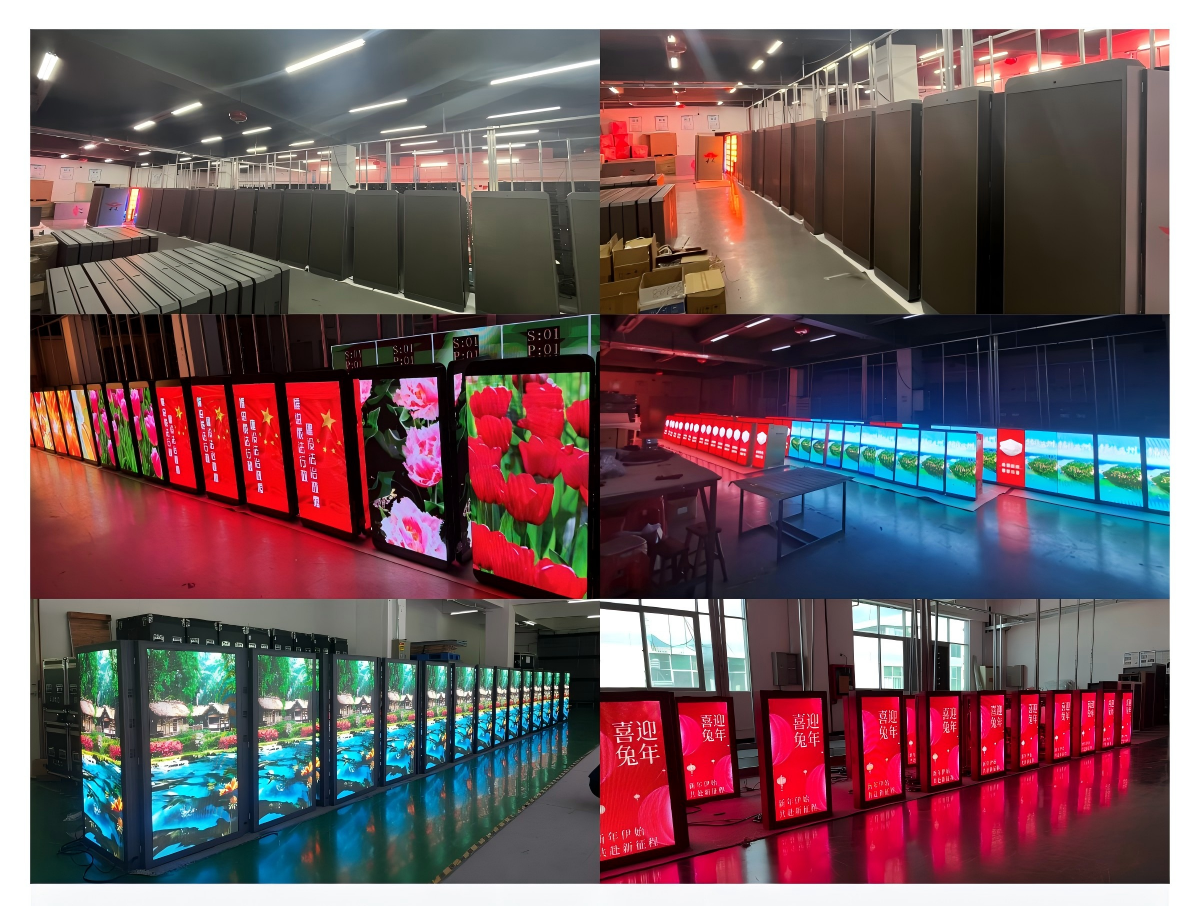

Outdoor Street Light Pole LED Display Screen Workshop production pictures

Advertising Street Pole LED Screen
Customized Single and Double Side led display
Outdoor LED Pole Light LED Displays
Street Pole Advertising Road Light Pole LED Screen
Outdoor Street Lighting Pole Vertical Digital Signage Signs LED Advertising Display Screen
Light Pole LED Display---HSCXLED
Pixel Pitch:P2/P2.5/P3.076/P4/P3.33/P3.84

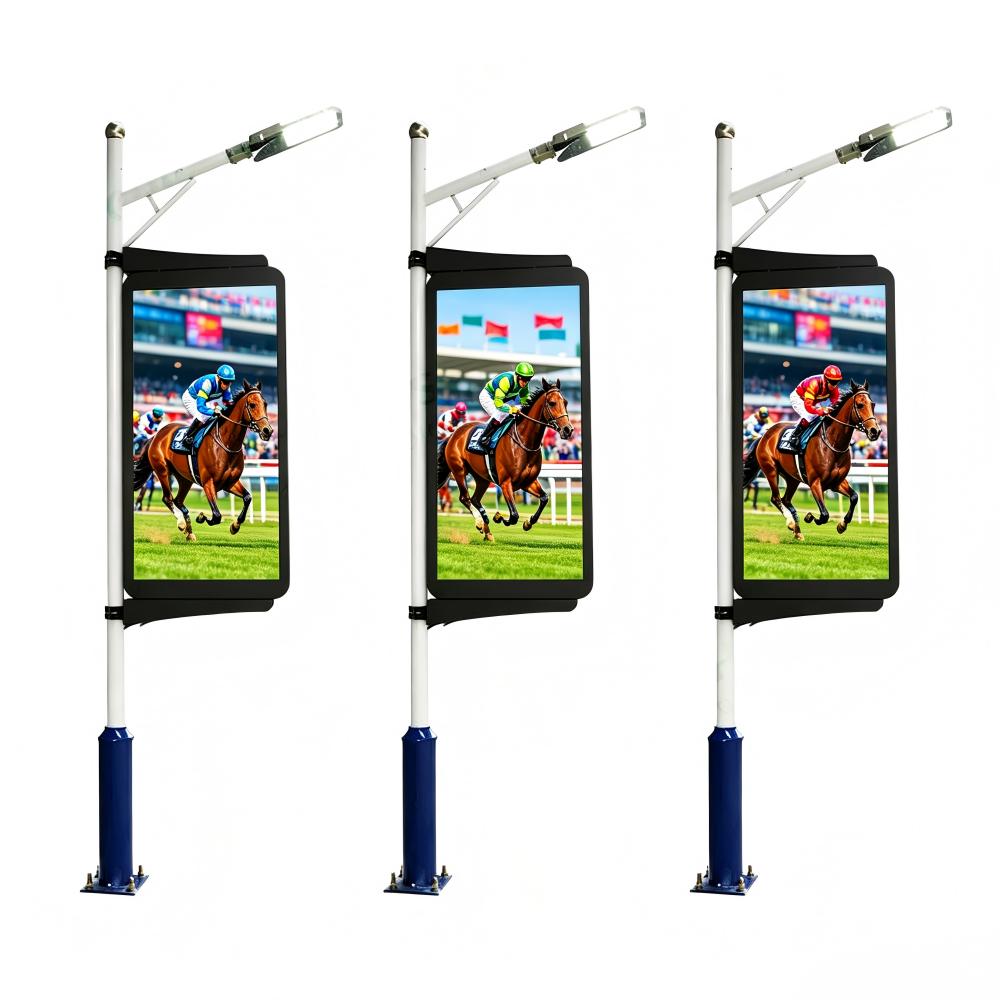

Street light pole led display is designed for outdoor street light pole advertising.
It's unique, novel and beautiful cabinet design.
Street light pole led display can be integrated with lamp post,
Light Pole LED Display is an important element for smart city advertising led display.
It can be single or double sides with custom sizes.
With 4G controller, all light pole led screens could be controlled via cloud platform remotely.
