A street pole LED display is an outdoor digital signage solution used for advertising, public information, and smart city communication. Available in single-sided and double-sided configurations, it can be customized to suit different viewing distances, road conditions, and installation requirements.
When choosing a street pole LED display, consider pixel pitch, brightness, weather protection, power consumption, mounting requirements, and total project cost. Comparing these factors helps you select a display that fits your application and budget.
To purchase an LED pole display screen, it is necessary to fully understand the following conditions: lightweight, high-definition, high brightness, energy-saving, and intelligent.
LED lamp posts are often installed on urban main roads, pedestrian streets, commercial streets, and park road lamp posts. The appearance design should meet the local cultural and artistic characteristics. The brightness of the LED lamp post screen should be ≥ 5800CD, so that the attenuation of brightness after a few years will not have a serious impact on the screen. The display part of the LED lamp post screen needs to meet the automatic adjustment of brightness, not causing light pollution to the environment and residents, saving energy. The product must be energy-saving, which is mainly divided into two types:
1. When upgrading and renovating old lamp posts, it is necessary to consider whether the installed lamp posts can still have a service life, whether the foundation is firm, whether the connections are corroded, the load-bearing capacity and wind resistance of the lamp posts after installing LED lamp post screens, whether the power supply system and communication system meet the construction conditions, and whether the selected LED lamp post screens are high brightness, high-definition, and energy-saving.
2. The new smart street lights not only need to meet the above conditions, but may also add some new functions to achieve multi-purpose use. In addition to street lighting and multimedia information dissemination, smart street lights can also be comprehensively utilized, such as real-time environmental monitoring (PM2.5, noise, wind speed, wind direction, etc.), monitoring (Skynet video monitoring, traffic flow road monitoring, etc.), new energy vehicle charging, USB mobile phone charging, WIFI sharing, big data collection, one click help, etc.
Therefore, it is recommended to install LED pole screens at a height of 3m-4m, with an area of 0.5m-1.5m, a maximum power consumption of 800W per unit, and an average power consumption of 240W per unit. In order to save labor and material costs, remote power on/off and remote program replacement must be installed to achieve the best display screen application effect.
3. There are roughly several types of LED pole screens: PH2.5/PH2.6/PH2.97/PH3/PH3.076/PH3.33/PH3.84/PH3.91/PH4, etc. Choose the appropriate model according to your own requirements
The above content is an introduction to how to correctly choose an LED pole screen. The LED pole screen is an upgraded and optimized product based on the conventional display screen. Its main components are still the display module, power supply, control system (mainly asynchronous), and box body. It seems to be the same as the conventional LED display screen, but there are many differences.
A street pole LED display is an outdoor digital screen mounted on a streetlight pole or a dedicated support structure. Also called a street pole LED screen or pole-mounted LED display, it is commonly used for outdoor advertising, public announcements, and local information.
How Does a Street Pole LED Screen Work?
A street pole LED screen uses LED modules, a control system, a power supply, and a mounting structure to display digital content. The control system processes incoming images or scheduled content and sends display data to the LED modules.
Depending on the setup, operators can update advertisements and public messages through a connected computer or a network-based content management system.
For outdoor installations, brightness, weather protection, power supply reliability, and mounting strength are essential. The pole and brackets must also be suitable for the screen’s weight and local wind conditions.
Street Pole LED Display vs. Smart Pole LED Display
A street pole LED display is primarily designed to show digital content, while a smart pole LED system may integrate multiple technologies, such as LED street lighting, communication equipment, cameras, and environmental sensors.
A smart pole LED screen can serve as the visual communication component of a larger smart city system, but an LED screen alone does not provide all these functions. Buyers should confirm which devices, software, and connectivity features are included in the proposed solution.
eature | Street Pole LED Display | Smart Pole LED System |
Main purpose | Display advertising and public information | Support multiple smart city functions |
Core equipment | LED modules, control system, power supply, and mounting structure | May include LED displays, smart lighting, communication devices, cameras, and sensors |
Content management | Controls screen content and playback | May coordinate multiple connected devices through an integrated platform |
Typical applications | Street advertising, local promotions, public announcements | Smart city infrastructure, traffic monitoring, connected lighting, and public information |
Project requirements | Screen specifications, power access, mounting, and weather protection | Display requirements plus integration, connectivity, and management of additional devices |

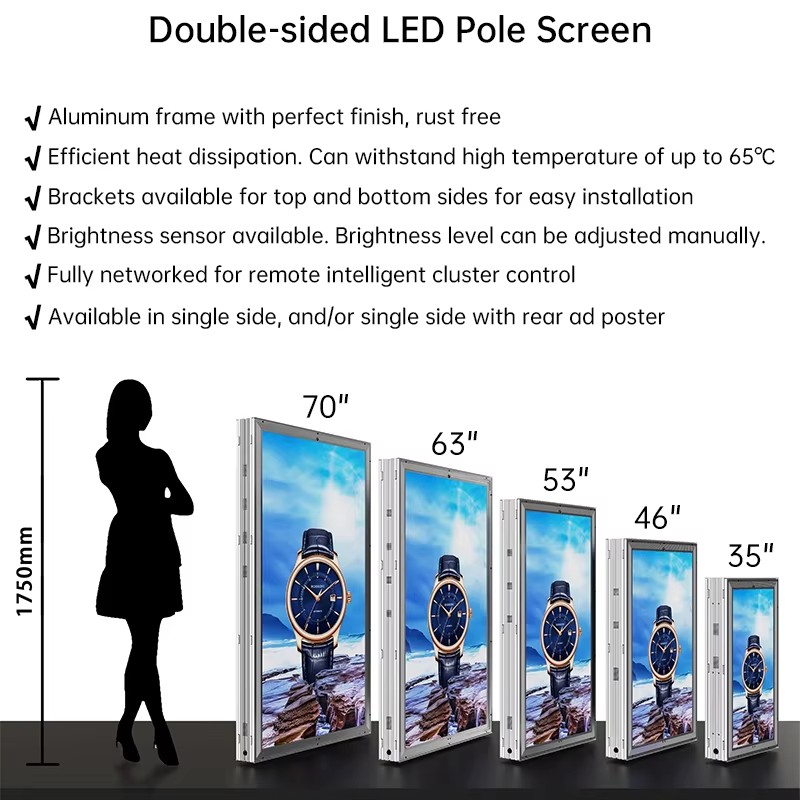

Single-Sided vs. Double-Sided Street Pole LED Displays
A single-sided street pole LED display shows content in one direction, making it suitable for sidewalks, building entrances, and roads where most viewers approach from the same side. A double sided street pole LED display has screens facing two directions, helping reach pedestrians and drivers approaching from opposite sides.
Feature | Single-Sided LED Display | Double-Sided LED Display |
Viewing direction | One direction | Two directions |
Installation | Simpler mounting requirements | Requires space and structural support for both screens |
Cost | Generally lower | Generally higher |
Best suited for | One-way visibility and targeted messaging | Two-way streets, intersections, and busy pedestrian areas |
Custom Street Pole LED Display Solutions
A custom street pole LED display can be designed around the available pole space, viewing distance, content format, and local installation requirements. Customization may include screen dimensions, aspect ratio, cabinet shape, mounting brackets, brightness, and front or rear maintenance access, depending on the manufacturer’s capabilities.
Before requesting a quotation, confirm the required screen size, pixel pitch, viewing direction, installation height, and quantity.These details help the manufacturer recommend a practical configuration and estimate the project cost more accurately.
Custom dimensions should also be checked against the pole’s load capacity, wind load, and available mounting space. A screen that fits the visual design may still require structural modifications before installation.
The right street pole LED display specifications depend on viewing distance, daylight conditions, weather exposure, and operating hours. Key factors include pixel pitch, brightness, IP rating, refresh rate, power consumption, and maintenance access.
(1) Pixel Pitch and Viewing Distance
Pixel pitch affects image clarity at different viewing distances. Smaller pitches suit closer viewing, while larger pitches may work well for audiences farther away.P2, P2.5, P3, and P4 options should be considered only if they are available in the selected product range.
(2) Brightness for Outdoor Use
An street pole outdoor LED display needs sufficient brightness for daytime visibility. For locations exposed to direct sunlight, a high-brightness screen can improve readability. Adjustable brightness also helps reduce glare and unnecessary power use at night.
(3) Waterproofing and IP Rating
A weather-resistant LED screen for street pole must withstand the site’s expected rain and dust exposure. The IP rating indicates protection against solid particles and water. IP65 is a common reference for outdoor equipment, but buyers should confirm the protection level of the complete display, including connectors and cable entries.
(4) Refresh Rate and Display Performance
The screen’s refresh rate affects visual flicker and camera recording performance,especially if the content will be filmed or photographed.
(5) Power Consumption and Energy Efficiency
Power consumption depends on screen size, brightness, and operating hours. An energy-efficient LED screen should balance daytime visibility with electricity use.
(6) Front Maintenance and Cabinet Design
A front-maintenance LED display allows technicians to access serviceable components from the front, which is useful when rear access is limited.
A street pole LED display control system manages screen content, playback schedules, and display settings. Depending on the configuration, operators can control one screen or manage multiple displays from a central location.
(1) Remote Content Updates and Centralized Control
A remote-controlled street pole LED screen allows operators to update advertisements, public announcements, and promotional content without accessing the screen directly. With centralized street pole LED display remote management, multiple screens can display scheduled content across different locations.
Content can be uploaded through dedicated software or a cloud-based platform, depending on the control system. Before purchasing, confirm supported content formats, user permissions, scheduling features, and multi-screen management capabilities.
(2) Wireless Connectivity and Brightness Control
A street pole digital signage system may use LAN, Wi-Fi, or 4G connectivity to receive content and control commands. The available options depend on the controller, network coverage, and product configuration.
Automatic brightness control can help maintain readability in daylight while reducing glare and power consumption at night. Confirm connectivity and brightness-control features with the manufacturer before finalizing the configuration.
Street pole LED displays provide digital messaging in areas where pedestrians and drivers can see information at street level. Their main uses include advertising, public announcements, traffic updates, and promotions in commercial districts.
1 Street Pole Advertising and Digital Signage
A street pole advertising display helps businesses promote products, events, and local offers. It works well in busy streets, shopping areas, and pedestrian zones.
A street pole LED advertising screen can display different content throughout the day. Businesses can update campaigns without replacing printed materials. Screen brightness, size, and viewing direction should match the location.
2 Public Information and Traffic Messages
A public information LED display can show community announcements, event notices, and emergency messages. It gives local authorities a visible way to share updates with the public.
A traffic information LED display can present road notices and travel updates supplied by the relevant authority or information system.
3 Smart Cities and Commercial Districts
A smart city LED display can serve as a visual communication tool within a wider urban infrastructure project. It may show civic announcements, public campaigns, or local event information.
In commercial districts, pole-mounted led screens can promote nearby shops, restaurants, and attractions. A municipal street pole LED display may also support public messaging.
Installing a street pole LED display requires checking the pole structure, mounting method, power supply, and access for future repairs. An existing streetlight pole may not be suitable without a structural assessment.

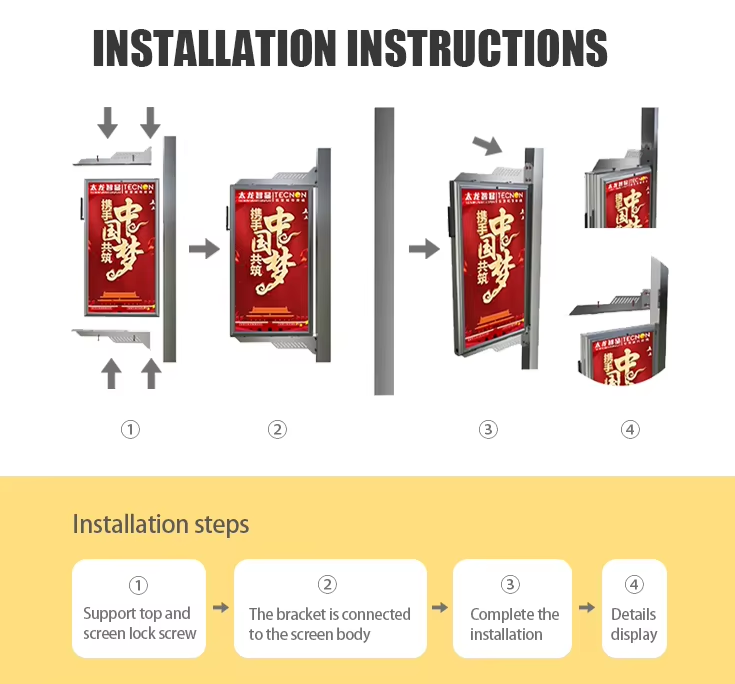

(1) Mounting Brackets and Installation
A street pole LED display mounting bracket must match the screen’s weight, dimensions, and pole structure. Check the mounting method and available space before installing an LED display on a streetlight pole.
(2) Pole Load Capacity and Wind Load
The pole must support the combined weight of the screen, brackets, and other attached equipment. Wind load also matters because the display adds surface area exposed to wind.
(3) Power Supply, Waterproofing, and Cable Routing
Confirm that the power supply meets the screen’s electrical requirements. Route cables securely and protect connections against water, UV exposure, and physical damage. Installation must also meet applicable local electrical and safety codes.
(4) Inspection and Maintenance Access
Regular street pole LED display maintenance helps identify loose brackets, damaged cables, water ingress, and screen faults. Plan safe access for inspections and repairs before installation.
Front-maintenance designs are useful when the back of the screen is difficult to reach. Check how LED modules and power components can be replaced and whether special access equipment is needed.
When choosing a street pole LED display manufacturer, compare product specifications, customization options, warranty coverage, and project experience to find a solution that fits your requirements.
(1) Compare Product Specifications and Customization
Check pixel pitch, brightness, IP rating, power consumption, and maintenance access. HSCXLED can help you evaluate suitable configurations based on your viewing distance, installation environment, and screen dimensions.
If you need a custom street pole LED display, confirm screen size, single-sided or double-sided design, and mounting requirements before requesting a quotation.
(2) Check Warranty, Spare Parts, and Technical Support
Before choosing a street pole LED display supplier, confirm warranty coverage, spare parts availability, and technical support.
Ask HSCXLED about the warranty terms and available replacement components for your selected display.
(3) Review Project Experience and Quality Documentation
Ask for relevant project references, product specifications, and applicable compliance documents. For your project, HSCXLED can help assess display requirements and recommend suitable configurations.
HSCXLED is an LED display manufacturer with over 10 years of industry experience, serving customers in more than 100 countries and regions. We provide LED display solutions for different project requirements, with a focus on product quality, technical support, and cost-effective configurations.
(1) In-House Production and Quality Control
HSCXLED equipped with automated production equipment and supported by experienced technicians. Our SMD LED display production line, SMT workshop, LED display factory, and aging workshop to support key manufacturing and testing processes for LED displays.
(2) Reliable Components and Material Selection
Component quality affects LED display performance, reliability, and maintenance requirements.Buyers can confirm the proposed LED chips, control system, and power supply before placing an order.
(3) Technical Support and After-Sales Service
Street pole LED displays require careful consideration of outdoor conditions, installation, and ongoing maintenance. HSCXLED provides technical support to help customers address product configuration and troubleshooting needs.
(4) Cost-Effective LED Display Solutions
The cost of a street pole LED display depends on screen size, pixel pitch, brightness, cabinet design, control system, and installation requirements. HSCXLED helps buyers compare suitable configurations to balance project requirements and budget.
For bulk orders or customized projects, share your required specifications and quantity so our team can assess suitable options and provide a project-based quotation.
Looking for a street pole LED display supplier for your next project? Contact HSCXLED with your screen dimensions, installation environment, and quantity to discuss your requirements and request a quotation.
