1. Product Positioning & Core Use
The LED Magic Carpet Screen is engineered as a next-generation, ultra-thin interactive LED display solution designed specifically for dynamic indoor environments. Unlike traditional LED panels that require bulky frames and complex rigging, this product focuses on "seamless integration" and "user interaction."
Its core positioning is a versatile, lightweight, and interactive digital canvas that serves dual purposes:
As an Interactive Floor: It transforms ordinary floors into responsive surfaces (hence "Magic Carpet"), ideal for engaging audiences in retail or entertainment settings.
As a High-Fidelity Wall Display: Its flat-back design allows it to sit flush against walls, creating a clean, high-end aesthetic for corporate or home environments.
Targeted at system integrators, AV rental companies, and commercial interior designers, this product solves the pain points of heavy logistics, complicated installation, and lack of interactivity in conventional LED video walls.
2. Key Features & Product Characteristics
Ultra-Thin & Lightweight Design
One of the most significant selling points is LED roller screen physical profile. With a side thickness of merely 17mm and a weight of 18kg per square meter, the Led Rolling Display drastically reduces shipping costs and simplifies handling. This makes it ideal for projects where space and weight are critical factors.
Superior Load-Bearing Capacity
Despite its slim profile, the Led Rolling Display utilizes a stretched aluminum structure, providing exceptional durability. It boasts a remarkable load-bearing capacity of 2000-3000kg per square meter, ensuring safety and stability even in high-traffic public areas.
Advanced Interactive Induction
The integrated interactive sensing chip elevates user engagement. With doubled sensing points and an ultra-fast response speed of 0.016 seconds, the Led Rolling Display creates immersive experiences perfect for games, exhibitions, and promotional events.
DOB (Direct On Board) Process Technology
The Led Roller Shutter Screen surface features a double-layer film achieved through DOB technology. This ensures:
Durability:
Led Roller Shutter Screen-Waterproof, moisture-proof, anti-collision, and wear-resistant.
Visual Quality:
Anti-blue light, uniform thickness, no color difference, and no yellowing over time.
Protection:
High/Low-temperature resistance and anti-static properties.
Hassle-Free Installation

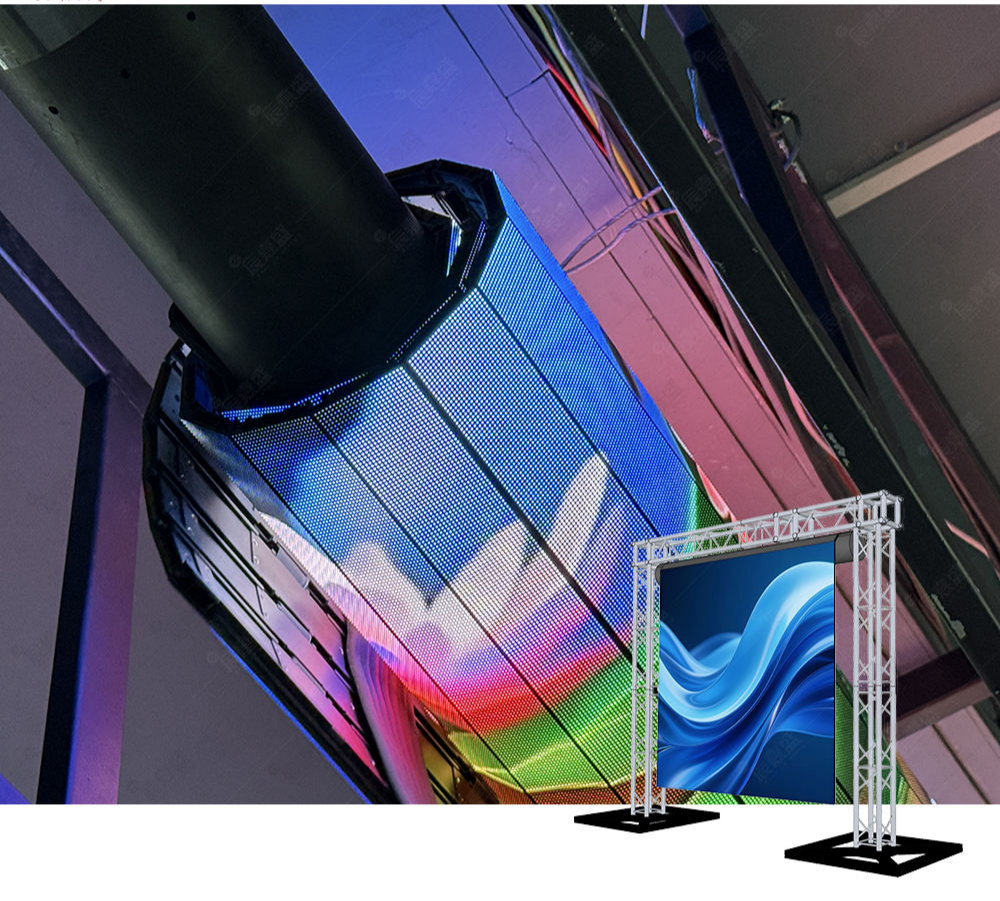

The "flat back" design eliminates exposed wires and protruding structures. This allows Led Roller Shutter Screen for direct ground laying without support feet or seamless wall mounting. For rental businesses, Led Roller Shutter Screen compatibility with trusses and gantry frames enables quick assembly and disassembly.
3. LED Magic Carpet Interactive Screen Specification Parameters :
| Led Rolling Display | |||||||
| tem | P0.78 | P0.9 | P1.25 | P1.56 | P1.9 | P2.6 | P3.91 |
| Pixel pitch | 0.78 | 0.9 | 1.25 | 1.56 | 1.9 | 2.6 | 3.91 |
| Brightness | 400cd | 400cd | 400cd | 600cd | 600cd | 600cd | 600cd |
| View distance | 0.78m | 0.95m | 1.25m | 1.56m | 1.95m | 2.6m | 3.91m |
| LED Lamp | SMD0606 | SMD0606 | SMD1010 | SMD1010 | SMD1010 | SMD1415 | SMD2121 |
| Pixel density | 1638400 | 1048576 | 640000 | 409600 | 262144 | 147456 | 65536 |
| Scan mode | 1/80S | 1/64S | 1/50S | 1/40S | 1/32S | 1/24S | 1/16S |
| Module resolution | 640*80 | 512*64 | 400*50 | 320*40 | 256*32 | 192*24 | 128*16 |
| Module size | 500*62.5*17mm | ||||||
| Refresh rate | 3840Hz | ||||||
| Viewing angle | 140°/140° | ||||||
| Contrast | 1500:01:00 | ||||||
| Unit size | 500*1000*17mm | ||||||
| Working voltage | AC 100-240V | ||||||
| Weight | 18Kg/m² | ||||||
| Install mode | Fixed Install, Rental, Hanging install | ||||||
| Waterproof | IP65/IP41 | ||||||
| Display Function | Video/Text/Picture/Time/3D Text/Office/SWF | ||||||
| Life span | 100000hours | ||||||
4. Diverse Application Scenarios
LED Magic Carpet Screen fits perfectly into the following sectors:
Scenario | Application Description | Target Industry |
Corporate Entrance | Dynamic brand logo display, immersive welcome scenes, and holiday-themed visuals. | Corporate Real Estate, Reception Areas |
Office Environment | Breaking the static feel of offices; enhancing employee engagement with customizable content. | Creative Agencies, Tech Parks |
Home Entertainment | Upgrading living rooms into interactive game zones for family bonding and dynamic background decor. | High-end Residential, Smart Homes |
Rental & Staging | Quick setup for stage performances, events, and temporary installations. | Event Management, AV Rental Companies |
Public Spaces | Used in shopping malls, hotel lobbies, airports, and theme parks for advertising and wayfinding. | Retail, Hospitality, Transportation |

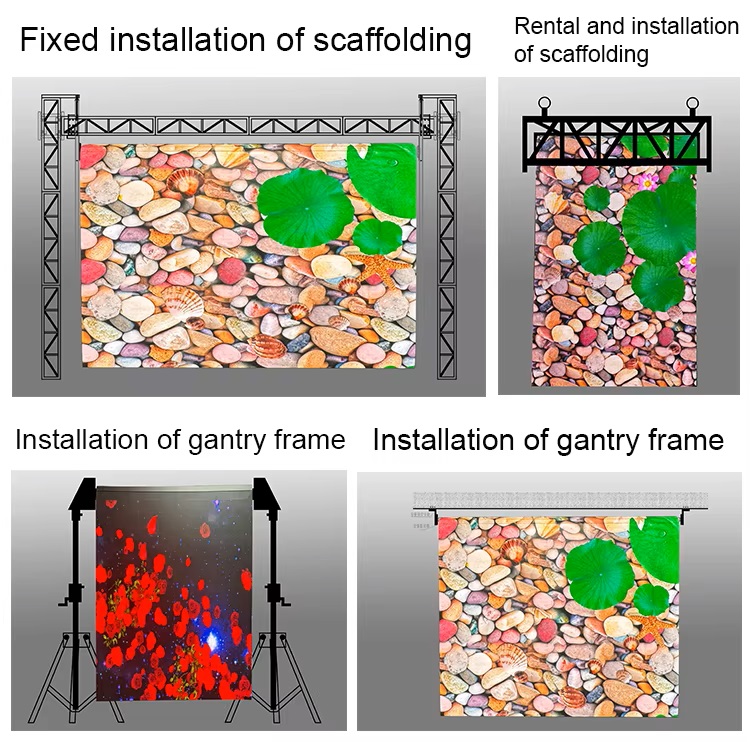

LED Magic Carpet Screen Installation Methods :
Flat Ground Installation (Direct Lay)、Wall Fixed Installation、Space Frame / Truss Mounting、Gantry Frame Mobile Installation、Rental & Mobile Setup......
