Fine spacing - P1.2, P1.5, P1.8, P2, P2.5, etc.
High definition and high refresh rate -3840/7680Hz refresh rate with high pixel density enhances clarity.
Accurate color calibration -16 bit grayscale and color accuracy to ensure high fidelity and consistency.
Ultra HD 4K/8K - Clear images and wide viewing angles.
Wide color gamut - Enhance color gradients to achieve richer and more realistic visual effects.
SMD, GOB available
90 °/45 ° angle splicing - customizable curved LED screen, indoor 3D LED display.
Quick installation - supports multiple installation methods, flexible and seamless splicing of video walls.
Certificate - KC FCC CCC CA ROHS CE-LVD CE-EMC ISO9001
The indoor LED display is an LED video wall designed for indoor purposes to display images, videos, and others. It offers high greyscale capabilities to ensure smooth transitions and accurate color representation, resulting in stunning visuals. In addition, it provides a high contrast ratio to deliver vibrant and impactful images with deep blacks and bright colors. It has full-color visual capabilities that allow for rich and immersive content that engages the audience.
 | Small Pixel Pitch led screen Indoor Fixed lnstallation Module pixels:P1.25/P1.53/P1.86/P2/P2.5 Ultra-slim design,ultra lightweight SMD+GOB integrated packaging ensures superior protection and reliability |
Superior Visual Performance Indoor LED displays deliver high-resolution, full-color visuals, ensuring sharp, vivid, and seamless image reproduction. Their higher pixel pitch (smaller gaps between pixels) ensures better clarity, suitable even for close viewing distances. |  |
 | High Refresh Rate & Contrast Ratio HSCXLED offers indoor SMD LED screen with vivid & perfect visual performance. That's very important as audiences have a close-range viewing for indoor LED display. High refresh rate driving IC can make high refresh rate visual effect. |
Superb Display Effect With latest LED screen technology, high brightness, high refresh rate 3840Hz-7680Hz, and high contrast ratio,HSCXLED indoor screen offers a vivid display effect and realistic color performance. |  |
 | Seamless Splicing The pixel spacing is precise, achieving industrial-grade precise alignment without any seams or bright/dark lines. The picture is complete and coherent, suitable for scenarios such as monitoring and meetings that have high requirements for picture integrity. |

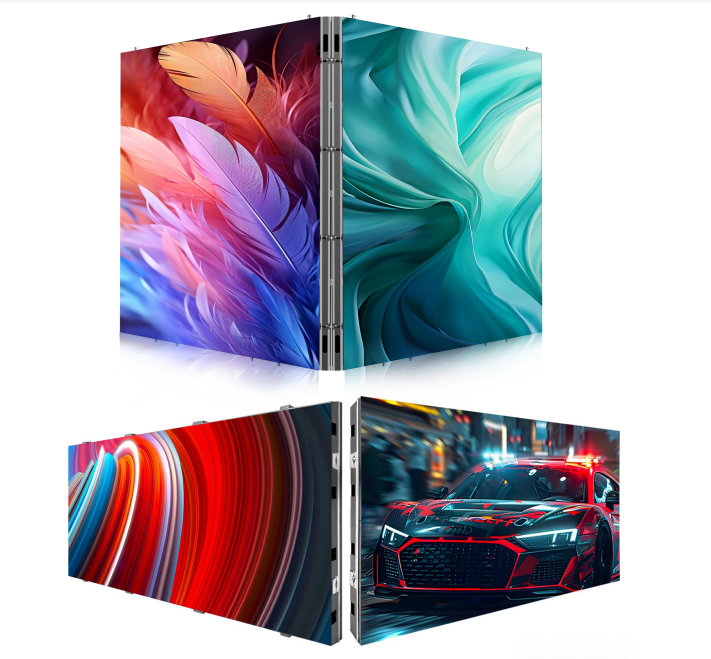

Flexible and Curved Shapes Indoor LED video display can be flexible and curved shapes according to project details. It's also flexible sizes available for customer's request. |  |
 | GOB TECH The LED display adopts advanced GOB(Glue on Board) protection technology,ensuring superior durability. the LED surface is fully sealed to provide Water-proof,Scratch-proof, waterproof protection making it resistant to dust,water splashes,and impacts.This robust design prevents LED drops or damage during accidental collisions,ensuring long-lasting performance even in challenging environments. |
Wide viewing angles HSCXLED Indoor LED display maintains clear display quality from different viewing angles,ensuring that the audience can see the screen content clearly regardless of the angle from which they are viewing. |  |
| Indoor Fixed LED Screen Indoor fixed LED displays are permanently installed indoors, offering long-term stability and reliability, which makes them ideal for corporate offices, meeting rooms, and control rooms. Support front-service design, providing convenient maintenance without needing to dismantle the screen. Support wall-mounted to seamlessly into any indoor decor. |
| Product name | indoor LED Video Wall | |||||
| Color | Full Color | |||||
| Item | P1.5 | P1.8 | P2 | P2.5 | P2.976 | P3.076 |
| Pixel pitch | 1.5mm | 1.8mm | 2mm | 2.5mm | 2.976mm | 3.076mm |
| LED Lamp | SMD1010 | SMD1515 | SMD1515 | SMD2020 | SMD2121 | SMD2121 |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Panel dimension | 320x160mm | 320x160mm | 320x160mm | 320x160mm | 250x250mm | 320x160mm |
| Pixel resolution | 208x104dot | 172x86dot | 160x80dot | 128*64 dot | 84*84 dot | 104*52 dot |
| Pixel density | 422500dot/ ㎡ | 288906dots/m² | 250000dots/m² | 160000dots/m² | 112910dots/m² | 105688dots/m² |
| Scan rate | 52S | 43S | 40S | 1/32S | 1/28S | 1/26S |
| Brightness | 650-1000cd/m² | |||||
| Refresh frequency | 3840Hz / 7680Hz | |||||
| Screen power supply | AC110V/220V-5V40A | |||||
| Max.Power Consumption | 600W/m² | |||||
| Ave.Power Consumption | 200W/m² | |||||
| Operating temperature | -10℃~60℃ | |||||
| Operating humidity | 10-90% RH | |||||
| Life span | 100000Hours | |||||
