960x960mm cabinet size
Front and rear dual service
Aluminum cabinet & module
Fast assemble with wrench
Optional curved splicing
Optional 90° angle right Splicing
IP66 waterproof protection
High brighness 6500cd, 3840Hz Refresh rate
P4, P5, P6.67, P8, P10 available
Outdoor LED screens are high-brightness digital displays engineered to deliver clear, vibrant visuals in any lighting condition. Ideal for advertising, public events, stadiums, and live broadcasts, outdoor Advertising LED Display offer unmatched durability, visibility, and scalability. Compared to traditional billboards outdoor LED displays excel under direct sunlight and in harsh weather conditions.
Perfect Cabinet Design The Outdoor aluminum LED screen perfect cabinet with simple and humanized design including signal connector, installation hole, up/down fast lock, left/right fast lock, power/signal connector, module handle, position pin, signal indicator, and cabinet back cover. |  |
| High-end Energy-Saving LED Dispiay Standard 960x960mm Outdoor Screen Cabinet，LED display screen adopts 480*320mm LED module panel. |

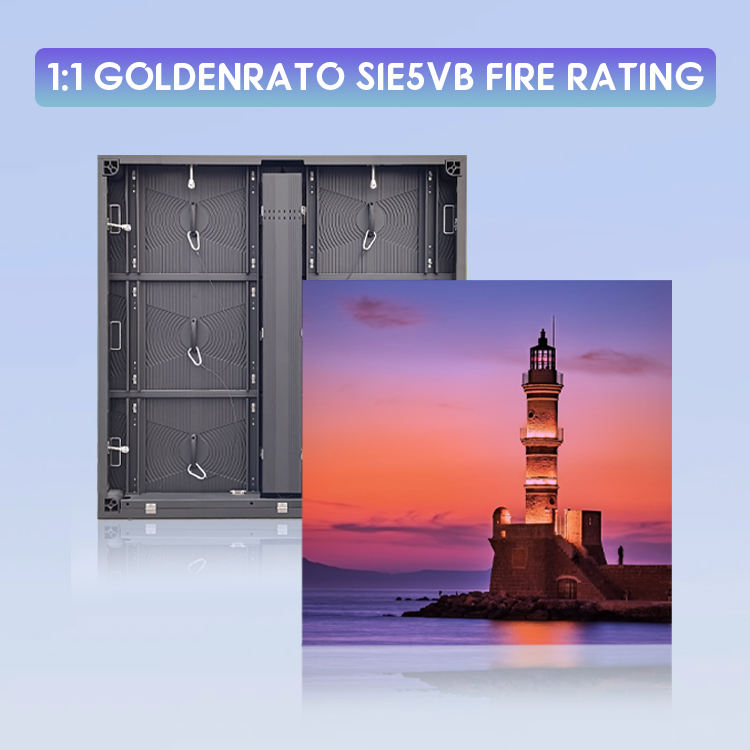

Cabinet Details The ultra-thin and lightweight design of outdoor LED displays significantly enhances their usability in various applications, particularly for outdoor advertising screens. Humanized handle design, module lock, waterproof rubber and high-quality LED module panel ensure excellent display quality. |  |
 | Seamless Splicing Seamless splicing, boundless vision: |
Quick and Perfect Splicing Function for LED Outdoor Screens The fast, flawless splicing feature in outdoor screens is specifically designed to create a seamless viewing experience. This functionality ensures that multiple panels connect perfectly, providing a cohesive visual surface that enhances the overall display quality. |  |
 | Outdoor LED Screen Front Maintenance The power supply, hub card, and receiving card are all integrated within a modular system enclosure, guaranteeing safeguarding against water infiltration. The outdoor led screen enclosure is designed to be removable, facilitating ease of replacement and maintenance for enhanced operational efficiency. |
High Grayscale in LED Displays High grayscale capability in LED outdoor displays refers to the ability to render a wide range of shades between black and white, enhancing the overall quality and realism of the images displayed. This feature is particularly important for applications that require detailed visual performance, such as photography, video production, and artistic installations. |  |
 | Higher brightness and auto brightness The outdoor LED screen has higher brightness so that it can be visible at daylight even facing to the sunlight. With auto brightness function, it will adjust brightness at nighttime to protect pedestrians and drivers and save energy. |
IP66 Protection Grade Double-sided HSCXLED-outdoor led screens use advanced protection methods that can withstand heavy rain and strong winds for a long time. The IP66 double-sided design can isolate electronic components from moisture and dust, so the screen is more reliable. |  |
 | 90° Arc Splicing Outdoor Screen Technology Outdoor aluminum LED screen- LED advertising screen supports 90° curved tiling, creating smooth three-dimensional shapes and achieving creative 3D display effects. High-quality screens continue to help new technologies come true and shine for the public. |
Wide Viewing Angle The vertical and horizontal viewing angles are up to 140 degrees, providing a wide viewing angle. Ultra-wide viewing angle gives you the largest screen viewing area. Outdoor LED Screen provides you with clear and natural images in all directions. |  |
 | Energy-Saving 30-60% Outdoor Screen Outdoor energy – saving LED displays are designed to provide high – quality visual output while minimizing energy consumption. The outdoor aluminum LED screens are ideal for a variety of applications, including advertising, events, and public information systems, combining efficiency with performance. |
Various Installation Methods For LED Outdoor Screens LED outdoor Screens offer a range of installation methods to accommodate different venues and event requirements. Selecting the appropriate installation method is crucial for maximizing visual impact and ensuring stability and safety. |  |
| HSCXLED-Outdoor LED display --960x960mm Cabinet LED Display | |||||
| Pixel Pitch | P4 | P5 | P6.67 | P8 | P10 |
| LED Type | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD3535 |
| Pixel Density | 62500dots/㎡ | 40000dots/㎡ | 22477dots/㎡ | 15625dots/㎡ | 10000dots/㎡ |
| Module Size | 480*320mm | ||||
| Module Resolution | 120*80dots | 96*64dots | 72*48dots | 60*40dots | 48*32dots |
| Cabinet Size | 960*960mm | ||||
| Cabinet Resolution | 240*240dots | 192*192dots | 144*144dots | 120*120dots | 96*96dots |
| Scan mode | 1/10S | 1/8S | 1/6S | 1/5S | 1/2S |
| Cabinet Weight | 22.5 kg | ||||
| IP Rating | IP66( front/back) | ||||
| Brightness | ＞5500cd/㎡ | ||||
| Refresh Rate | 3840-7680Hz | ||||
| View Angle | H140°/V140° | ||||
| Gray Level | 16bit | ||||
| Input Signal | HDMI/DVI/SDI/WIFI/USB | ||||
| Operation Voltage | AC220V±10%(Optional AC110V) | ||||
| Temperature-operating | ﹣20℃～50℃ | ||||
| Humidity-operating | 10%～95% | ||||
| Video Format | Support RM,FLV,AVI,MP4 and other mainstream video formats | ||||
| Picture Format | Support JPG,PNG,and other image formats | ||||
| Life Time | ≥ 100000(Hours) | ||||
High-Brightness,Energy-Saving Aluminum LED Display
HSCXLED-Outdoor aluminum LED screen support multiple module model selections,Use standard universal 500*250mm size display module.Aluminum profile box, light and thin,The product has high brightness, high refresh rate,Modular design, low installation and maintenance costs, fast speed, supports front and rear maintenance and high protection level.
Front & RearMaintenance
No need for a rear access channel,offering a sleek appearance and cost-effective structure.
High Protective Performance
Outdoor display screen has high requirements on protection level. HSCXLED-Outdoor aluminum LED screen front and rear protecting level is IP67. With the highest standard of waterproofing. All-day work, fully capable of any harsh environment, features with anti-corrosion, moisture-proof etc.
Strong Flame Resistance
outdoor LED display screens , high temperature durability, fast heat dissipation with Noise-free, it is able to used at high temperature for a long time without deformation.
All-Weather Durability
Our IP65 waterproof LED modules offer exceptional protection against extreme weather ensuring stable performance and longevity. The fanless power supply with waterproof seals further guarantees durability and reliable operation.
High Refresh Rate
The screen display is smooth without lag,with a high refresh rate of up to3840-7680Hz.fast response speed,and no dragging,lagging,or flickering.The screen display is smooth and stable.High guality modules,Modular design for easy splicing true color high stability and long life.
Smart Control System
For cloud control,Wi-Fi control,USB Disk,4G/5G,our smart control system are allowed to make it.
