Product Details
Place of Origin: SHENZHEN
Brand Name: HSCXLED
Certification: KC CE ROHS FCC CCC ISO9001
Model Number: P1.53
Payment & Shipping Terms
Minimum Order Quantity: 1set
Packaging Details: Wooden case/Honeycomb Box/Fight case
Delivery Time: 10-15workdays
Payment Terms: L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability: 1000set/30day
Highlight: Foldable double side led poster, LED tri fold poster screen, LED Digital Display
Product Name: | Foldable Led Poster Display | Application: | Indoor, Advertising |
Pixel: | Indoor 1.5mm | Module Size: | 320mm*160mm |
Cabinet Size: | 1280x1920mm | Brightness: | 800-1000cd/m² |
Refresh Rate: | 3840Hz--7680Hz | Power Supply: | 110V~240V |
Mounting Options: | Floor Stand Display | Product Type: | Double-sided Display Poster Screen |
P1.5 Smart Digital Indoor LED Display Poster Standing Magic LED Screen
GOB Trifold LED Display Panel for Poster Screen Standing Advertising Billboard
Trifold Led Poster Screen Double Sided led display
Three Fold LED Electronic Poster Screen Display 3 Sided Led Banner
Foldable LED Poster Display introduction:
This Removable Foldable LED Poster Display Screen offers versatile advertising solutions . ≥95% luminance uniformity, and an 8000:1 contrast ratio, it ensures vibrant visuals. The die-casting aluminum build provides durability, while GOB protective technology enhances reliability. With multiple control methods including Wifi, Bluetooth, and USB, as well as IoT connectivity and remote content management, it delivers smart operation.Led poster screen is also called mirror LED display screen.It can be folded to a double sided LED display.

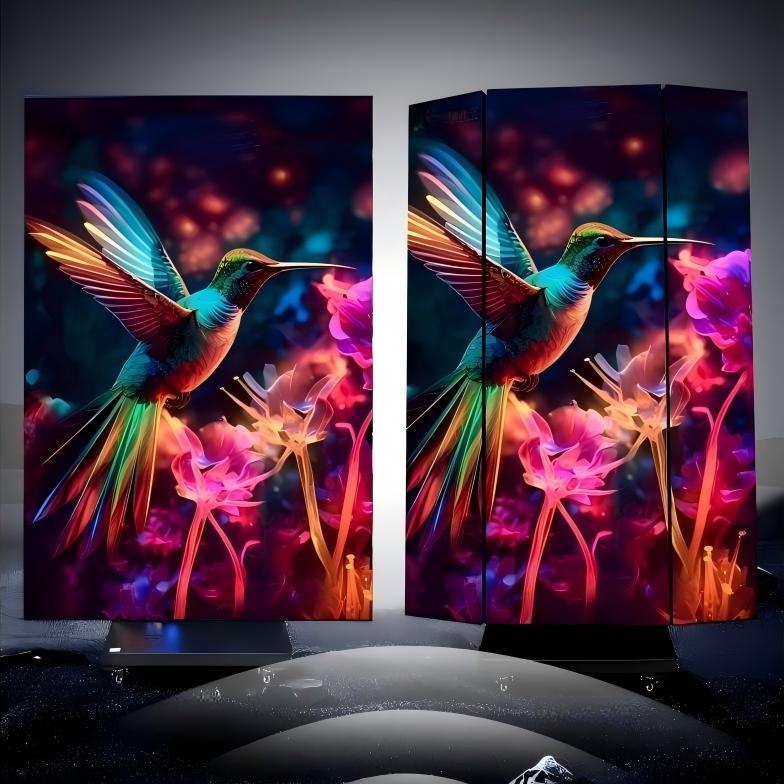

PRODUCT SIZE:Three-fold (double-sided) LED poster screen display

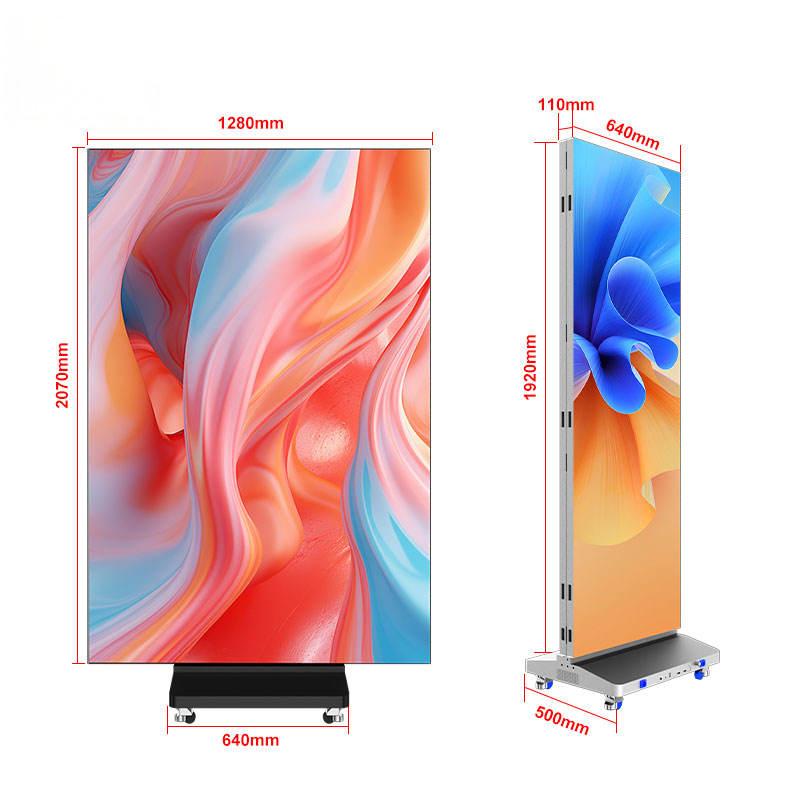

Unfold single-sided appearance size: 1280 * 2070 * 50mm(W*H*T)
Folding double-sided appearance size: 640 * 2070 * 110mm(W*H*T)
The three-fold mobile LED poster screen can be used for two purposes. When unfolded, it is a large screen 4.2ft by 6.3ft(1280mmx1920mm). After folding the two sides back, it becomes a double-sided poster screen with a single-sided display area of 640mmx1920mm.
P1.5 Tri-fold LED Poster display Paramenters:
| Product Name | HSCXLED-Trifold LED Poster Display |
| Model | P1.53 |
| Pixel pitch | 1.53mm GOB |
| Pixel density | 422500(dots/sqm) |
| Module size | 320*160mm |
| Pixel matrix per Module | 208*104 dots |
| Screen size | 1280mm*1920mm |
| Cabinet Resolution | 832*1248 dots |
| Cabinet Weight | 76kg/set |
| Scan mode | 1/52 scan |
| Cabinet Size | Unfolding:W1280*H1920mm(lncludes feet:W646*H2060mm*L550mm) |
| Refresh rate | 3840-7680hz |
| Brightness | 800-1000nit |
| Ingress Protection | IP40 |
| Viewing Angle | 160°/160° |
| AC Input Voltage | AC 110V/220V±10%,50Hz/60Hz |
| Gray Level | 14-16bit |
| Working Temperature | -40 -50(℃) |
| Operating Humidity | 10%~95% non-condensing |
| Video Format | Support RM,FLV,AVI,MP4 and other mainstream video formats |
| Display Function | Video/Text/Picture/Time/3D Text/Office/SWF |
| Controllnterface | Wifi/4G/USB HDMI*2,USB2.0*2,AUX*1 |
| Operating Equipment | Phone, iPad, PC, Internet |
| Life Time | ≥ 100000(Hours) |
| Control System | Novastar,Colorlight, HuiDu |
Tri-fold LED Poster Screen advantage:
Three fold design (convenient for transportation, saving transportation costs), both single-sided and double- sided displays are very convenient;
Provide plugs according to customer requirements, and they can be used immediately after being powered on;
Content publishing can be done through mobile app/computer app/computer network cable/remote network control;
Up to 6 units can be cascaded to splice the entire screen, with HDMI cable cascading for plug and play functionality;
Supports synchronous and asynchronous operations, and can display videos/images/ppt/word, etc.

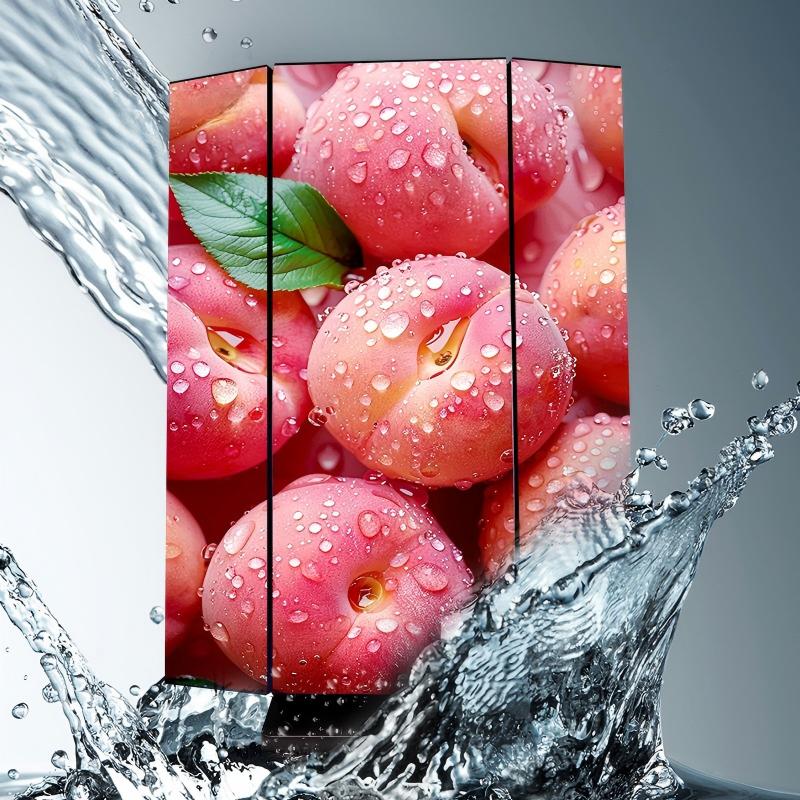

GOB process, moisture-proof, waterproof, and anti- collision.
Foldable led ScreenFeatures:

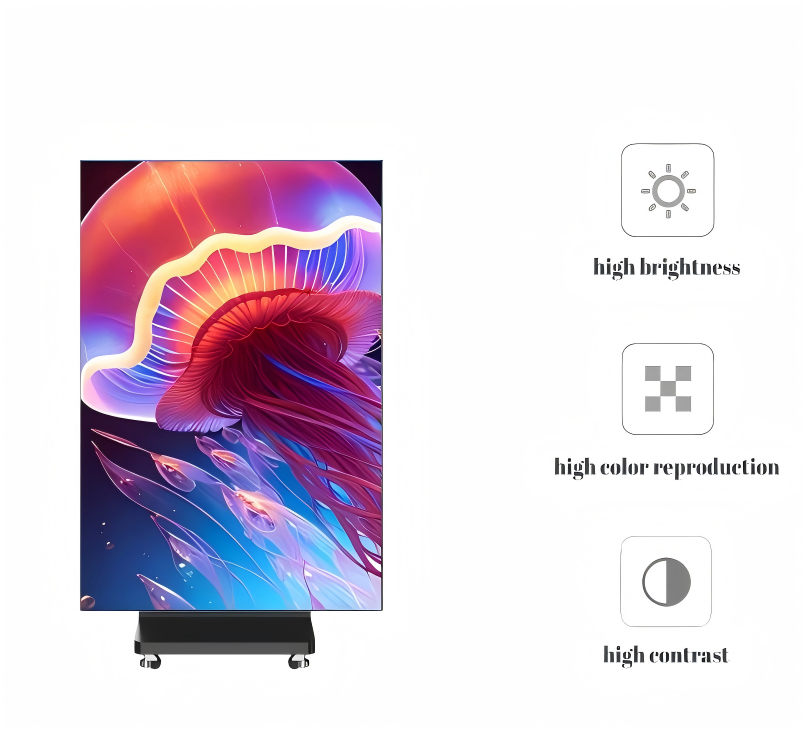

Ultra Clear Picture Quality
Three-folding poster led display, new design technology, fine picture quality, more natural,High brightness and high definition and realisticimaging.
Universal Wheel Design
Comes with 4 swivel wheels, making it easier to move and place wherever you want,you can glide the display to your desired location with minimal effort. One person can easily maneuver it.
Plug & Play:
Three-foldable LED poster display is a very easy LED display. Plug and Play,After sending the program, LED poster to automatically play video, pictures, text and other programs. There is no need to operate any work afterwards.
Reliability &Performance
Three-folding led poster display add GOB technology is adopted, which makes the screen body waterproof, dustproof, moisture-proof, and impact resistant, Dust-proof,Screen surface waterproof extending the service life of the display screen.Consistent color uniformity across folding sections.Robust construction maintains alignment through repeated folding cycles.
Flexible Control System
Can be controlled by WiFi, mobile phone, USB,EHTERNET,HDMI etc., which is very convenient and fast.The system supports synchronous/asynchronous ,It also supports synchronous display for scenarios such as meetings and live broadcasts.
Rapid Multi-Screen Integration
Quick-lock mechanism enables seamless splicing.Modular expansion for customized large-scale displays.Instant transformation from single unit to video wall configuration .
Integrated Audio-Visual System
Built-in high-fidelity speakers synchronize sound with content.Enhanced audience engagement through immersive experiences.All-in-one solution eliminates external audio equipment needs .
Effortless Front-Access Maintenance
Led poster screen supports front maintenance,Fully front-serviceable modules enable quick replacement.Reduced downtime through tool-free maintenance access.Streamlined operational efficiency for continuous operation.
LED poster display application:
led poster display as a display device in the exhibition, it supports the rapid splicing of multiple devices, and the screen splicing can be seamless, which can meet the display needs of various sizes and shapes.
LED mirror screen for Commercial advertising promotion,can be used in shopping malls, retail stores and other places to promote new products, promotional activities, brand image display, etc.Suitable for public places such as subway stations, airports, hotels, etc.Exhibition booths and trade shows.Corporate events and presentations.Hospitality venues and entertainment spaces.Educational institutions and conference facilities.
All-in-One Tri-fold LED Poster Design
The led poster features a left–right opening tri-fold dual-sided design, making it lighter and slimmer than traditional advertising screens. It offers a product size of 1280 × 2060 × 449mm and a display area of 1280 × 1920mm.
This all-in-one LED poster weighs 76-79kg and supports mobility. Simply plug it in to start using—easy to transport, install, and operate.
Stable Structure & Strong Performance
The Tri-fold LED Poster Display adopts a durable aluminum cabinet with a cold-rolled steel base, ensuring a strong and stable structure that resists deformation while keeping the display surface flat and reliable.
Equipped with an industrial-grade motherboard and a quad-core processor, it supports H.265 4K@60Hz decoding, delivering smooth, secure, and high-quality visual performance for professional applications.
High-Definition LED Display
Featuring advanced LED technology, this Tri-fold LED Poster Display delivers sharp resolution and vivid colors, perfect for showcasing dynamic videos or static images.
Ideal for malls, exhibitions, and conferences, poster led display helps promote brands, highlight products, and support event marketing effectively.
Seamless Splicing LED Display Poster
The Tri-fold LED Poster Display unfold for a seamless large display or fold into a double-sided screen, showing content on both front and back for maximum advertising impact.
Poster led display supports multi-screen splicing without heavy frames. Setup is quick, simple, and cost-effective. Single unit is 2:3, two units combine to 4:3 (91-inch) to match standard video perfectly.
Energy-Efficient LED Display
Designed for low power consumption and reduced emissions, poster led display ensures eco-friendly operation while maintaining high performance.
The Tri-fold LED Poster Display supports continuous 24/7 operation with stable temperature control, preventing overheating or screen damage, giving users peace of mind.
Durable Casters for Easy Mobility
Tri-fold LED Poster Display equipped with high-quality omnidirectional casters, each supporting over 50kg, ensuring stability and strength. Built-in adjustable support feet make it easy to move the display and keep it level at all times.
When connecting multiple screens, the adjustable feet allow quick alignment for a perfectly even setup.
Smart Cloud Control Management
Manage multiple displays remotely through a centralized platform. Easily customize content, windows, and playback modes.
Built-in fold-sensing system automatically switches between single- and double-sided display. Tri-fold LED Poster Display supports WIFI, 4G/5G, RJ45, USB, HDMI, and content can be published from PC, smartphone, tablet, or USB drive.
Optional Stereo Audio Support
The poster led display supports high-quality stereo audio with dual speakers, delivering synchronized sound and visuals for a more engaging advertising experience.
Optional feature: requires installation of active speakers to enjoy full stereo effect, enhancing both video and audio impact.
Easy Mobility and Transport
The LED poster display is equipped with high-quality universal wheels, each capable of bearing over 50kg. The sturdy and stable design, combined with built-in leveling support feet, allows easy movement and quick height adjustment during multi-screen splicing.
Comes with a standard ramp-equipped flight case for safe transport and rental applications. The lightweight, ergonomic design makes assembly, disassembly, and handling effortless—even for female users.
