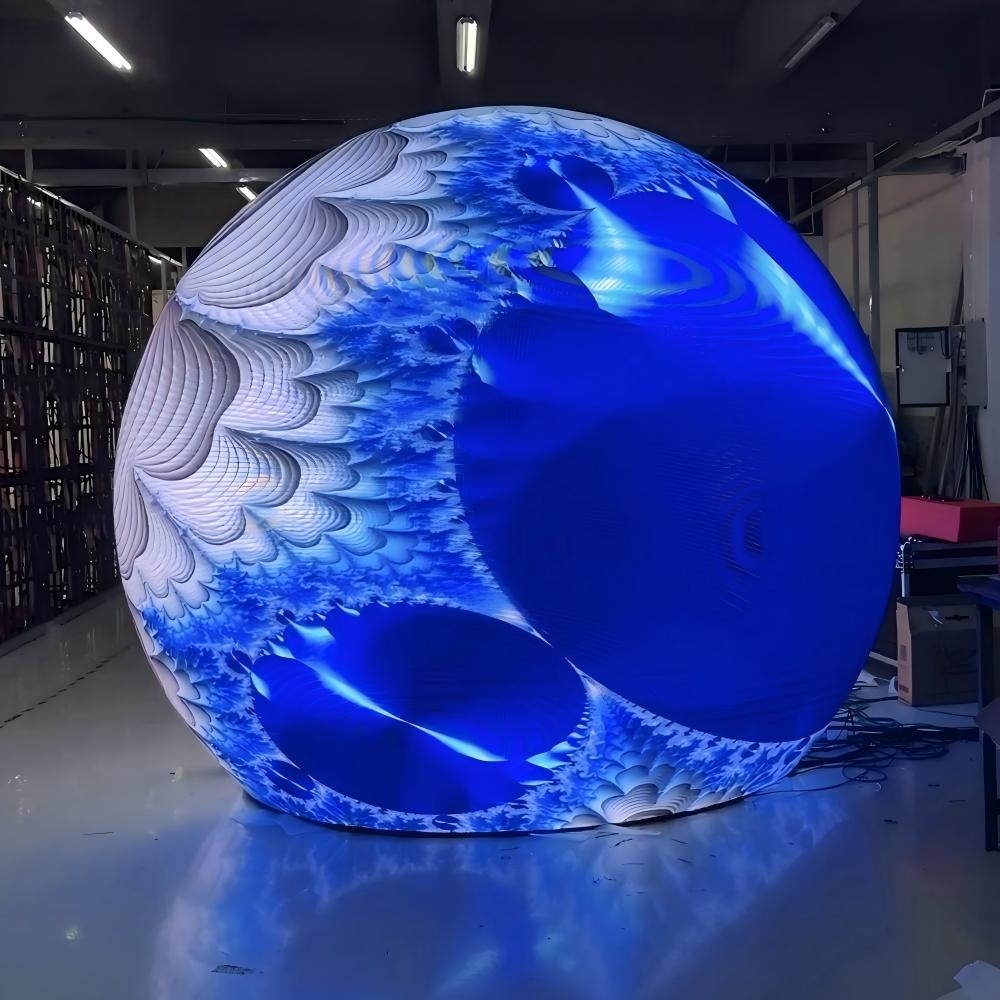

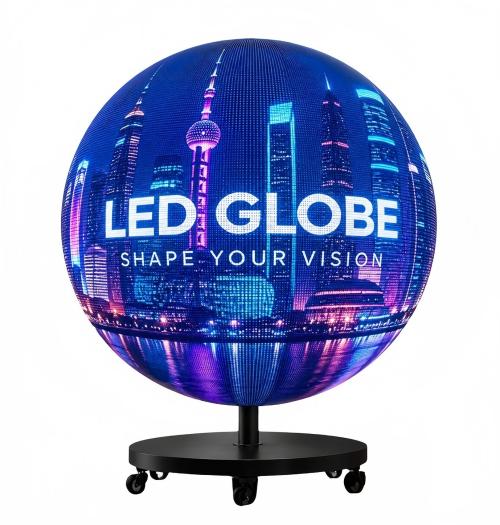

Spherical LED displays/ LED Sphere Display Screen/Spherical LED Video Ball Screen
360° Immersive Vision-Indoor & Outdoor Spherical LED Solutions
Size customized；Customizable pixel pitch and diameter
Indoor：P1.25/P1.53/P1.86/P2/P2.5/P3/P4
Outdoor：P3/P4/P5/P6/P8
Flexible material and creative shape，Lightweight design, excellent heat disspation
Seamless assembly；Customized PCB design with seamless splicing
Optional brightness（ 800nit or 6000nit）and High refresh rate ≥3840Hz,very stable image.
flexible control: compatible with asynchronous, support offline and online two ways.
Unique Cabinet Design - Easy to Install & Transport
 | Creative & Attractive Appearance LED spherical screen is a creative LED spherical display screen, with multiple display splits,telescopic special-shaped display, uniform technology display high-definition picture without distortion,super advertising value. |
360° Full View Display Provides 360-degree panoramic visuals, no blind spots, delivering immersive viewing experience from any angle. Support indoors and outdoors. |  |

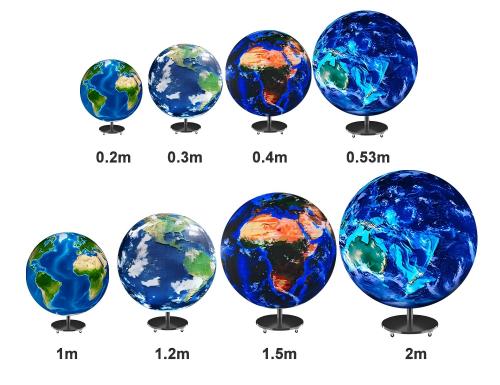

 | Customizable Size Supports custom sphere diameter to meet different space and display requirements. 0.5m / 0.6m / 0.8m / 1m / 1.2m / 1.5m / 2m / 2.5m / 3m / 4m / 5m / 6m / 7m / 8m / 9m /10m...... More diameter customization. For any custom led screen, HSCXLED team is devoted to provide best solutions with custom led sphere display technology |

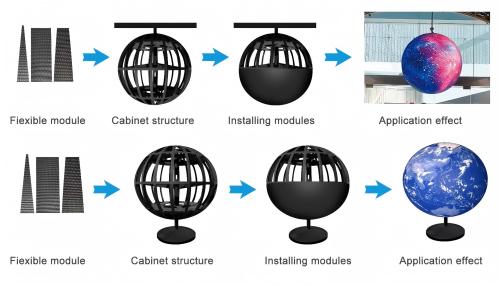

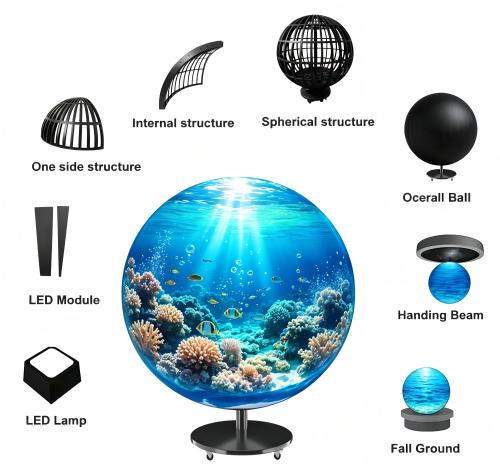

Flexible Modular Design Modular LED panels for easy assembly, disassembly and maintenance, they were formed todifferent shapes of LED displays，adaptable to different sphere sizes (small to large) |  |

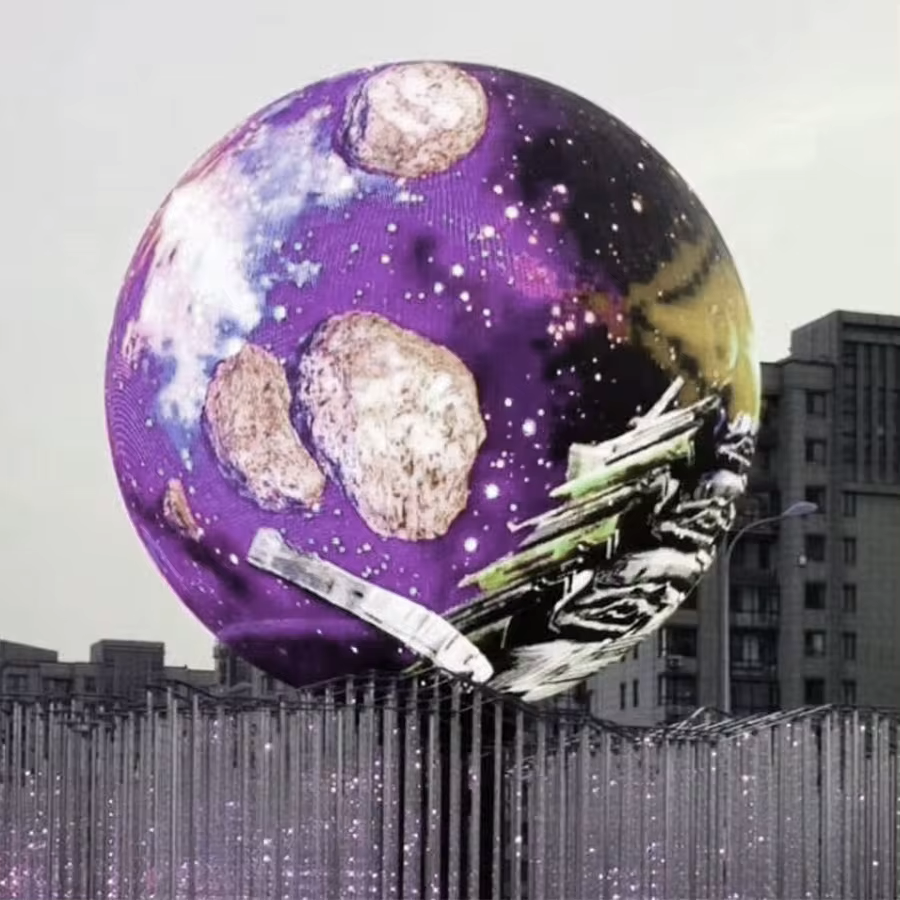

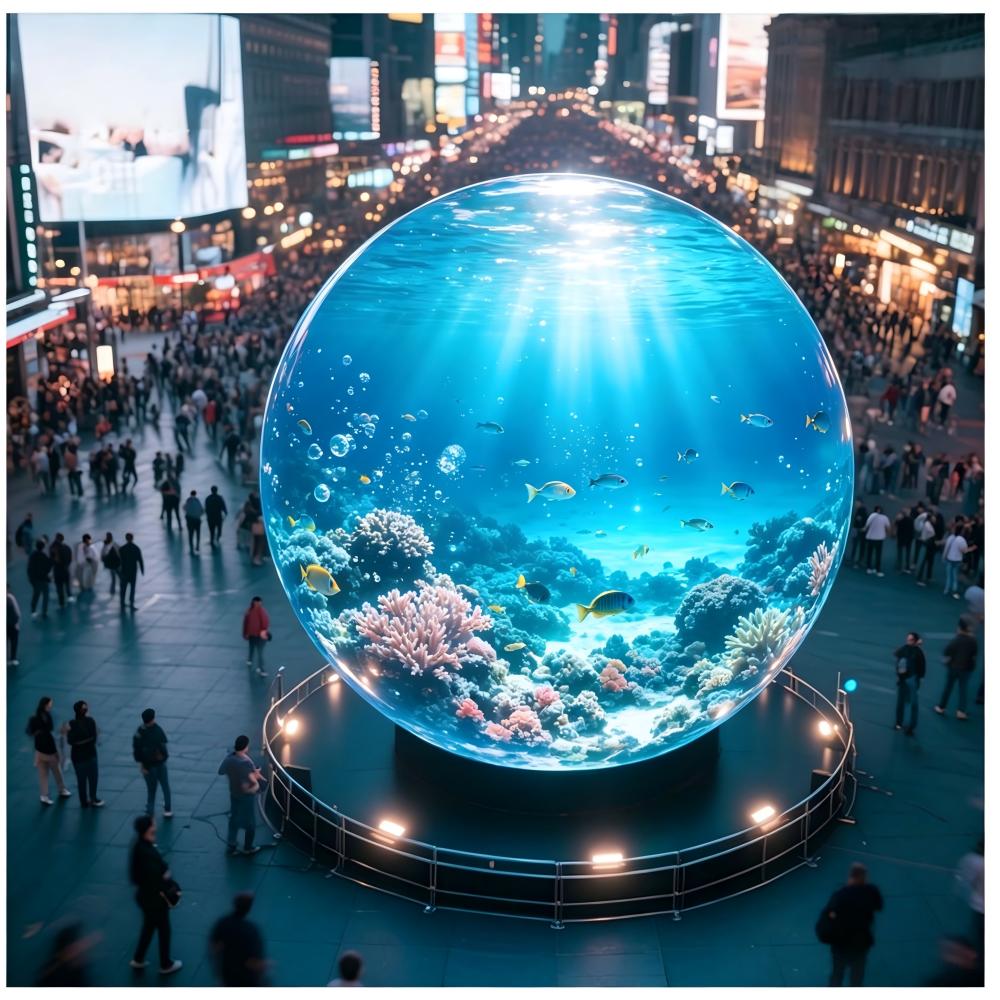

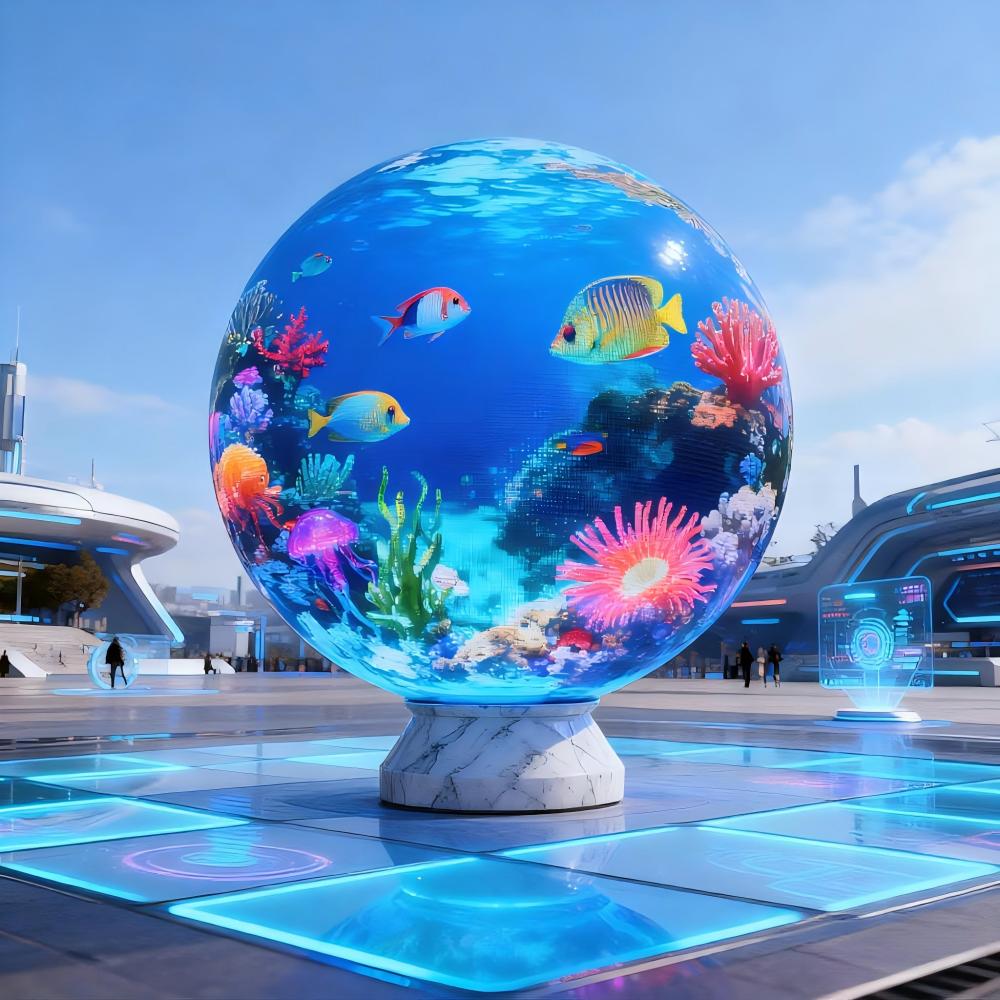

 | Outdoor Spherical LED Display Thanks to our team's great efforts and technology development, HSCXLED has got success with outdoor spherical led screen for outdoor applications. It's totally waterproof for IP68 protections and high bright. |
High-Definition & Vivid Visuals High resolution, high refresh rate and wide color gamut, ensuring clear, flicker-free and true-to-life images. |
|
 | Durable & Reliable High-strength cabinet with good dustproof and waterproof performance (IP54/IP65 optional), suitable for indoor and semi-outdoor use. |

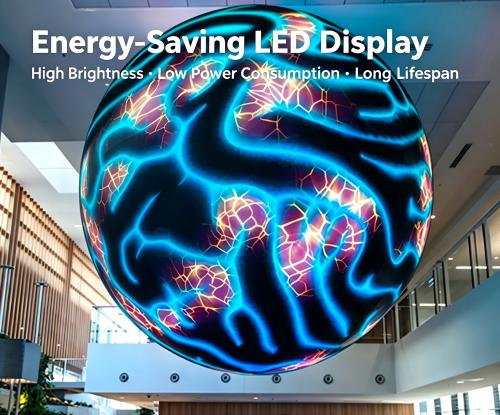

Energy-Saving & Low Power Consumption Optimized circuit design, low power operation, energy-efficient for long-hour continuous work. |  |
 | Easy control ways,Wide Compatibility Synchronous & asynchronous mode，Support multiple control ways Live broadcasting & autoplay without PC WiFi & USB control; Plug & Play solution via USB disk HDMI is available for controller and video processor Spherical led display screen can work 24/7 hours |

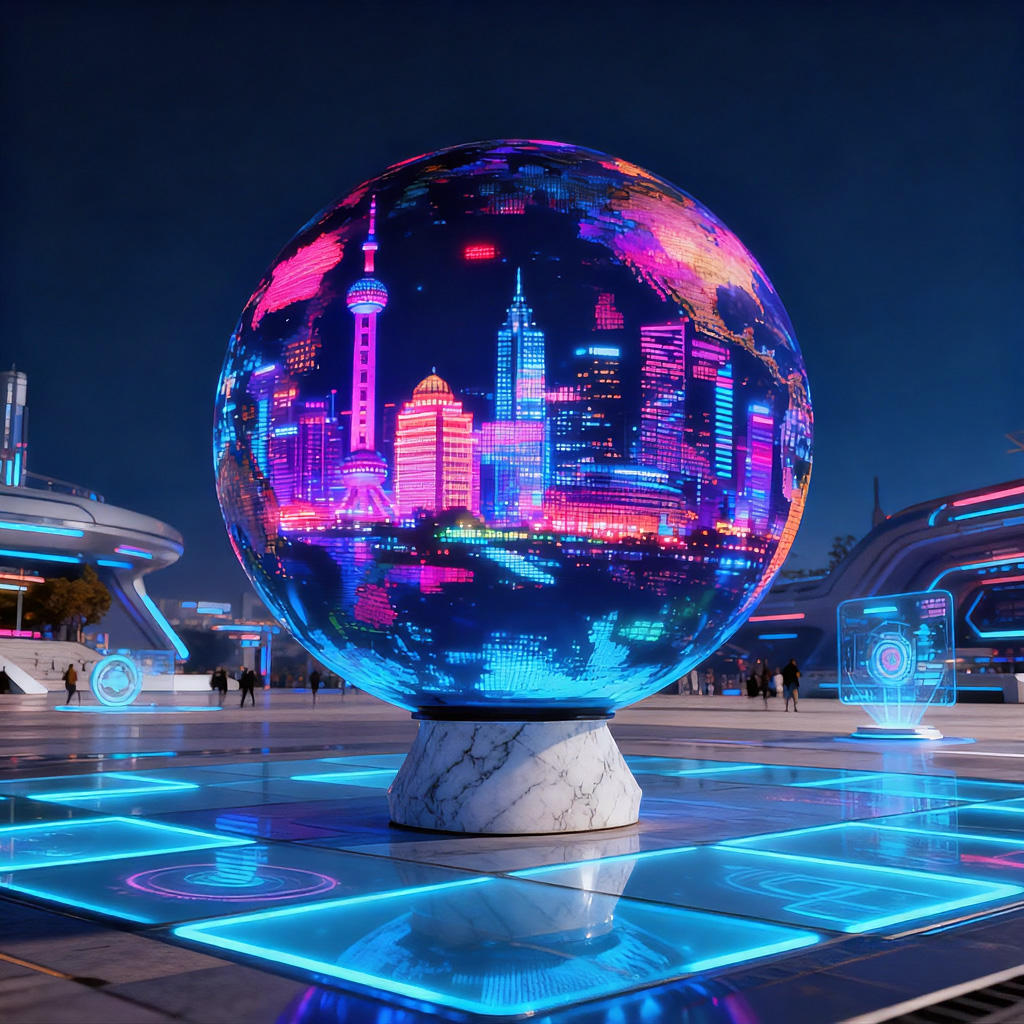

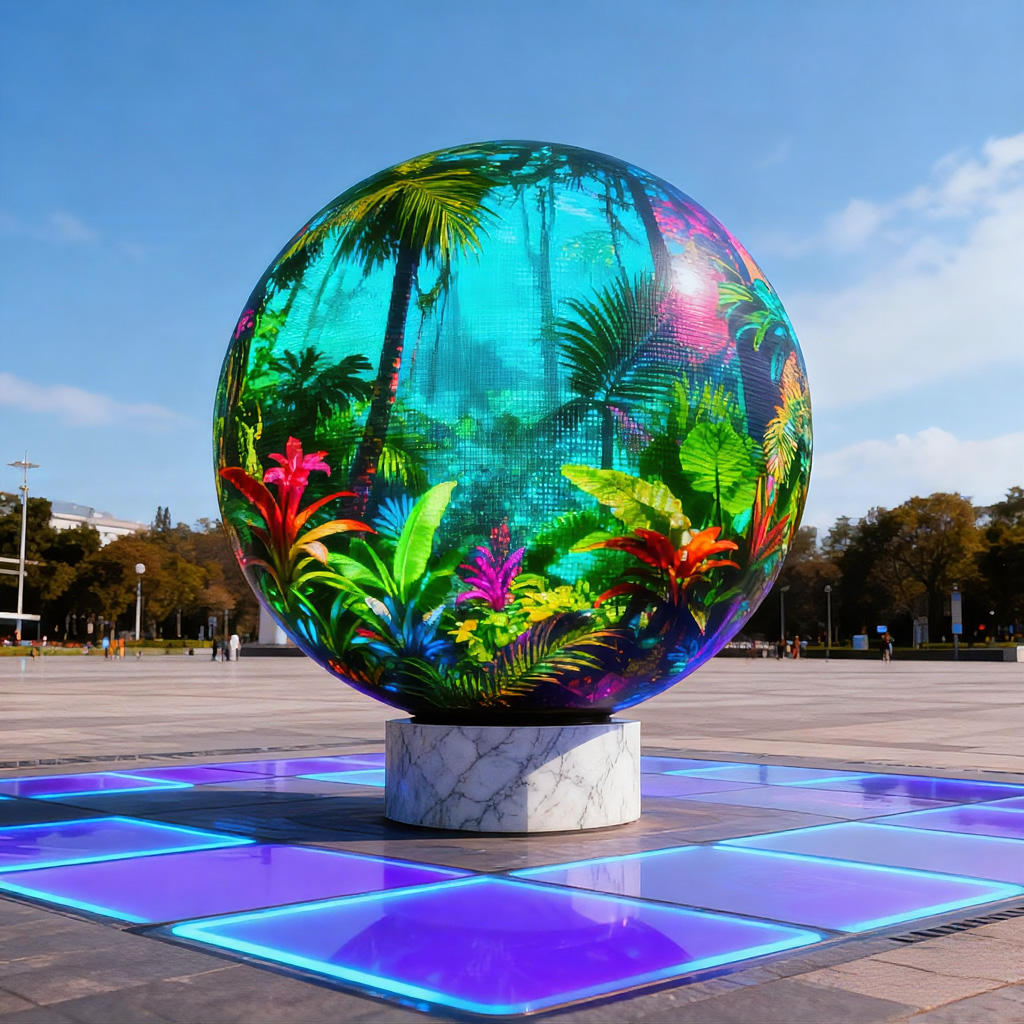

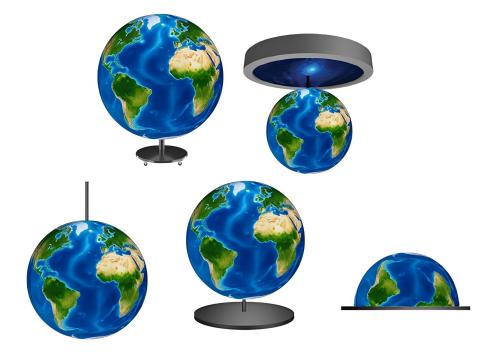

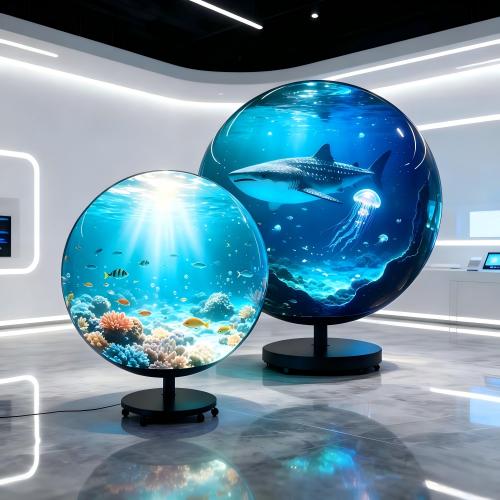

Flexible Installations Our led spherical display is compatible with lots of installation methods. It can be freestanding design with base, or hanging installation from the ceiling. Wall-mounted solution with bracket is also feasible.Lightweight modules, convenient for on-site assembly and transportation, reducing labor and logistics costs |  |
 | Plug & Play Solution Led video ball can be plug & play solution for led sphere screen. No need for configuration with video processor. Extremely easy for end-users and customers |

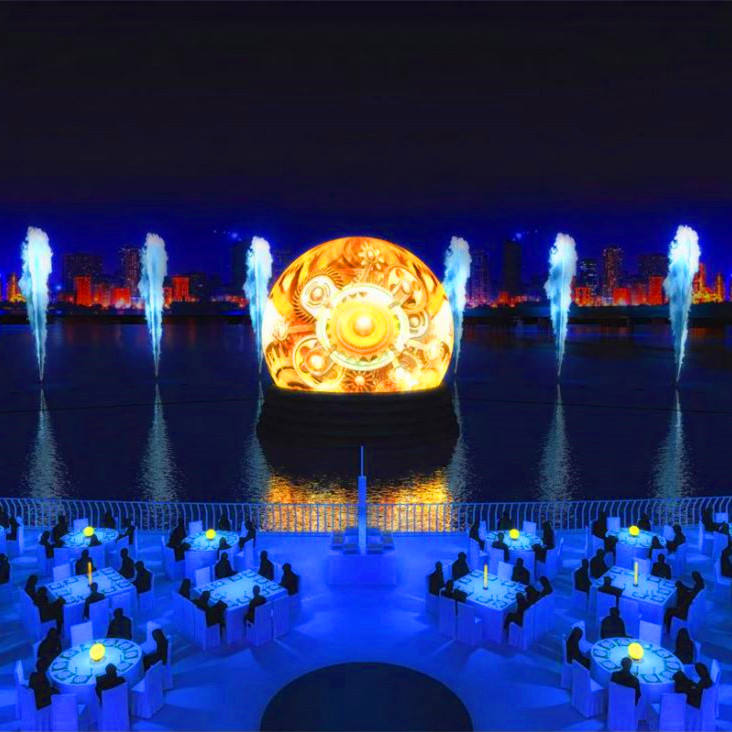

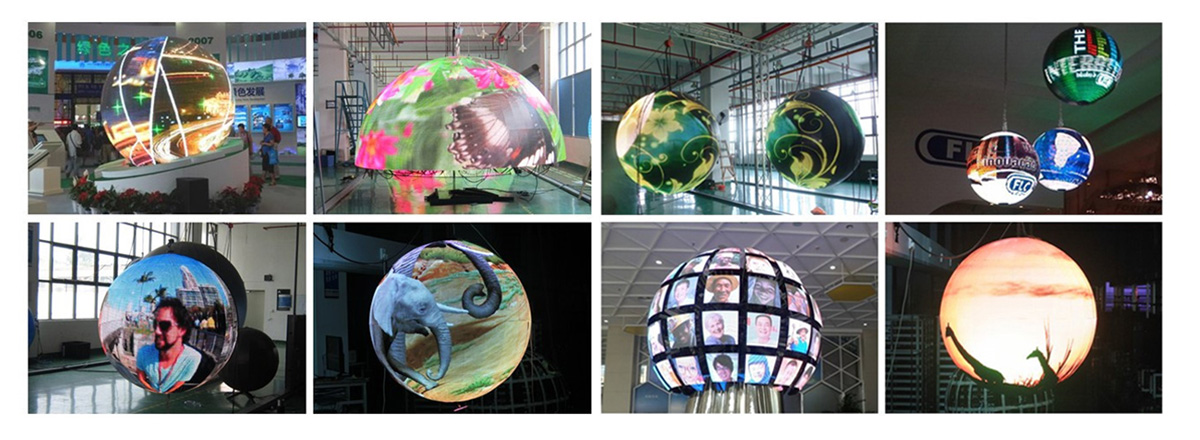

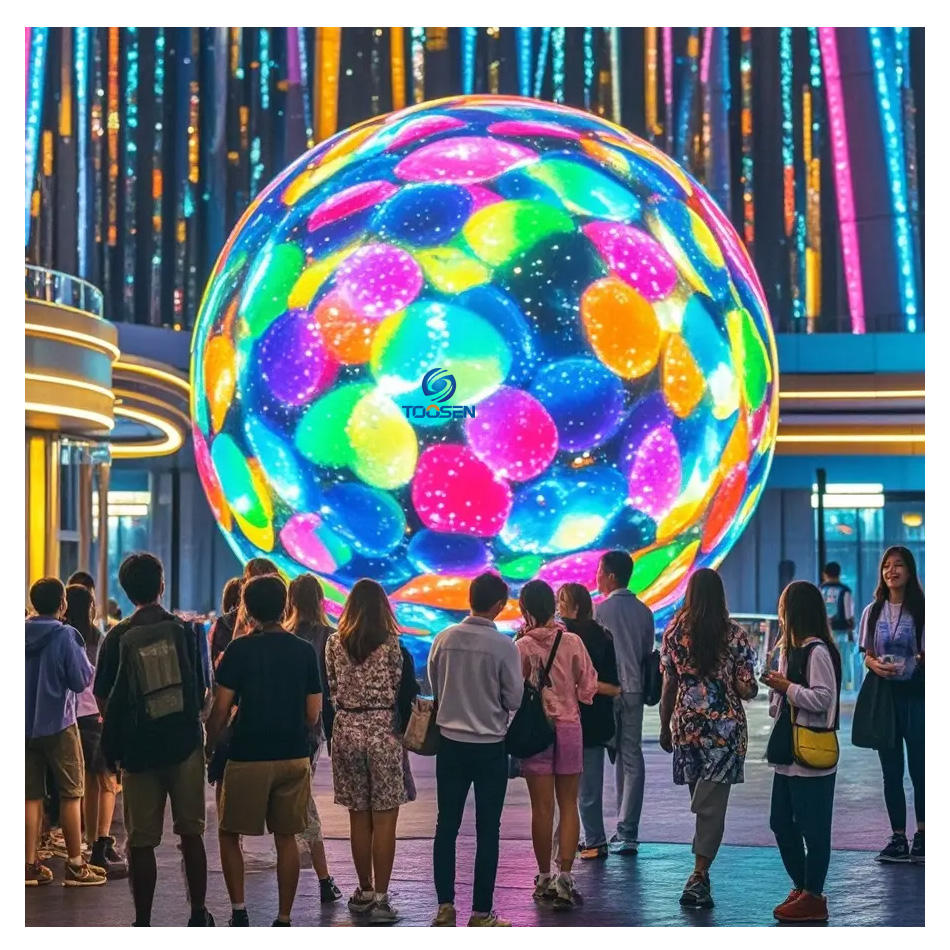

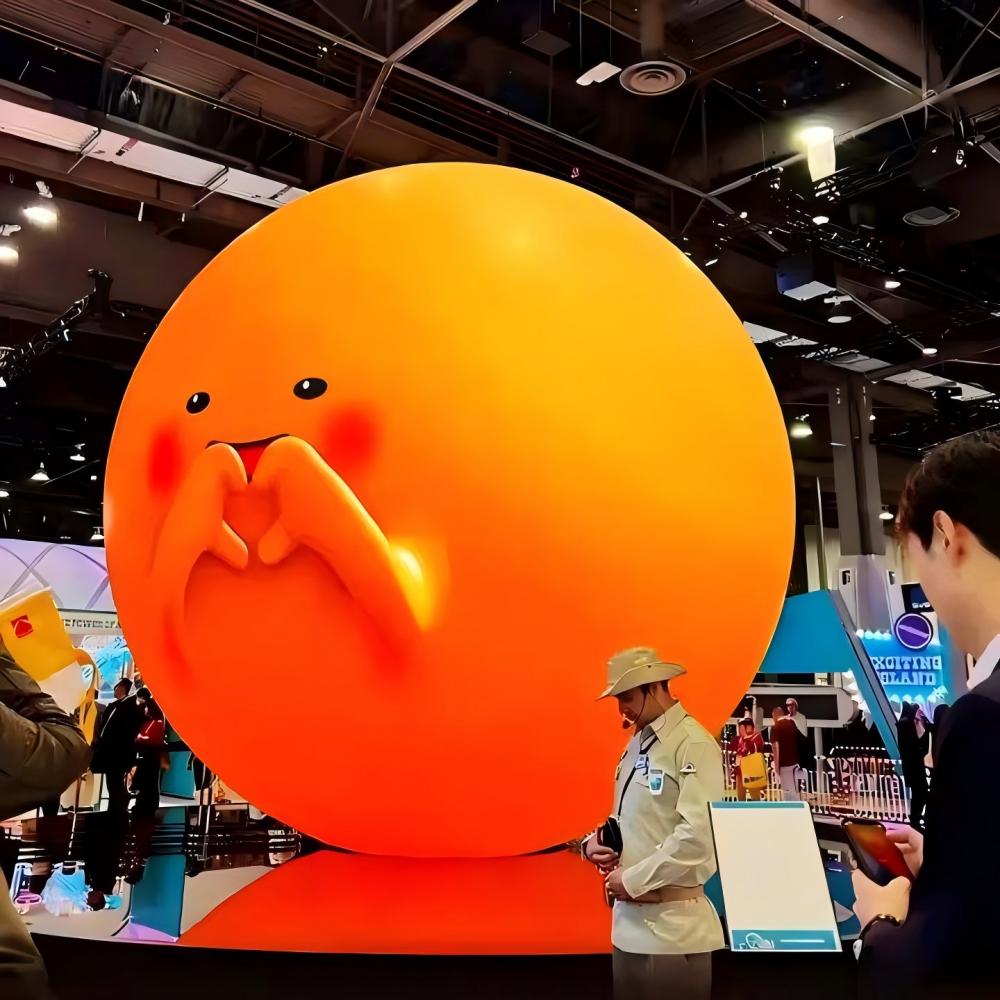

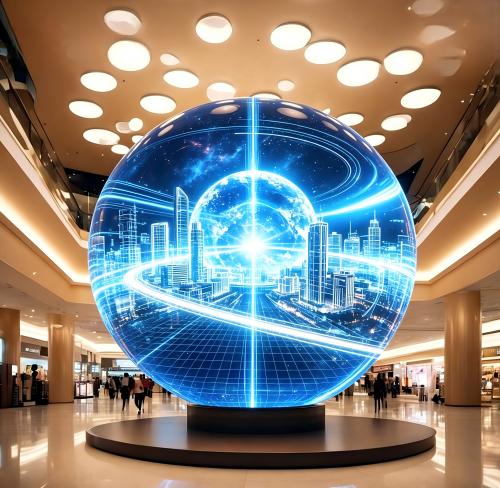

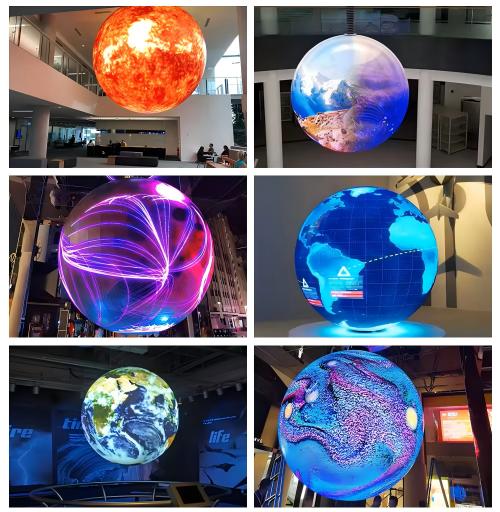

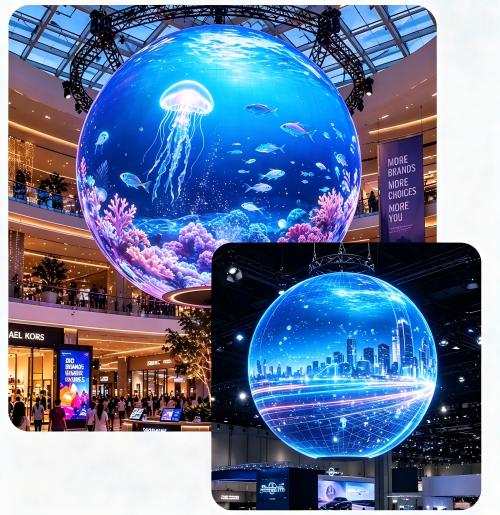

Versatile Application Led video ball is perfect for shopping malls, exhibition centers, science museums, theme parks, hotels, stages and commercial advertisements.It's also perfect for club and stage's lighting effect with sphere led screen. |  |
| Indoor Sphere led display | |||||
| Pixel Pitch | P1.25 | P1.5 | P1.8 | P2 | P2.5 |
| Pixel Density | 640000dots/㎡ | 422500dots/㎡ | 289050dots/㎡ | 250000dots/㎡ | 160000dots/㎡ |
| LED Package | SMD1010 | SMD1010 | SMD1212 | SMD1212 | SMD1515 |
| Sphere LED Screen Diameter | 0.5m / 0.6m / 0.8m / 1m / 1.2m / 1.5m / 2m / 2.5m / 3m / 4m / 5m / 6m / 7m / 8m / 9m /10m......More diameter customization. | ||||
| Module Size | Customized | ||||
| Brightness | 600-1000cd/m² | ||||
| Refresh Rate | ≥3840Hz/7680hz | ||||
| Viewing Angle | 360° | ||||
| Humidity | 10%~90% | ||||
| Maintenance | Front/Back service | ||||
| Ingress Protection | Indoor Front: IP35, Back: IP45 | ||||
| Life-Span | 100000 Hours | ||||
| Working Voltage | 100V-240V,50Hz/60Hz | ||||
| Temperature Range | Working :-25°C~60°C，Storage:-35°C-80°C | ||||
| Installation | Hanging or Fixed | ||||
| Ontrol system | Mooncell,colorlight | ||||
| Life-Span | 100000 Hours | ||||
led sphere video ball, led sphere display video screen, LED spherical screen
| Outdoor Sphere led display | |||||
| Pixel Pitch | P3 | P4 | P5 | P6 | P8 |
| Pixel Density | 111111dots/㎡ | 62500 dots/㎡ | 40000dots/㎡ | 27777dots/㎡ | 15625dots/㎡ |
| LED Package | SMD1515 | SMD1921 | SMD1921 | SMD2727 | SMD3535 |
| Sphere LED Screen Diameter | 0.5m / 0.6m / 0.8m / 1m / 1.2m / 1.5m / 2m / 2.5m / 3m / 4m / 5m / 6m / 7m / 8m / 9m /10m......More diameter customization. | ||||
| Module Size | Customized | ||||
| Brightness | ≥5000cd/m² | ||||
| Refresh Rate | ≥3840Hz/7680hz | ||||
| Viewing Angle | 360° | ||||
| Humidity | 10%~90% | ||||
| Maintenance | Front/Back service | ||||
| Ingress Protection | Outdoor Front:IP65, Back:IP54 | ||||
| Life-Span | 100000 Hours | ||||
| Working Voltage | 100V-240V,50Hz/60Hz | ||||
| Temperature Range | Working :-25°C~60°C，Storage:-35°C-80°C | ||||
| Installation | Hanging or Fixed | ||||
| Ontrol system | Mooncell,colorlight | ||||
| Life-Span | 100000 Hours | ||||
Why choose HSCXLED Shaped LED display

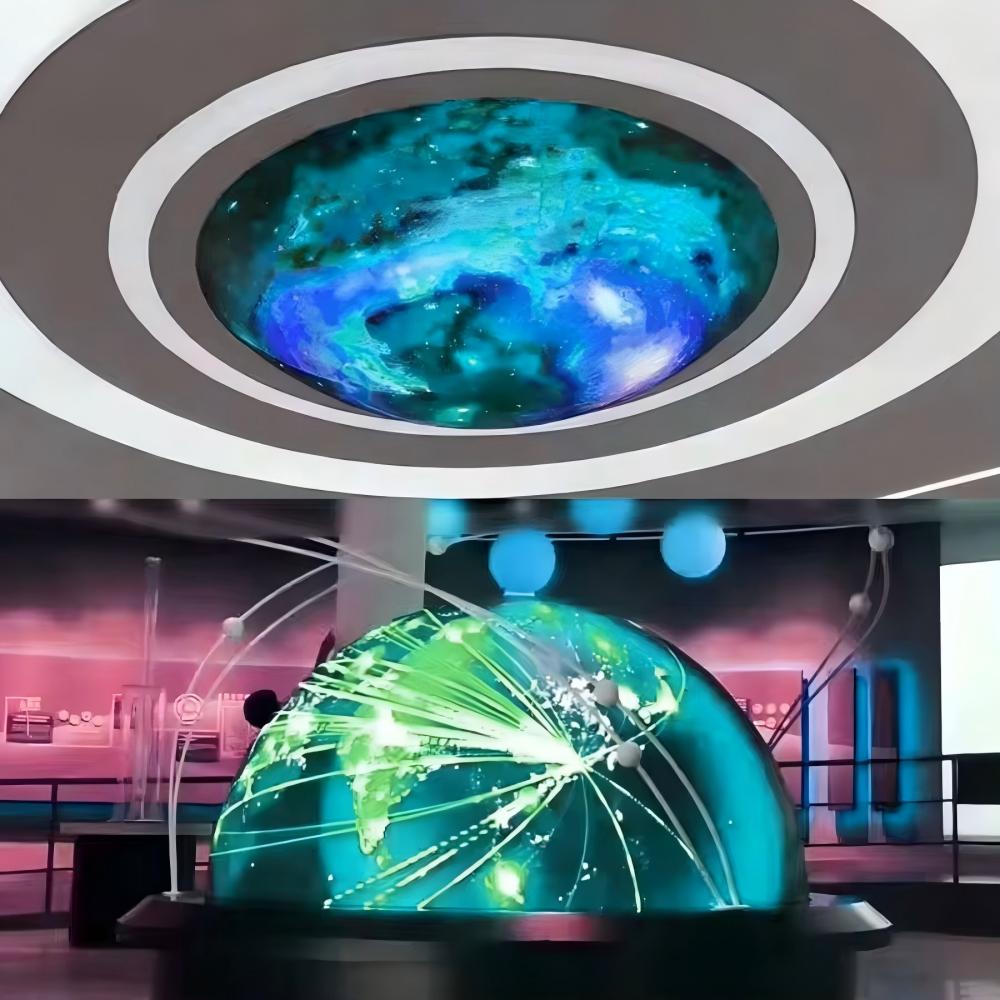

HSCXLED is a factory that can provide OEM and ODM services. We are the most mature developer and manufacturer of spherical led screen technology. We produce in bulk, so our prices are very competitive. The spherical led screen is a high-end design currently on the market, with a strong sense of technology. Spherical screens come in different diameters, shapes and pixel pitches, suitable for different occasions - planetariums, science and technology museums, schools, etc.
HSCXLED factory produce Fine Pitch Spherical LED Screen. Can customize any diameter and pixel pitch as needed, support outdoor hanging installation, stand onground or mobile use.
Quality: We have a strict quality control system. All products ordered from our factory are inspected by a professional quality control team.
After-sales service: We provide after-sales service team, all problems and questions will be resolved by our after-sales service team.
MOQ: We accept small orders and mixed orders. According to our customers' requirements, as a dynamic team, we want to connect with all our customers.
Experience: As a dynamic team, through our more than 10 years of experience in this market, we are still continuing to research and learn more knowledge from customers, hoping that we can become the largest and professional supplier in China in this market Business one.
OEM: Accept ODM/OEM.
Samples: We provide of this product from our source.
Production time: Within 15 -25 working days after confirming the order.
